Focusrite ISA-430 MKII - Producer Pack

Search your instruction manual in PDF to download

User Manual for Focusrite ISA-430 MKII - Producer Pack Signal Processor

Click to enlarge the picture
Focusrite ISA-430 MKII - Producer Pack Signal Processor Contents of the user manual for the Focusrite ISA-430 MKII - Producer Pack
  • Product category: Channel Strips Focusrite
  • Brand: Focusrite
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Focusrite Channel Strips

User manual for the Focusrite ISA-430 MKII - Producer Pack contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Focusrite product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!



Product description

  • Focusrite // Recording Ajimal with Guy Massey and the ISA 430

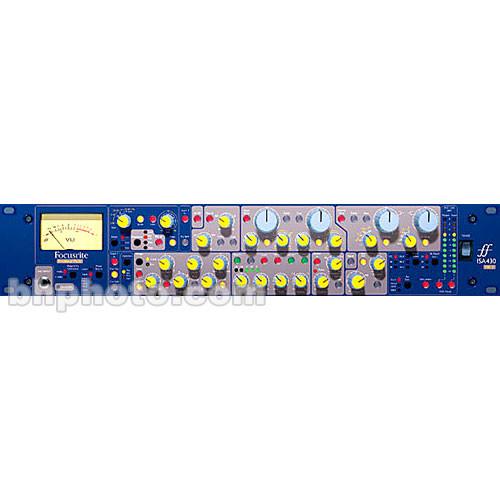

The ISA 430 MKII is a single input analog channel strip that brings together all of Focusrite's classic processor designs in one comprehensive production tool. Apart from the microphone preamp, the unit is augmented with a compressor, limiter, EQ, de-esser and gate, alongside very comprehensive internal routing and connectivity. The ISA 430 MKII enables today's recording professional to enjoy the unique sonic contribution of these heritage designs within a single, extremely versatile processor.
  • Classic Focusrite transformer-based Mic-pre with variable impedance and "Air" feature
  • Multi format compressor that switch between Focusrite's transparent VCA circuit and a vintage optical circuit
  • Unmatched flexibility with an incredible variety of insert points and variable signal path arrangements
  • Ability to function as three separate modular processors - microphone preamp, EQ and dynamics
  • Precision VU metering of input level, insert 1 or 2 return level, compressor gain reduction or sidechain listen level (switched)
  • Classic Focusrite EQ design based around an expanded version of the original ISA 110
  • Post microphone preamp output for the shortest possible signal path
  • "Listen" feature for precise control over compression, gating, expansion and de-essing
  • De-esser design based on optical technology for lower distortion and transparency
UPC: 815301005063 In the Box Focusrite ISA-430 MKII - Producer Pack Signal Processor
  • AC Power Cable
  • Limited 2-Year Warranty
