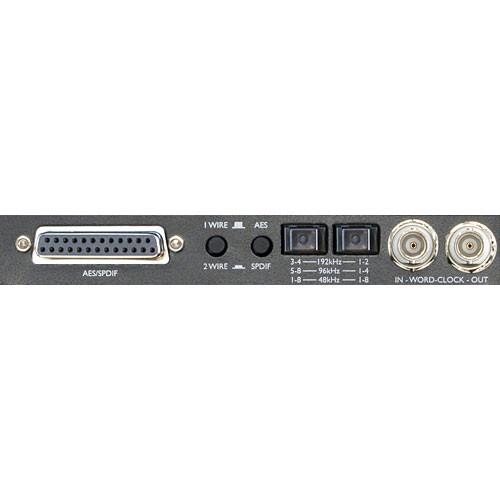

User Manual for Focusrite ISA 8-Channel ADC - Expansion Card for ISA 828 Click to enlarge the picture
Contents of the user manual for the Focusrite ISA 8-Channel ADC - Expansion
- Product category: Preamp Accessories Focusrite
- Brand: Focusrite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focusrite Preamp Accessories
|
User manual for the Focusrite ISA 8-Channel ADC - Expansion contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focusrite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!
|
Product description The ISA 8-Channel ADC from Focusrite is an optional 192kHz analog-to-digital converter expansion card for the ISA 828 eight-channel preamp. It utilizes Burr-Brown amplifiers and PCM4220 A-D converter chips, allowing the card to deliver superior performance that includes a dynamic range of 122dB, and jitter of less than 250 picoseconds. The card can be field-installed at any time, and the 25-pin D-Type connector aids in integrating the ISA 828 seamlessly with any ProTools HD systems, as well as other popular hard disk recorders and mixing desks. Digital formats include an eight-channel single/dual wire AES/EBU and S/PDIF output, as well as an eight-channel ADAT Lightpipe (SMUX/SMUX2) output. Word clock I/O is provided via dedicated BNC connectors. - Optional 24-bit/192kHz digital output board for ISA 828
- AES/EBU, TOS-link and SPDIF digital output formats
- Supports external wordclock
UPC: 815301005094 In the Box Focusrite ISA 8-Channel ADC - Expansion Card for ISA 828 Internal Connection Cable 4 x Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite ISA 8-Channel ADC - Expansion Card for ISA 828 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite ISA-8CH-A-D-CARD Specs | External Connectors | 1 x 25-pin D-sub AES-S/PDIF
2 x ADAT Lightpipe
2 x BNC Wordclock I/O | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 11.0 x 8.5 x 2.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
