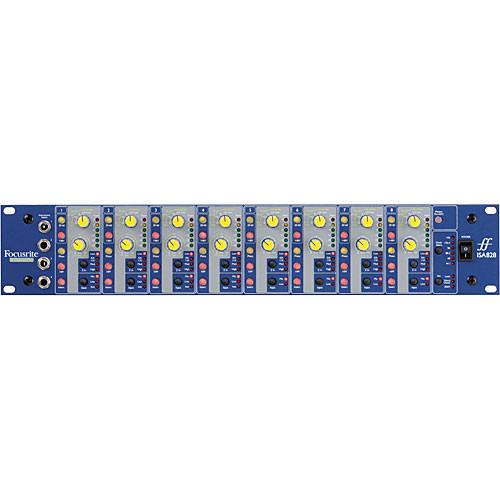

User Manual for Focusrite ISA-828 - Microphone Preamp Click to enlarge the picture
Contents of the user manual for the Focusrite ISA-828 - Microphone Preamp
- Product category: Microphone Preamps Focusrite
- Brand: Focusrite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focusrite Microphone Preamps
|
User manual for the Focusrite ISA-828 - Microphone Preamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focusrite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!
|
Product description - Focusrite // The ISA 428 & 828 with Damian Taylo
The ISA-828 from Focusrite is an eight-channel microphone preamp, featuring original ISA transformer-based preamps with the signature high-end Focusrite sound. The microphone input stage provides a variable impedance circuit comprising four input impedance settings. Maximum gain is a very healthy 80dB, for use with low output dynamic and ribbon microphones. Channels one through four include DI inputs that feature high and low impedance options, delivering a comprehensive and accessible DI solution. An eight-channel optional analog to digital converter card makes the ISA-828 the perfect front-end for a DAW. - Eight channel microphone preamp featuring original ISA transformer-based preamps
- Each channel can accept either microphone or line input
- Channels 1 - 4 also accept instrument inputs for guitars and basses, or vintage synthesizers with high impedance outputs
- Microphone input can deliver up to 80dB of gain, particularly useful when working with very low output dynamic and ribbon microphones
- Phantom power and phase switches provided on each input
- High-pass filter on each channel provides a 75Hz knee frequency with 18dB/octave roll-off
- Variable microphone impedance with four settings of 600, 1.4k, 24k and 6.8kΩ
- Six-LED input meter per channel
- Optional eight-channel 192kHz analog-to-digital converter card provides eight channels A/D conversion, delivering a dynamic range of 122dB and jitter at <250 picoseconds
UPC: 815301005087 In the Box Focusrite ISA-828 - Microphone Preamp AC Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite ISA-828 - Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite ISA-828 Specs | Number of Channels | 8 | | Inputs | 8 x XLR
8 x 1/4" TRS phone Line
4 x 1/4" TS phone Instrument | | Output | 1 x 25-pin D-sub (8 x analog outputs) | | Phantom Power | 48V, individually selectable | | Multi Function | No | | Gain Range | Mic: 0dB to 60dB in 10dB steps (an additional 20dB is available via trim controls)
Line: -20dB to +10dB in 10dB steps
Instr: 10dB to 40dB continuously variable | | Maximum Output Level | 24dBu | | Frequency Response | Mic: 10Hz to 110kHz, -0.3dB/-3dB
Line: 10Hz to 122kHz, -0.3dB/-3dB
10Hz-200kHz +/-0.6dB | | Noise | Mic SNR: 106dB
Line SNR: 120dB | | Dimensions (WxDxH) | 19 x 12 x 3.5" (482 x 305 x 88mm) | | Weight | 19.4 lbs (8.8 kg) | | Specialties | Provision for adding optional eight-channel analog to digital converter card with Wordclock I/O, and which also provides insert functionality on all eight-channels | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 25.0 x 19.7 x 8.7" |
