User Manual for Focusrite ISA ONE - Microphone Preamp Click to enlarge the picture
Contents of the user manual for the Focusrite ISA ONE - Microphone Preamp
- Product category: Microphone Preamps Focusrite
- Brand: Focusrite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focusrite Microphone Preamps
 |
User manual for the Focusrite ISA ONE - Microphone Preamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focusrite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!
|
Product description - Focusrite // Recording Terra Grimard with the ISA One

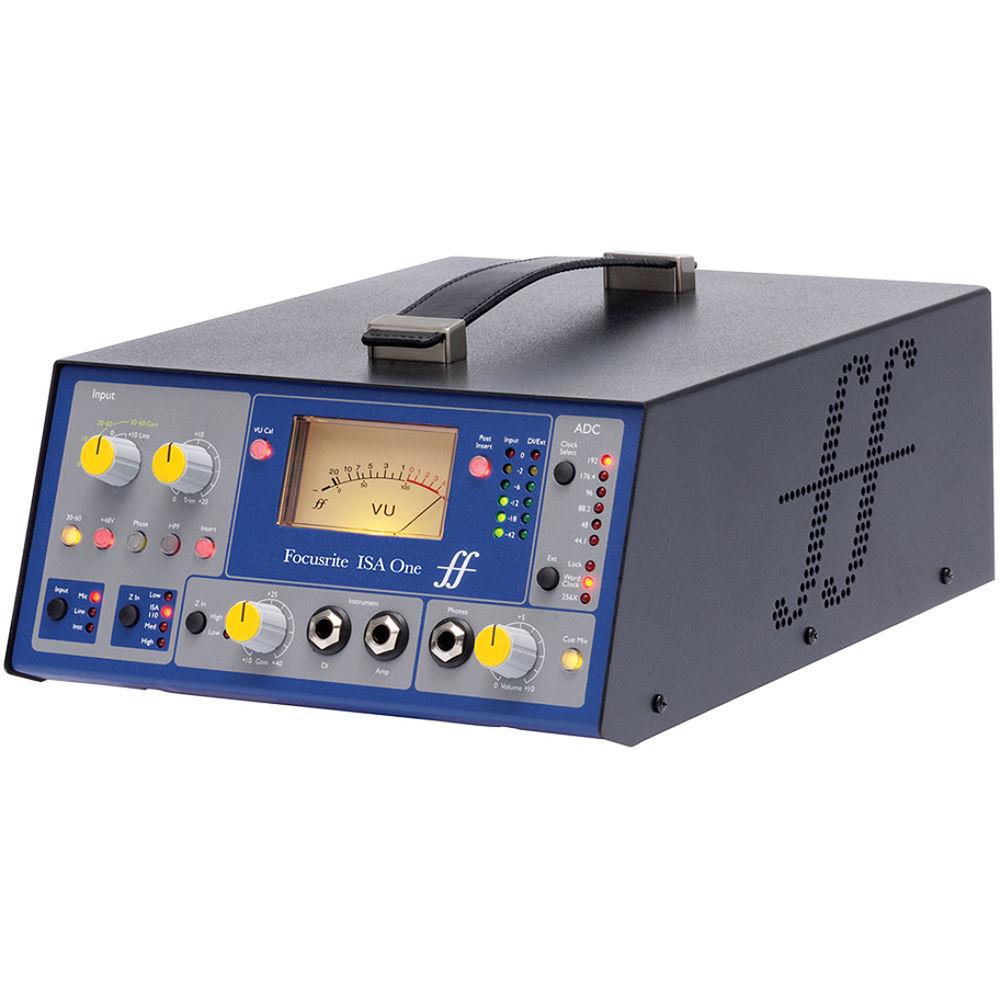

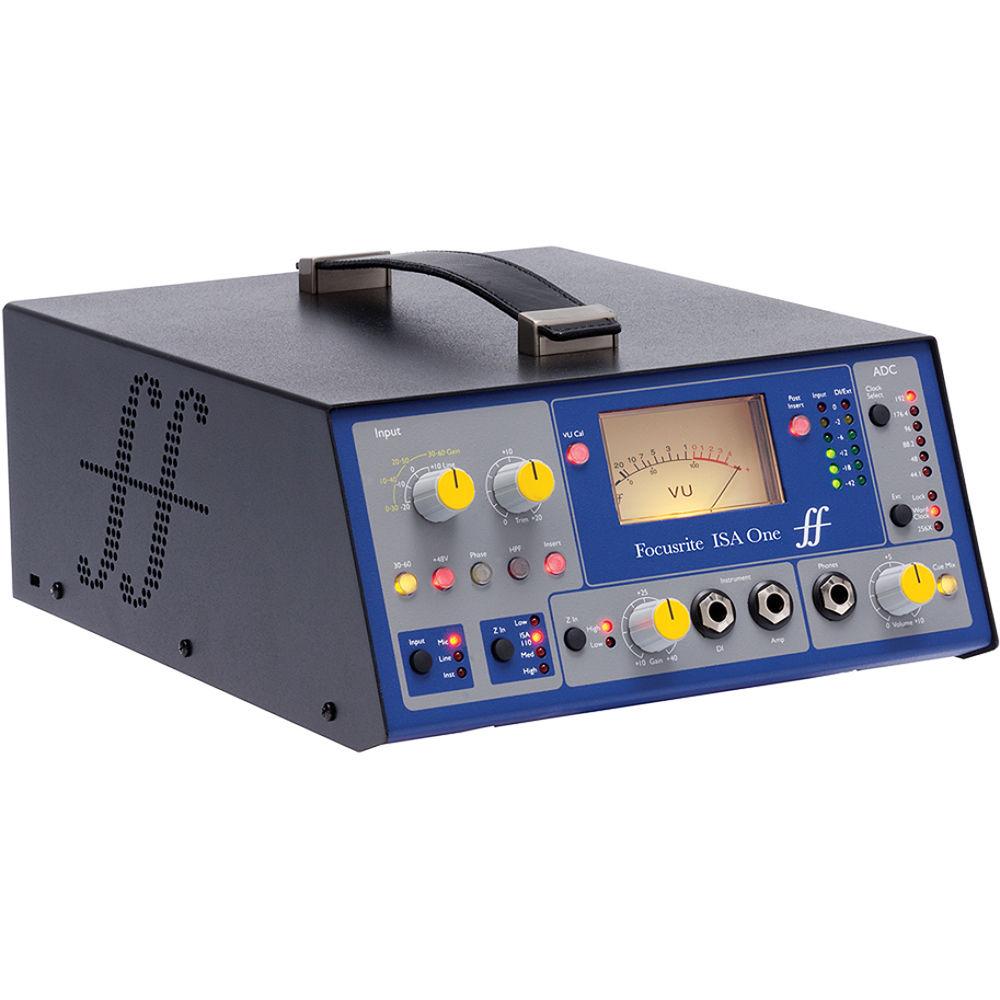

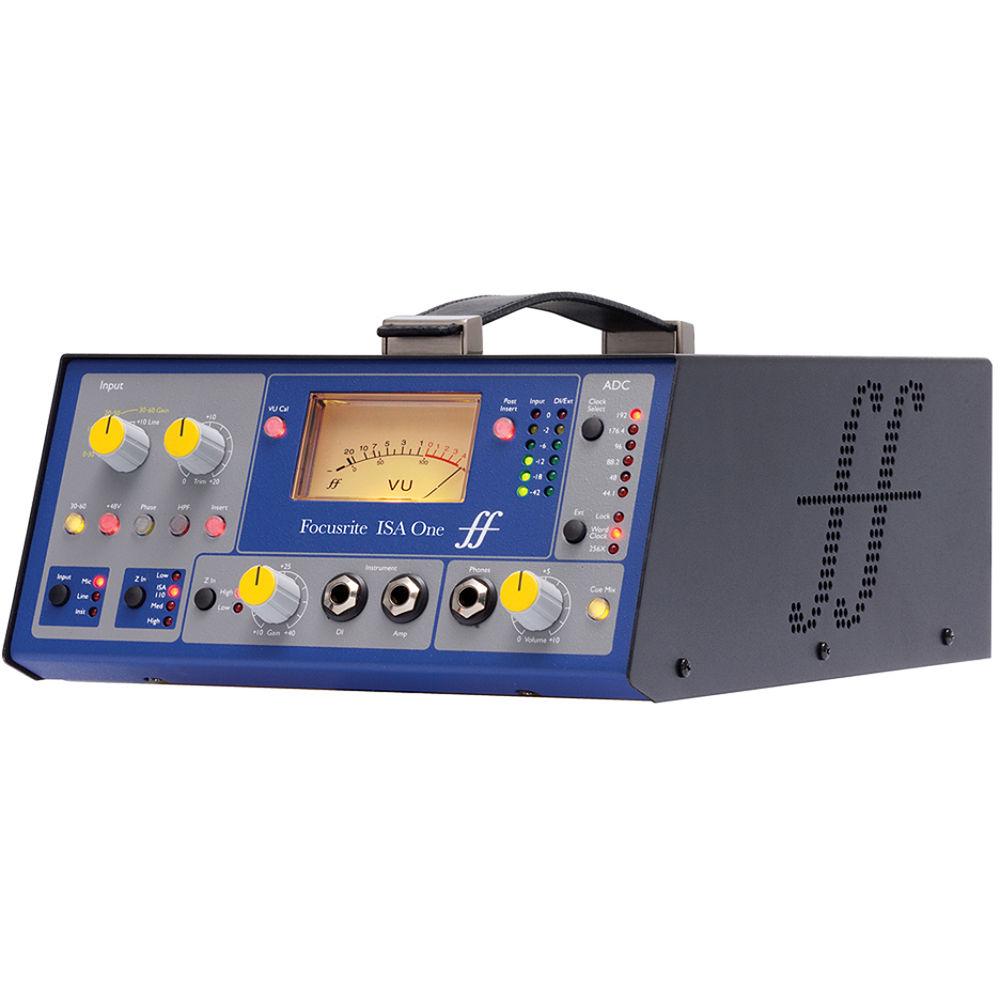

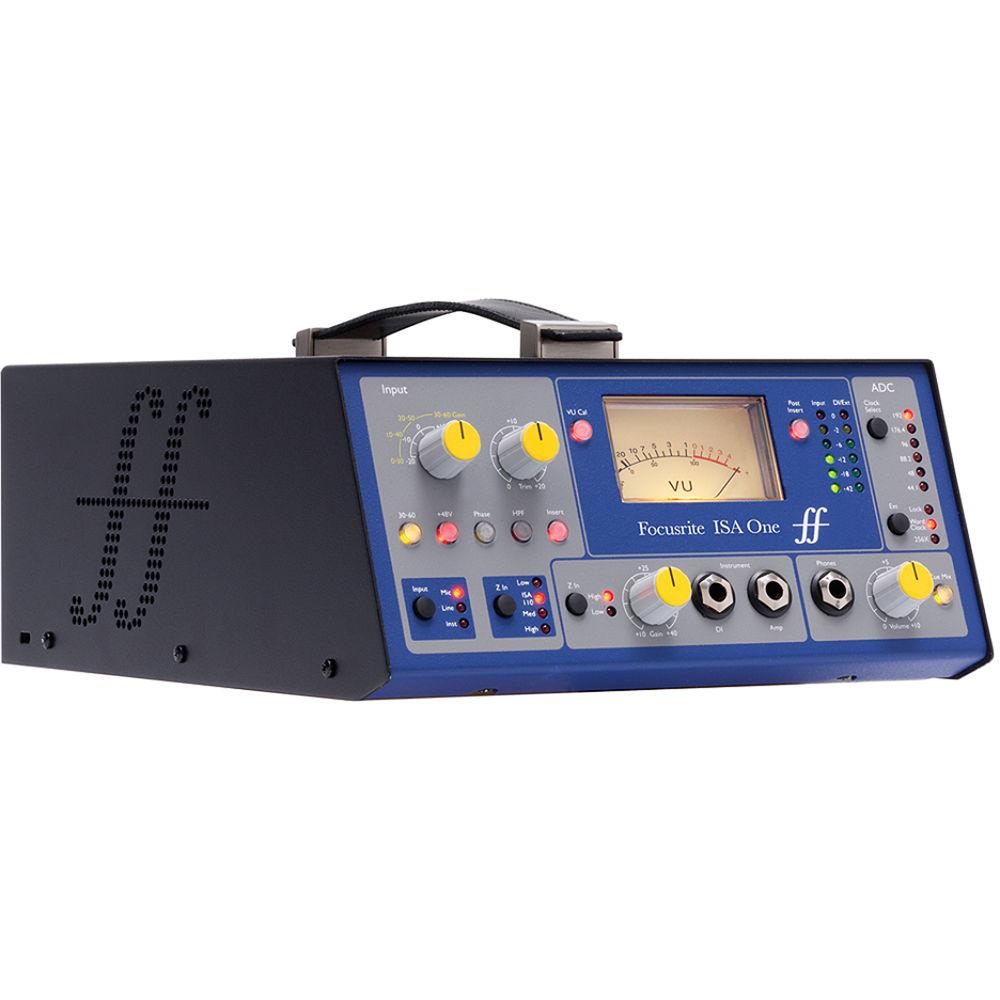

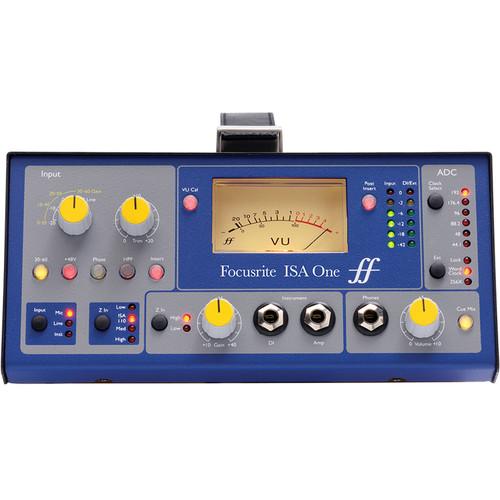

The ISA One from Focusrite is a single-channel, transformer-based microphone preamp, based on the original ISA 110 preamp that formed the cornerstone of each channel of the legendary Forte console. It features classic vintage topology and includes the Lundahl L1538 transformer and a custom Zobel network.In addition to switchable input impedance settings for the microphone preamp, the unit includes a line input on XLR and 1/4" TRS phone jacks. An independent DI channel features a dedicated gain control, active or passive impedance switch, a 1/4" TRS output for routing to an amplifier, and an independent XLR output on the rear.The ISA One features an insert point should the need arise to place extra signal processing between the preamp or DI, and the optional analog-to-digital converter. Phantom power, phase reverse and a 75 Hz, 18 dB/octave high-pass filter are also available from the angled front fascia.Independent input metering for both channels is provided by a moving coil VU meter with variable calibration to suit analog and digital recording media, alongside two six-LED peak meters. Inputs can be metered either pre- or post-insert. The meter calibrations utilize the same reference points as Digidesign's Pro Tools HD systems, allowing effortless integration with Pro Tools. - Classic single-channel Focusrite microphone preamp with Independent DI
- Ideal for both engineers and demanding performers alike, featuring independent gain control, an output for routing to an amp, an independent XLR output on the rear and routing to the optional ADC
- Four, carefully selected, switchable input-impedance levels (including the original ISA 110 setting), to match or enhance the performance of any microphone
- Headphone output with volume control can feed either a sum of the two inputs to the headphones output, or an external stereo cue mix (such as a stereo mix feed from an interface) via two TRS Jack inputs on the rear of the unit
- Optional stereo 192 kHz analog-to-digital conversion card utilizes cutting-edge conversion technology and Focusrite analog circuitry to deliver the highest A/D performance with a dynamic range of 119 dB
- Dedicated insert point allows the user to place extra processing such as an EQ or compressor, between the preamplifier or DI and the optional converter
UPC: 815301005100 In the Box Focusrite ISA ONE - Microphone Preamp AC Power Cable Limited 2-Year Warranty User Manual PDF 4.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite ISA ONE - Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

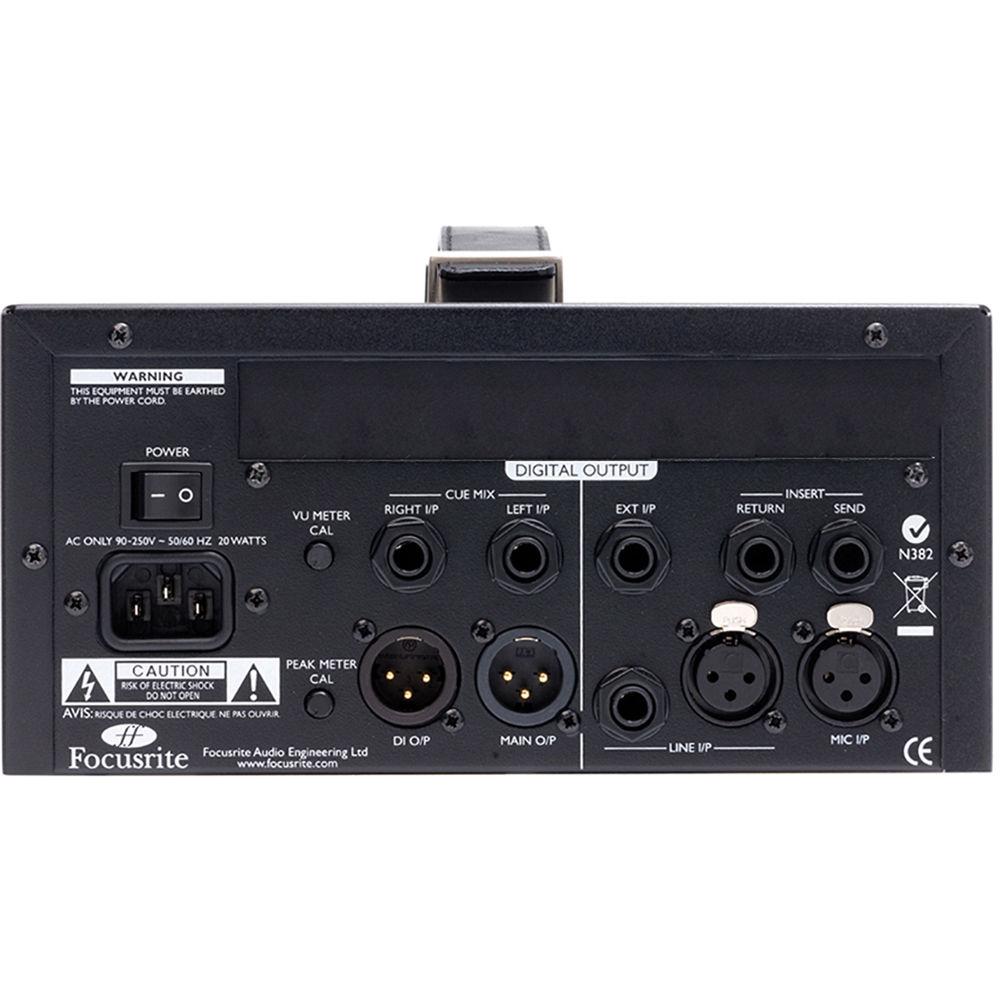

Technical parametersFocusrite ISA ONE Specs | Number of Channels | Single | | Inputs | 1 x XLR Microphone
1 x XLR Line
1 x 1/4" TRS phone Line
1 x 1/4" TRS phone Instrument
1 x 1/4" TRS phone External Input
1 x 1/4" TRS phone Cue Left
1 x 1/4" TRS phone Cue Right
1 x 1/4" TRS phone Return | | Output | 1 x XLR Line
1 x XLR DI
1 x 1/4" TS DI Thru
1 x 1/4" TRS phone Send
1 x 1/4" TRS phone Headphone | | Phantom Power | 48V | | Multi Function | No | | Gain Range | Mic: 0dB to 60dB in 10dB steps with 20dB of variable gain
Line: -20dB to +10dB in 10dB steps with 20dB of variable gain | | Maximum Output Level | Not specified by manufacturer | | Frequency Response | 16Hz to 118kHz, -3.0dB @ maximum gain | | Noise | Mic SNR: 106dB
Line SNR: 120dB | | Dimensions (WxDxH) | 8.7 x 10/11.4 x 4.1" (220 x 254/290 x 104 mm) | | Weight | 8.6 lbs (3.9 kg) | | | | Package Weight | 12.9 lb | | Box Dimensions (LxWxH) | 16.2 x 15.5 x 9.3" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
