User Manual for Focusrite OctoPre Eight-Channel Preamp with 24-Bit 192 kHz Conversion and ADAT I O Click to enlarge the picture
Contents of the user manual for the Focusrite OctoPre Eight-Channel Preamp with 24-Bit
- Product category: Microphone Preamps Focusrite
- Brand: Focusrite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focusrite Microphone Preamps
 |
User manual for the Focusrite OctoPre Eight-Channel Preamp with 24-Bit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focusrite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!
|

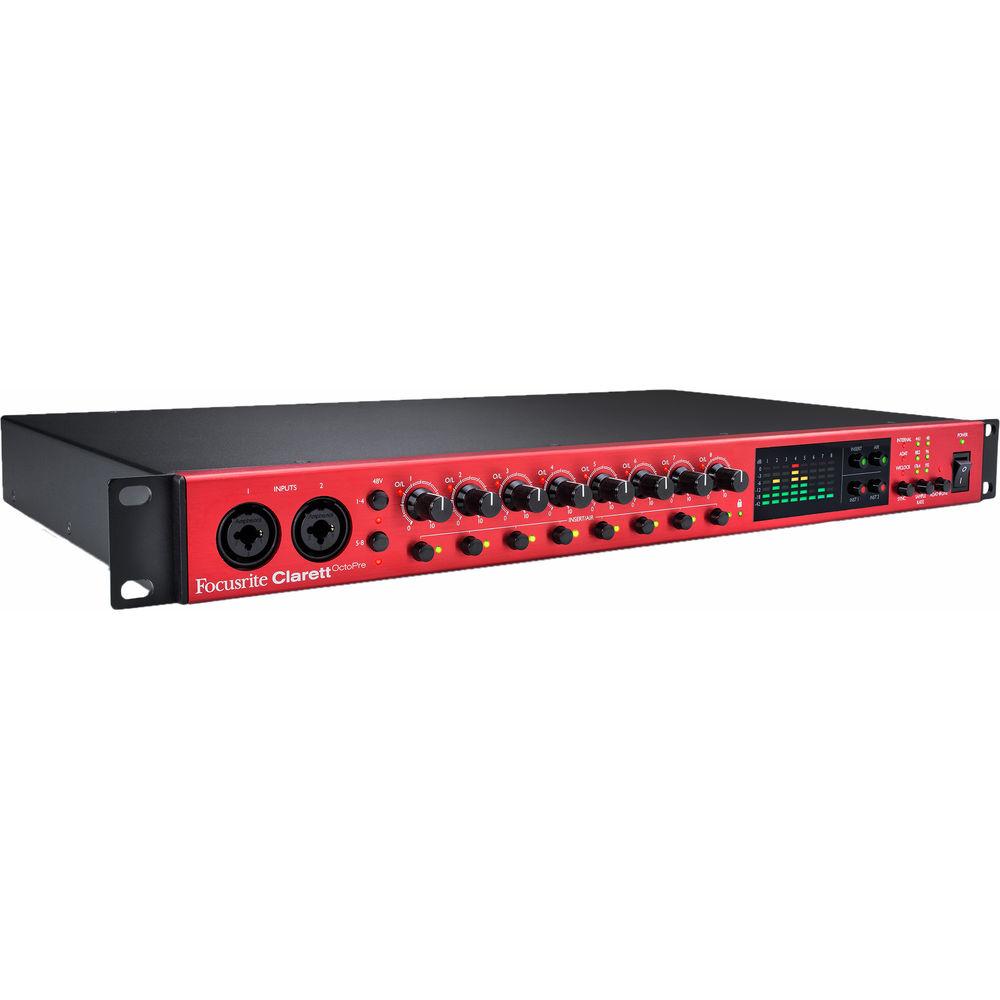

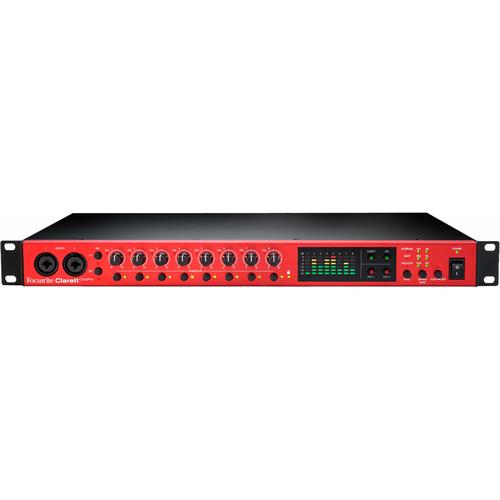

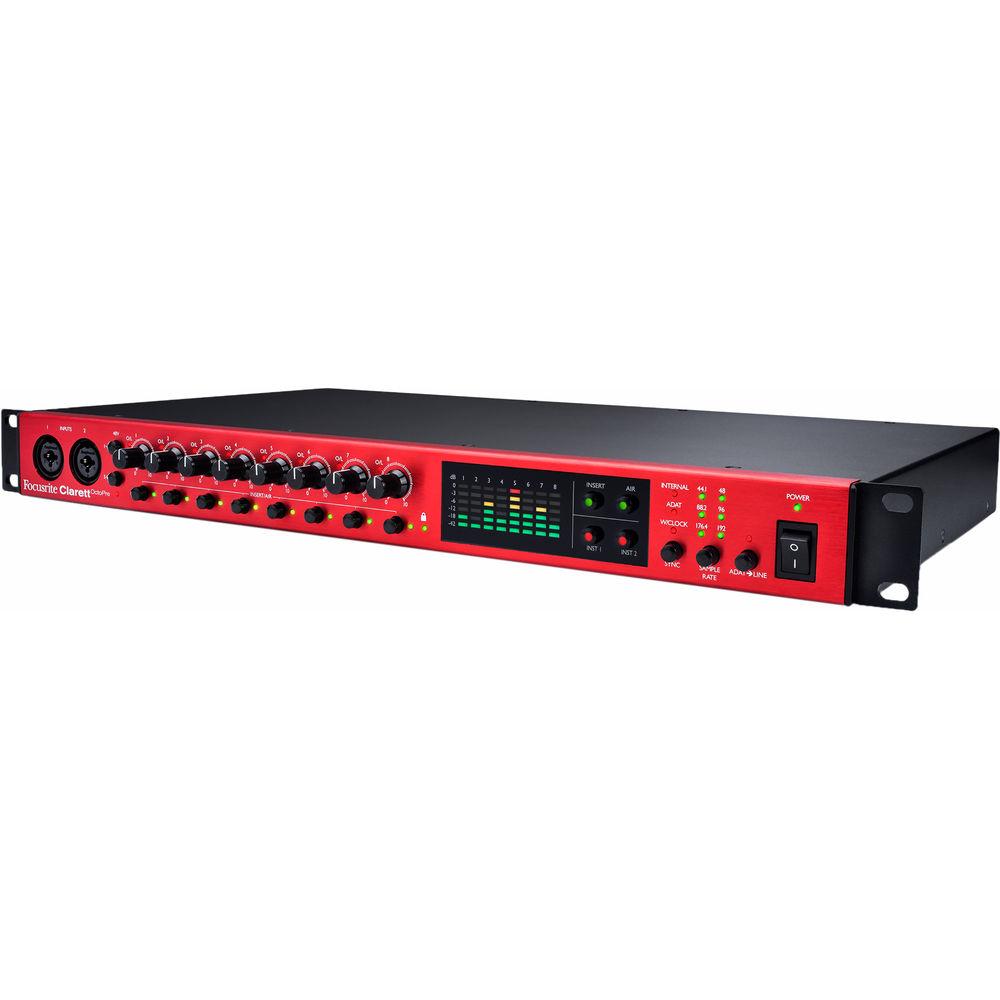

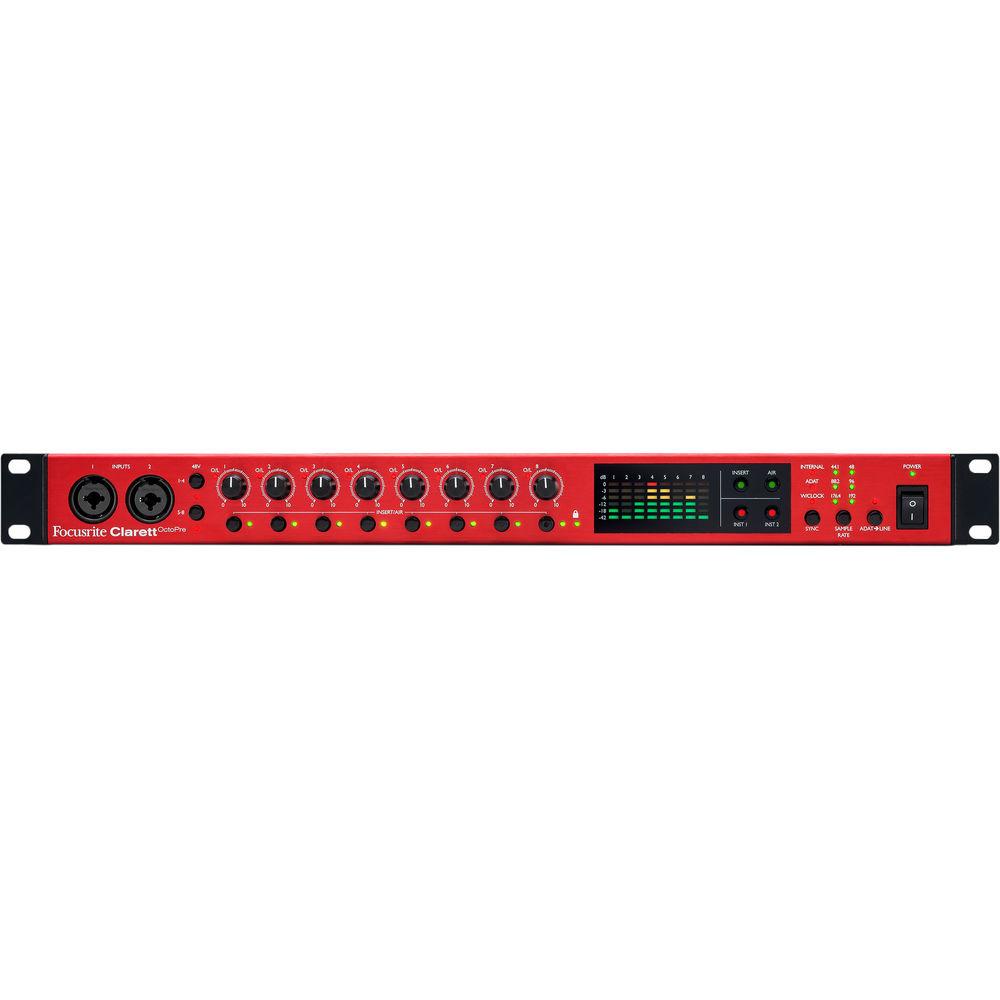

Product description Designed to provide an additional eight mic pres, eight line outputs, and 24-Bit/192 kHz AD/DA conversion, the Clarett OctoPre from Focusrite connects with your existing interface via ADAT connections. The mic pres are outfitted with Focusrite's proprietary Air feature, which allows you to switch impedances to emulate an analog ISA preamp. You can also instantiate a transformer-resonance effect to lend signal a clarity and sense of air. These mic pres switch automatically between mic level and line level.

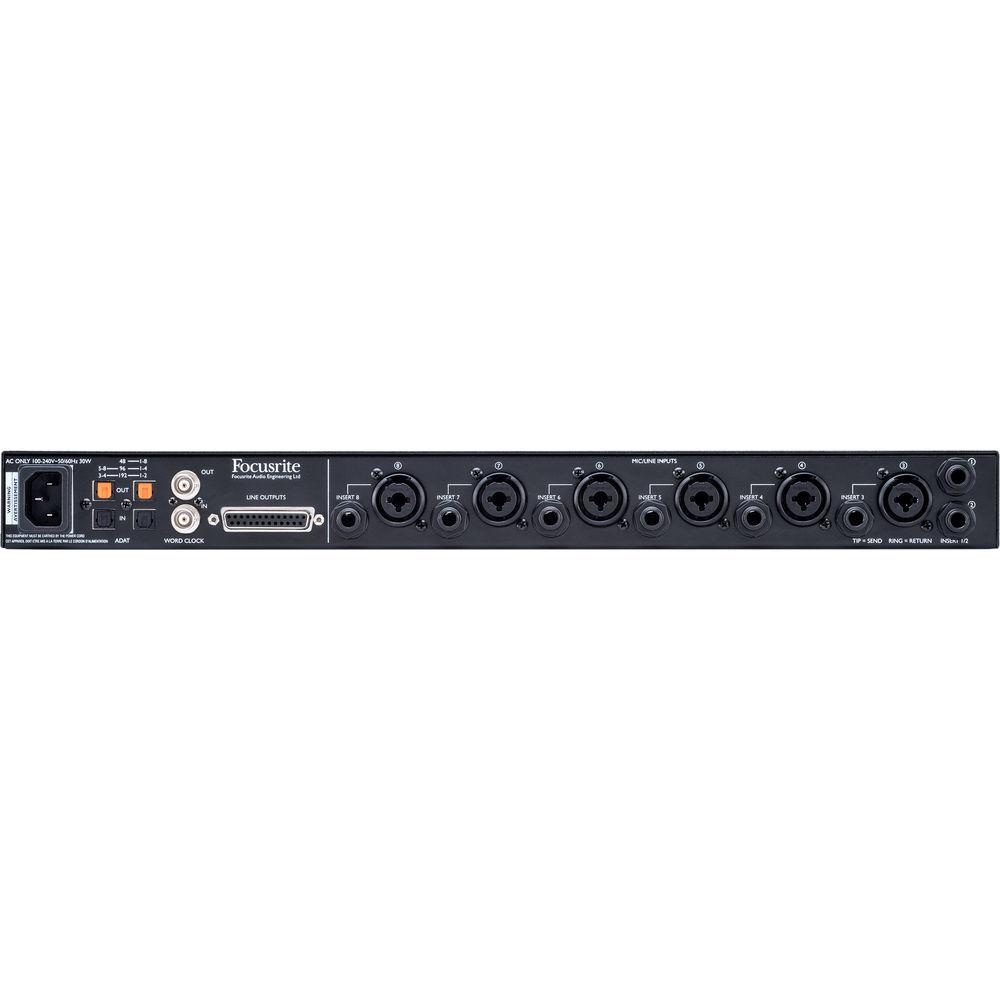

The front-panel inputs feature an extended amount of headroom to suit the high-output signal of sources such as electric guitars, while the rear panel offers XLR / 1/4" combination jacks for the remaining six inputs. With a dynamic range of 118 dB, each input leads into a 24-bit analog-to-digital conversion stage capable of sample rates up to 192 kHz. Every input also sports its own insertion point—with hard-wire relay bypass—for outboard compressors, EQs, or any processor you have.
On the output side, the Clarett OctoPre offers eight channels of digital-to-analog conversion, giving you 119 dB of dynamic range in the process. The analog outputs are accessible via a 25-pin D-Sub connection. As the outputs can also be configured to accept line-level signal from the mic pres, this device is suitable for mixing sessions and for feeding live consoles, while simultaneously recording on the digital side. - Notable Features
-
- 8-channel I/O mic/line expansion with ADAT interfacing
- 8 Clarett-style mic pres with 'Air' transformer-emulation effect
- 8 line outputs fed from D-A or mic pres
- 24-bit A-D and D-A up to 192 kHz sample rate - ideal for hi-res audio
- Dual-port ADAT I/O - eight channels at up to 96 kHz, four channels at 176.4/192 kHz
- Switched insert with true bypass on every channel
- Mic pres and front-panel instrument inputs with extra headroom
- Six-segment LED metering and channel-clip indicators
- 48V Phantom Power to all inputs
- Word Clock I/O and JetPLL jitter elimination
UPC: 815301008484 Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite OctoPre Eight-Channel Preamp with 24-Bit 192 kHz Conversion and ADAT I O in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite CLARETT-OCTOPRE Specs | Dimensions | 1.8 x 19.0 x 11.3" / 4.6 x 48.2 x 28.7 cm | | Weight | 9.2 lb / 4.2 kg (without accessories) | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 23.6 x 13.9 x 3.8" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 58 owners. Add your rating and experience with the product.
