Product description

Versatile Connectivity
• • Thunderbolt 2 connectivity for low round-trip latency, in whatever DAW you use, enabling you to track and overdub with your preferred plug-ins and effects in real time, simplifying your workflow.

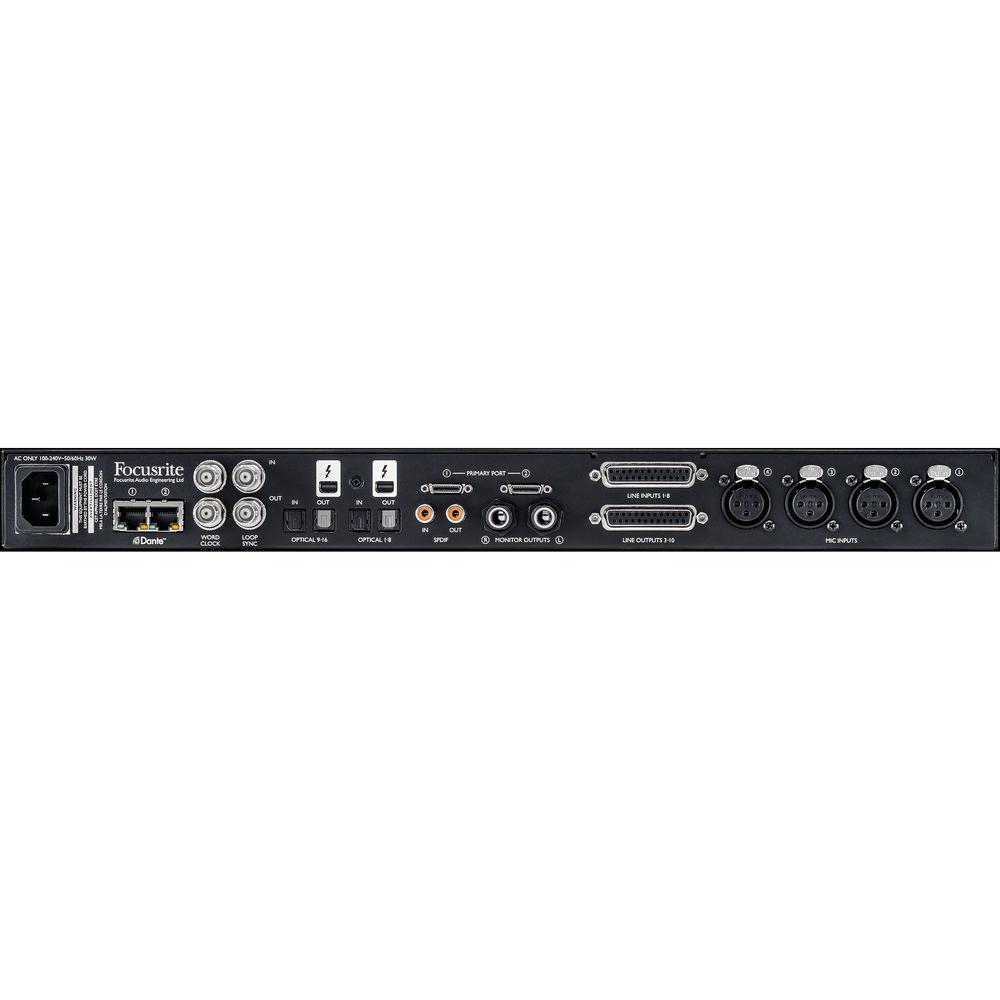

  • Connect the Red 4Pre directly and seamlessly into any Pro Tools | HD system, or use it with existing Avid interfaces, thanks to its twin DigiLink connectors.
  • Dual Thunderbolt 2 ports allow you to daisy-chain additional components such as hard drives and displays.
  • The Red 4Pre is network audio-enabled right out of the box, with dual Ethernet ports for Dante audio-over-IP networking, letting you expand your recording capability over Ethernet for up to 64 additional channels anywhere on your network, and with low latency.
  • Additional Red or other Dante-compatible components can be connected to the Ethernet ports of the Red 4Pre to provide additional channels irrespective of the interface used to drive the Red 4Pre.

Red Evolution Air-Enabled Microphone Preamplifiers
• • The Red Evolution mic pres in the Red 4Pre deliver audio performance with -129 dB EIN and 63 dB of gain that allows plenty of room to bring your own sound to life with your choice of external processing.
  • The mic pres can be controlled digitally, for adjusting/recalling settings and stereo linking via Focusrite Control software.
  • The preamp also includes the Air effect, which recreates the sound of the transformer-based mic preamps in the ISA range. When Air is enabled, the microphone impedance is set to 2.1 kOhms and the frequency response curve is given a subtle mid-high boost; all in the analog domain.

Focusrite's Best Converter Performance
• • The Red 4Pre employs: a parallel path summing configuration to lower the noise floor, while utilizing selected high-performance, precision conversion chips for maximized sound quality through premium component selection; advanced design, and optimized board layout
  • Red 4Pre's converter design strikes a precise balance between multiple factors, including dynamic range, distortion, noise floor, and conversion latency, for the optimal overall sound
  • With 24-bit / 192 kHz sampling capability and 118 dB (A-D) / 121 dB (D-A) dynamic range, it is ideal for high-resolution audio
  • The Red 4Pre delivers ≤0.0009% THD+Noise and a flat frequency response from 20 Hz to 35 kHz (±0.25 dB or better)

Low Round-Trip Latency
• • Red 4Pre's latency is so low that you can track with your preferred plug-ins and record virtual instruments in real time.
  • This low latency environment simplifies your workflow, allowing you to run a single mix on your DAW for both overdubbing and mixing, with your plug-ins in place, all the time.

Expansion
• • Connect up to 64 additional channels to the Red 4Pre via Ethernet-based Dante networking, which provides a simple, single connection, carrying both audio and built-in clocking.
  • Whether the Red 4Pre is connected to the computer via Thunderbolt, DigiLink, or Dante, simply connect optional units, such as two RedNet A16R (32 channels of analog I/O), four RedNet MP8R (32 channels of RedNet mic pre), or other Dante-enabled products via Ethernet as desired.
  • Place mic preamps where the music is, and place outputs where the sound needs to go—wherever there's an Ethernet connection.

Included Software
• • Red 4Pre includes the Focusrite Control software, providing a straightforward and intuitive way to set up mixes and monitoring, as well as controlling the mic pres—recalling settings, assigning stereo pairs, adjusting gain, and enabling features such as high-pass filtering and phantom power.
  • Softube's Time and Tone Bundle is a unique plug-in pack including four of Softube’s professional quality plug-ins:
    • Drawmer S73 Intelligent Master Processor
    • TSAR-1R Reverb
    • Tube Delay
    • Saturation Knob
  • Focusrite Red Plug-in Suite, which accurately models Focusrite’s classic Red range hardware:
    • Red 2 EQ
    • Red 3 Compressor

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Focusrite RED-4-PRE Specs

Frequency Response

Hi-Z Inputs: 20 Hz to 35 kHz Rating 70% users recommend this product to others. And what about you? This product has already been rated by 51 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
