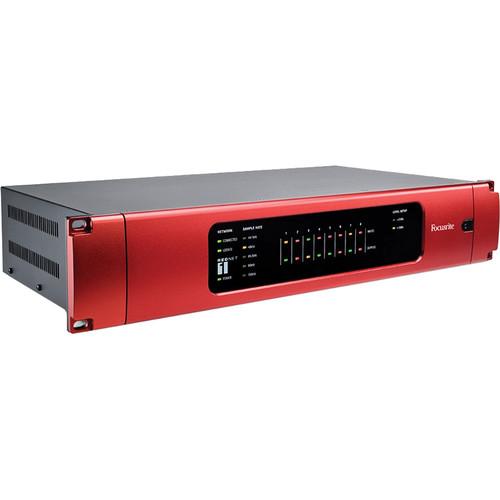

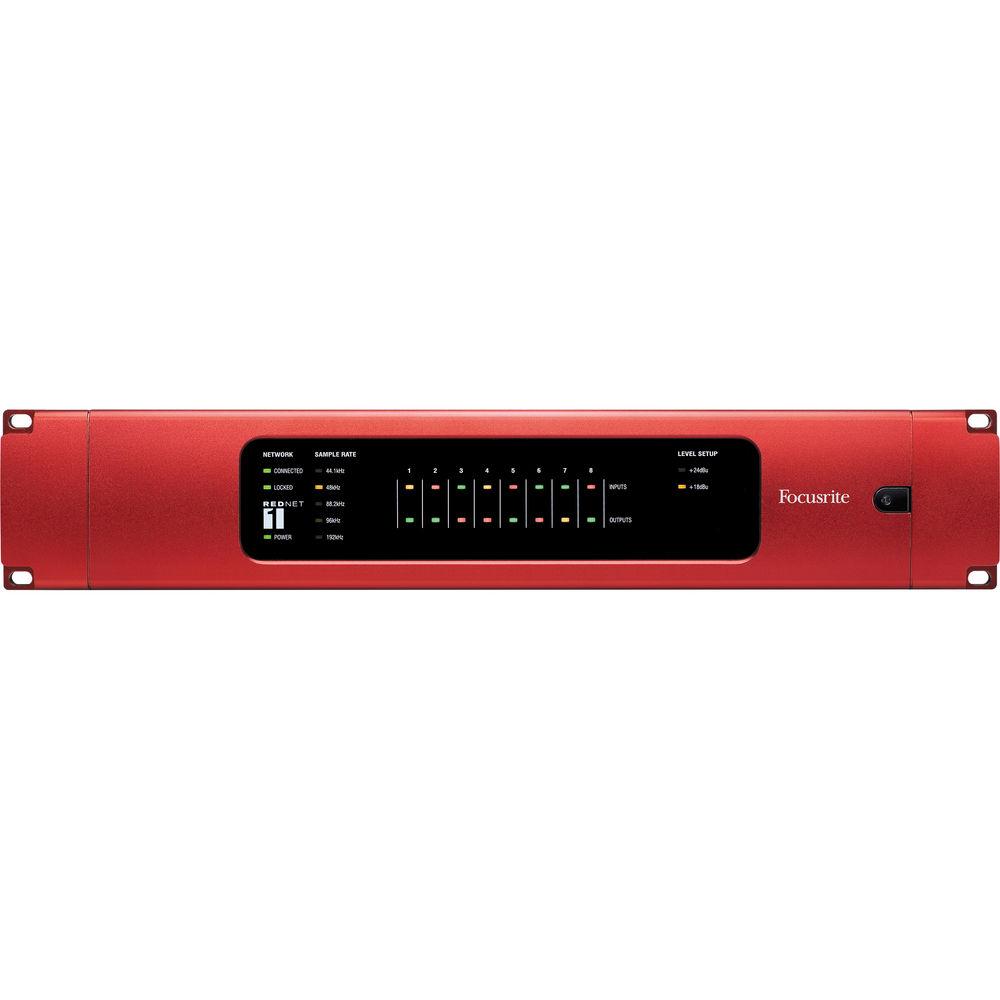

Product description The RedNet 1, 8-Channel Audio Interface with Brooklyn II Upgrade Card Retrofit from Focusrite is an eight-channel, remote controlled input/output analog audio interface that uses the digital audio networking system to bring studio quality sound to any modern audio application. The unit features 24-bit AD/DA conversion for professional audio performance, with 119 dB of dynamic range at sample rates up to 192 kHz. Rock-stable JetPLL clocking and premium multi-layered board circuitry further facilitate the delivery of uncompromised audio.
The Dante Brooklyn II card retrofit includes the Dante API toolkit and SDKs (software development kits) for integration into Windows and Mac software, the latest Dante Controller software, up to 4 Dante Virtual Soundcard licenses for installation on Windows or Mac, and OEM Portal Access.The RedNet system was designed for use in multiple audio applications, from live sound rigs to multi-room recording studios, houses of worship, audio distribution installations, post production environments and anything in-between. The system is scalable and delivers near zero latency audio distribution, with the ability to expand I/O channel count, interface digital components, and/or bridge between Pro Tools | HD or MADI and a Dante audio network.There are three methods of connecting the RedNet 1 to a computer using a single Ethernet cable. These are via an optional RedNet PCIe card (for ASIO and Core Audio applications), directly into the computer's Ethernet port using DVS (Dante Virtual Soundcard) software where near zero latency is not essential, or through an existing RedNet 5 interface for connecting directly to Pro Tools HD, Pro Tools HDX and Pro Tools HD Native. - The Dante Brooklyn II module features a MicroBlaze CPU, which includes its own Linux environment, enabling the development of custom embedded applications for device and network control and monitoring
- Dante enabled, eight analog input/output digital audio converter
- Suitable for live sound rigs, multi-room recording studios, houses of worship, audio distribution installations, post production environments, and more
- Connects to a computer via a single Ethernet cable
- Up to 192 kHz sample rates
- Remote control via RedNet software
In the Box Focusrite RedNet 1, 8-Channel Audio Interface with Brooklyn 2 Upgrade Card Retrofit Dante Brooklyn II Module AC Power Cable 6.6' (2 m) Cat6 Ethernet Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite RedNet 1, 8-Channel Audio Interface with Brooklyn 2 Upgrade Card Retrofit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite RREDNET 1 BK2 Specs | Inputs | Analog Line Inputs: 8
Connector: 25-pin D-Sub female, wired to AES 59
0 dBFS Reference Levels: +18 or +24 dBu (switchable)
Frequency Response: 20 Hz to 20 kHz, +/-0.05 dB
THD+N: < 0.001%, unweighted, -1.0 dBFS input, 20 Hz to 22 kHz
Dynamic Range: 119 dB A-weighted (-60 dBFS method)
Converter Dynamic Range: 120 dB
SNR: 119 dB A-weighted, 20 Hz to 20 kHz | | Outputs | Analog Line Outputs: 8
Connector: 25-pin D-Sub female, wired to AES 59
0 dBFS Reference Levels: +18 or +24 dBu (switchable)
Frequency Response: 20 Hz to 20 kHz, +/-0.15 dB
THD+N: < 0.001%, unweighted, -1.0 dBFS input, 20 Hz to 22 kHz
Dynamic Range: 119 dB A-weighted (-60 dBFS method)
Converter Dynamic Range: 120 dB
SNR: 119 dB A-weighted, 20 Hz to 20 kHz | | Crosstalk | Input or Output to Input: < -90 dB (all other channels at 0 dBFS)
Input or Output to Output: < -100 dB (all other channels at 0 dBFS) | | Digital Performance | Supported Sample Rates: 44.1, 48, 88.2, 96 and 192 kHz
Clock Sources: Internal or from network master device | | Front Panel Indicators | Power: 1 x green
Network Connected: 1 x green
Sync Lock: 1 x green
Sample Rate: 5 x yellow
Input/Output Range: 2 x yellow
Input/Output Signal Level: 16 x bi-color (green = -42 dBFS; orange = -6 dBFS; red = overload) | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Dimensions (W x D x H) | 19 x 9.7 x 3.5" (483 x 247 x 89 mm) | | Weight | 9 lb (4.1 kg) |
