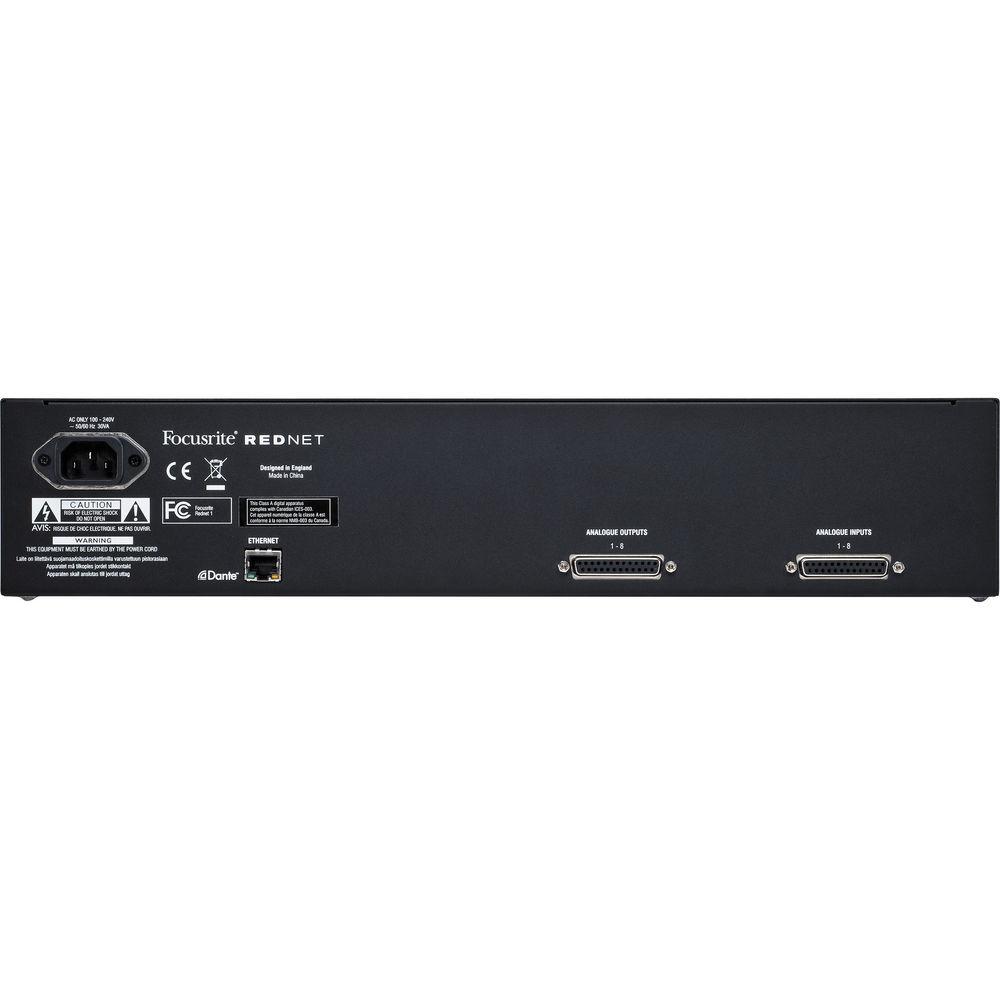

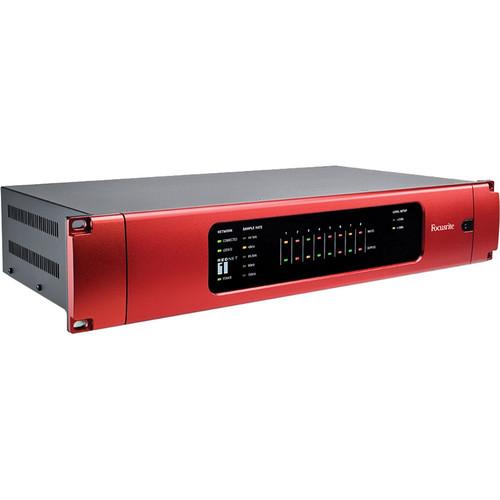

User Manual for Focusrite RedNet 1 - Dante Equipped 8-Channel Audio Interface Click to enlarge the picture
Contents of the user manual for the Focusrite RedNet 1 - Dante Equipped
- Product category: Audio Interfaces & Systems Focusrite
- Brand: Focusrite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focusrite Audio Interfaces & Systems
 |
User manual for the Focusrite RedNet 1 - Dante Equipped contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focusrite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!
|
Product description RedNet 1 from Focusrite is an eight-channel, remote controlled input/output analog audio interface that uses the Dante digital audio networking system to bring studio quality sound to any modern audio application. The unit features 24-bit A-D and D-A conversion for excellent audio performance, with 119 dB of dynamic range at sample rates up to 192 kHz. Rock-stable JetPLL clocking and premium multi-layered board circuitry further facilitate the delivery of uncompromised audio.
The RedNet system was designed for use in multiple audio applications, from live sound rigs to multi-room recording studios, houses of worship, audio distribution installations, post production environments and anything in-between. The system is scalable and delivers near zero latency audio distribution, with the ability to expand I/O channel count, interface digital components, and/or bridge between Pro Tools|HD or MADI and a Dante audio network.
There are three methods of connecting the RedNet 1 to a computer using a single Ethernet cable. These are via an optional RedNet PCIe card (for ASIO and Core Audio applications), directly into the computer's Ethernet port using DVS (Dante Virtual Soundcard) software where near zero latency is not essential, or through an existing RedNet 5 interface for connecting directly to Pro Tools HD, Pro Tools HDX and Pro Tools HD Native. - Dante enabled, eight analog input/output digital audio converter
- Suitable for live sound rigs, multi-room recording studios, houses of worship, audio distribution installations, post production environments, and more
- Connects to a computer via single Cat6 Ethernet cable
- Up to 192 kHz sample rates
- Remote control via RedNet software
UPC: 815301013020 In the Box Focusrite RedNet 1 - Dante Equipped 8-Channel Audio Interface AC Power Cable 6.6' (2 m) Cat6 Ethernet Cable Limited 2-Year Warranty User Manual PDF 1.1mbyzvytyscvqvsfy Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite RedNet 1 - Dante Equipped 8-Channel Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite RedNet 1 Specs | Inputs | Analog Line Inputs: 8
Connector: 25-pin D-Sub female, wired to AES 59
0 dBFS Reference Levels: +18 or +24 dBu (switchable)
Frequency Response: 20 Hz to 20 kHz, +/-0.05 dB
THD+N: < 0.001%, unweighted, -1.0 dBFS input, 20 Hz to 22 kHz
Dynamic Range: 119 dB A-weighted (-60 dBFS method)
Converter Dynamic Range: 120 dB
SNR: 119 dB A-weighted, 20 Hz to 20 kHz | | Outputs | Analog Line Outputs: 8
Connector: 25-pin D-Sub female, wired to AES 59
0 dBFS Reference Levels: +18 or +24 dBu (switchable)
Frequency Response: 20 Hz to 20 kHz, +/-0.15 dB
THD+N: < 0.001%, unweighted, -1.0 dBFS input, 20 Hz to 22 kHz
Dynamic Range: 119 dB A-weighted (-60 dBFS method)
Converter Dynamic Range: 120 dB
SNR: 119 dB A-weighted, 20 Hz to 20 kHz | | Crosstalk | Input or Output to Input: <-90 db (all other channels at 0 dbfs)
Input or Output to Output: <-100 dB (all other channels at 0 dBFS) | | Digital Performance | Supported Sample Rates: 44.1, 48, 88.2, 96 and 192 kHz

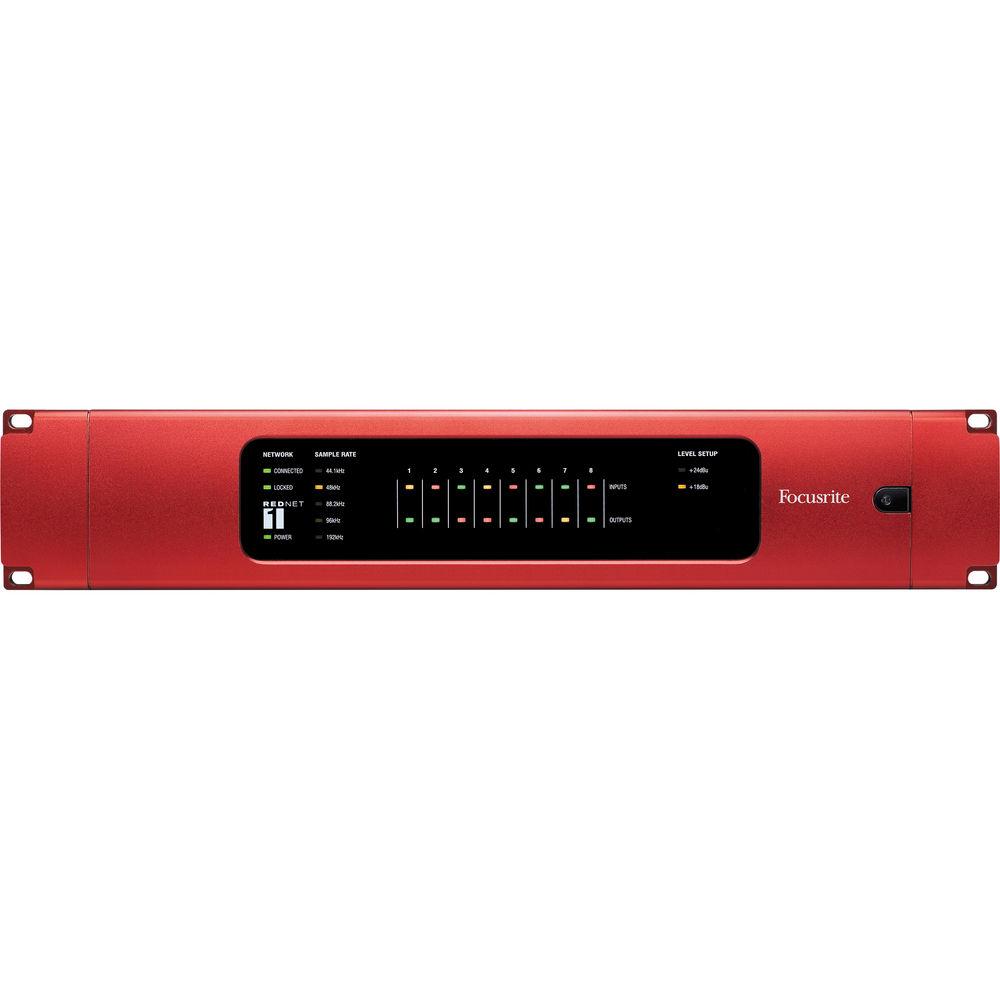

Clock Sources: Internal or from network master device | | Front Panel Indicators | Power: 1 x Green
Network Connected: 1 x Green
Sync Lock: 1 x Green
Sample Rate: 5 x Yellow
Input/Output Range: 2 x Yellow
Input/Output Signal Level: 16 x Bi-color (green = -42 dBFS; orange = -6 dBFS; red = overload) | | Power Requirements | 100~240V AC, 50/60 Hz | | Dimensions (WxDxH) | 19 x 9.7 x 3.5" (483 x 247 x 89 mm) | | Weight | 9 lb (4.1 kg) | | | | Package Weight | 14.8 lb | | Box Dimensions (LxWxH) | 16.9 x 9.2 x 2.6" |
