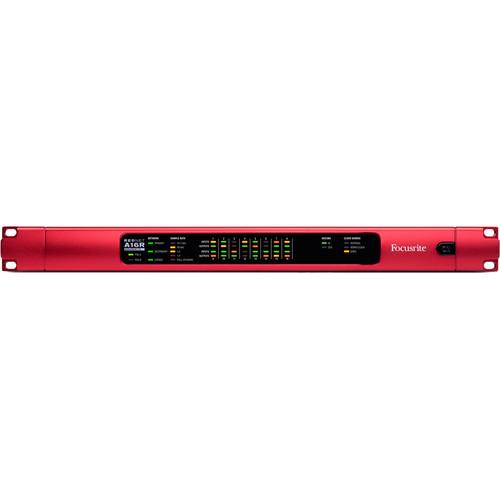

User Manual for Focusrite RedNet A16R - Dante Networked A-D and D-A Converter Click to enlarge the picture
Contents of the user manual for the Focusrite RedNet A16R - Dante Networked
- Product category: Accessories Focusrite
- Brand: Focusrite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focusrite Accessories
|
User manual for the Focusrite RedNet A16R - Dante Networked contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focusrite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!
|
Product description The RedNet A16R from Focusrite adds to the company's range of 1U Dante-equipped interfaces with network and power supply redundancy. The unit provides sixteen channels of analog input and output with high-quality 24-bit/192 kHz analog-to-digital and digital-to-analog audio conversion, plus two channels of AES/EBU digital input and output to and from the Dante network.
The electronically balanced analog audio inputs and outputs are available via DB25 connectors wired to AES59 specifications, with the internal signals balanced throughout. Inputs and outputs are remotely configurable for 0dBFS= +18dBu or +24dBu signal levels. In addition, the two channels of AES digital input/output are provided on XLR connectors, with sample rate conversion on the input. The clock source for the unit can be internal, or external via Wordclock or DARS, with the unit also outputting Wordclock.
The converter features power and network redundancy, with two separate universal (100~240V) PSUs, which include IEC connectors with retaining clips, plus dual network interfaces on locking etherCON connectors. These ports can be configured remotely to redundant or switched (daisy-chain) mode. - Sixteen channels of line-level analog input/output
- 24-bit Focusrite conversion up to 192 kHz
- Internally balanced throughout
- Dante-based remote-controlled audio-over-IP connectivity
- Dual power supplies and network connections with full power and network redundancy, including latching connectors for maximum reliability
- Word Clock I/O and DARS for increased flexibility, plus an additional two channels of AES/EBU input/output
- Analog input/output to AES59 standard on DB25 connectors
- Comprehensive front-panel indicators
- Software-based routing and control – no hardware patching required
UPC: 815301013136 In the Box Focusrite RedNet A16R - Dante Networked A-D and D-A Converter AC Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite RedNet A16R - Dante Networked A-D and D-A Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite A16R Specs | Analog Inputs | Line Inputs: 16
Connectors: 2 x DB25 female, wired to AES59
0 dBFS Reference Levels: +18 or +24 dBu (switchable)
Frequency Response: 20 Hz to20 kHz, +/-0.05 dB
THD+N: <0.001% unweighted; -1 dBFS input, 20 Hz to 22 kHz
Dynamic Range: 119 dBA (-60 dBFS method)
Converter Dynamic Range: 120 dB
Signal-to-Noise Ratio: 119 dBA; 20 Hz to 20 kHz | | Analog Outputs | Line Outputs: 16
Connectors: 2 x DB25 female, wired to AES59
0 dBFS Reference Levels: +18 or +24 dBu (switchable)
Frequency Response: 20 Hz to20 kHz, +/-0.05 dB
THD+N: <0.001% unweighted; -1 dBFS input, 20 Hz to 22 kHz
Dynamic Range: 119 dBA (-60 dBFS method)
Converter Dynamic Range: 120 dB
Signal-to-Noise Ratio: 119 dBA; 20 Hz to 20 kHz | | Crosstalk | Input or Output to Input: <-90 db (all other channels at 0 dbfs)
Input or Output to Output: <-100 dB (all other channels at 0 dBFS) | | Sample Rate Conversion | Sample Rate Range: 32 to 216 kHz
Gain Error: -0.3 dB
Dynamic Range: >138 dB
THD + N: <-130 db (0.00003%)
Latency: 11 to 45 samples (network and sample rate dependent) | | Digital Performance | Sample Rates: 44.1, 48, 88.2, 96, 176.4 and 192 kHz (-4%/-0.1%/+0.1%/+4.167%) @ 24-bit
Clock Sources: Internal or from Dante Network Master
External Word Clock Range: Nominal sample rate +/-7.5% | | Digital I/O | Channel Count: 2 x 2 AES/EBU channels
Input (optional DARS): 1 x XLR3F (switchable with analog input channels 15 and 16 at quad rates)
Output: 1 x XLR3M (duplicate of analog output channels 15 and 16 at quad rates) | | Wordclock | Input: 1 x BNC 75 Ohms (switchable termination)
Output: 1 x BNC 75 Ohms | | Network | Connectors: 2 x etherCON connectors, also compatible with standard RJ45 connectors
Redundant mode allows unit to connect to two independent networks
Switched mode connects both ports to integrated network switch allowing daisy-chaining of devices | | Power Requirements | 2 x IEC inputs with retaining clips
100~240 VAC, 50/60 Hz
41W consumption | | Dimensions | 19 x 12.8 x 1.7" (482 x 352 x 43 mm) | | Weight | 10.6 lb (4.8 kg) | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 23.6 x 17.1 x 4.5" |
