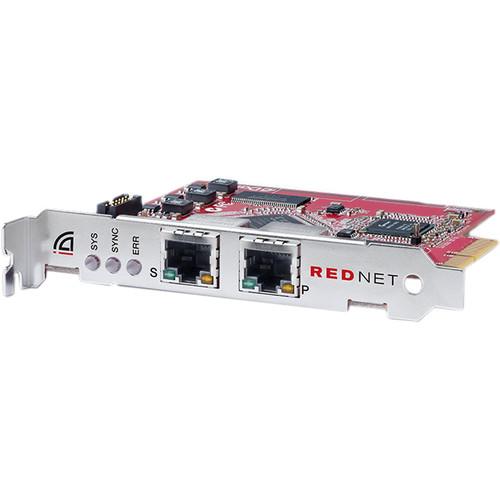

User Manual for Focusrite RedNet PCIeR Dedicated Dante Audio Interface Card with Network Redundancy Click to enlarge the picture
Contents of the user manual for the Focusrite RedNet PCIeR Dedicated Dante Audio
- Product category: Audio Interfaces & Systems Focusrite
- Brand: Focusrite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focusrite Audio Interfaces & Systems
|
User manual for the Focusrite RedNet PCIeR Dedicated Dante Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focusrite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!
|
Product description The RedNet PCIeR Dedicated Dante Audio Interface Card with Network Redundancy from Focusrite delivers extremely low latency along with Ethernet redundancy. The combination offers excellent system performance and ensures reliability. The card requires a standard PCIe slot in a Windows or Mac computer and delivers up to 128 channels I/O with under 3 ms latency. Dual RJ45 Gigabit Ethernet connectors switch automatically according to network availability, and link the audio computer to the rest of the network. - Dual Ethernet ports for full redundancy
- Compatible with any Dante network
- Up to 192 kHz sample rate
- 128 channels in and 128 channels out at 96 kHz and below
- 64 channels in and 64 channels out at 176.4 kHz and 192 kHz
- Under 3 ms analog-to-analog round-trip latency through DAW with Focusrite RedNet A-D/D-A (dependent on ASIO/Core Audio buffer size)
- ASIO and Core Audio drivers
- Thunderbolt PCIe chassis compatible
UPC: 815301013150 In the Box Focusrite RedNet PCIeR Dedicated Dante Audio Interface Card with Network Redundancy Limited 2-Year Warranty User Manual PDF 2.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite RedNet PCIeR Dedicated Dante Audio Interface Card with Network Redundancy in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite REDNET-PCIER-CARD Specs | | | Channels of I/O | 128 Inputs / 128 Outputs at 48 kHz
128 Inputs / 128 Outputs at 96 kHz
64 Inputs / 64 Outputs at 192 kHz | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 2 x RJ45 (Gigabit Ethernet) | | Analog I/O | None | | Digital I/O | None | | MIDI I/O | None | | | | Sample Rates | Up to 192 kHz | | Latency | <3 ms at kHz (Dependent on Buffer Size, Input to Output) | | | | Required Hardware | Available PCIe Card Slot, Thunderbolt PCIe Chassis Compatible | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.8 x 8.5 x 3.1" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
