User Manual for Focusrite RedNet X2P 2x2 Dante Audio Interface with Red Evolution Mic Pres Click to enlarge the picture
Contents of the user manual for the Focusrite RedNet X2P 2x2 Dante Audio
- Product category: Audio Interfaces & Systems Focusrite
- Brand: Focusrite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focusrite Audio Interfaces & Systems
 |
User manual for the Focusrite RedNet X2P 2x2 Dante Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focusrite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!
|

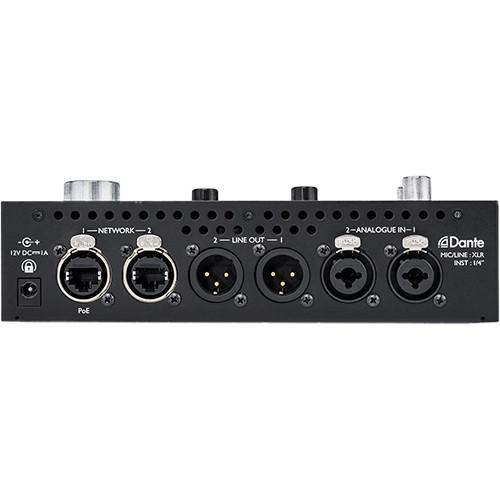

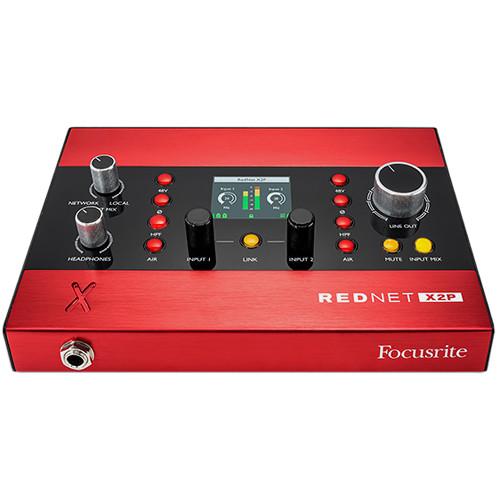

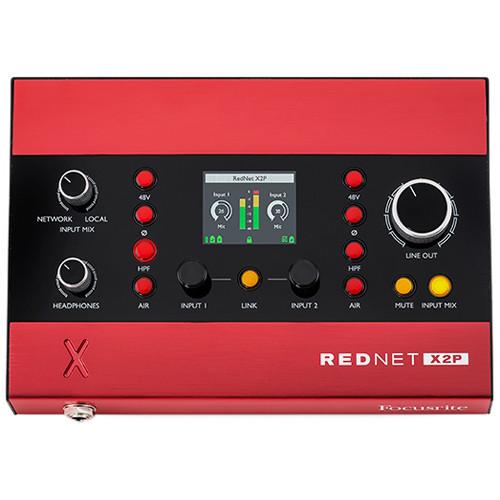

Product description The Focusrite Pro RedNet X2P is an audio interface with two Evolution mic pres, a stereo line output, and a stereo headphone amplifier. You can use it to add two additional channels of I/O to your existing Focusrite Red interface or to add I/O over any Dante audio-over-IP (AoIP) system. Power, audio, and remote control are provided using a single Ethernet cable with Power-over-Ethernet though a standard DC power supply (also provided).A local input mixer allows monitoring control for people who want to hear their parts louder over the mix. Conversely, a control lockout parameter ensures your settings remain unchanged when used remotely.On the rear of the interface you'll find two locking, combination XLR-1/4" inputs, as well as two level-controlled XLR outputs that can go up to 24 dBu. On the front of interface, your 1/4" headphone output is powered by an amplifier capable of driving both low- and high-impedance headphones. The Red Evolution mic pres provide clean gain, phantom power, high-pass filtering at 80 Hz, per-channel polarity reversing, and an Air mode that emulates the sound of Focusrite's classic transformer-based mic preamps, giving you a boost at 10 and 20 kHz respectively.The X2P can capture and reproduce audio at sample rates and resolutions of up to 96 kHz and 24 bits. On the output side, the RedNet X2P provides a dynamic range of 120 dB at line level and 117 dB for the headphones. Built out of aluminum and steel, the unit is quite sturdy and can be mounted directly to a mic stand, which keeps it out of the way yet within reach. - Key Features at a Glance
-
- Stereo 2x2 audio interface for Dante AoIP networks
- Two Red Evolution mic preamps for mic, line, or instrument level inputs
- Power-over-Ethernet supplied: IEEE 802.3af compliant
- Up to 24-bit, 96 kHz sampling rates
- Robust steel and aluminum chassis
- Local input mix to allow personalized monitoring
- Powerful headphone output, even with high-impedance headphones
- Local control lockout of mic settings, output settings, or both
- Up to 24 dBu line output levels
- Independent level control of headphone and line outputs
- Mute switch for line output
- Mic stand mount
- Kensington security slot
- Integrated network switch allows daisy-chaining of network devices
UPC: 815301006336 In the Box Focusrite RedNet X2P 2x2 Dante Audio Interface with Red Evolution Mic Pres Locking DC Power Supply Ethernet Cable RedNet Control Software RedNet PCIe Drivers (Included with RedNet Control Download) Audinate Dante Controller (Installed with RedNet Control) Limited 2-Year Warranty User Manual PDF 3.9mbcdfdefxddtcf Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite RedNet X2P 2x2 Dante Audio Interface with Red Evolution Mic Pres in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite RedNet X2P 2x2 Specs | | | Display and Indicators | 1 x Graphic LCD (Metering) | | | | Host Connection | RJ45 (Ethernet) | | Analog I/O | 2 x Combo XLR / 1/4" Input
1 x 1/4" (6.3 mm) TRS Headphone Output
2 x XLR 3-Pin Output | | Phantom Power | +48 V (Selectable on Individual Inputs) | | Digital I/O | 1 x etherCON / Dante (Network, PoE) In/Out
1 x etherCON / Dante (Network) In/Out | | MIDI I/O | None | | | | Frequency Response | Hi-Z Inputs:
20 Hz to 35 kHz
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 20 owners. Add your rating and experience with the product.
