User Manual for Focusrite Scarlett 18i8 USB 2.0 Audio Interface Click to enlarge the picture
Contents of the user manual for the Focusrite Scarlett 18i8 USB 2.0 Audio
- Product category: Audio Interfaces & Systems Focusrite
- Brand: Focusrite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focusrite Audio Interfaces & Systems
 |
User manual for the Focusrite Scarlett 18i8 USB 2.0 Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focusrite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!
|
Product description - Focusrite // The New Second Generation Scarlett Range FocusriteTV FocusriteTV
- Scarlett 18i8
- Scarlett Intro 1
Focusrite's second-generation Scarlett 18i8 is a table-top audio interface designed specifically for use in a computer environment. The device sports a total of eighteen inputs and eight outputs and communicates with computers via USB 2.0. It's designed to operate handily at resolutions and sample rates of up to 24-bit/192 kHz, while its combination front-panel inputs render it suitable for tracking instruments with much in the way of headroom and little in the way of distortion.
In addition to its two balanced monitor outputs, the 18i8 offers two volume-controllable headphone outputs on the front. The unit is also expandable, able to handle eight more inputs by means of an on-board ADAT port, while securing additional digital connections with MIDI and S/PDF I/Os. The 18i8 provides a round-trip latency as low as 2.74 ms at 96 kHz, allowing you to record and monitor processed sound sources in real time. - Multiple I/Os, Front and Back

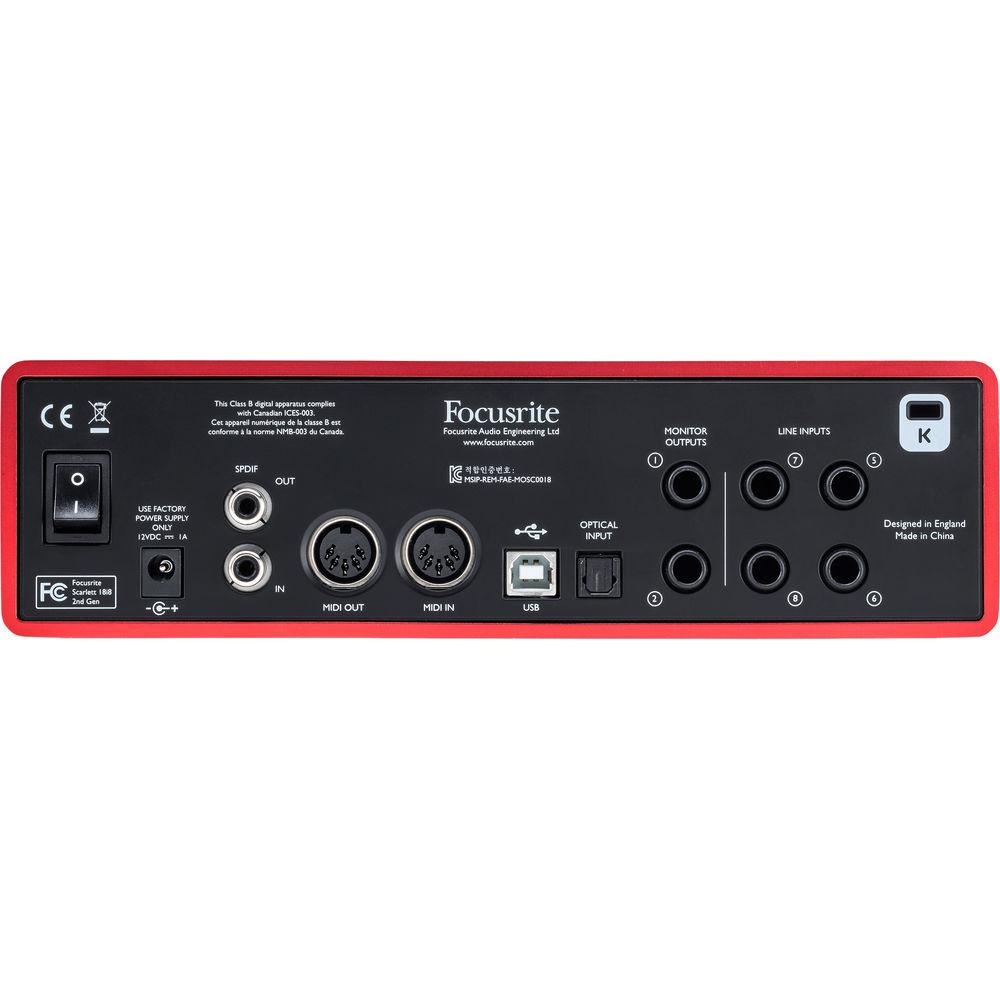

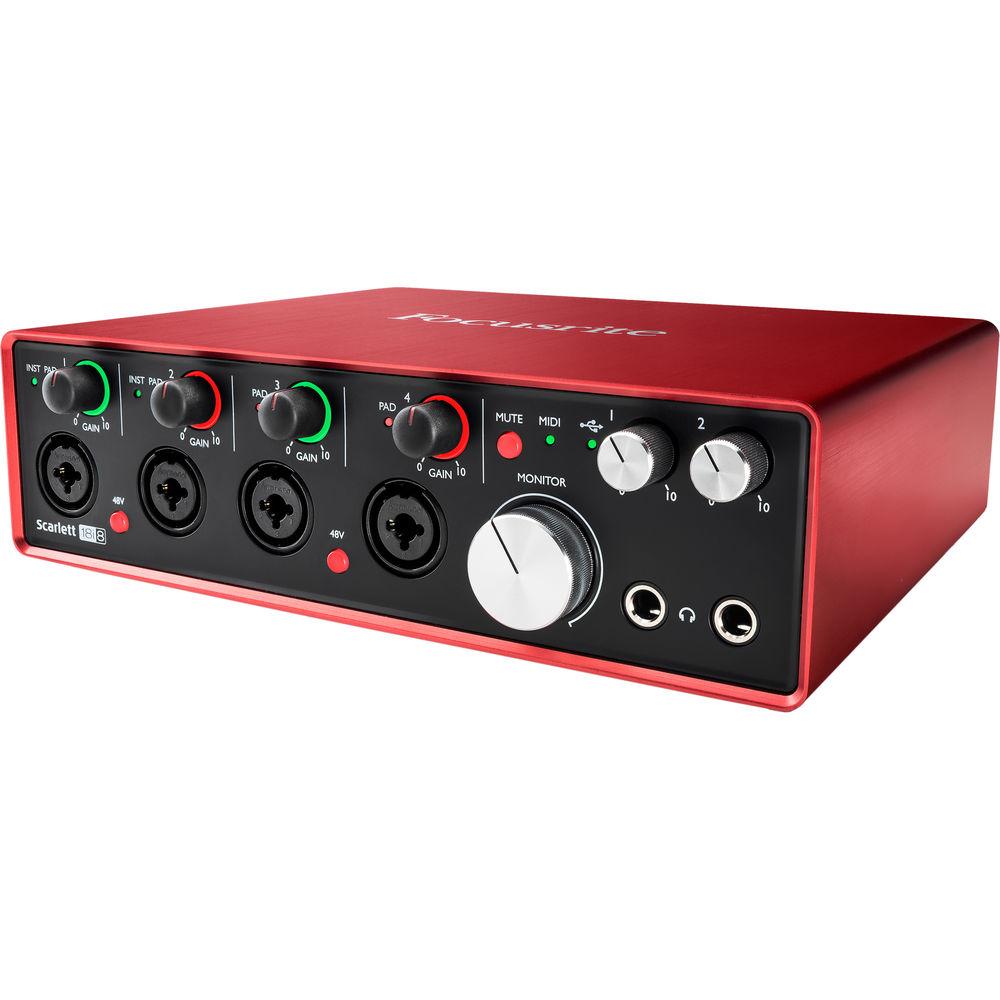

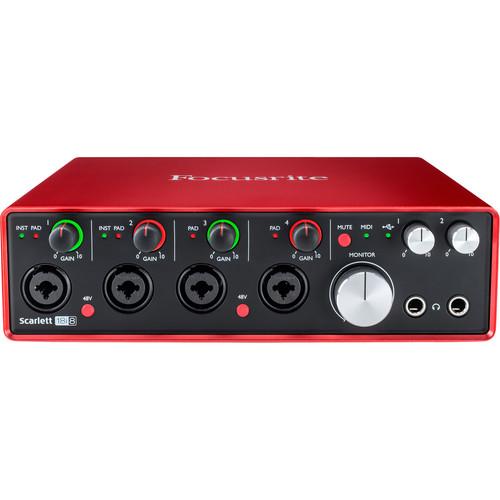

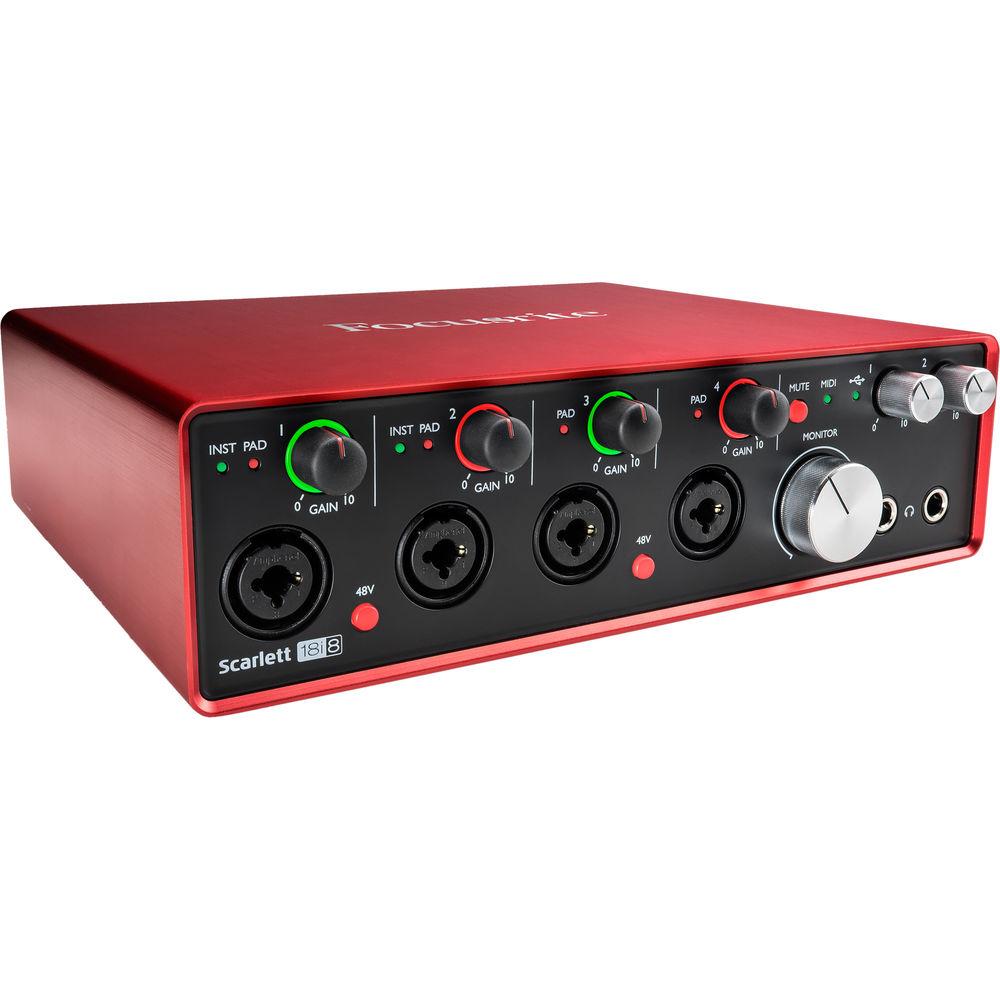

- Four Scarlett combination inputs—two of them redesigned to improve upon the first-generation's headroom—allow you to plug in 1/4" instruments or XLR sound sources via the front panel. They also support 48V phantom power. On the rear, four 1/4" jacks handle line inputs, while two balanced monitor outputs provide your main speaker connections. This device also sports MIDI I/Os, as well as an ADAT expansion port to hook in eight more channels of inputs.
- Intuitive Mix Control and Additional Software
- Focusrite Control—an included internal mixer—is designed to facilitate and power an intuitive array of routing setups. It also provides access to internal hardware functions. Furthermore, the 18i8 includes software such as an exclusive Focusrite edition of Pro Tools | First Pack, Ableton Live Lite, the Softube Time and Tone Bundle, Foscusrite's Red Plug-In Suite, and 2GB of Loopmasters samples.
- Downloadable iOS Remote Control App
- Downloadable Focusrite iOS Control app adjusts cue mixes remotely from iOS devices (iPad, iPhone, or iPod touch)
- New Metal Parts
- Metal gain controls and a red metal chassis round out its rugged, industrial design.
UPC: 815301008453 In the Box Focusrite Scarlett 18i8 USB 2.0 Audio Interface (2nd Generation) USB Cable Power Supply Code for Software Bundle iOS Control App Via Free Download Limited 2-Year Warranty User Manual PDF 3.2mbfewrqrwbyyaeytvwtbsftstcswsxzxqwy Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite Scarlett 18i8 USB 2.0 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite 18i8 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 4 x Combo XLR / 1/4" Mic Input
4 x 1/4" (6.3 mm) TRS Balanced Line Input
2 x 1/4" (6.3 mm) TRS Balanced Output
2 x 1/4" (6.3 mm) TRS Headphone Output | | Digital I/O | 1 x TOSLINK / ADAT Input | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | OS Compatibility | macOS 10.10
macOS 10.11
Windows 7
Windows 8.1
Windows 10 | | | | Dimensions | 2.6 x 7.6 x 9" / 6.6 x 19.3 x 22.9 cm | | Weight | 3.7 lb / 1.7 kg (Without Accessories)
4.2 lb / 1.9 kg (With Accessories) | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 14.4 x 9.9 x 3.7" |
