User Manual for Focusrite Scarlett 2i4 USB Audio Interface Click to enlarge the picture
Contents of the user manual for the Focusrite Scarlett 2i4 USB Audio Interface
- Product category: Audio Interfaces & Systems Focusrite
- Brand: Focusrite
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Focusrite Audio Interfaces & Systems
 |
User manual for the Focusrite Scarlett 2i4 USB Audio Interface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Focusrite product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Focusrite user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Focusrite product will considerably shorten its lifespan!
|
Product description - Focusrite // The New Second Generation Scarlett Range FocusriteTV FocusriteTV
- Focusrite // The New Second Generation Scarlett 2i4
- Scarlett 2i4
- Scarlett Intro 1

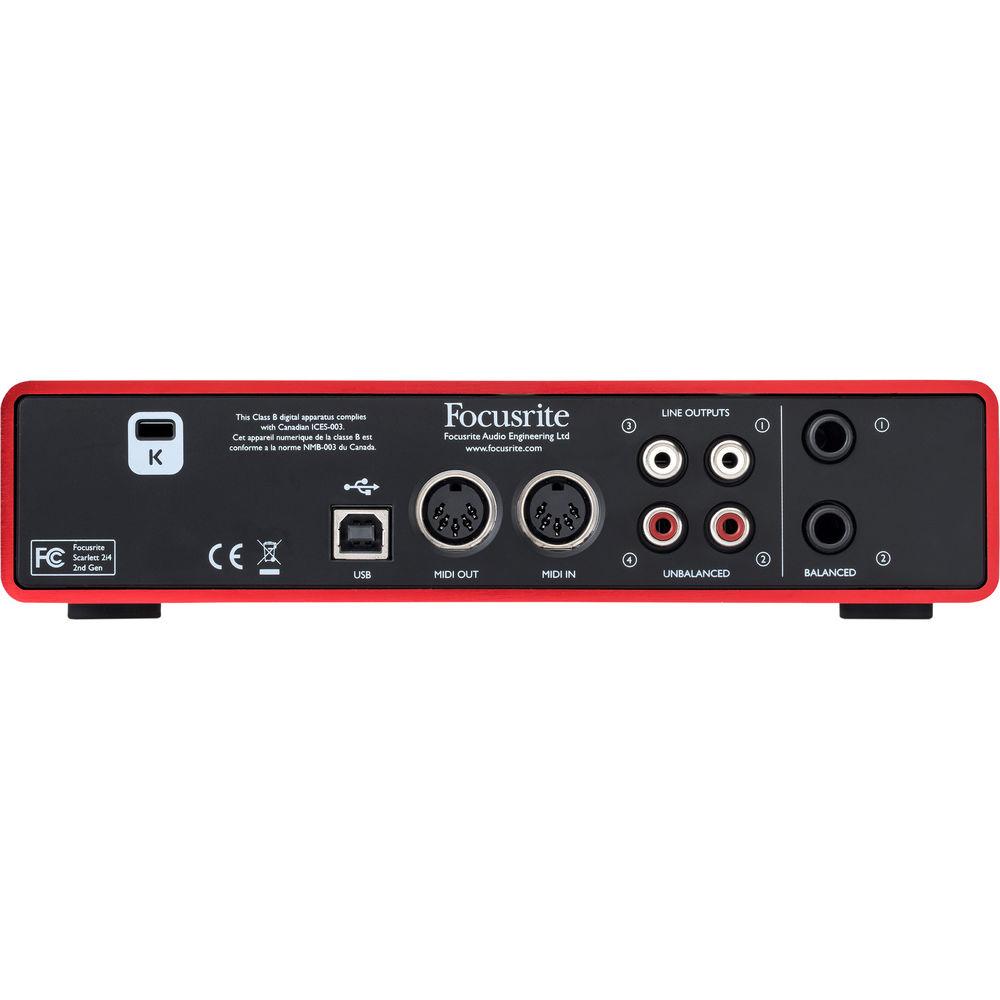

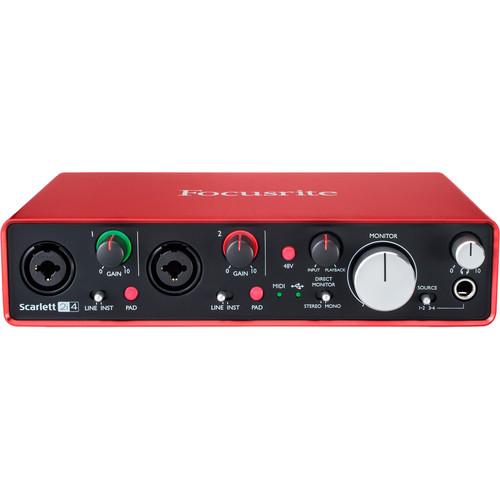

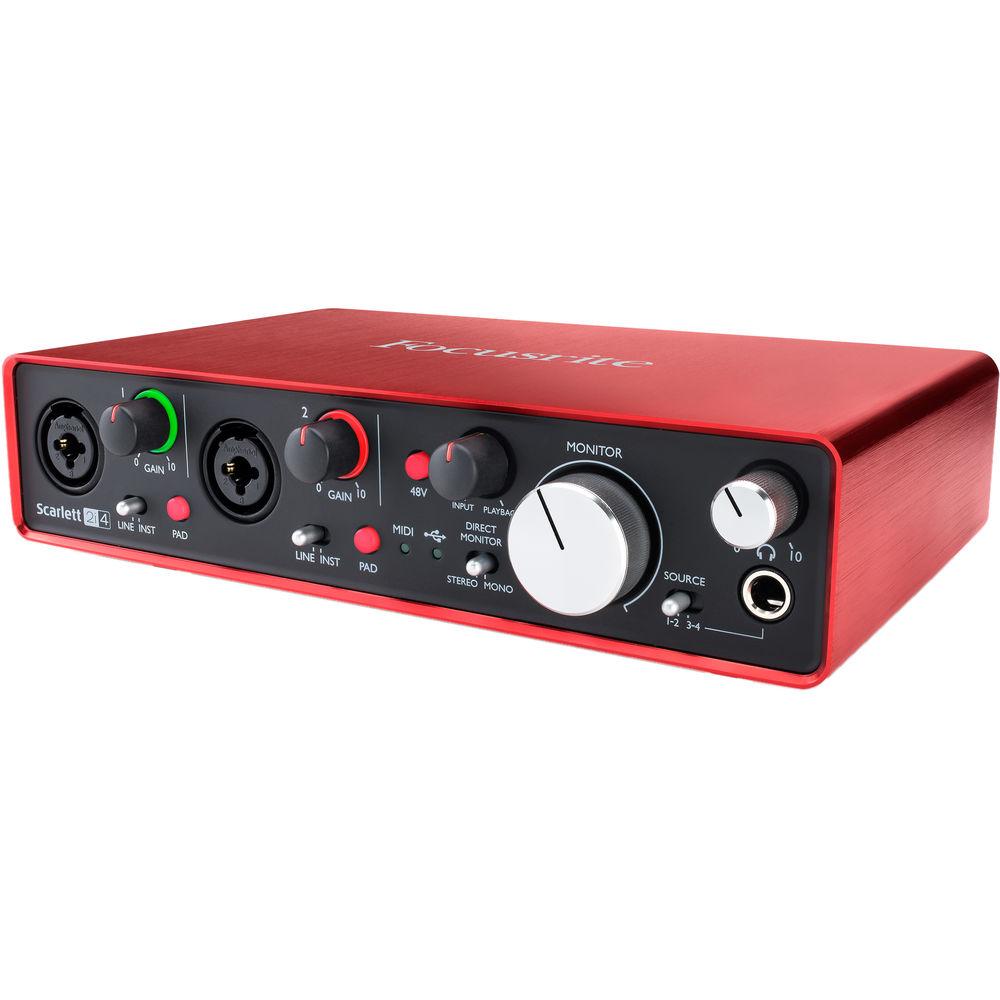

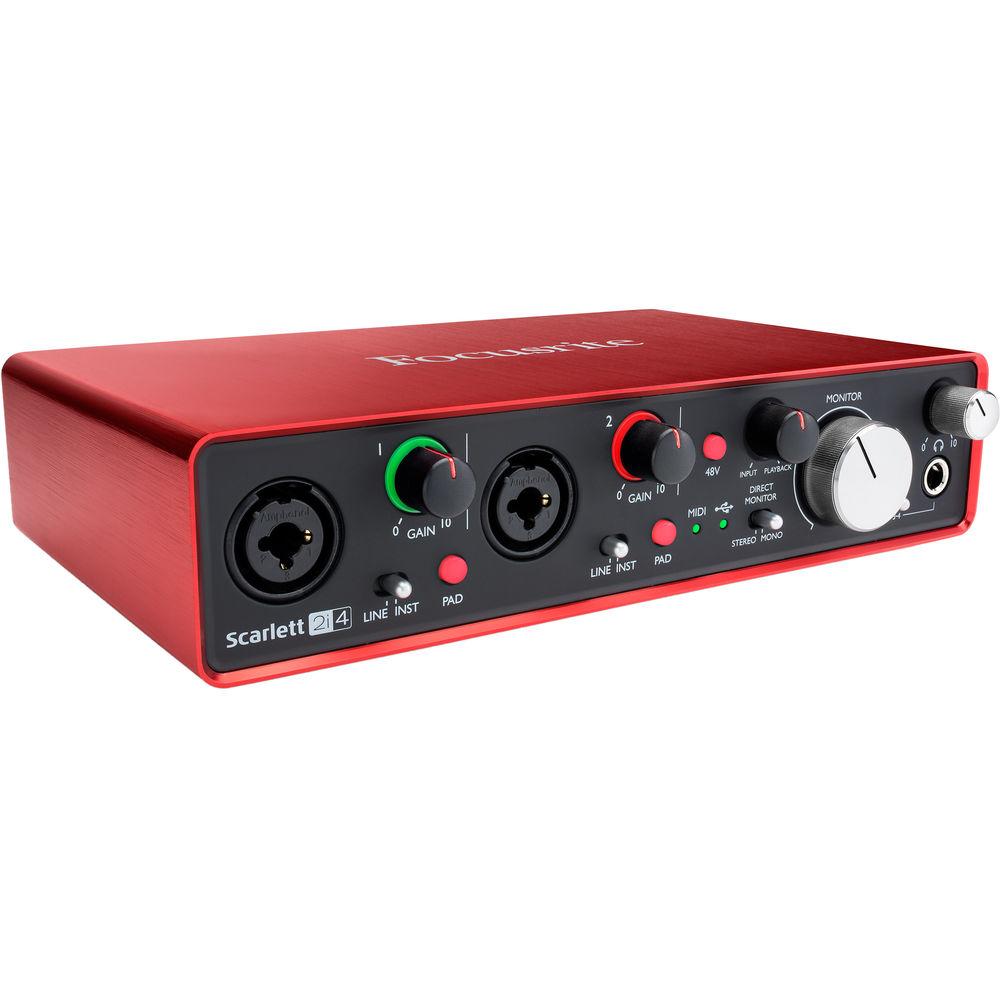

Focusrite's second-generation Scarlett 2i4 is a portable audio interface designed specifically for use in a computer environment. Lightweight at 1.9 lb, the device sports two balanced outputs, two Scarlett combination inputs, instrument/line switches, 48V Phantom power, direct monitoring, and the ability to draw power via USB. You can also monitor—or send cue mixes out to instrumentalists—by means of four unbalanced RCA jacks mounted on the rear panel.
The interface is designed to operate handily at resolutions and sample rates of up to 24-bit/192 kHz, and its combination input jacks render it suitable for tracking instruments with much in the way of headroom and little in the way of distortion. A MIDI input and output round out the unit, allowing you to manipulate your DAW by means of a MIDI-controller, and thus, to program software instruments, to automate audio via knobs or faders, and to instantiate other commands.
In addition to its two balanced monitor outputs, the Scarlett 2i4 offers a volume-controllable headphone output on the front. Metal gain controls and a red metal chassis provide a durable construction which can be taken on the road. The 2i4 provides a round-trip latency as low as 2.74 ms at 96 kHz, allowing you to record and monitor processed sound sources in real time.
This interface includes versions of Pro Tools and Ableton Live, as well the Focusrite Red Plug-In Suite (AAX, Audio Units, VST) which delivers modules based on the classic Focusrite Red 2 EQ and Red 3 Compressor hardware. Also included is the Softube Time and Tone Pack for further sonic exploration within your DAW. - Notable Features
-
- 2 Scarlett mic preamps offering headroom and minimal distortion
- 2 instrument inputs designed for high-level pickups
- Sample rates up to 24-bit/192 kHz
- Headphone output with gain control
- Cue-mix switching with four analogue outputs
- Low latency and direct monitoring
- 2x 1/4-inch balanced jacks
- MIDI I/O connectivity, ideal for sending/receiving MIDI notes from a MIDI controller
- Durable metal construction, portable at 1.9 lb
- Powered by USB
- Includes Pro Tools | First Focusrite Creative Pack and Ableton Live Lite
- Includes additional plugins and loops
UPC: 815301008408 In the Box Focusrite Scarlett 2i4 USB Audio Interface (2nd Generation) USB Cable Code for Software Bundle Limited 2-Year Warranty User Manual PDF 1.7mbstatqwxsywcevwvyevs Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite Scarlett 2i4 USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite 2i4 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0) | | Analog I/O | 2 x Combo XLR / 1/4" Input
2 x 1/4" (6.3 mm) Balanced Output
1 x 1/4" (6.3 mm) TRS Headphone Output
4 x RCA Unbalanced Output | | Digital I/O | None | | MIDI I/O | 1 x 5-Pin MIDI In
1 x 5-Pin MIDI Out | | | | OS Compatibility | macOS 10.10
macOS 10.11
Windows 7
Windows 8.1
Windows 10 | | | | Dimensions | 1.9 x 8.3 x 5.4" / 4.7 x 21 x 13.8 cm | | Weight | 1.9 lb / 0.9 kg | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 9.685 x 7.874 x 2.52" |
