Product description - Focusrite // The New Second Generation Scarlett Range FocusriteTV FocusriteTV
- Scarlett 6i6
- Scarlett Intro 1

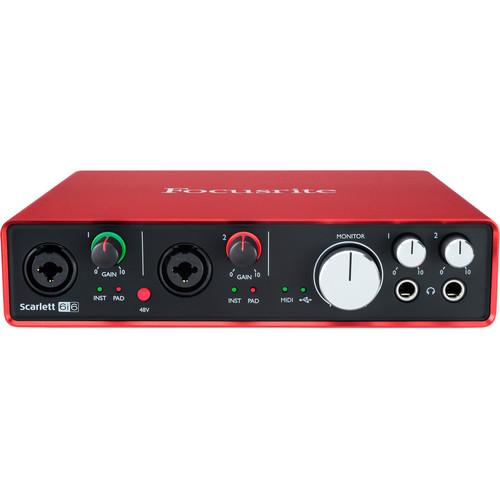

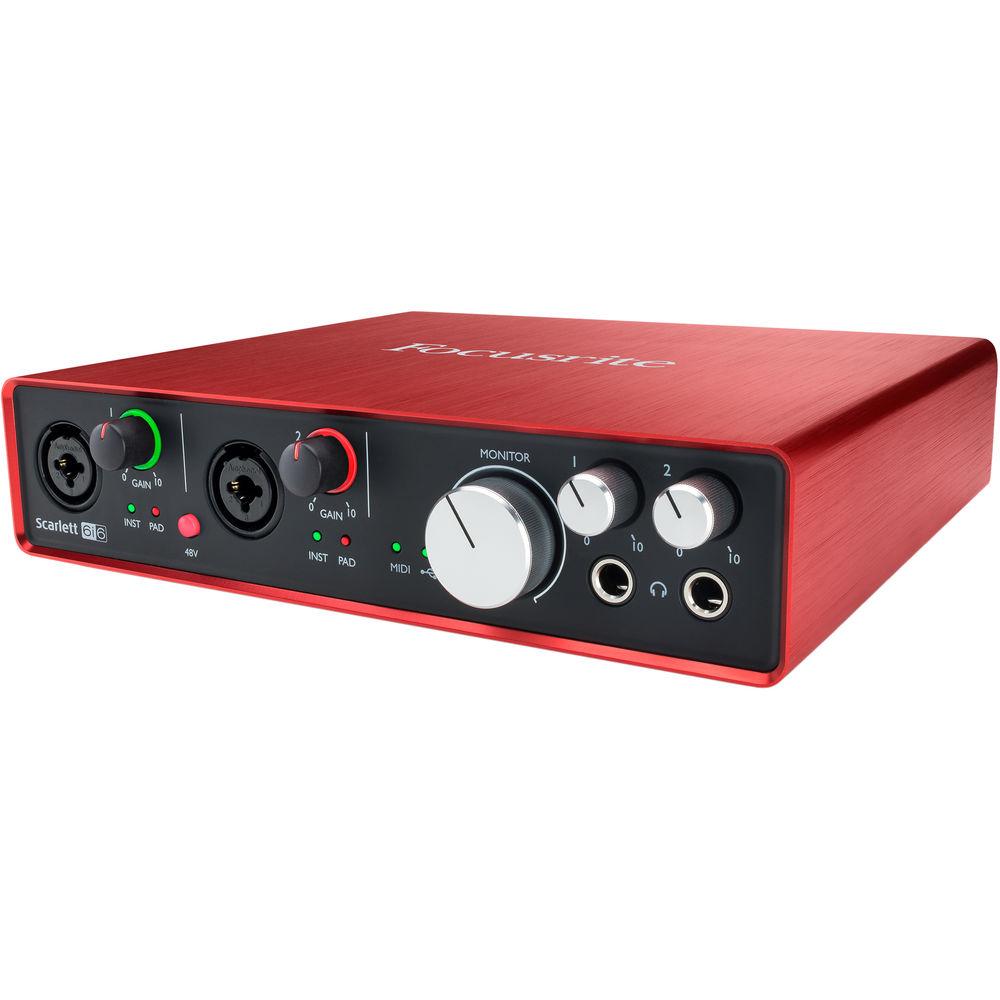

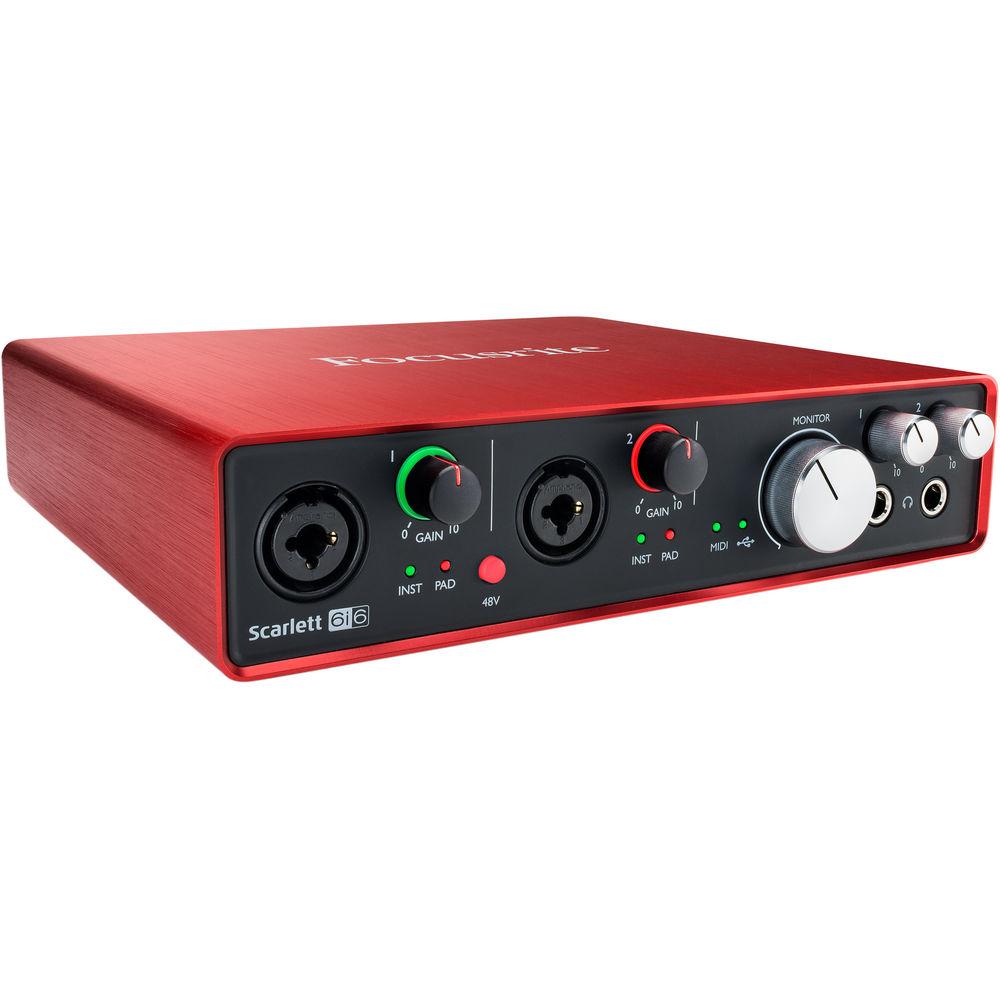

Focusrite's second-generation Scarlett 6i6 is a portable audio interface designed specifically for use in a computer environment. The device sports two Scarlett combination inputs for both mics and instruments, as well as two line inputs for gear. It can function equally well on stage and in a mobile studio.
The interface is designed to operate handily at resolutions and sample rates of up to 24-bit/192 kHz, and its preamps have been reconfigured to allow for additional headroom over its predecessor, all the while retaining the low-distortion properties of the original unit. Another improvement is the inclusion of analog protection circuitry which guards the interface against power surges.
Boasting S/PDIF connections for interfacing with other digital devices, the 6i6 also acts as a MIDI interface, allowing you to manipulate your DAW by means of a MIDI controller, and thus, to program software instruments, to automate audio via knobs or faders, and to instantiate other commands.
The Scarlett 6i6 offers four balanced outputs for multiple routing setups, as well as two volume-controllable headphone outputs on the front. Metal gain controls and a red metal chassis provide a durable construction which can be taken on the road. The 6i6 provides a round-trip latency as low as 2.74 ms at 96 kHz—an improvement over the first generation—allowing you to record and monitor processed sound sources in real time.
This interface includes versions of Pro Tools and Ableton Live, as well the Focusrite Red Plug-In Suite (AAX, Audio Units, VST) which delivers modules based on the classic Focusrite Red 2 EQ and Red 3 Compressor hardware. Also included is the Softube Time and Tone Pack for further sonic exploration within your DAW. - Intuitive Mix Control and Additional Software
- Focusrite Control—an included internal mixer—is designed to facilitate and power an intuitive array of routing setups. It also provides access to internal hardware functions. Furthermore, the 6i6 includes software such as an exclusive Focusrite edition of Pro Tools | First Pack, Ableton Live Lite, the Softube Time and Tone Bundle, Foscusrite's Red Plug-In Suite, and 2GB of Loopmasters samples.
- Other Notable Features
-
- Four analog inputs, including two Scarlett mic preamps with high headroom and minimal distortion
- Two instrument inputs redesigned for high-level pickups
- Digital conversion at up to 24-bit/192 kHz
- Lower latency for performing with effects in real time, with no need for DSP
- Four balanced analog outputs for connecting studio monitors or outboard gear
- Two headphone outputs with dedicated volume controls
- MIDI I/O connectivity, ideal for sending/receiving MIDI
- Stereo S/PDIF In and Out for connecting other digital devices
- Downloadable Focusrite iOS Control app adjusts cue mixes remotely from iOS devices (iPad, iPhone, or iPod touch)
UPC: 815301008422 In the Box Focusrite Scarlett 6i6 USB Audio Interface (2nd Generation) USB Cable Power Supply iOS Control App Via Free Download Code for Software Bundle Limited 2-Year Warranty User Manual PDF 2.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Focusrite Scarlett 6i6 USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFocusrite 6i6 Specs | Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz | | Microphone Inputs | Frequency response: 20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic range: 109 dB (A-Weighted)
THD+N: <0.002%
Noise EIN: -127 dBu
Maximum input level: +8.5 dBu
Gain Range: 50 dB | | Line Inputs | Inputs 1 and 2:
Frequency response: 20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic range: 109 dB (A-Weighted)
THD+N: <0.003%
Maximum input level: +22 dBu
Gain range: 50 dB
Inputs 3 and 4:
Frequency response: 20 Hz to 20 kHz, +0.5 dB
Dynamic range: 110 dB (A-Weighted)
THD+N: <0.003%
Maximum input level: +16 dBu | | Instrument Inputs | Frequency response: 20 Hz to 20 kHz, +0.5/-1.5 dB
Dynamic range: 109 dB (A-Weighted)
THD+N: <0.003%
Maximum input level: +12 dBu
Gain range: 50 dB | | Monitor Outputs | Frequency Response: 20 Hz to 20 kHz, ±0.5 dB
Dynamic range (Line outputs): 108 dB (A-Weighted)
THD+N: <0.001%
Maximum output level (0 dBFS): +16 dBu | | Line Outputs | Outputs 3 and 4:
Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Dynamic range (line outputs): 108 dB (A-Weighted)
THD+N: <0.001%
Maximum output level (0 dBFS): +16 dBu | | Headphone Outputs | Frequency response: 20 Hz to 20 kHz, ±0.5 dB
Dynamic range: 108 dB (A-Weighted)
THD+N: <0.001%

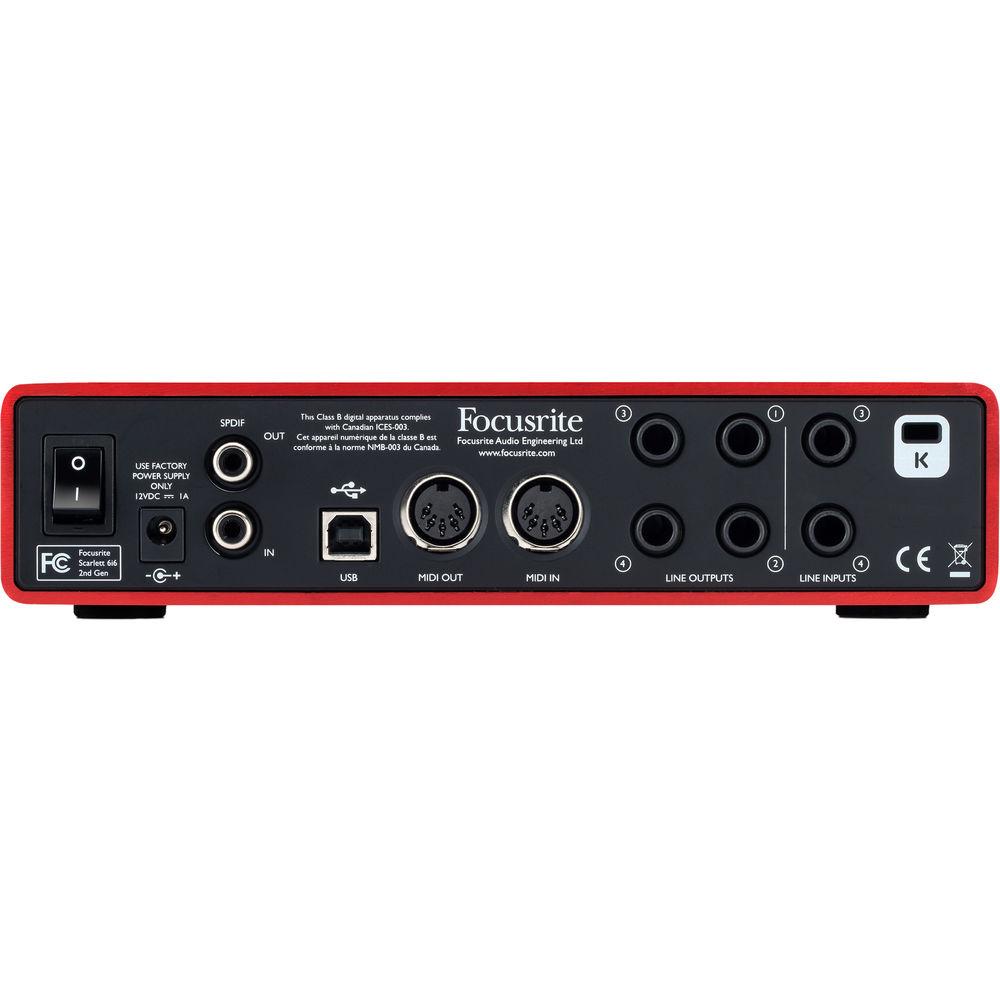

Maximum output level: +13 dBu | | Connections | 2 x combination jacks (1/4" / XLR)
4 x 1/4" balanced outputs
2 x 1/4" stereo headphone outputs
1 x MIDI input
1 x MIDI output
1 x USB Type-B
2 x RCA S/PDIF connections | | System Requirements | Mac OS X 10.10 Yosemite, 10.11 El Capitan
Windows 7 (64-bit), 8.1, 10 | | Dimensions (H x W x D) | 2.0 x 7.7 x 8.4" / 5.0 x 19.5 x 21.2 cm | | Weight | 3.1 lb / 0.9 kg | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 12.7 x 9.4 x 2.5" |
