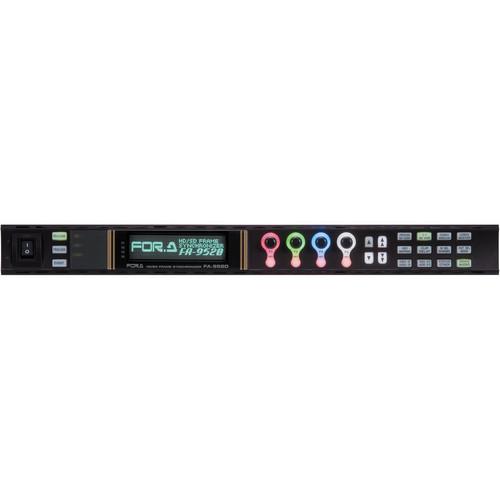

User Manual for For.A 3G HD SD Dual Channel Multi Purpose Signal Processor Click to enlarge the picture
Contents of the user manual for the For.A 3G HD SD Dual Channel
- Product category: Video & Audio Processing For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Video & Audio Processing
 |
User manual for the For.A 3G HD SD Dual Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|

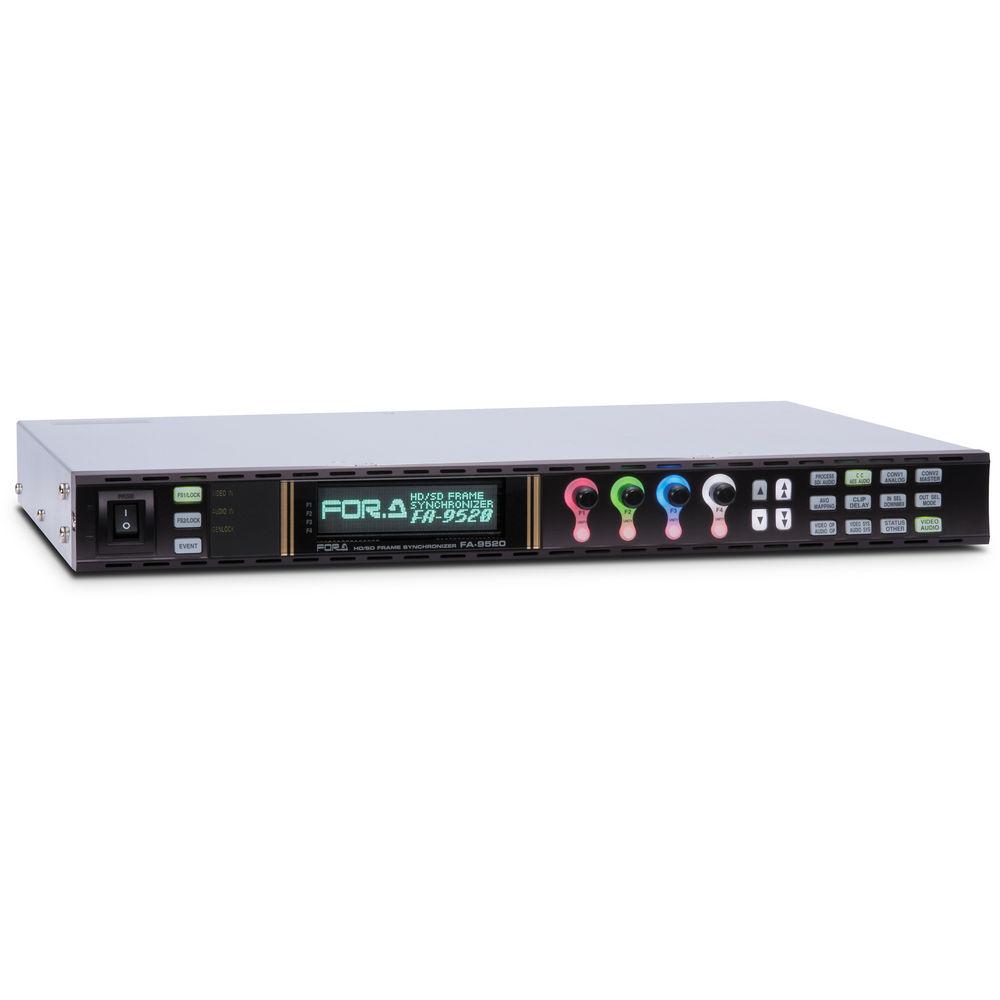

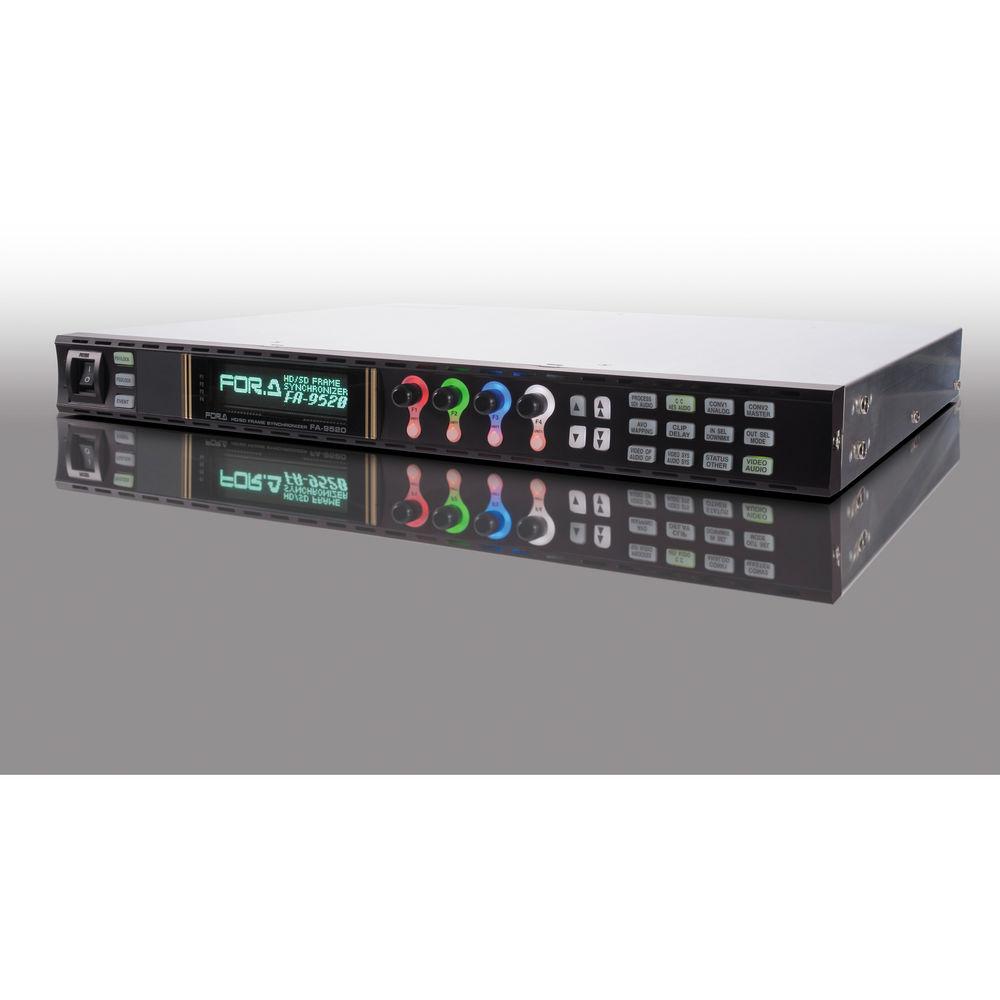

Product description The For.A 3G/HD/SD Dual Channel Multi Purpose Signal Processor is suitable for a variety of applications including master control, mobile production, post production services, live production, and more.This processor supports 3G-SDI, HD/SD-SDI, and analog composite I/O signals. In addition to its functionality as a frame synchronizer, it also provides up/down/cross/aspect converter, full color corrector, and AVO (Automatic Video Optimizer) as standard features. It also supports optional features such as analog component I/O, Dolby E encoder, and Dolby E decoder. - Dual Channel Mode
- The FA-9520 processor is provided with 2 modes, namely Dual Channel Mode and FA-9500 Compatible Mode. The FA-9500 Compatible Mode can be used for HD/SD simultaneous operation using a second converter.
- 3G-SDI/HD-SDI/SD-SDI/Analog Composite I/O
- Three video inputs are standard (2 3G/HD/SD-SDI inputs and 1 analog composite input). Adding the optional analog component input provides a 4th input. Any of the inputs can be independently assigned to the 2 internal independent frame synchronizers. In addition, each SDI input has an error detection function. When the signal is missing or an error is detected, this optional feature provides a clean switch for a seamless changeover to the other channel.Both channels are equipped with emergency bypass. In case of a power outage, the original signal is passed through to the appropriate output in its original format.
- Digital/Analog Audio I/O
- The FA-9520 Processor supports a variety of audio signals, including 16 synchronous/asynchronous channels (During HD input/output only. In SD, only synchronous audio is supported, and at most there are 16 input channels and 12 output channels) of embedded audio, 8 channels of AES/EBU, and 4 channels of analog audio. This provides a total of 28 input and 28 output audio channels. Many types of signal processing are incorporated such as, embedding/de-embedding with video and A/D, D/A conversion. The unit provides a lot of flexibility for multi-channel audio content. Individual sampling rate converters are provided for each audio channel. Signal processing without any phase difference between channels is possible for delay adjustment, level adjustment, down-mixing, and remapping.
- Up/Down/Cross/Aspect Converter
- In addition to A/D and D/A conversion, an up/down/cross/aspect converter is standard equipment in the FA-9520 Processor. In addition to bi-directional conversion between HD and SD, the FA-9520 Processor also offers bi-directional conversion between 1080i format and 720p format (IP conversion). The aspect ratio conversion allows for specific control of horizontal and vertical sizing.
- Powerful Frame Synchronizer Performance
- The processor delivers high performance when processing video with poor quality signals. Synchronizer modes can be selected from Frame, Line, Input (The Input mode is supported only in FA-9500 Compatible Mode.), and AVDL mode. AVDL adjustment range is 5H in HD, 1H in SD.In all modes, ancillary data can be passed through together with both H and V (If input/output formats differ, packets that can be passed through are subject to certain limitations).
- Color Corrector
- The real-time color correction function is suitable for correcting on set monitors, correcting white balance problems, and matching cameras. The unit provides intuitive control with 4 rotary encoders that light red, green, blue, and white to indicate the controlled function.
- Main Functions
- Supports 3 types of color correction modes (balance, differential and sepia),¬ gamma adjustment function with high, mid and low tone, white level and black level adjustment function, and various clip functions (Y white, C white, Y black).
- Closed Caption Conversion (Subtitles) between HD and SD Videos
- You can convert the closed captioning (subtitles) during up conversion (CEA-608 CEA-708).
- Web GUI for Intuitive Operations and Remote Control
- The Web server is installed in the main unit to enable operations and monitoring via a Web browser from an external PC. The block diagram-based, easy-to-understand GUI allows you to intuitively control video/audio routing and adjustment along with the signal flow.
- Other Features (Standard Functions)
- Supports Video/audio delay, 2D/3D comb filter for Y/C separator (composite), AFD (Active Format Description), and SNMP monitoring/control function (partially).
- AVO (Automatic Video Optimizer)
- The AVO feature can monitor and adjust luminance levels in real time. Parameters are user set to provide correction for changing lighting conditions. The AVO function can only be assigned to a single channel.
- Logo Generator
- This allows you to key logo images over input video. Data is maintained even when the unit is powered Off. The logo function can be used for branding purposes, or used as a side panel added to a 4:3 video in place of a logo. One Logo Generator each is provided for each of dual channels.
- Options
- The FA-9520 processor's wide range of options let you add the specific functions such as Dolby E encoder/decoder,¬ loudness control,¬ analog component I/O,¬ change over function (supported only in FA-9500 Compatible Mode),¬ digital audio expansion cable, and¬ redundant power supply unit.
In the Box For.A 3G/HD/SD Dual Channel Multi Purpose Signal Processor AC Cord Pair of Rack Mount Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A 3G HD SD Dual Channel Multi Purpose Signal Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A FA-9520 Specs | Video Formats | 1080/59.94p, 1080/50p (Level-A)
1080/59.94i, 1080/50i, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL) | | Video Input | 3G-SDI: 3 Gb/s, HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 75Ω x 2 BNC
Analog Composite: 1.0 Vpp, 75Ω 1 x BNC
HD Analog Component (Option)
SD Analog Component (Option) | | Video Output | 3G-SDI: 3 Gb/s or HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 75Ω 4 x BNC (2 x 2 outputs)
Analog Composite: 1.0 Vpp, 75Ω 2 x BNC
HD Analog Component (Option)
SD Analog Component (Option) | | Video I/O | Process: 3 inputs (standard) or 5 inputs (maximum input) → 1 processing → 2 x 2 outputs | | Video Processing | 4:2:2 digital component | | Quantization | 3G/HD/SD-SDI: 10-bit
Analog Composite: 12-bit | | Sampling Frequency | 3G-SDI (option): Y: 148.5 MHz, C: 74.25 MHz
HD-SDI: Y: 74 MHz, C: 37 MHz
SD-SDI: Y: 13.5 MHz, C: 6.75 MHz | | Frequency Response | 100 kHz to 4.2 MHz: -0.5 to +0.5 dB
4.2 to 5.0 MHz: -1.0 to +1.0 dB
Roll Off above 5.0 MHz (NTSC, composite)
100 kHz to 4.2 MHz: -0.5 to +0.5 dB
4.2 to 5.5 MHz: -1.0 to +1.0 dB
Roll Off above 5.5 MHz (PAL, composite) | | Type | DG/DP: 1% / 1° (Composite) | | S/N Ratio | 60 dB or higher (Without quantization noise, composite) | | K-Factor | 2T Pulse: 1% (Composite) | | Comb Filter | 2D or 3D comb filter (Selectable, composite) | | Genlock Input | BB: NTSC 0.429 Vpp / PAL 0.45 Vpp or Tri-level Sync: 0.6 Vpp, 1 x 75Ω BNC, loop-through (Terminate with 75Ω terminator, if unused) | | Synchronizer Mode | Frame Sync mode, Line Sync mode, AVDL mode, Input Sync mode (This function operates in FA-9500 Compatible Mode only) | | Phase Control | Frame Sync Mode:
H Phase: -1/2 to +1/2 H
V Phase: -1/2 to +1/2 frame
Maximum Delay: 1 frame + 1 H, Minimum delay: +1 H
Line Sync Mode (The phase control range indicates values at the time of the SDI input. For values at the time of analog (composite, component, Y/C) input, please see the operation manual.)
H Phase: -1/2 to +1/2 H
V Phase: -1/2 to +1/2 frame
Maximum Delay: 1 H + 1/2 H, Minimum delay: 1 H + 2 H
AVDL Mode (The phase control range indicates values at the time of the SDI input. For values at the time of analog (composite, component, Y/C) input, please see the operation manual.)
H Phase: -1/2 to +1/2 H
V Phase: -1/2 to +1/2 frame
Maximum Delay: 5 H + 1/2 H, Minimum Delay: +1/2 H (HD)
Maximum Delay: 1 H + 1/2 H, Minimum Delay: +1/2 H (SD)
Input Sync Mode: The phase control range indicates values at the time of the SDI input. For values at the time of analog (composite, component, Y/C) input, please see the operation manual. This function operates in FA-9500 Compatible Mode only.
H Phase: -1/2 to +1/2 H
V Phase: -1/2 to +1/2 frame
Maximum Delay: 1 frame, Minimum Delay: +520 clk | | Video Delay | Maximum 8 frames (Frame sync or input sync) | | Video Processing Functions | Up/Down/Cross converter, aspect ratio converter, proc amp, color corrector, automatic video optimizer, logo generator | | Proc Amp | Video Level: 0.0 to 200.0%
Chroma Level: 0.0 to 200.0%
Black Level: -20.0 to 100.0%
HUE: -179.8 to +180° | | Video Clip | YPBPR mode, RGB mode, Composite mode | | Color Correction | Balance mode, differential mode, sepia mode | | Audio Input | Embedded Audio
3G/HD: 16 channels (Group 1 to 4), 48 kHz, 16/20/24-bit, synchronous/asynchronous
SD: 16 channels (Group 1 to 4), 48 kHz, 16/20/24-bit, synchronous only
AES/EBU: Unbalanced, 1.0 Vpp, 4 x 75 Ω BNC for AES/EBU input/output, maximum 4 pairs of stereo channels, 48 kHz, 16/20/24-bit
Analog Audio: Balanced or unbalanced, 4 inputs (2 stereo channels), 1 x 25-pin D-sub (female) for analog audio input/output 600 Ω or high impedance, 48 kHz, 24-bit | | Audio Output | Embedded Audio
3G/HD: 16 channels (Group 1 to 4), 48 kHz, 16/20/24-bit, synchronous/asynchronous
SD: 12 channels (Group 1 to 3), 48 kHz, 16/20/24-bit, synchronous only
AES/EBU: Unbalanced, 1.0 Vpp, 4 x 75 Ω BNC for AES/EBU input/output, maximum 4 pairs of stereo channels, 48 kHz, 16/20/24-bit
Analog Audio: Balanced or unbalanced, 4 inputs (2 stereo channels), 1 x 25-pin D-sub (female) for analog audio input/output 100 Ω or high impedance, 48 kHz, 24-bit | | Audio Delay | 2 to 1,000 ms (adjustable in 1 ms steps) | | Audio Processing | SRC (Sampling Rate Converter), gain control, down mix, channel re-mapping, channel mute | | Interface | Ethernet: 10BASE-T/100BASE-TX/1000BASE-T, 2 x RJ-45
Remote (GPI): 1 x 9-pin D-sub (male) (7 terminals) TTL negative logic level signal or Make contact | | Temperature / Humidity | 32 to 104ºF (0 to 40ºC) / 30 to 90% (no condensation) | | Power | 100 to 240 VAC ± 10%, 50/60 Hz | | Consumption | FA-9520: 52 VA (48 W) (at 100 to 120 VAC), 64 VA (52 W) (at 220 to 240 VAC)
FA-9520 + FA-95PS: 60 VA (55 W) (at 100 to 120 VAC) 73 VA (56 W) (at 220 to 240 VAC) | | Consumables | Time for Replacement
Power Supply Unit: Approximately 5 years
Cooling Fan: Approximately 6 years | | Dimensions (W x D x H) | 18.9 x 13.8 x 1.7" (480.0 x 350.0 x 44.0 mm) | | Weight | 6.6 lb (3.0 kg) (Without options) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 22.0 x 19.0 x 8.0" |
