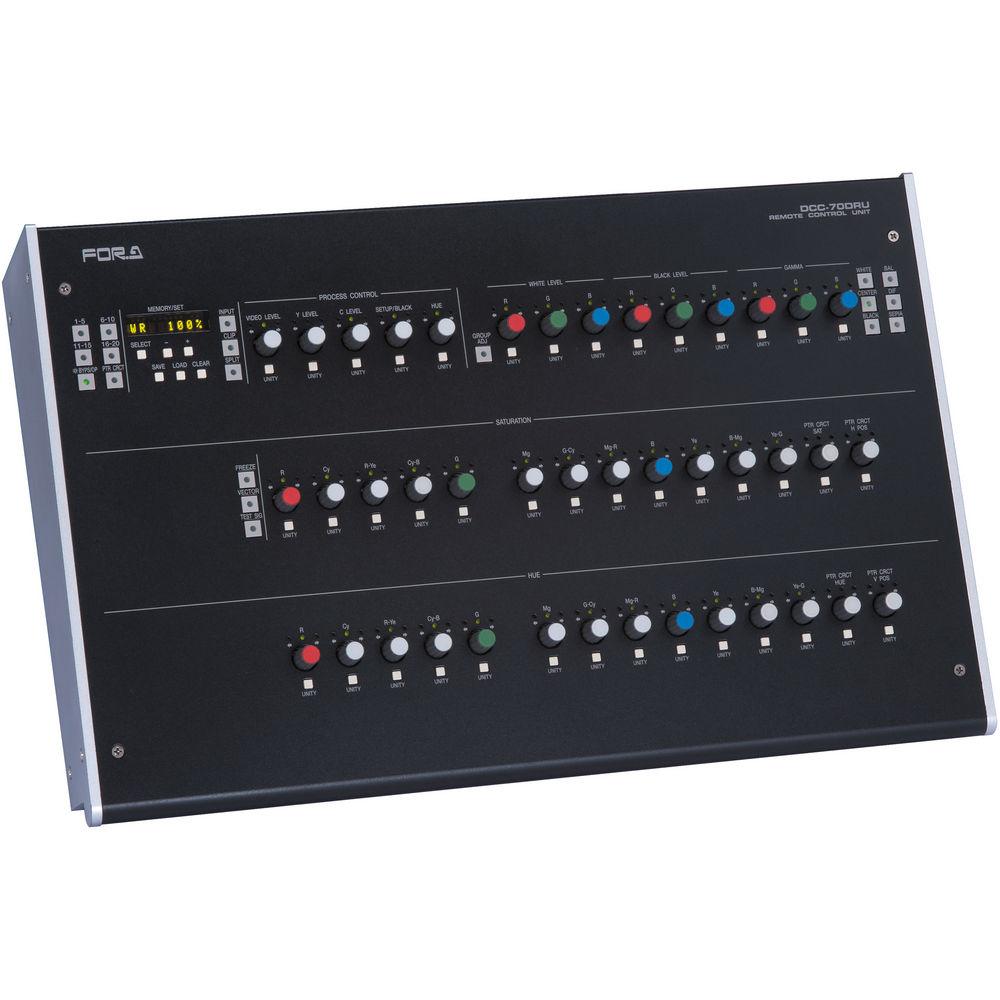

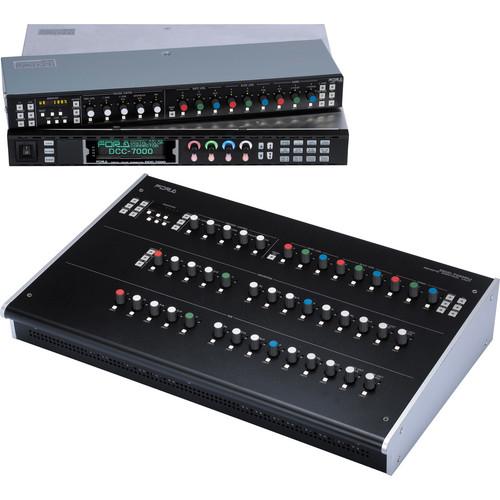

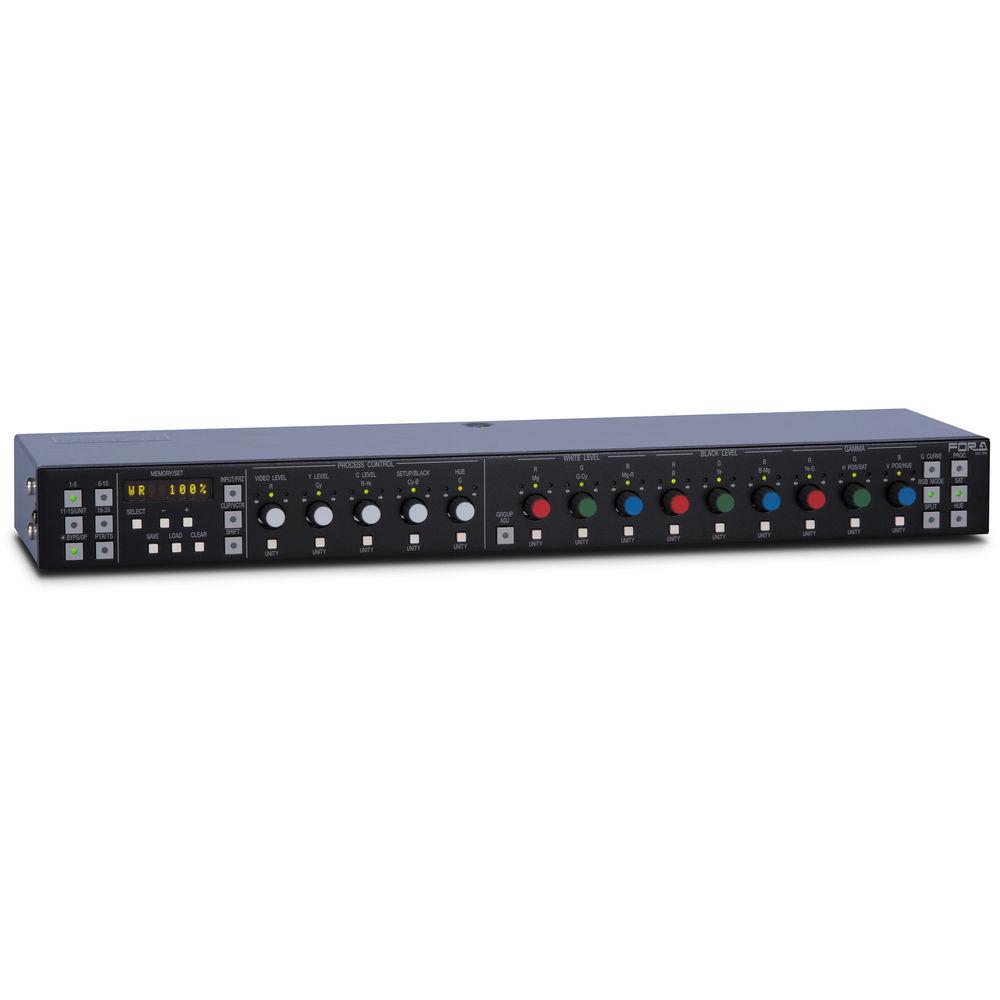

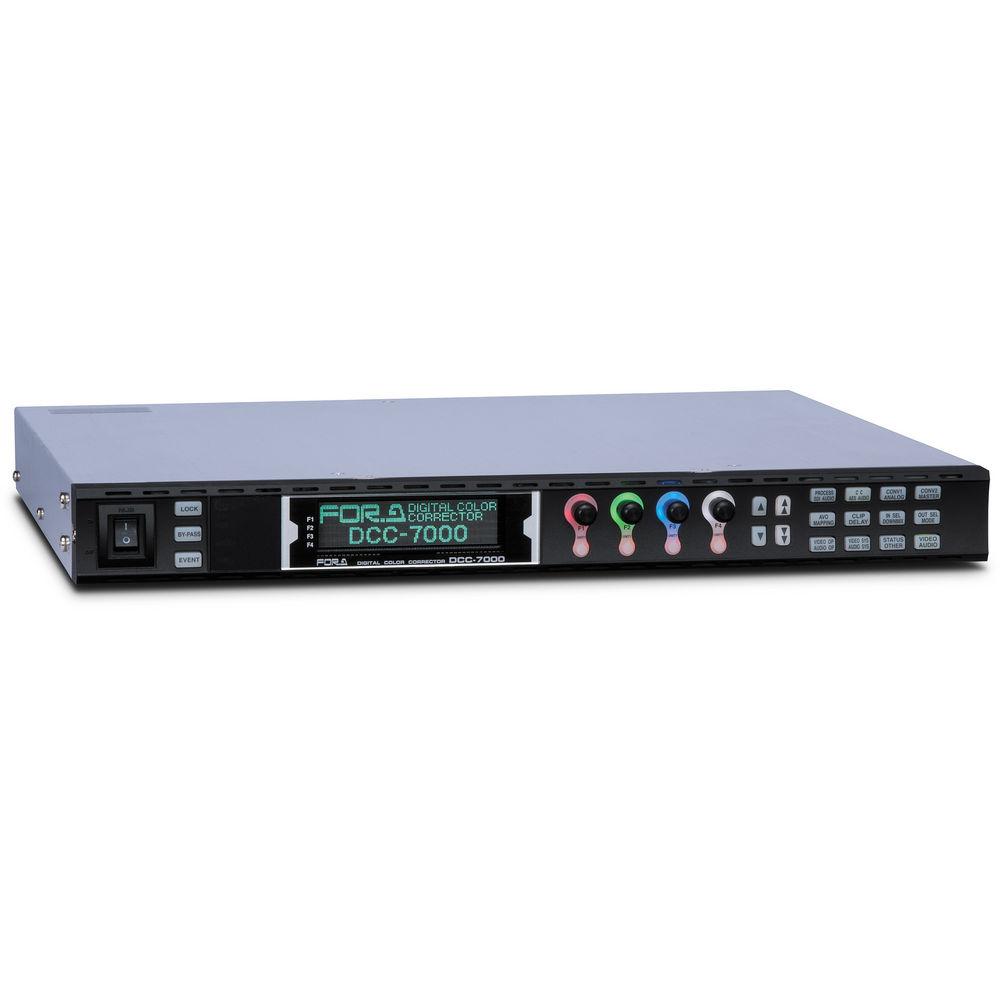

Product description The For.A DCC-7000 HD/SD Advanced Color Corrector is a high-performance HD/SD color corrector designed for precise color correction in real time using 12 color parameters.In addition to offering black-level adjustment and versatile processing, the unit incorporates a frame synchronizer. Dedicated control panels (sold separately) enable efficient operation.This unit does correction/fine-turning to compensate for discrepancies in colors from various manufacturers or models of cameras. It also does correction/fine-turning of on-set monitors to match color temperature of lighting. It also provides efficient color correction/fine-turning for the editing process. - 12-Axis Color Correction in Real Time
- It offers adjustment based on 12 colors. Hue and saturation can be adjusted in each of the 12 axis, making it easy to adjust specific colors in isolation. You can enjoy advanced color correction from specialized hardware design with the convenience of real-time processing.
- Includes a Traditional Color Correction Mode
- A mode for conventional RGB correction is also included. After general adjustment in this mode, users can switch to more precise color correction in the 12-axis mode. Balance, Differential, and Sepia are the 3 color correction modes that are available with this unit. In Balance mode, it performs RGB-based color correction; in Differential mode, it performs color correction while maintaining white balance; and in Sepia mode, it performs monotone color conversion. 1
Please Note: 12-axis color correction is not usable when in Sepia mode. close - Vector Display
- For precise color correction, video signals can be displayed using the built-in vectorscope. Detailed color adjustment is possible while viewing waveforms. Using multiple outputs, an alternative coordinate system can be displayed without displaying the main line.
- Split Before/After Display
- Images can be viewed before and after color correction together for comparison. Images can be displayed vertically or horizontally for easy color correction while comparing the original image. Before and after images can also be displayed on individual outputs without using the split display.
- Clip Level Functions
- RGB and composite clip functions keep color information within the optimal range. The RGB clip uses white clip and black clip functions to correct color information in video that is too bright or dark. The composite clip automatically adjusts color information in HD video to suit SD signal ranges while preserving the original appearance. By determining differences between color information in HD video and that available with SD video, color inconsistency in simulcasts can be instantly corrected.
- Dual Independent Outputs
- Equipped with 2 HD/SD-SDI inputs and 1 analog composite input, the unit can process signals from a single input at a time and switch between each signal as required. The unit is equipped with 2 HD or SD-SDI outputs and 1 analog composite output. Using dual outputs, one can be used for precise adjustment with before/after or vector display, while the other is used as the production output. The analog composite output can be used with SD-SDI signal.
- Event Memory
- Color-correction settings can be stored on the unit for instant recall of 100 events. Additionally, the unit's built-in browser can be used to export or save data to an external computer. This makes it easy to use the color corrector when correction settings are edited in the field.
- Other Features
- Video processing controls for video level, luminance level, chroma level, black level, and hue are available in this unit. Frame Sync, Line Sync, and Input Sync modes are present in the FS (Frame synchronizer) functions. With embedded audio pass-through, it supports up to 16 channels of embedded audio. Audio is de-embedded before processing and then re-embedded afterward.
In the Box For.A DCC-7000 HD/SD Advanced Color Corrector AC Cord 2 x Rack Mount Bracket Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A DCC-7000 HD SD Advanced Color Corrector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A DCC-7000 Specs | Video Format | 1080/59.94i, 1080/50i, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL) | | Video Input | HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 2 x 75 Ω BNC
Analog Composite: 1 x 1.0 Vpp 75 Ω BNC | | Video Output | HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 4 x 75 Ω BNC
Analog Composite : 2 x 1.0 Vpp 75 Ω BNC | | Signal Processing | 4:2:2 digital component | | Quantization | HD/SD-SDI: 10-bit, Analog Component: 12-bit | | Sampling Frequency | HD-SDI:
Y: 74 MHz, C: 37 MHz
SD-SDI:
Y: 13.5 MHz, C: 6.75 MHz | | Frequency Response | NTSC:
100 kHz to 4.2 MHz: -0.5 dB to +0.5 dB, 4.2 MHz to 5.0 MHz: -1.0 dB to +1.0 roll off above 5.0 MHz
PAL:
100 kHz to 4.2 MHz: -0.5 to +0.5 dB, 4.2 to 5.5 MHz: -1.0 dB to +1.0 roll off above 5.5 MHz | | Composite | I/O: 1% / 1° | | S/N Ratio | 60 dB or better without quantization noise (composite I/O) | | K Factor | 1% (2T pulse, composite I/O) | | Comb Filter | 2D or 3D comb filter (selected by menu) | | Genlock Input | BB: NTSC: 0.429 Vpp / PAL: 0.45 Vpp or Tri-sync: 0.6 Vpp 75 Ω or 1 x loop through BNC (terminate with 75 Ω terminate plug) | | Mode | Synchronization: Frame Sync mode, Line Sync mode, Input Sync mode | | System Phase Adjustment | Frame Sync Mode
H phase: -1/2 H to +1/2 H
V Phase: -1/2 frame to +1/2 frame
Delay:
Maximum: 1 frame +1 H / Minimum: 1 H
Line Sync Mode
H phase: -1/2 H to +1/2 H
V Phase: -1/2 frame to +1/2 frame
Delay:
Maximum: 1 H +1/2 H / Minimum: 1 +2 H
Input Sync Mode
H phase: -1/2 H to +1/2 H
V Phase: -1/2 frame to +1/2 frame
Delay:
Maximum: 1 frame/ Minimum: +520 clk | | Functions | Video Functions:
12-axis Color Corrector, RGB Color Corrector, Proc Amp, and Video Clip
12 Axis Color Correction:
Saturation and hue setting for following 12 colors individually (R, R-Ye, Ye, Ye-G, G, G-Cy, Cy, Cy-B, B, B-Mg, Mg, Mg-R)
RGB Color Correction:
Balance mode / Differential mode / Sepia mode
Video Clip:
YPBPR Mode / RGB Mode / Composite Mode
Process Amplifier:
Video Level: 0.0 to 200.0％
Y Level: 0.0 to 200.0%
Chroma Level: 0.0 to 200.0%
Black Level: -20.0 to 100.0%
HUE: -179.8° to +180° | | Embedded Audio Input | HD: 16-Channel (Group 1 to 4), 48 kHz, 16-bit to 24-bit, Sync/ Async
SD: 12-Channel (Group 1 to 3), 48 kHz, 16-bit to 24-bit, Sync | | Embedded Audio Output | HD: 16-Channel (Group 1 to 4), 48 kHz, 16-bit to 24-bit, Sync/ Async
SD: 12-Channel (Group 1 to), 48 kHz, 16-bit to 24-bit, Sync | | Interface | Ethernet: 2 x 10 Base-T/100 Base-TX/1000 Base-T, RJ-45
Remote (GPI): 1 x 9-pin D-sub （male), 7 circuits (in/out)
TTL negative logic or make contact | | Temperature / Humidity | 32 to 104ºF (0 to 40ºC) / 30 to 90% (no condensation) | | Power | 100 to 240 VAC ±10% 50/60 Hz | | Consumption | Approxiimately 50 VA (47 W) (@ 100 to 120 VAC)
Approxiimately 64 VA (52 W) (@ 220 to 240 VAC) | | Consumables | If used 24 hours a day at room temperature
Cooling fan: Replace every 6 years
Power unit: Replace every 5 years | | Dimensions (W x H x D) | 17.0 x 1.7 x 13.8" (430.0 x 44.0 x 350.0 mm) | | Weight | Approximately 6.6 lb (3.0 kg) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 23.0 x 20.75 x 8.5" |
