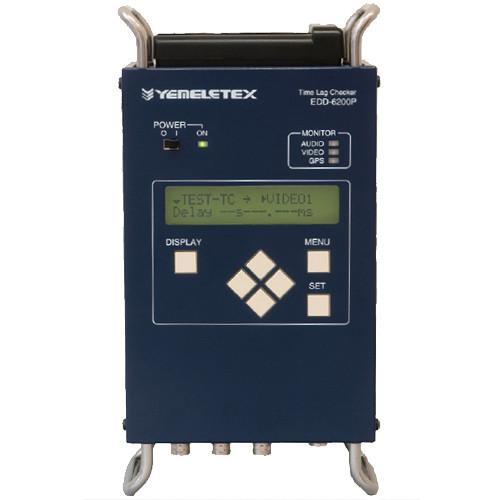

Product description The portable EDD-6200P Time Lag Checker from For.A can measure the video delay time, audio delay time, difference between audio channels, and difference between video and audio by using TTC (Test Time Code) signals.It generates TTC signals whose phases are the same as those of video, audio or VANC signals and outputs them as video, audio, or VANC. It measures video and audio delay time by routing video and audio signals back to the Time Lag Checker through the desired devices and lines, and by comparing the time from output to input (return). Additionally it also measures video and audio delay time of devices or lines by comparing phases of TTC signals that are routed back to the checker. It also estimates delay time in long distance with GPS by using 2 Time Lag Checkers. - 3G-SDI, HD-SDI and SD-SDI Supported
- The Time Lag Checker supports the following video and audio standards: Video Standards: SMPTE 259M 270 Mb/s SD-SDI (D1 NTSC,PAL), SMPTE 292M 1.485 Gb/s, 1.485/1.001 Gb/s HD-SDI (1080i 50/59/60,720p 50/59/60), SMPTE 424M 2.97 Gb/s, 2.97/1.001 Gb/s 3G-SDI (1080p 50/59/60). Audio Standards: AES/EBU and Embedded Audio (8 channel) 1
Please Note: 3G SDI: Level A YC4:2:2 10bit and Level B Dual-link YC4:2:2 10bit only close - Long Distance Delay Measurements
- Long distance delay measurements are possible using 2 Time Lag Checkers whose clocks are synchronized with a GPS clock. Audio and video delay time in long distance can be measured without GPS synchronization. 2
Please Note: Measurements using GPS cannot be performed if 4 or more GPS satellites cannot be acquired due to the lack of antenna coverage or weather conditions. close - Various Measurement Modes
- This unit features various measurement modes like delay time of video and audio, video transmission delay time, delay time of video and VANC, audio transmission delay time, delay between audio channels in various combinations, and delay measurement of signals with different formats (with some restrictions).
- High Accuracy Measurements
- The accuracy of measurements is within 0.001 msec. 3
Please Note: Within 1 msec for Embedded SD Audio.
Excluding cases when GPS satellites cannot be acquired. close - Different Measurements between Video & VANC
- Differences between video and VANC can be measured by multiplexing TTC signals into VANC areas.
- Built-in High Precision Clock (Synchronized by GPS)
- In open air, synchronize the Checker's clock with a GPS clock. Once the clock synchronization is performed, the clock keeps time within 1 ms accuracy while GPS LED is lit green (about 3 hours).
In the Box For.A EDD-6200P Time Lag Checker (Portable) Limited 1-Year Warranty on Parts & Labour Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A EDD-6200P Time Lag Checker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A EDD-6200P Specs | Video Formats | 3G-SDI: SMPTE425M 1080p 50/59/60 (Level A YC4:2:2 and Level B YC4:2:2 10bit Dual-Link structure only)
HD-SDI: SMPTE274M 1080i 50/59/60
SMPTE296M 720p 50/59/60
SD-SDI: SMPTE125M 480i ITU-R BT656 576i | | SDI Output | 3G-SDI SMPTE424M / 2.97 (1.485/1.001) Gb/s
HD-SDI SMPTE292M / 1.485 (1.485/1.001) Gb/s
SD-SDI SMPTE259M / 270 Mb/s
800 mVpp (75 Ω) ±10% BNC | | AES/EBU Outputs | AES/EBU, 4 channel 1.0 Vpp (75 Ω) ±10% BNC x 2 | | Embedded Audio Output | SMPTE272M/299M PCM 48 kHz 8 channel | | Test Signals | Luster signal, Color bars (scroll) | | SDI Input | 3G-SDI SMPTE424M / 2.97 (1.485/1.001) Gb/s
HD-SDI SMPTE292M / 1.485 (1.485/1.001) Gb/s
SD-SDI SMPTE259M / 270 Mb/s
800 mVpp (75 Ω) BNC | | AES/EBU | Input: 2 x AES/EBU, 4 channel 1.0 Vpp (75 Ω) BNC | | Embedded Audio Input | SMPTE272M/299M PCM 48 kHz 8 channel | | Range | 18.999999 sec (maximum range between TTC and signal) on a 0.001 msec basis (9.999999 sec: range between signals) | | Accuracy | Within ±0.001 msec (when in the same frame rate) | | Display Unit | sec/ms or sec/frame/ms | | | | LED Indicators | Video detection, Audio detection, GPS input | | Operation | Measurement target and mode selection using panel keys | | Display | Delay time value / measurement value | | | | GPS | Input:
BNC, 50 Ω, 3 V
GPS Reception: SPS 50 channel, L 1 C/A code
Cold Start: 28 seconds (5 to 10 minutes required for clock synchronization) | | RS-232C | For maintenance | | | | Power | 12 VDC (AC adaptor), 7.2 VDC (battery) | | Power Consumption | <20 W | | Temperature / Humidity | 41 to 104ºF (5 to 40ºC) / <90% (no condensation) | | Dimensions (W x H x D) | 4.7 x 2.8 x 7.1" (120.0 x 70.0 x 180.0 mm) (excluding ledges) | | Weight | Approximately 3.3 lb (1.5 kg) |
