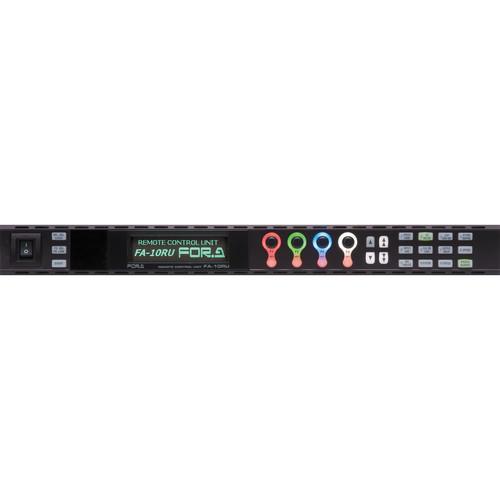

User Manual for For.A FA-10RU Remote Control Unit Click to enlarge the picture
Contents of the user manual for the For.A FA-10RU Remote Control Unit
- Product category: Accessories For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Accessories
|
User manual for the For.A FA-10RU Remote Control Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|
Product description The FA-10RU Remote Control Unit from For.A is a rackmountable remote control unit that controls up to 100 FA-1010 Frame Synchronizer units via a single network connection. This remote control unit features IP address FA-1010 selection and control, and simultaneous control over one FA-1010 Multi-channel Signal Processor from five FA-10RU units. You can store and recall up to 100 events and clean switch settings. This unit also features GPI control with 30 input and output functions. - Control over FA-1010 via Ethernet
- Up to 100 FA-1010 units can be connected to be selected for control
- IP address FA-1010 selection and control
- Simultaneous control over one FA-1010 from five FA-10RU units
- Storage and recall of up to 100 events
- Storage and recall of up to 100 clean switch settings
- GPI control with 30 input and output functions
In the Box For.A FA-10RU Remote Control Unit AC Cord AC Cord Retaining Clip EIA Standard Rackmount Bracket Set Colored Light Indication Label Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A FA-10RU Remote Control Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A FA-10RU Specs | Switches | 1 x Power on/off | | Buttons | 1 x Menu select LOCK
1 x FS SEL FS link
1 x Event save/load
4 x UNITY controls
2 x Parameter control
2 x Menu control
12 x Menu selection | | Connectors | 1 x RJ45 LAN 10/100/1000BASE-TX
3 x 25-pin Sub-D GPI, female
1 x Ground terminal
1 x Power input | | Indicators | 1 x Menu select lock, orange
1 x FS SEL FS link, red
1 x Genlock, green
1 x Freeze, green
1 x Test signal, green
1 x Fan alarm, red
1 x Power, red | | Display | 1 x Menu display | | System Requirements | OS: Windows XP SP2 operating system or later, Professional (32 bit)
CPU: Pentium 4 processor, 1.3 gHz or more
Web Browser: Firefox 24
Memory: 512 MB or more
Display: resolution of 1024 x 768 or higher, must be capable of full color 24-bit display
Network Port: Ethernet, at least one port 100BASE-TX/1000BASE-T
Network Cable: 100BASE-TX: Category 5 or better
1000BASE-T: Category 6, or enhanced category 5
OS: Windows Vista SP1 operating system, Business (32 bit)
CPU: Intel Core 2 Duo processor, 2 GHZ or more
Web Browser: Firefox 24
Memory: 2 GB or more
Display: resolution of 1024 x 768 or higher, must be capable of full color 24-bit display
Network Port: Ethernet, at least one port 100BASE-TX/1000BASE-T
Network Cable: 100BASE-TX: Category 5 or better
1000BASE-T: Category 6, or enhanced category 5
OS: Windows 7/8 operating system, professional (32/64 bit) CPU: Intel Core 2 Duo processor, 2 GHZ or more
Web Browser: Internet Explorer 10, Firefox 24
Memory: 2 GB or more
Display: resolution of 1024 x 768 or higher, must be capable of full color 24-bit display
Network Port: Ethernet, at least one port 100BASE-TX/1000BASE-T
Network Cable: 100BASE-TX: Category 5 or better
1000BASE-T: Category 6, or enhanced category 5 They system may not work with an older version (older than Ver. 9) of Internet Explorer. In such case, use Firefox. | | Input/Output | 30 Ports each | | Power Supply | 100 to 240 VAC ± 10%, 50/60 Hz | | Power Consumption | 28 VA (16 W) (at 100 - 120 VAC)
33 VA (16 W) (at 200 - 240 VAC) | | Dimensions (W x H x D) | 18.9 x 1.7 x 5.1" (48.0 x 4.4 x 13 cm) | | Weight | 4.4 lb (2 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 14.0 x 7.0" |
