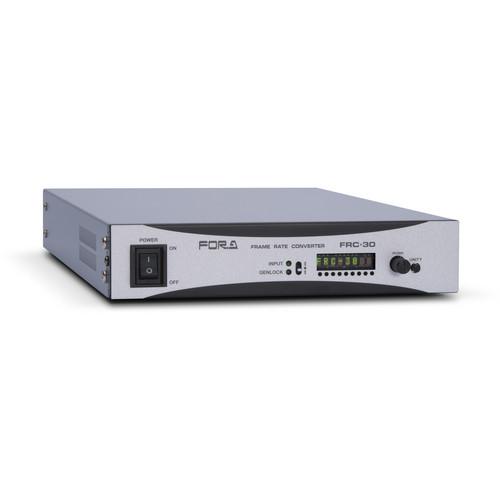

User Manual for For.A FRC-30 HD SD Frame Rate Converter Click to enlarge the picture
Contents of the user manual for the For.A FRC-30 HD SD Frame Rate
- Product category: Signal Converters For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Signal Converters
|
User manual for the For.A FRC-30 HD SD Frame Rate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|
Product description The FRC-30 HD/SD Frame Rate Converter from For-A is a 1-RU high, half-RU wide frame rate converter unit capable of both motion compensation and linear conversions. The converter achieves excellent levels of conversion regardless of video content. The converter offers up/down/cross conversions and supports HD/SD-SDI and analog composite signals. Also, the motion compensation mode and linear conversion mode are switchable. - Motion compensation mode detects the motion vector amount of a moving object and generates the object's motion in frames
- Linear conversion mode offers frame conversion based on previous and next frames
- Supports 1080/59.94i, 1080/50i, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60, 625/50 inputs, and frame rate conversions
- Up/down/cross converters from SD up to HD, from HD down to SD, and from 1080i to 720p
In the Box For.A FRC-30 HD/SD Frame Rate Converter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A FRC-30 HD SD Frame Rate Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A FRC-30 Specs | Video Format | HD: 1080/59.94i, 1080/50i, 1080/23.98PsF, 720/59.94p 720/50p
SD: 525/60 (NTSC) 625/50 (PAL) | | Video Input | Analog Composite: 1.0 Vp-p
HD-SDI: 1.5 Gb/s
SD-SDI: 270 Mb/s
75 Ω, BNC x 1 HD/SD-SDI or analog composite can be selected from the input select menu. | | Genlock Input | NTSC: 0.429 Vp-p/
PAL: 0.45 Vp-p or Tri-level sync: ±0.3 Vp-p, 75 Ω, BNC x 1 | | Sync Mode | Reference lock mode / Input mode / Free-run mode | | Phase Control | Reference lock mode: System horizontal phase ±1/2 H | | Video Output | HD-SDI: 1.5 Gb/s
SD-SDI: 270 Mb/s
75 Ω, BNC x 2 (distributed) | | Monitor Output | Analog Composite: 1.0 Vp-p ±0.1 V, 75 Ω, BNC x 1 It can be used when SD-SDI output is selected. | | Proc Amp | Set up level: -14.0 to +14.0% (0.1% step)
Y level: 70.0 to 130.0% (1.0% step)
Chroma level: 70.0 to 130.0% (1.0% step) | | Audio Input/Output | Embedded Audio: 16 channels (Group 1to 4), 48 kHz Asynchronous audio is not supported. | | Temperature / Humidity | 32 to 104ºF (0 to 40ºC )
30 to 90% (no condensation) | | Power Consumption | 100 to 240 VAC ± 10%, 50/60 Hz
30 VA (28 W) (at 100 VAC) | | Dimensions (W x H x D) | 8.3 x 1.7 x 13.7" (212.0 x 44.0 x 350.0 mm) | | Weight | 6.6 lb (3.0 kg) |
