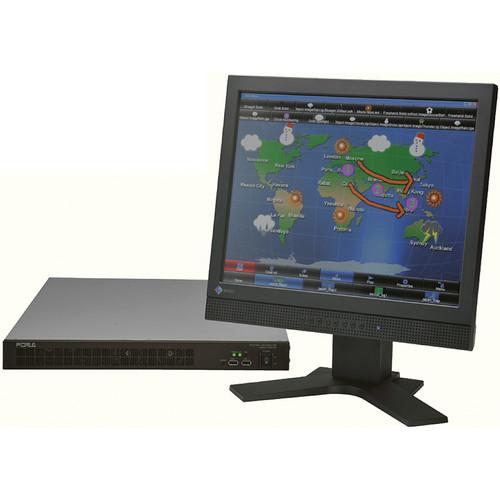

User Manual for For.A FVW-500HS-PACKAGE-1 HD SD Video Writer Click to enlarge the picture
Contents of the user manual for the For.A FVW-500HS-PACKAGE-1 HD SD Video Writer
- Product category: Character Generators & Graphic Solutions For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Character Generators & Graphic Solutions
|
User manual for the For.A FVW-500HS-PACKAGE-1 HD SD Video Writer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|
Product description The For-A FVW-500HS-PACKAGE-1 HD/SD Video Write is a full-featured telestrator designed to provide an extensive library of video annotation options. Especially useful for sports, meteorology and news broadcasting, users can draw over real-time video to help convey additional information. Quickly position objects on the screen, spotlight a specific area of the frame, or simply paste in a still image. Features include playback of movie files and key output for broadcasting systems. - Freely Assignable Custom Buttons
- The drawing tool and background buttons positioned on the main screen are all freely assignable. The drawing tools include function buttons for line, spotlight, circle, object, and movie. All buttons can be freely positioned at the top of the screen and can also be saved with preset colors, shapes, and other options. The buttons can also be freely position at the bottom of the screen in the same way as the drawing tools.
- Straight Line, Circle, and Freehand Drawing
- Creating straight lines and circles, as well as simply freehand drawing is all possible. Multiple tools can be saved as buttons. To draw, users simply select a desired button with their finger and go. Drawn lines are saved as a separate layer, allowing each object to be handled individually; move and delete individual objects in seconds.
- Spotlight Effects
- A spotlight effect can be used to emphasize a section of video. The spotlight button is saved for use as a drawing tool. The size, border, blurring, mask color and other parameters can be set for the spotlight effect.
- Paste Still Images
- In addition to basic annotation, image files can also be positioned on the screen as objects. In the same way as other tools, the object tool can be saved and used as a button. The size of an object image can be adjusted freely on the setting screen. To paste an image, simply select the tool button and place the image in the desired position by clicking with the mouse or finger in the drawing area.
- Paste Movie Files
- The placement of still objects, animations, and sequentially-numbered files can be stored as an object. All the sequentially numbered files are converted into a movie file for use. Operations such as moving and deleting are possible as well. The function can be very useful for drawing attention to certain objects, such as when selecting news items.
- DSK On/Off Function
- The included DSK ON/OFF function allows drawn content to be held in cue. With this function, it's possible to make annotations without viewers seeing. When you're finished, just turn DSK on.
- Key Output
- The unit is equipped with separate key output. The pre-composition video can be output separately as fill key videos; this enables importing to broadcasting systems with a video switcher.
In the Box For.A FVW-500HS-PACKAGE-1 HD/SD Video Writer Touchscreen 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A FVW-500HS-PACKAGE-1 HD SD Video Writer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A FVW-500HS-PACKAGE-1 Specs | Supported Signals | HD: 1080/60i, 1080/50i, 720/60p, 720/50p
SD: NTSC, PAL | | Inputs/Outputs | HD/SD-SDI: BNC (x1 Input, x4 Output)
Reference: BNC (x1 Input)
VGA: 15-Pin DSub (x1 Output)
Ethernet: RJ-45 (x2)
USB 2.0: USB Type-A (x4)
RS-232C: 9-Pin DSub (x1)
GPI/Alarm: 15Pin DSub (x1) | | Power Requirements | 100-240VAC, 50/60Hz | | Power Consumption | 113W | | Dimensions (WxHxD) | Rackmount (1RU)
16.9 x 1.7 x 19.7" (43 x 4.4 x 50cm) | | Weight | 2 lbs (0.9kg) | | | | Package Weight | 60.0 lb | | Box Dimensions (LxWxH) | 26.25 x 23.25 x 23.0" |
