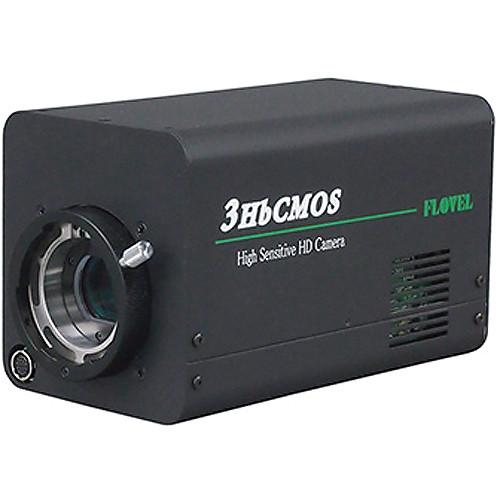

User Manual for For.A FZB3 1.3MP HbCMOS High Sensitivity HD Digital Color Box Camera Click to enlarge the picture
Contents of the user manual for the For.A FZB3 1.3MP HbCMOS High Sensitivity
- Product category: Industrial & Multi-Purpose Cameras For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Industrial & Multi-Purpose Cameras
|
User manual for the For.A FZB3 1.3MP HbCMOS High Sensitivity contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|
Product description The FZB3 1.3MP HbCMOS High Sensitivity HD Digital Color Box Camera from For.A uses a 2/3" HbCMOS (3CMOS) sensor to capture Full HD images with excellent color fidelity, reduced noise, and high sensitivity. A minimum illumination value of 0.003 lux allows capturing clear color image in low-light conditions. The camera features a 2/3" bayonet lens mount and a rotation filter mechanism with a built-in ND filter. - Excellent color fidelity, reduced noise, and high sensitivity
- Rotation filter mechanism with a built-in ND filter
- Power efficient with no active cooling
- Gen lock connector (BB/ 3 level sync)
- HD-SDI Output: 1080i (59.94 or 50 Hz) / 720p (59.94 or 50 Hz)
- Minimum illumination of 0.003 lux for capturing color images in low-light conditions
Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A FZB3 1.3MP HbCMOS High Sensitivity HD Digital Color Box Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A FZ-B3 Specs | Imaging Element | HbCMOS image sensor (3CMOS) | | Sensor Size | 2/3" | | Unit Cell Size | H x V: 7.1 x 7.1 µm | | Image Area Size | H x V: 0.4 x 0.3" (9.1 x 7.3 mm)
Diagonal: 0.5" (11.6 mm) | | Shutter | Rolling electronic shutter | | Total Pixels (H x V) | Approximately 1.47 MP (1480 x 1042 pixels) | | Effective Pixels (H x V) | Approximately 1.32 MP (1288 x 1032 pixels) | | Lens Mount | 2/3" Bayonet mount | | Sensor Frame Rate Support | 29.97 fps @ 59.94 Hz
25 fps @ 50 Hz | | Shutter Speed | High: 1/33,000 sec maximum (1080i / 59.94 Hz)
Slow: 1 / 0.5 sec maximum | | Video | 1080i @ 59.94 or 50 Hz
720p @ 59.94 or 50 Hz | | Output Interface | HD-SDI | | S/N Ratio | 55 dB or better | | Minimum Illumination | 0.003 lux (color motion image, maximum sensitivity, f/1.4) | | Power Consumption | Approximately 20 W | | Power Voltage | 11 to 17 VDC | | Dimensions (W x H x D) | Approximately 3.9 x 4.3 x 7.8" (10.0 x 11.0 x 19.7 cm) (provisional) | | Weight | 3.1 lb (1.4 kg) |
