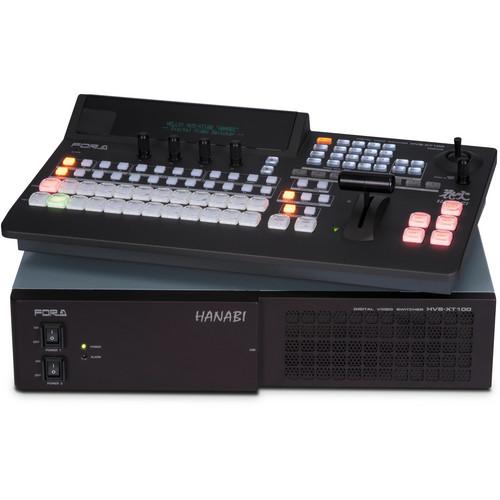

Product description The HVS-100 HD/SD Portable Video Switcher with HVS-100OU Control Panel from For.A is a multi-functional unit that incorporates a range of functions and features including mixed HD/SD input, frame synchronizing, re-sizing engine, 2.5D wipe effects, DVE, keyer with chroma key, and DSK. It features 8 SD/HD-SDI inputs, 4 SD/HD-SDI outputs, and 1 HDMI outputs. It also has three slots open for various inputs and outputs to be added, such as analog, component, analog composite, HDMI, and VGA, in addition to more SD/HD-SDI.
This switcher also includes a built-in Web server that lets you change settings from a PC or tablet terminal. A clip memory feature has been added to this unit to support elaborate performances such as through the use of CG wipes, while the multi-viewer meets a diverse range of monitoring needs.
This portable video switcher unit features a single main unit and control panel. The equipment can be used in all types of locations, including live events, sports, news studios, broadcasting vans, editorial offices, and presentation halls, making it a suitable tool for shaping the imaginative ideas of video creators.
The control panel has been specifically designed keeping professionals in mind. It includes authentic bus buttons, AUX buttons, a fader controller, and direct buttons for various functions with one touch. The main unit offers expandability to facilitate the add-on of a redundant power source unit and various input/output cards. - Inputs / Outputs
- 8 inputs and 4 outputs come as standard with HD/SD-SDI. It supports mixed HD/SD input in standard configuration. The 5 outputs, including an HDMI output, can be freely assigned. It also features 3 slots that enable various inputs and outputs to be added, such as analog component, analog composite, HDMI, and VGA in addition to HD/SD-SDI.
- Frame Synchronizers
- Each input in this unit is fitted with a frame synchronizer that enables switching of asynchronous video signals. Installation of expansion cards (sold separately) supports asynchronous picture input from PCs, etc. Each input is also equipped with a process amplifier capable of adjusting the video level, chroma level, etc. of the input signal.
- Re-Sizing Engine
- A re-sizing engine (expansion) is provided on 4 of the inputs. This achieves a fully mixed SD/HD environment with a switcher alone and no need to connect any external equipment such as an up-converter. This is readily suitable for re-sizing not only SD signals but also PC video.
- 2 Keyer and DSK
- The keyer has a chroma key function. Since the keyer and DSK each have free-assignable 2.5D DVE, scale effects (expansion, contraction) or other effects of the synthesized channel can be set individually.
- Abundant Transitions and DVEs
- Cut, mix, and wipe can be chosen for the transition. Diverse DVE wipes include 100 2.5D wipe patterns and page turn. Along with wipes, effects like mosaic and defocus are also provided.
- 2 Still Stores
- Video signals and PGM output can be captured as still images. You can achieve a CG wipe using data sent via Ethernet such as still data created on a PC or up to 480-frame video. Images can be uploaded and downloaded using the USB port. The still stores support JPEG, TGA, and BMP file formats. A backup function means still image data can be stored in the main unit and retrieved after rebooting.
- 4/10/16 Split Multi Viewer
- Display channels can be freely assigned, allowing assignment of not only input source but also PGM output. Output from HDMI is also possible without compromising the resolution of SD video and the image is displayed in the split view. Each channel offers title display and tally display functions.
- Event Memory and User Button
- The main unit is equipped with an event memory function allowing 100 events to be stored. It is possible to register events on a user button on the control panel and remote panel so that panel settings can be changed simply by pushing the user button. You can freely set the transition time and effect for loading events. Since seamless transition of complex images to the recorded state is possible with a single button, it is suitable for live applications. You can freely register various switcher functions on the user button to customize the control panel in line with needs.
- Macro Function
- A macro function enables you to store and register a series of operations and then perform complicated operations with the push of a button.
- Freely Assignable DSK
- You can assign 2 DSK channels to either PGM, PST, or AUX. This unit not only supports M/E and P/P bus, but also AUX bus transition switching. As a result, when displaying videos on a separate monitor besides the main system, you can actively use AUX to expand the range of your production.
- External Interfaces
- External interfaces include the EDITOR port for connecting to an editor, GPI port supporting up to 24 inputs/outputs, RS-422 port for connecting an HVS-30RU Remote Control Panel (sold separately), and an Ethernet port used during PC control.
- GUI Control Function
- A built-in Web server enables the settings of this switcher to be changed from a PC via a network. Mobile and tablet terminals can also be used through a wireless access point.
- Redundant Power Supply
- The redundant power supply unit (sold separately) enables doubling-up of power source. An enlarged fan and improved exhaust process guarantee silent operation, making it suitable for installation near the control panel or in quiet environments.
- Additional Features
-
- Safety area marker display
- Color bar display
- Matte generation function
In the Box For.A HVS-100 HD/SD Portable Video Switcher with HVS-100OU Control Panel HVS-100 MU HD/SD Portable Video Switcher ffyvvzdtzxruybxwxdrtwdutway HVS-XT100OU 12 Button Operation Unit for Hanabi XT Series Switchers AC Cord 2 x Rack Mount Bracket 33' (10m) BNC Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A HVS-100 HD SD Portable Video Switcher with HVS-100OU Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A HVS-XT100 Specs | Video Formats | 1080i 50/59.94i
1080PsF 23.98/24/25/29.97
720p 50/59.94
525/60 (NTSC)
625/50 (PAL)
Note: Optional expansion card is required to support 1080/59.94p and 1080/50p. | | Video Input | 8 x SD/HD-SDI, 75 Ω, BNC (FSs on 8 inputs, resize engines on 4 inputs)
Using optional HVS-XT100DI Input Card:
HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 4 x 75 Ω, BNC (FSs and resize engines on 4 inputs)
Using optional HVS-XT100AI Input Card:
HD analog component, SD analog component, analog composite
Using optional HVS-XT100PCI Input Card:
HDMI: XGA to WUXGA/HDTV (1080i), XGA to WUXGA (720p), VGA to XGA (SD)
RGB: XGA to WUXGA/HDTV (1080i), XGA to WUXGA (720p), VGA to XGA (SD) | | Video Output | 4 x SD/HD-SDI, 75 Ω, BNC
1 x HDMI
Using optional HVS-XT100DO Output Card:
2 x SD/HD-SDI, 75 Ω, BNC
Using HVS-XT100AO Output Card (sold separately)
HD analog component, SD analog component, analog composite
Using HVS-XT100PCO Output Card (sold separately)
HDMI: XGA to WUXGA/HDTV (1080i), XGA to WUXGA (720p), VGA to XGA (SD)
RGB: XGA to WUXGA/HDTV (1080i), XGA to WUXGA (720p), VGA to XGA (SD) | | HDCP Compatible | No | | Signal Processing | 4:2:2:4, digital component | | Quantization | SD/HD-SDI: 10-bit | | Effect | WIPE: 100 patterns, border and softness
2.5D DVE: 56 patterns or more DVE WIPEs | | Transitions | Available Controller: Fader controller, AUTO or CUT button
Type: MIX or WIPE (DVE included) | | Still Store | 2 channels (with backup feature) | | Keyer/DSK | 4 channels (2 x KEYER and 2 x DSK), includes 2D DVE that can be freely assigned
KEYER: Chroma key and Edge effect | | Multi-viewer | Quad-, 10- or 16-way split views with title, tally, and audio level meter display and 1 frame delay for PGM output | | Proc Amp | Equipped with all inputs | | Event Memory | 100 events (complementary transition available when loading events) | | Macro | 30 commands (up to 230 series of operations can be registered per command) | | Genlock Input | Black Burst (NTSC): 0.429 Vpp
Black Burst (PAL): 0.45 Vpp
Tri-level Sync: 0.6 Vpp, 1 x 75 Ω, BNC, loop-through (to be terminated with 75 Ω terminator, if unused) | | Genlock Output | Black Burst (NTSC): 0.429 Vpp
Black Burst (PAL): 0.45 Vpp
Tri-level Sync: 0.6 Vpp, 1 x 75 Ω, BNC | | System Phase Adjust | -1/2 to +1/2 Horizontal | | I/O Delay | 1H (minimum delay)
1 to 2 frames +1H (when FS or re-size engine used)
2 to 3 frames +1H (when FS or re-size engine plus DVE used)
3 to 4 frames +1H (when FS or re-size engine plus output resize engine and DVE used) | | External Memory | USB flash drive | | Interface | Ethernet (10/100Base-TX): 1 x RJ-45
TO OU: 1 x RJ-45
GPI-IN/OUT: 1 x 25-pin D-sub (female) (24 inputs/24 outputs), TTL negative logic pulse or Make-contact
RS-422: 1 x 9-pin D-sub (female) (for the HVS-30RU Remote Front Panel with Remote Cable and tally unit connection)
EDITOR: 1 x 9-pin D-sub (female), BVS-3000 and GVG-100 protocols
ARCNET: 2 x 75 Ω, BNC, loop-through (to be terminated with 75 Ω terminator, if unused)(for control panel an dAUX remote panel connection) | | Temperature | 32 to 104°F (0 to 40°C) | | Humidity (Non-condensing) | 10 to 90% | | Power / Consumption | HVS-XT100 Switcher: 100 to 240 VAC ±10%, 50/60 Hz / approximately 240 W
HVS-XT100OU Control Panel: 100 to 240 VAC ±10%, 50/60 Hz / approximately 23 W | | Consumables | Power supply unit (to be replaced every 5 years)
Cooling fan (to be replaced every 6 years) | | Dimensions (W x H x D) | HVS-XT100 Switcher: Approximately 16.9 x 3.5 x 8.9" (43.0 x 8.8 x 22.5 cm)
HVS-XT100OU Control Panel: Approximately 16.5 x 3.4 x 9.7" (42.0 x 8.7 x 24.6 cm) | | Weight | HVS-XT100 Switcher: Approximately 11.0 lb (5.0 kg)
HVS-XT100OU Control Panel: Approximately 5.7 lb (2.6 kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 21.9 x 17.8 x 7.9" |
