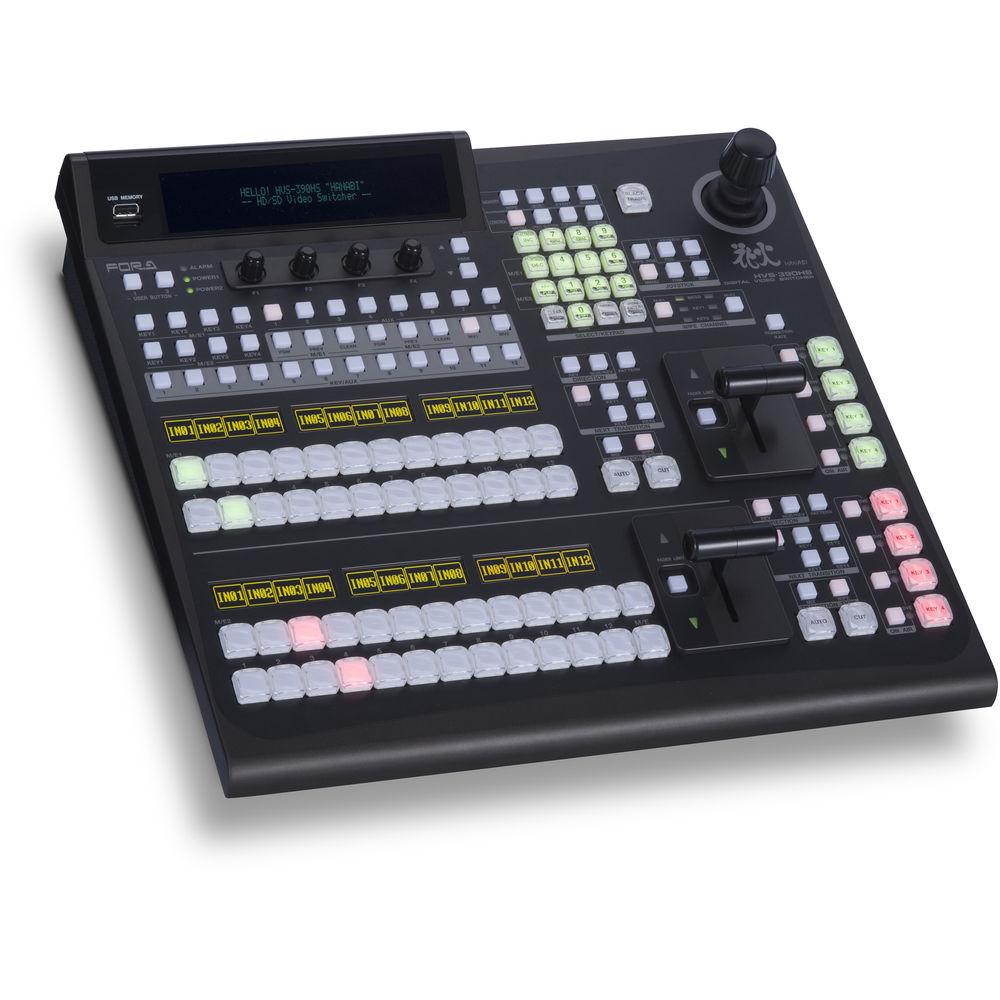

User Manual for For.A HVS-390HS HD SD 2M E Switcher with HVS-392ROU 12 Button Panel Click to enlarge the picture
Contents of the user manual for the For.A HVS-390HS HD SD 2M E
- Product category: Production Switchers For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Production Switchers
 |
User manual for the For.A HVS-390HS HD SD 2M E contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|

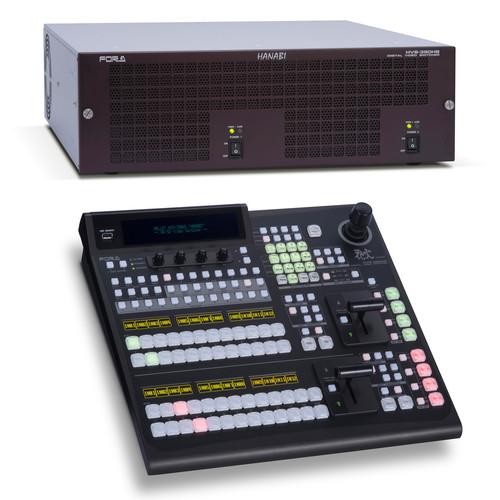

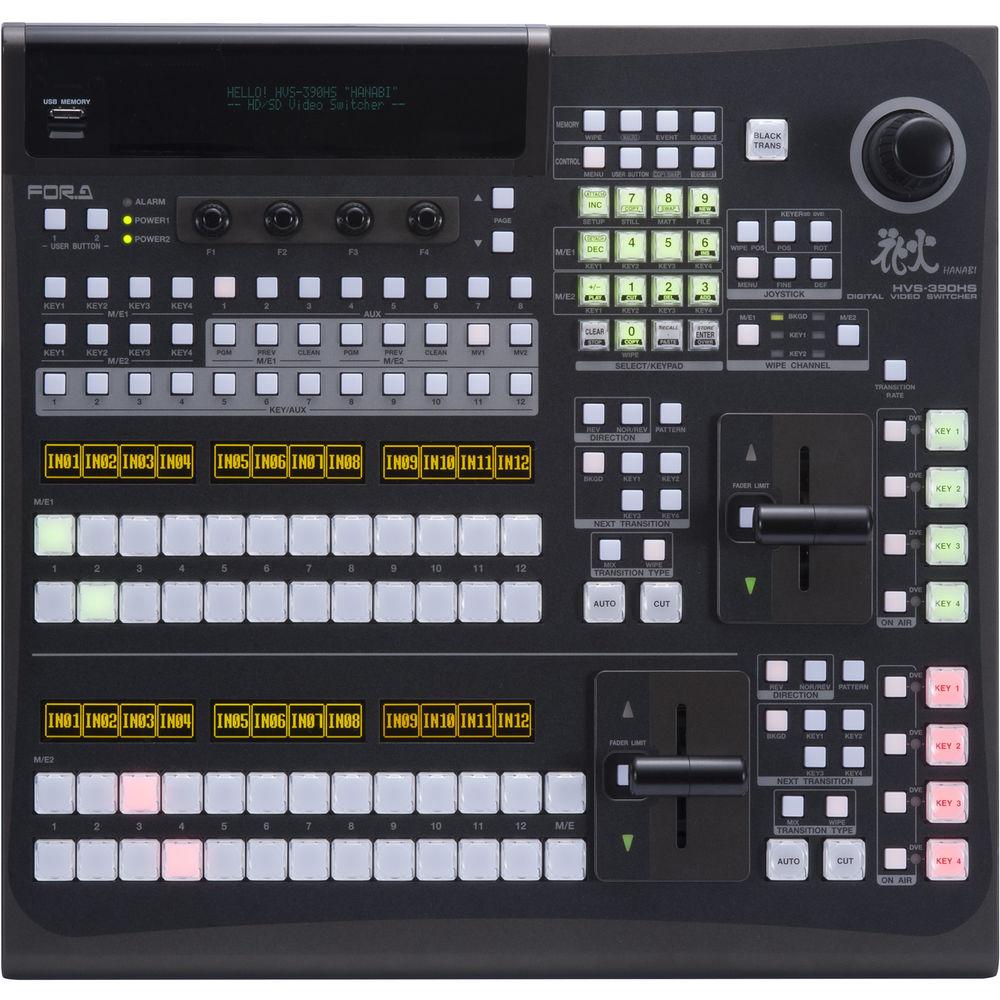

Product description The HVS-390HS HD/SD 2M/E Switcher with HVS-392ROU 12 Button Panel from For.A features 16 HD/SD-SDI inputs and 8 HD/SD-SDI outputs and 1 HDMI output. With a frame synchronizer on each input, this unit also features 4 channels of resize engine. A maximum of up to 24 inputs and 13 outputs can be achieved by the addition of input and output expansion cards (sold separately).It also includes 4 keyers with 2.5D DVE per M/E, 2 chroma keyers, 2 independent 16-channel multi-viewer outputs, and 4 still stores. - Main Unit
-

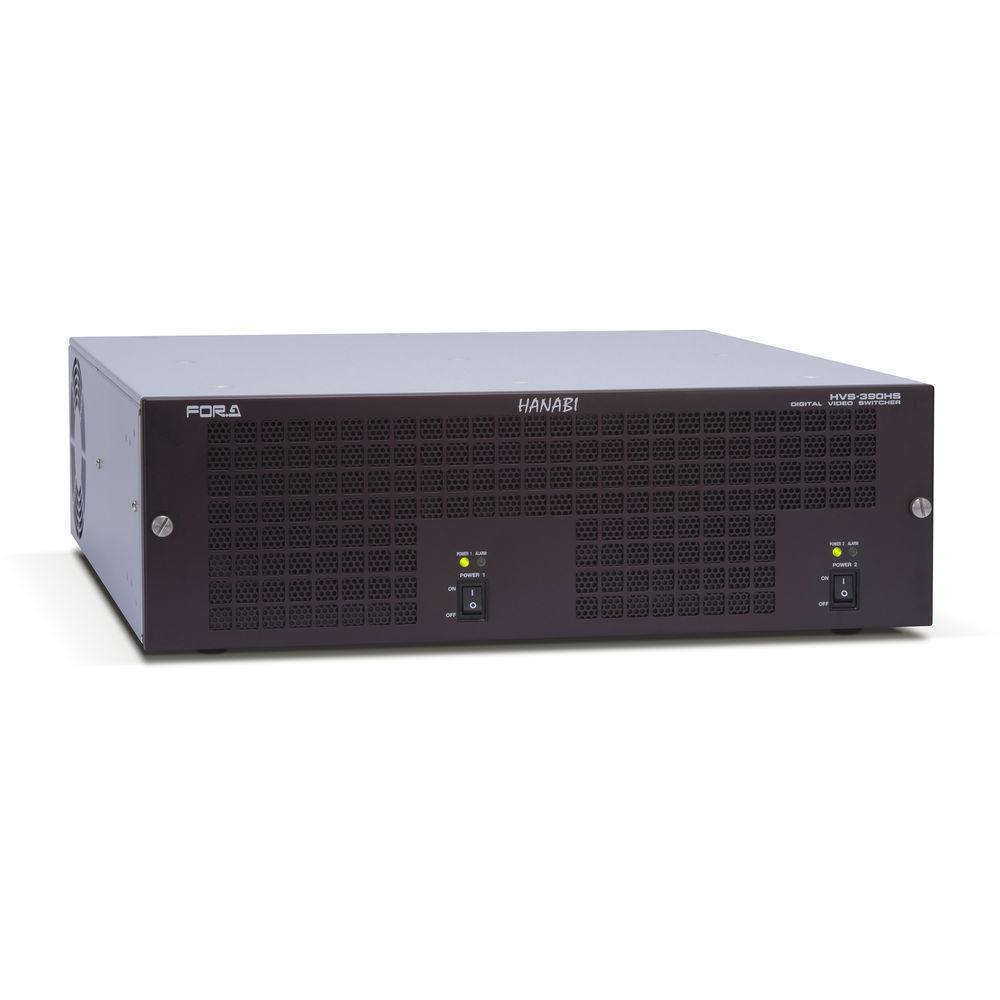

- 3U main unit size
- Enlarged fan and efficient exhaust process ensures silent operation
- Supports redundant power supply configurations
- 5 Operation Styles
-
- Includes a USB interface to store/recall data or up/download still images
- Connects to the main unit using BNC cables via ARCNET (maximum 328’ (100m))
- Supports redundant power supply configurations
- Can be connected to up to 3 control panels at once for simultaneous control
- Compatible with control panels from For.A’s HVS-300HS Switcher (HVS-30OU 12 Button Control Panel and HVS-30RU Remote Front Panel )
- Frame Synchronizer on All Inputs
-
- Individual frame synchronizers are standard for all inputs to support the switching of asynchronous signals
- Includes Proc Amp control to adjust video and chroma levels
- HD, SD Mixed Input/Resize Engine
-
- Mixing of HD and SD inputs is possible
- Of the standard 16 inputs, 4 inputs and the HVS-30HSDI Input Board (sold separately) can resize SD signals to HD
- Supports resizing of computer signals when using HVS-30PCIN Computer Input Board (sold separately)
1 Please Note: Inputs 13 to 16 can be used for resizing. close - Keyers with DVE
-
- 4 keyers per M/E come standard
- All keyers support bus and luminance keys
- High-level chroma keyer on Key 1 & Key 2 for each M/E
- All keyers have an independent 2.5D DVEs
- Key 3 & Key 4 can be assigned to AUX outputs for multi-screen display
- DVE
-
- All keyers have an independent 2.5D DVE channel
- Two 3D DVEs per M/E are available for background and keyer
- Wipe Patterns
-
- 100 2D wipe patterns
- 68 DVE wipe including page turn
- Dual Multi-Viewer
-
- Equipped with 2 multi-view channels, each capable of displaying a maximum of 16 split windows
- 4, 10, and 16 window split patterns
- Different display patterns and channels can be set for the multi-viewer
- All sources, including internal sources, inputs, and outputs can be monitored on the multi-viewer
- Each multi-viewer window is equipped with title, tally, and audio meter display
- Event Memory with Loading Duration
-
- Equipped with an event memory in the main unit. Up to 100 events can be stored Direct recall function recalls events with a single click
- Event load with duration enables users to freely set the transition time and effect for loading events
- Because seamless transition to the recorded state is possible, it is suitable for live applications
- Still Stores
-
- 4 still stores are available in standard configuration
- Allows capturing of video input and PGM output as still images
- Still images generated on a PC or other source can be loaded to the main unit over Ethernet
- Supports loading images via USB connection when connected to control panels
- Saves data to the main unit using the backup function
- Supports JPEG, BMP, and TGA file formats
- FS memory on IN-1 to IN-16 can be used as still image memory
- Video Memory
-
- Equipped with output video recording and playback functions
- Simultaneous recording of fill and key perfect for CG Wipes
- Saves consecutive still images transferred from PC as video (clips)
- Four memory channels can be used to record up to 60 frames
- Up to 120 frames of recording is possible with the HVS-39MEM Video Memory Expansion Card (sold separately)
2 Please Note: The number of frames that can be saved does not change even when simultaneously recording Fill + Key close - Web Control
-
- Many controls are accessible from an external computer via the unit’s built-in Web server
- Control from notebook computers or tablets are also possible via a wireless LAN router
- Flexible Input/Output
-
- 16 HD/SD-SDI inputs, and 8 outputs and an HDMI output come as standard
- Using input/output option boards (sold separately), the system can be expanded to 24 inputs and 13 outputs
- HD, SD mixed input is supported as standard (same frame rate only)
- Standard Output Breakdown: 2 x PGM, 6 x AUX, 1 x HDMI (AUX)
- Input/output, such as analog component, analog composite, DVI, and RGB, can also be added (sold separately)
- AUX outputs allow previews and multi-viewer assignments
- Multi-screen Function (Video Wall)
-
- Supports multi-monitor display by assigning keyers to AUX outputs
- It is also possible to output separately from the main line, making it suitable for large screen displays
- Sequence Function
-
- Up to 10 sequences can be stored
- Registers each parameter setting as a key frame
- Sequence functions can be assigned to any user buttons
- AUX Transitions
-
- AUX bus signal switching with an effect and transition time
- Expanded range of AUX utilization suitable for applications that require multiple outputs
- Keyer Free Assign
-
- Keyer can be assigned to M/E and AUX
- Keyer can use composite results of M/E as an input source (+0.5 M/E extended feature)
- External Interfaces
-
- EDITOR: For connection to editing equipment
- GPI/GPO (Tally): 10 inputs/20 outputs
- RS-422: 6 ports
- ARCNET: For connection to OU and AUX remote panel
- Ethernet: For connection to a PC
3 Please Note: Each interface is sold separately. close - Other
-
- Color correction function (2 channels for each M/E)
- Macro function
- Up to 20 direct patterns
- Safety area display
- Built-in color bar display
- Equipped with many useful functions, including a built-in mat function
In the Box For.A HVS-390HS HD/SD 2M/E Switcher with HVS-392ROU 12 Button Panel AC Cord Rack Mount Bracket HVS-392ROU 2 M/E 12-Button Control Surface REDUNDANT POWER SUPPLY F/HVS-390HS 1ME REDUNDANT POWER SUPPLY F/OPERATION UNT Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A HVS-390HS HD SD 2M E Switcher with HVS-392ROU 12 Button Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A HVS-390HS Specs | Number of M/Es | 2 | | Control Panel | HVS-392ROU: 2 M/E 12-button rack size model | | Video Formats | 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL) | | Video Input | HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 16 x 75 Ω BNC
Using HVS-30HSDI/HSDI-A Input Card (Sold Separately)
HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 4 x 75 Ω BNC
Using HVS-30HSAI Input Card (Sold Separately)
HD analog component, SD analog component, Analog composite
Using HVS-30PCIN Input Card (Sold Separately)
DVI-D: XGA to WUXGA (1080i), XGA to WXGA (720p), VGA to XGA (SD) (HDCP incompatible)
RGB: XGA to WUXGA (1080i), XGA to WXGA (720p), VGA to XGA (SD) Frame synchronizer on each input | | Number of Inputs | Standard: 16 (SDI)
Maximum: 24 (with 2 x HSDI or 2 x HSDI-A) | | Video Output | HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 8 x 75 Ω BNC (2 x PGM, 6 x AUX), 1 x HDMI (AUX) (HDCP, AUDIO incompatible)
Using HVS-30HSDO Output Card (sold separately)
HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s, 3 x 75 Ω BNC
Using HVS-30HSAO Output Card (sold separately)
HD analog component, SD analog component, analog composite
Using HVS-30PCO Output Card (sold separately)
DVI-D: SXGA to WUXGA/HDTV (1080i), SXGA/WXGA (720p), SVGA (SD) (HDCP incompatible)
RGB: SXGA to WUXGA (1080i), SXGA/WXGA (720p), SVGA (SD), YPbPr: HDTV(1080i) | | Number of Outputs | Standard: 9 (8 x SDI, 1 x HDMI)
Maximum: 13 (with 2 output cards) | | AUX Outputs | Standard: 6
Maximum: 8 Crossfade switching available on each AUX output | | Signal Processing | 4:2:2 Digital component | | Quantization | HD/SD-SDI: 10-bit | | Genlock Input | BB: NTSC: 0.429 Vpp/PAL: 0.45 Vpp or Tri-level Sync: 0.6 Vpp, 1 x 75 Ω BNC, loop-through (terminate with 75 Ω terminator, if unused) | | System Phase Adjust | Horizontal: -1/2H to +1/2H | | Genlock Output | BB: NTSC: 0.429 Vpp/PAL: 0.45 Vpp or Tri-level Sync: 0.6 Vpp, 1 x 75 Ω BNC | | I/O Delay | HD: 1 H, SD: 1.7 H (minimum delay) 1 to 2 frames + minimum delay (when FS or up-resize engine used) 2 to 3 frames + minimum delay (when FS or up-resize engine plus DVE used) 3 to 4 frames + minimum delay (when FS or up-resize engine plus output resize engine and DVE used) | | Interfaces | EDITOR: 1 x 9-pin D-sub (female), (inch screw)
RS-422: 6 x 9-pin D-sub (female), (inch screw)
GPI IN: 1 x 15-pin D-sub (female), (inch screw) 10 inputs
TALLY OUT: 1 x 25-pin D-sub (female), (inch screw) 20 outputs
ARCNET: 1 x 75 Ω BNC, loop-through (Terminate with 75 Ω terminator if unused)
Ethernet: 100Base-TX/1000Base-T: 1 x RJ-45 | | Temperature / Humidity | 32 to 104°F (0 to 40°C) / 30 to 90% (no condensation) | | Power | 100 to 240 VAC ±10%, 50/60 Hz | | Consumption | Maximum 28 W | | Consumables | Cooling Fan: Replace every 4 years
Power Unit: Replace every 5 years
Battery: Replace every 5 years
(if used 24 hours a day at room temperature) | | Dimensions (W x D x H) | HVS-390HS Switcher: 16.9 x 17.7 x 5.2" (430.0 x 450.0 x 132.0 mm)
HVS-392ROU Control Panel: 16.9 x 16.1 x 5.2" (430.0 x 409.0 x 132.0 mm) | | Weight | Only Main Unit: Approximately 33.1 lb (15.0 kg) (standard)
Main Unit with full option: Approximately 42.3 lb (19.2 kg)
HVS-392ROU Control Panel: Approximately 13.2 lb (6.0 kg) |
