Product description

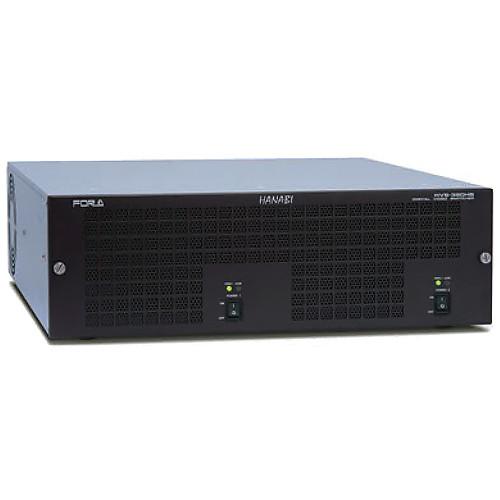

The For.A HVS-390HS Video Switcher with 1 M/E Configuration is a 3U multi-format video switcher with 16 SDI inputs, 8 SDI outputs, and 1 HDMI output. The SDIs support up to 1.5 Gbps and up to 1080/59.94i/50i. The inputs all have frame synchronizers on them. Signal processing is at 4:2:2. A large fan and an efficient exhaust process guarantee silent operation.

The switcher must optionally be paired with a compatible 1 M/E control panel -- either with the HVS-391OU from the HVS-390HS series, the HVS-30OU from the HVS-300HS series, or the HVS-30RU remote control sub panel, also from the HVS-300HS series. All three can actually be connected at the same time for simultaneous control. The switcher can additionally expand to many more HVS-390HS components to support wider applications. By means of optional input/output option boards, the SDI inputs can be increased to 24 and the outputs to 13, all also supporting 1.5 Gbps.

Of the existing inputs, 13 through 16 can be used to resize SD signals to HD. The addition of optional boards will allow resizing on more inputs and will also allow resizing computer signals. 4 keyers come standard and each includes a bus and a luminance key and an independent 2.5D DVE. Up to 100 events can be stored, and each can be recalled at the push of a button. Many more features come standard, and many more can be upgraded to, as described below.
    Frame Synchronizer on All Inputs
    • Individual frame synchronizers on all inputs support the switching of asynchronous signals
    • Includes Proc Amp control to adjust video and chroma levels
    HD, SD Mixed Input; Resize Engine
    • Inputs 13 through 16 can resize SD signals to HD
    • Inputs on an optional HVS-30HSDI input board can also be used resize SD to HD
    • Inputs on an optional HVS-30PCIN input board can be used to resize computer signals
    Keyers with DVE
    • 4 keyers come standard
    • Each keyer features a bus and luminance key and an independent 2.5D DVE
    • High-level chroma keyer on keys 1 and 2
    • Keys 3 and 4 can be assigned to AUX outputs for keying sizing or positioning
    • Two 3D DVEs are available for background and keyer
    Transitions / Wipes / Effects
    • Transitions: M/E bus: CUT, MIX, WIPE
    • Wipe: 100 2D and 68 3D wipe patterns (including 3D Page Turn)
    • Effects: Mosaic, Defocusing and more
    Dual Multi-Viewer
    • Each of two multi-view channels is capable of displaying a maximum of 16 split windows
    • 4, 10, and 16 window split patterns
    • Different display patterns and channels can be set for each of the multi-viewers
    • All sources, including internal sources, inputs and outputs can be monitored on the multi-viewers
    • Each multi-viewer window is equipped with title, tally and audio meter display
    Event Memory with Loading Duration
    • Up to 100 events can be stored
    • Direct recall function recalls events at the push of one button
    • Event load with duration: sets transition time and effect for loading events
    Still Stores
    • 4 standard still stores support animated logos
    • Input video and PGM output can be captured as still images
    • Still images generated on a PC or other source can be loaded over Ethernet
    • Images can be loaded via USB connection if an optional control panel is connected
    • Saves data to the main unit using the backup function
    • Supports JPEG, BMP, and TGA file formats
    • FS memory on IN-1 to IN-16 can be used as still image memory
    Video Memory
    • Output video recording and playback functions
    • Simultaneous recording of fill and key (great for CG wipes)
    • Four memory channels each record up to 60 frames
    • Up to 120 frames can be recorded by means of an optional HVS-39MEM expansion card
    • Saves consecutive still images transferred from a PC as video clips (the number of frames that can be saved does not change, even when simultaneously recording Fill + Key)
    Web Control
    • Many controls are accessible from an external PC via the switcher's built-in browser
    • Controls are accessible from notebooks and tablets via a wireless LAN router
    Flexible Input / Output
    • 16 HD/SD-SDI inputs, 8 HD/SD-SDI outputs, and one HDMI output
    • By means of optional input/output boards, the inputs can be expanded to 24 and the SDI outputs to 13
    • Standard output breakdown: 2x PGM, 6x AUX, 1x HDMI (AUX)
    • Input/output, such as analog Component, analog Composite, DVI, and RGB, can also be optionally be added
    • AUX outputs allow previews and multi-viewer assignments
    • Supported formats: 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL)
    Multi-Screen Function (Video Wall)
    • Supports multi-monitor display by assigning keyers to AUX outputs
    • The main line can be separately output from, ideal for outputting to large screen displays
    Sequence Function
    • Up to 10 sequences can be stored
    • Registers each parameter setting as a key frame
    • Sequence functions can be assigned to any user button
    AUX Transitions
    • Expanded AUX range is useful for applications that require multiple outputs
    Keyer Free Assign
    • Keyer can be assigned to M/E and AUX
    • Keyer can use composite results of M/E as an input source (+0.5 M/E extended feature)
    External Interfaces
    • EDITOR: for connection to editing equipment
    • GPI/GPO (Tally): 10 inputs / 20 outputs
    • RS-422: 6 ports
    • ARCNET: for connection to OU or AUX remote panel
    • Ethernet: for connection to a PC
    Miscellaneous
    • Color correction function (2 channels)
    • Macro function
    • Up to 20 direct patterns
    • Safety area display
    • Built-in color bar display
    • Built-in mat function

OPTIONAL ADDITIONS

    SDI Input Cards: HVS-30HSDI / HVS-30HSDI-A
    • HVS-30HSDI has a frame synchronizer function and re-size function for all inputs, and SD images can be processed internally as HD images
    • HVS-30HSDI-A is more cost effective, featuring a frame synchronizer function for all inputs
    SDI Output Card: HVS-30HSDO
    • Dedicated down-conversion for 2 outputs for simultaneous output of HD and SD
    Analog Video Input Card: HVS-30HSAI
    • Input 2 is a dedicated connector (conversion connector supplied) -- you can select between Composite or Component HD or SD for each input
    Analog Video Output Card: HVS-30HSAO
    • Output 2 is a dedicated connector (conversion connector supplied) -- you can select between Composite or Component HD or SD for each output
    PC (DVI / VGA) Input Card: HVS-30PCIN
    • One DVI-D and one VGA connector with resolutions ranging from VGA to WUXGA
    PC (DVI / VGA) Output Card: HVS-30PCO
    • One DVI-D and one VGA connector with resolutions ranging from VGA to WUXGA
    • Not HDCP-compatible; DVI-D and VGA outputs are not supported in 1080PsF format
    AUX Remote Panel: HVS-AUX8 / 16 / 32
    • An 8, 16, or 32 button AUX remote control panel
    • The 8 button unit is half-rack size and the 16 and 32 button units are each 1RU
    • ARCnet allows cascading connection of as many as 5 units
    Tally Interface Unit: HVS-TALOC20/32 or HVS-TALR20/32
    • HVS-TALOC20/32: Open Collector system with 20/32 terminals
    • HVS-TALR20/32: Relay system with 20/32 terminals
    • Both of the above are half-rack size, and as many as 4 units can be connected
    Tally Interface Card: HVS-30TALR
    • Features 18 terminals
    • Up to 2 cards can be installed (the slot is shared with I/O cards)
    Editor Interface Software: HVS-39ED
    • Supports BVS/DVS and GVG editing protocol
    Virtual Studio Link Software: HVS-39VR
    • For For.A "digiStorm" or "VRCAM2" virtual studio software
    Video Memory Expansion Card: HVS-39MEM
    • Expands recording capacity to 120 frames of video
    Redundant Power Supply: HVS-39PSM / HVS-39PSO
    • HVS-39PSM: redundant power supply for the switcher
    • HVS-39PSO: redundant power supply for HVS-391OU / 392OU / 392ROU control panels
In the Box For.A HVS-390HS Video Switcher with 1 M/E Configuration
  • AC Cord
  • Rack Mount Brackets
  • Operation Manual
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the For.A HVS-390HS Video Switcher with 1 M E Configuration in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    For.A HVS-390MU1ME Specs

    Video Formats 1080/59.94i, 1080/50i, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL)
    Processing 4:2:2 digital component
    Quantization HD/SD-SDI: 10-bit
    Video Input 16x HD/SD-SDI, 1.5 Gbps / 270 Mbps, 75Ω, frame synchronizer on each input
    Video Output 8x HD/SD-SDI, 1.5 Gbps / 270 Mbps, 75Ω (2x PGM, 6x AUX -- crossfade switching available on each AUX)
    1x HDMI
    System Phase Adjust Horizontal: -1/2H to +1/2H
    Genlock Input 1x BNC
    BB: NTSC 0.429 Vp-p/PAL 0.45 Vp-p
    Tri-level sync: 0.6 Vp-p, 75Ω
    I/O Delay HD: 1 H, SD: 1.7 H (minimum delay)
    1 to 1.5 frames + minimum delay (when FS or up-resize engine used)
    2 to 2.5 frames + minimum delay (when FS or up-resize engine plus DVE used)
    3 to 3.5 frames + minimum delay (when FS or up-resize engine plus output resize engine and DVE used)
    Interfaces 4x RS-422 on 9-pin D-sub female (inch screw)
    1x Editor on 9-pin D-sub female (inch screw)
    1x GPI input 15-pin D-sub female, 10 inputs (inch screw)
    1x Tally output 25-pin D-sub female, 20 outputs (inch screw)
    1x ARCnet loop-through on BNC, 75Ω (terminate with 75Ω terminator, if unused)
    1x Ethernet, 100BASE-TX/1000BASE-T, on RJ-45
    Operating Temperature 32 to 104°F (0 to 40ºC)
    Operating Humidity 30 to 90% (no condensation)
    Power 100 V AC to 240 V AC ±10% 50/60Hz
    Power Consumption Max. 510 VA
    Dimensions 17 x 17.7 x 5.2" (43 x 45 x 13.2 cm)
    Weight 42.3 lb (19.2 kg)
