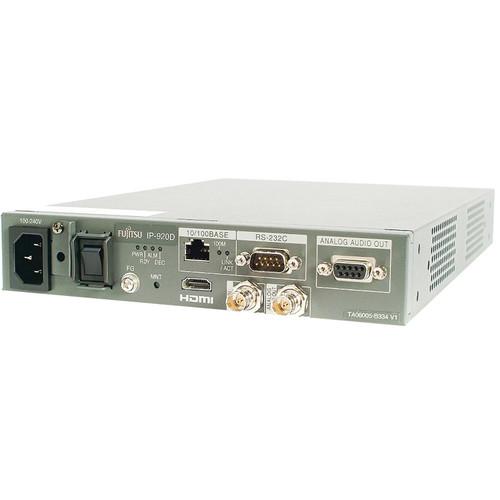

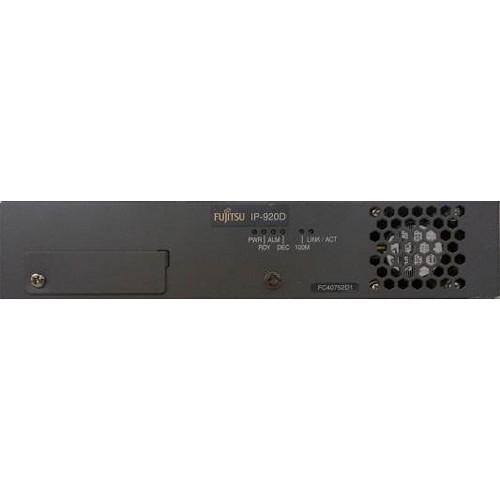

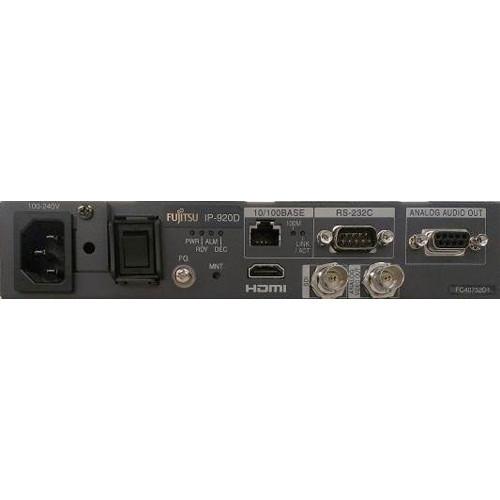

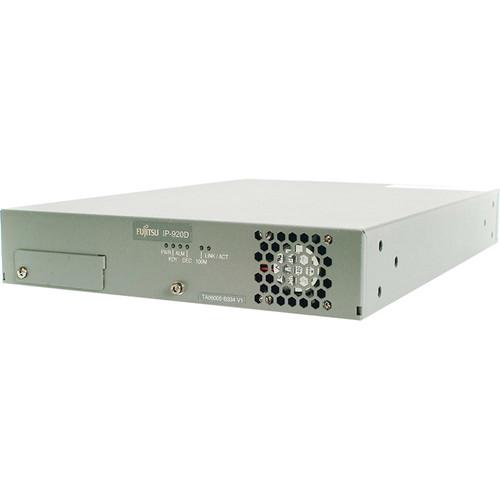

Product description The IP-920 MPEG-4 AVC (H.264) Decoder from For.A is an audio/video codec that utilizes MPEG-4 AVC (H.264) encoding to perform real-time transmission of SDTV and HDTV signals at lower bit rates over an IP network. It employs Fujitsu FEC (Forward Error Correction) and ARQ (Automatic Repeat Request) and Pro-MPEG FEC error correction techniques. The decoder features a Low Latency mode (<400 ms) with support for optional Ultra-Low Latency mode (<99 ms). In addition, it comes with HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M), HDMI, and NTSC/PAL interfaces. - Videos can be transmitted using Carrier ID and NIT over Satellite Network
- RS-232C (pass-thru) functionality
- FEC, ARQ, and Pro-MPEG FEC error correction techniques
- Comes with one Reference Input (BB)

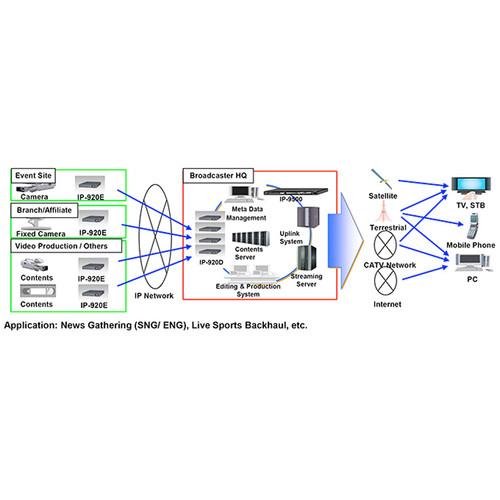

- Suitable for applications such as news gathering (SNG/ ENG) and live sports backhaul
In the Box For.A IP-920 MPEG-4 AVC (H.264) Decoder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A IP-920 MPEG-4 AVC Decoder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A IP-920D Specs | | | Outputs | 1 x HD-SDI(SMPTE 292M)
SD-SDI (SMPTE 259M)
1 x HDMI
1 x NTSC/PAL | | Coding Method | ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10) HP at L4, MP at L4
ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10) HP at L3, MP at L3 | | Resolution / Frame Rate | 1080i x 1920/1440/960 (50/59.94 Hz): 0.5 to 27 Mb/s
720p x 1280/960/640 (50/59.94 Hz), 720p x 1280 (25/29.97 Hz): 0.5 to 27 Mb/s
480i x 720/352 (59.94/29.97 Hz), 576i x 720/352 (50 Hz): 150 kb/s to 10 Mb/s
240i x 352 (59.94/29/97 Hz), 288i x 352 (50/25 Hz): 25 kb/s to 1 Mb/s | | Reference | 1 x Reference Input (BB) | | | | Outputs | 1 x SDI embedded (SMPTE 299M/272M)
1 x HDMI, 1 x balanced analog pair (D-Sub 9-pin)
Connector conversion cable is attached | | Coding Method | MPEG-1 Layer2 (ISO/IEC 11172-3): 2-channel (2 x stereo), 128, 256, 384 kb/s/stereo
MPEG-2 AAC (ISO/IEC 13818-7): 2-channel (2 x stereo), 56, 64, 128, 256, 384 kb/s/stereo | | | | Multiplexing | MPEG-2 TTS, MPEG-2 TS | | Ancillary Data | NIT (Carrier ID), SDT | | Transport Protocols | RTP/UDP/IP, UDP/IP | | Error Correction | Fujitsu FEC and ARQ, Pro-MPEG FEC | | Network | IPv4: PPPoE, DHCP, SNTP, SNMP v1/SNMP v2c, IGMP v3
IPv6: SNTP, SNMP v2c, MLDv2 | | Control | Web GUI, SNMP | | Network Interface | 1 x 10Base-T/100Base-TX | | Data | RS-232C (pass-thru) | | Power Requirements | 100 to 240 VAC / +12 to 24 VDC | | Power Consumption | 35 VA | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Humidity | 20 to 90% RH (No condensation) | | Compliance | UL, CE, FCC, RoHS,KC ,
Class III device of IEC60950-1, UL60950-1 | | Dimensions (W x D x H) | 8.2 x 11.8 x 1.6" (210 x 300 x 42 mm) | | Weight | 4.4 lb (2 kg) |
