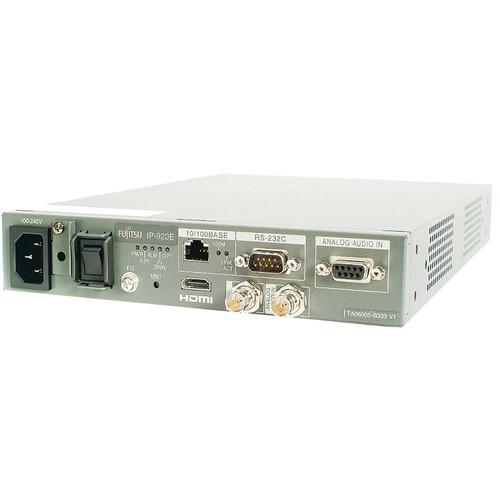

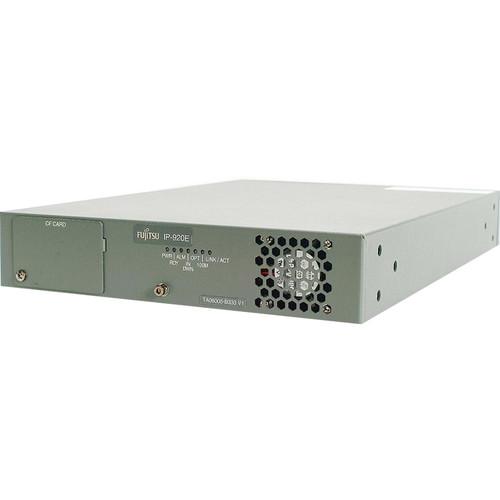

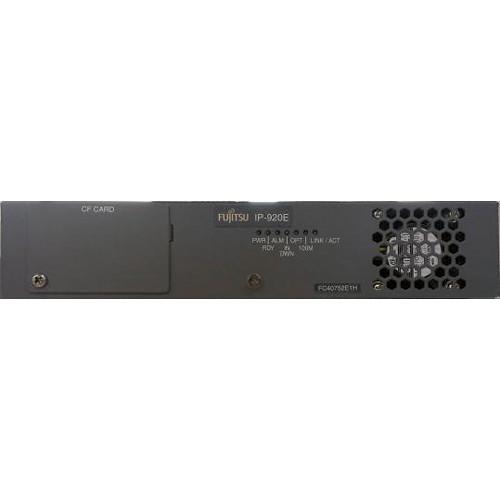

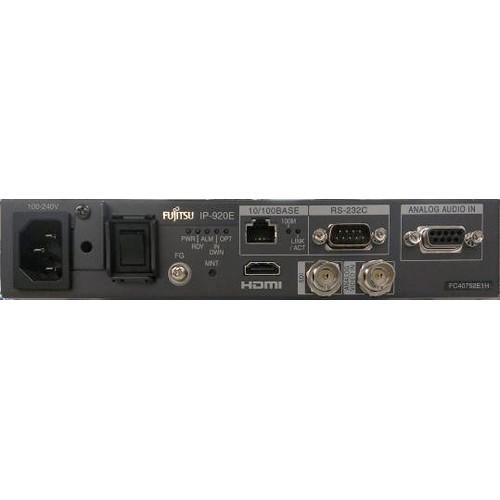

User Manual for For.A IP-920 MPEG-4 AVC Encoder with HD-SDI Input Click to enlarge the picture
Contents of the user manual for the For.A IP-920 MPEG-4 AVC Encoder with
- Product category: Streaming Media Solutions For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Streaming Media Solutions
 |
User manual for the For.A IP-920 MPEG-4 AVC Encoder with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|
Product description The IP-920 MPEG-4 AVC (H.264) Encoder from For.A is an audio/video codec that utilizes MPEG-4 AVC (H.264) encoding to perform real-time transmission of SDTV and HDTV signals at lower bit rates over an IP network. It employs Fujitsu FEC (Forward Error Correction) and ARQ (Automatic Repeat Request) and Pro-MPEG FEC error correction techniques.
The encoder features a Low Latency mode (<400 ms) with support for optional Ultra-Low Latency mode (<99 ms). It comes with HD-SDI (SMPTE 292M), HDMI, and NTSC/PAL interfaces. The encoder also comes with HD software for replacing a normal camera with a HD camera.The encoder also comes with a balanced analog audio interface. You can record encoded video and audio data on the recorder via an optional CF card (up to 16GB) and then download it remotely from the network operation center as per your requirements. - Videos can be transmitted using Carrier ID and NIT over Satellite Network
- RS-232C (pass-thru) functionality
- FEC, ARQ, and Pro-MPEG FEC error correction techniques
- Comes with a balanced analog audio interface
- Dual Encoder: Supports two types of bit rate encoding
- Superimpose (text and time)

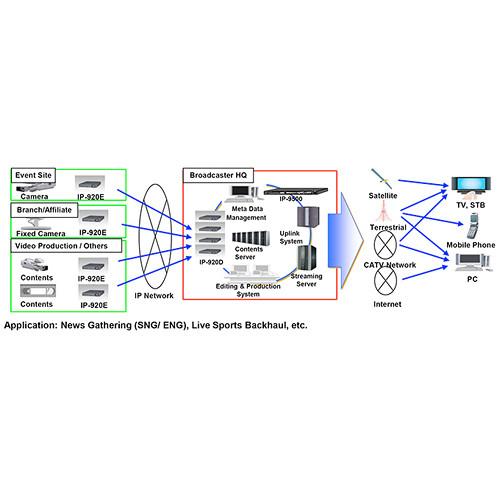

- Suitable for applications such as news gathering (SNG/ENG) and live sports backhaul
In the Box For.A IP-920 MPEG-4 AVC (H.264) Encoder with HD-SDI Input HD Software Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A IP-920 MPEG-4 AVC Encoder with HD-SDI Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A IP-920E(AC)HD Specs | | | Inputs | 1 x HD-SDI (SMPTE 292M)
1 x HDMI
1 x NTSC/PAL | | Coding Method | ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10)
ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10), HP at L4, MP at L4 | | Resolution / Frame Rate | 1080i x 1920/1440/960 (50/59.94 Hz): 0.5 to 27 Mb/s
720p x 1280/960/640 (50/59.94 Hz): 0.5 to 27 Mb/s
480i x 720/352 (59.94 Hz), 576i x 720/352 (50 Hz): 150 kb/s to 10 Mb/s
240i x 352 (59.94/29.97 Hz), 288i x 352 (50/25 Hz): 25 to 1 Mb/s
| | | | Inputs | 2 x SDI embedded (SMPTE 299/272M)
1 x HDMI, 1 x balanced analog pair (D-Sub 9-pin)
Connector conversion cable is attached | | Coding Method | MPEG-1 Layer2 (ISO/IEC 11172-3): 2-channel (2 x stereo), 128, 256, 384 kb/s/stereo
MPEG-2 AAC (ISO/IEC 13818-7): 2-channel (2 x stereo), 56, 64, 128, 256, 384 kb/s/stereo | | | | Multiplexing | MPEG-2 TTS, MPEG-2 TS | | Ancillary Data | NIT (Carrier ID), SDT | | Transport Protocols | RTP/UDP/IP, UDP/IP | | Error Correction | Fujitsu FEC and ARQ, Pro-MPEG FEC | | Network | IPv4: PPPoE, DHCP, SNTP, SNMP v1/SNMP v2c, IGMP v3
IPv6: SNTP, SNMP v2c, MLDv2 | | Control | Web GUI, SNMP | | Network Interface | 1 x 10Base-T/100Base-TX | | Data | RS-232C (pass-thru) | | Power Requirements | 100 to 240 VAC | | Power Consumption | 38 VA | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Humidity | 20 to 90% RH (No condensation) | | Compliance | UL, CE, FCC, RoHS, KC
Class III device of IEC60950-1, UL60950-1 | | Dimensions (W x D x H) | 8.2 x 11.8 x 1.6" (210 x 300 x 42 mm) | | Weight | 4.4 lb (2 kg) |
