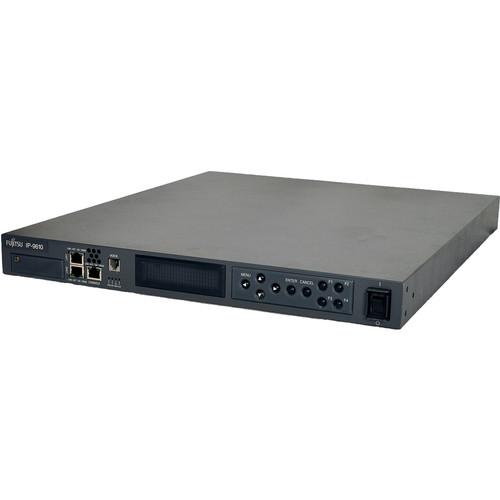

Product description The IP-9610 H.264/AVC Codec from For.A comes installed with an SDI input board and SDI output board. The SDI input board features one HD/SD-SDI input and one HD/SD-SDI loop-through output with support for optional 3G input/output. The SDI output board features two 3G/HD/SD-SDI outputs. The input board also features one SDI embedded audio input and one SDI embedded loop-through audio output, while the output board features two SDI embedded outputs. In addition, the codec supports H.264/AVC video compression and 10-bit 4:2:2 color format.The codec supports MPEG-1, AAC, and HE-AAC audio encoding formats, enabling audio distribution for multiple channels such as maximum 16 channels per 1 video channel. It also employs Fujitsu FEC (Forward Error Correction) and ARQ (Automatic Repeat Request) and SMPTE2022 (Pro-MPEG) FEC error correction techniques. - Low Latency mode with support for Ultra Low Latency mode

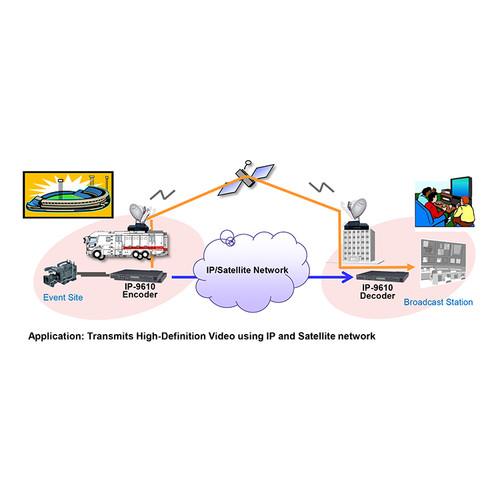

- Videos can be smoothly transmitted using NIT over Satellite Network
- Synchronizes 2-channel video as MPTS and enables to output from ASI

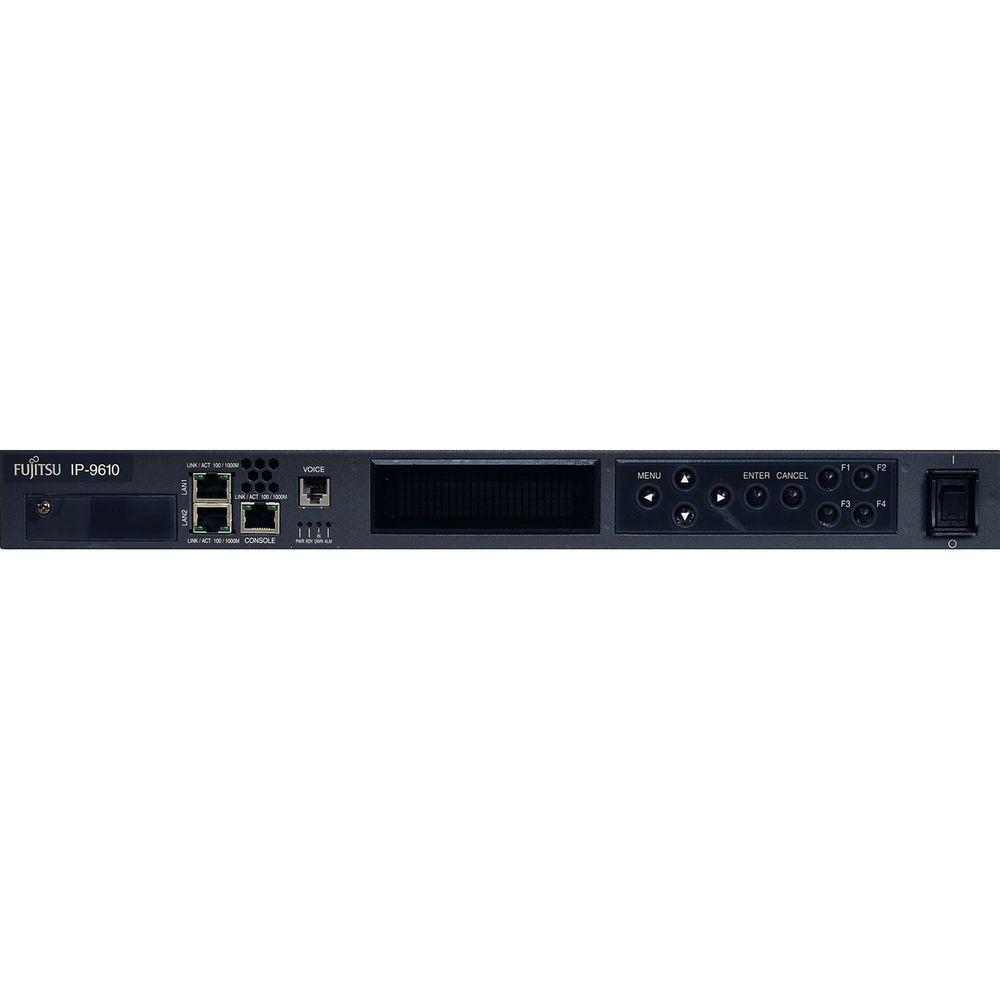

- Front panel and web access for easy operation and control
- Four function keys on the front panel can be assigned as shortcuts as per your requirements
In the Box For.A IP-9610 H.264/AVC Codec with 16-Channel Audio Board 5 x Feet 2 x 19" Rack Mounting Kit Holder Installation Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A IP-9610 H.264 AVC Codec with 16-Channel Audio Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A IP-9610 (MODEL #10) Specs | | | Input | Encoder
1 x HD/SD-SDI (SMPTE 424M/292M/259M)
1 x HD/SD-SDI (loop-thru)
Note: Supports Dual-Link SDI (SMPTE 372M) using 2 boards | | Output | Decoder
2 x 3G/HD/SD-SDI (SMPTE 424M/292M/259M)
Note: Supports Dual-Link SDI (SMPTE 372M) using 2 boards | | Coding Method | ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10)
High422 at L4.2, HP at L4, High422 at L3, HP at L3, CSC422 | | Resolution / Frame Rate | 1080i x 1920/1440/960 (50/59.94/60 Hz) / 1 to 100 Mb/s
720p x 1280/960/640 (50/59.94/60 Hz) / 0.5 to 100 Mb/s
480i x 720/352 (59.94 Hz), 576i x 720/352 (50 Hz) / 0.15 to 100 Mb/s | | Reference | 1 x reference input (tri-sync/bi-sync)
1 x reference output (decoder synchronization) | | | | Input | Encoder
1 x SDI embedded input (SMPTE 299M/272M) | | Output | Encoder
1 x SDI embedded output (pass-thru)
Decoder
2 x SDI embedded outputs (SMPTE 299M/272M) | | Coding Method | MPEG-1 Layer 2 (mono, dual mono, stereo)
Pass-thru (SMPTE-302M, AC-3/ATSC, AC-3/DVB) | | Intercom | 1 x Input/ Output: G.711 | | Multiplexing | 1 x MPEG-2 TS/MPEG-2 TTS
2 x MPEG-2 TS/MPEG-2 TTS (SPTS/MPTS) | | Ancillary Data | Private PES (SMPTE RDD 11-2007), DID/SDID filtering, ATSC Annex F (Closed Caption), NIT (Carrier ID), SDT | | Aux | 2 x RS-232C/RS-422 Pass-thru | | Console | 1 x 10Base-T/100Base-TX/1000Base-T | | LAN | Interface: 2 x 10Base-T/100Base-TX/1000Base-T
IPv4/IPv6, HTTP, SNMP, SNTP, RTP, UDP
Error Correction: SMPTE2022 (Pro-MPEG) FEC, Fujitsu FEC and ARQ | | DVB-ASI Signal Input | 2 x DVB-ASI
1 x DVB-ASI input | | Control | VFD Key (up, down, left, right, enter, cancel, 4 x function-key), Web-GUI, SNMP | | Power | 100 to 240 VAC | | Power Consumption | 100 to 170 VA
SDI Input/Output Board: 2 W or less | | Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 20 to 90% RH (No condensation) | | Compliance | UL, CE, FCC, RoHS, KC | | Dimensions (W x D x H) | 16.7 x 19.6 x 1.6" (425 x 500 x 43 mm)
SDI Input/Output Board: 4 x 6.4 x 0.7" (101.8 x 162.95 x 18.5 mm) | | Weight | 15.4 lb (7 kg)
SDI Input/Output Board: 1.1 lb (0.5 kg) |
