Product description The IP-9610 H.264/AVC Multi Encoder from For.A comes installed with two SDI input boards that feature two HD/SD-SDI inputs and two HD/SD-SDI loop-through outputs with support for Dual-Link SDI (SMPTE 372M). It also features one SDI embedded audio input and one SDI embedded loop-through audio output. The encoder supports H.264/AVC video compression and 10-bit 4:2:2 color format.
The encoder supports MPEG-1, AAC, and HE-AAC audio encoding formats, enabling audio distribution for multiple channels such as maximum 16 channels per 1 video channel. The encoder employs Fujitsu FEC (Forward Error Correction) and ARQ (Automatic Repeat Request) and SMPTE2022 (Pro-MPEG) FEC error correction techniques. - Low Latency mode with support for Ultra Low Latency mode

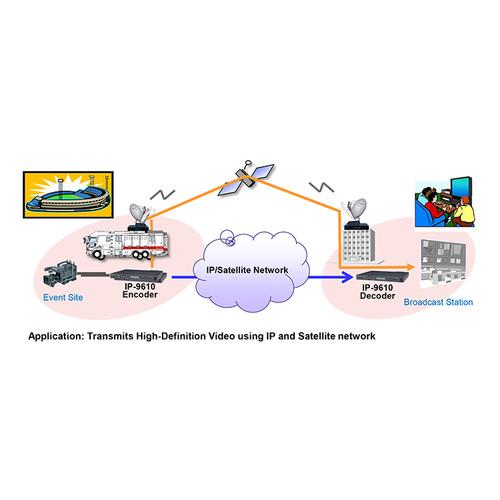

- Videos can be smoothly transmitted using NIT over Satellite Network
- Synchronizes 2-channel video as MPTS and enables to output from ASI

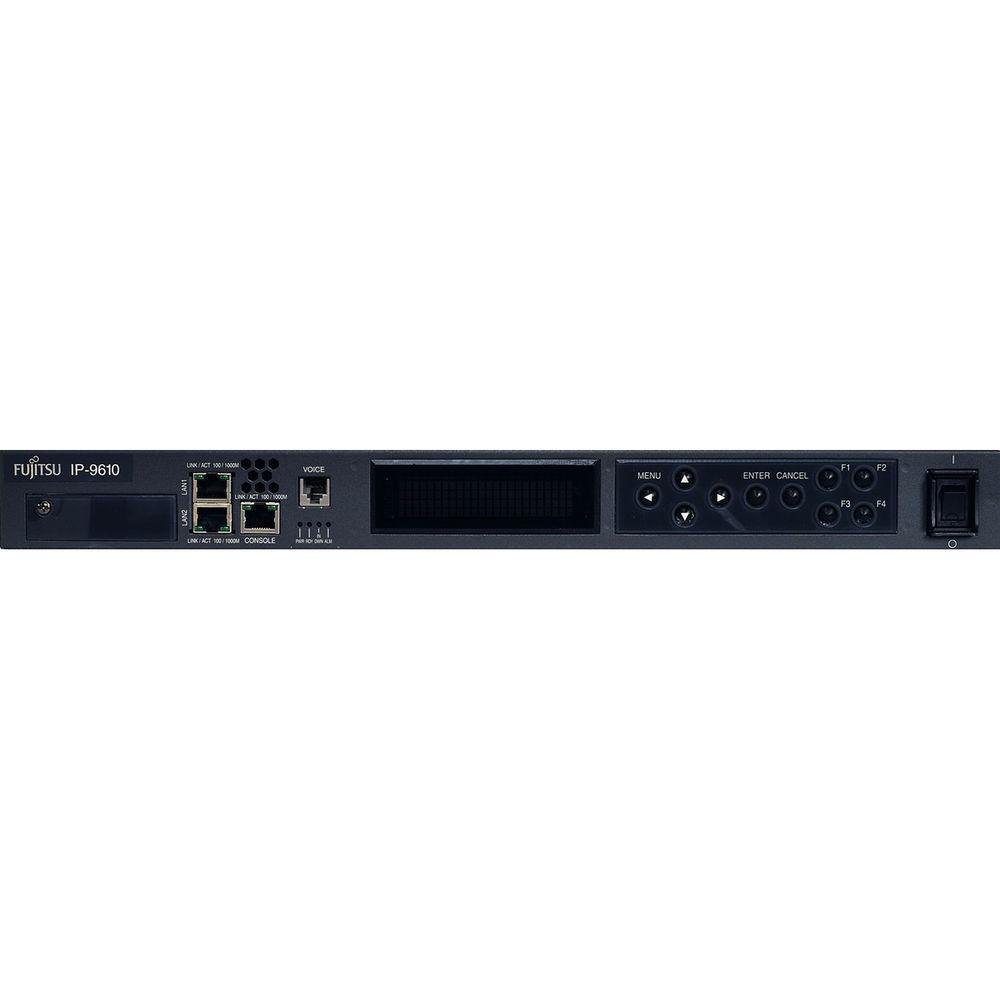

- Front panel and web access for easy operation and control
- Four function keys on the front panel can be assigned as shortcuts as per your requirements
In the Box For.A IP-9610 H.264/AVC Multi Encoder with 16-Channel Audio Board 5 x Feet 2 x 19" Rack Mounting Kit Holder Installation Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A IP-9610 H.264 AVC Multi Encoder with 16-Channel Audio Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

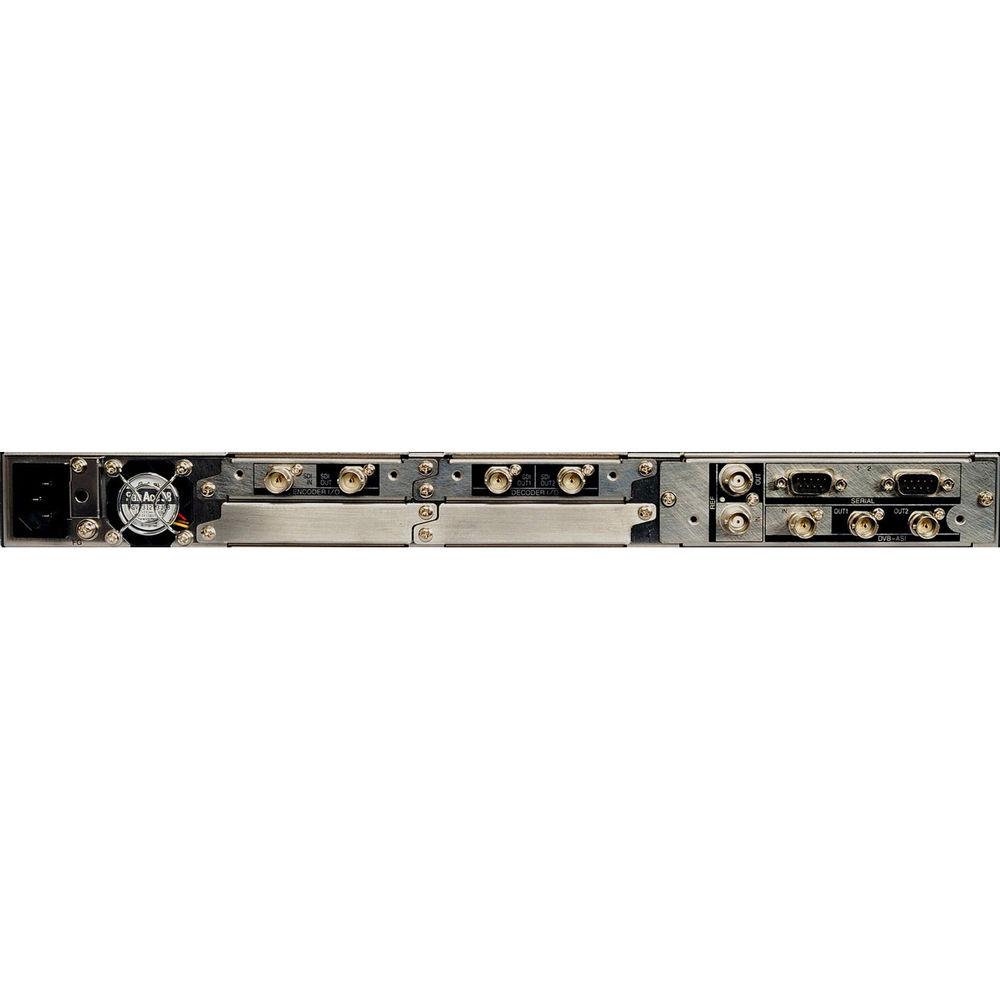

Technical parametersFor.A IP-9610 (MODEL #4) Specs | | | Input/Output | 2 x HD/SD-SDI (SMPTE 424M/292M/259M)
2 x HD/SD-SDI (loop-thru)
Supports Dual-Link SDI (SMPTE 372M) | | Coding Method | ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10)
High422 at L4.2, HP at L4, High422 at L3, HP at L3, CSC422 | | Resolution / Frame Rate | 1080i x 1920/1440/960 (50/59.94/60 Hz) / 1 to 100 Mb/s
720p x 1280/960/640 (50/59.94/60 Hz) / 0.5 to 100 Mb/s
480i x 720/352 (59.94 Hz), 576i x 720/352 (50 Hz) / 0.15 to 100 Mb/s | | | | Input | 1 x SDI embedded input (SMPTE 299M/272M) | | Output | 1 x SDI embedded output (loop-thru) | | Coding Method | MPEG-1 Layer 2 (mono, dual mono, stereo)
Pass-thru (SMPTE-302M, AC-3/ATSC, AC-3/DVB) | | Intercom | 1 x Input/Output: G.711 | | Multiplexing | 1 x MPEG-2 TS/MPEG-2 TTS | | Ancillary Data | Private PES (SMPTE RDD 11-2007), DID/SDID filtering, ATSC Annex F (Closed Caption), NIT (Carrier ID), SDT | | Aux | 2 x RS-232C/RS-422 Pass-thru | | Console | 1 x 10Base-T/100Base-TX/1000Base-T | | LAN | Interface: 2 x 10Base-T/100Base-TX/1000Base-T
IPv4/IPv6, HTTP, SNMP, SNTP, RTP, UDP
Error Correction: SMPTE2022 (Pro-MPEG) FEC, Fujitsu FEC and ARQ | | DVB-ASI Signal Input | 2 x DVB-ASI | | Control | VFD Key (up, down, left, right, enter, cancel, 4 x function-keys), Web-GUI, SNMP | | Power | 100 to 240 VAC | | Power Consumption | 100 to 170 VA
Each SDI Input Board: 2 W or less | | Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 20 to 90% RH (No condensation) | | Compliance | UL, CE, FCC, RoHS, KC | | Dimensions (W x D x H) | 16.7 x 19.6 x 1.6" (425 x 500 x 43 mm)
Each SDI Input Board: 4 x 6.4 x 0.7" (101.8 x 162.95 x 18.5 mm) | | Weight | 15.4 lb (7 kg)
Each SDI Input Board: 1.1 lb (0.5 kg) |
