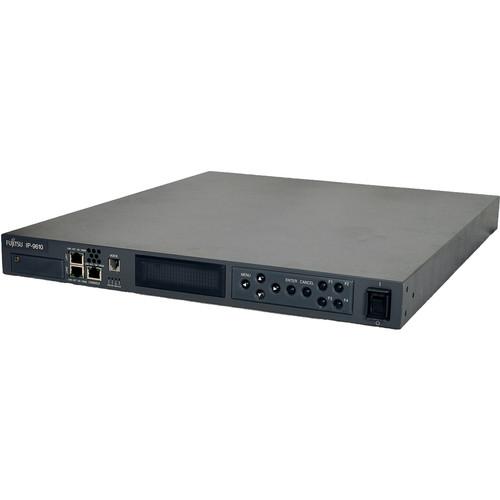

User Manual for For.A IP-9610 H.264 AVC Single Encoder with 16-Channel Audio Board Click to enlarge the picture
Contents of the user manual for the For.A IP-9610 H.264 AVC Single Encoder
- Product category: Streaming Media Solutions For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Streaming Media Solutions
 |
User manual for the For.A IP-9610 H.264 AVC Single Encoder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|
Product description The IP-9610 H.264/AVC Single Encoder from For.A comes installed with an SDI input board that features one HD/SD-SDI input and one HD/SD-SDI loop-through output with support for optional 3G input/output. It also features one SDI embedded audio input and one SDI embedded loop-through audio output. The encoder supports H.264/AVC video compression and 10-bit 4:2:2 color format.
The encoder supports MPEG-1, AAC, and HE-AAC audio encoding formats, enabling audio distribution for multiple channels such as maximum 16 channels per 1 video channel. The encoder employs Fujitsu FEC (Forward Error Correction) and ARQ (Automatic Repeat Request) and SMPTE2022 (Pro-MPEG) FEC error correction techniques. - Low Latency mode with support for Ultra Low Latency mode

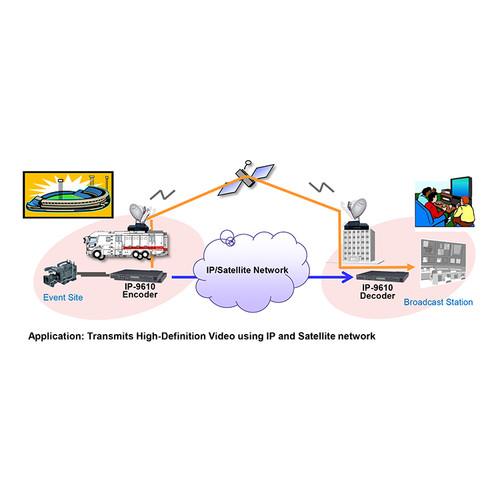

- Videos can be smoothly transmitted using NIT over Satellite Network
- Synchronizes 2-channel video as MPTS and enables to output from ASI

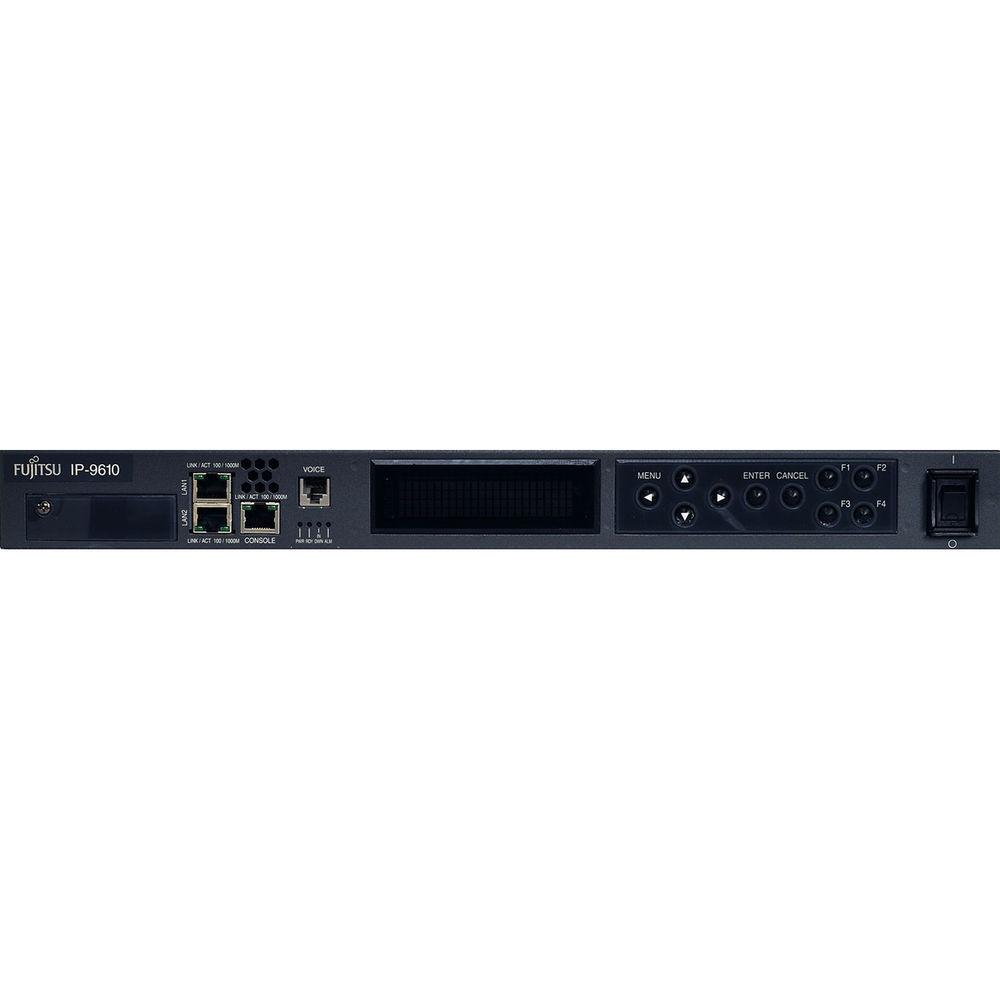

- Front panel and web access for easy operation and control
- Four function keys on the front panel can be assigned as shortcuts as per your requirements
In the Box For.A IP-9610 H.264/AVC Single Encoder with 16-Channel Audio Board 5 x Feet 2 x 19" Rack Mounting Kit Holder Installation Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A IP-9610 H.264 AVC Single Encoder with 16-Channel Audio Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

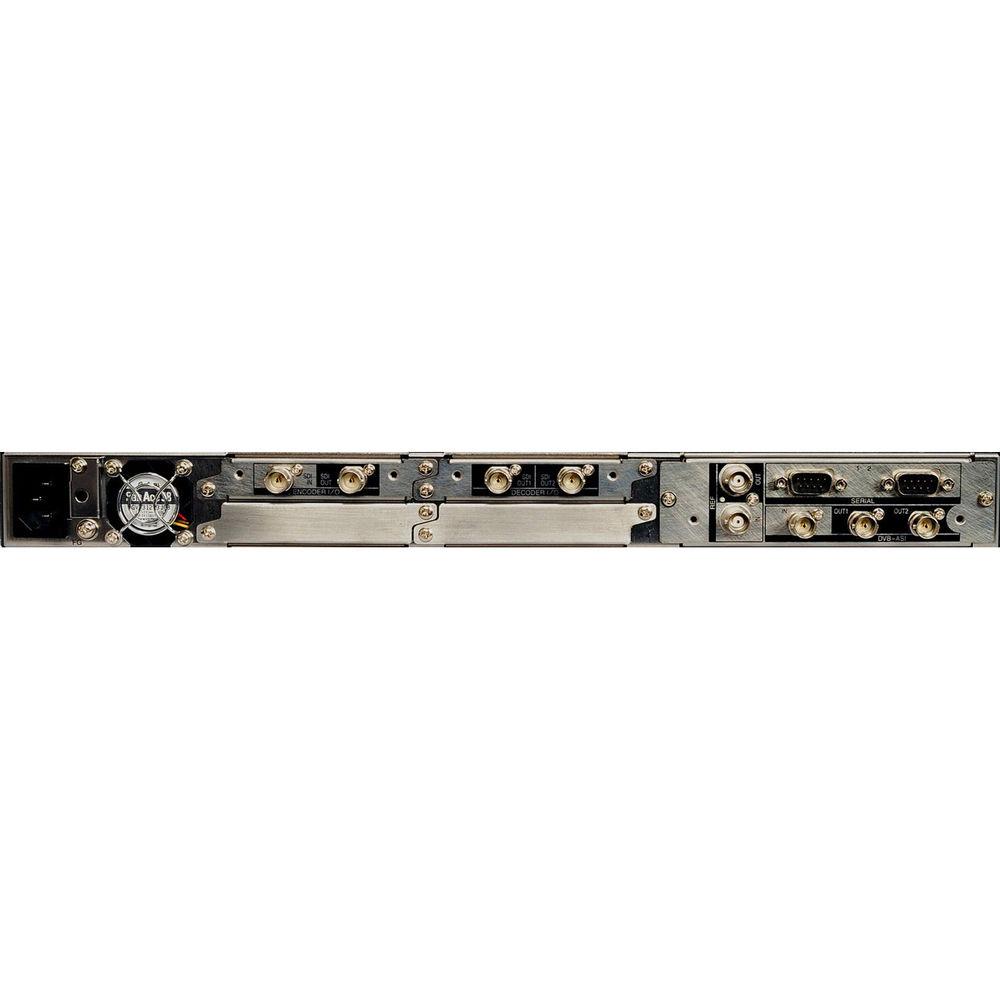

Technical parametersFor.A IP-9610 (MODEL #2) Specs | | | Input/Output | 1 x HD/SD-SDI (SMPTE 424M/292M/259M)
1 x HD/SD-SDI (loop-thru) | | Coding Method | ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10)
High422 at L4.2, HP at L4, High422 at L3, HP at L3, CSC422 | | Resolution / Frame Rate | 1080i x 1920/1440/960 (50/59.94/60 Hz) / 1 to 100 Mb/s
720p x 1280/960/640 (50/59.94/60 Hz) / 0.5 to 100 Mb/s
480i x 720/352 (59.94 Hz), 576i x 720/352 (50 Hz) / 0.15 to 100 Mb/s | | | | Input | 1 x SDI embedded input (SMPTE 299M/272M) | | Output | 1 x SDI embedded output (pass-thru) | | Coding Method | MPEG-1 Layer 2 (mono, dual mono, stereo)
Pass-thru (SMPTE-302M, AC-3/ATSC, AC-3/DVB) | | Intercom | 1 x Input/ Output: G.711 | | Multiplexing | 1 x MPEG-2 TS/MPEG-2 TTS | | Ancillary Data | Private PES (SMPTE RDD 11-2007), DID/SDID filtering, ATSC Annex F (Closed Caption), NIT (Carrier ID), SDT | | Aux | 2 x RS-232C/RS-422 Pass-thru | | Console | 1 x 10Base-T/100Base-TX/1000Base-T | | LAN | Interface: 2 x 10Base-T/100Base-TX/1000Base-T
IPv4/IPv6, HTTP, SNMP, SNTP, RTP, UDP
Error Correction: SMPTE2022 (Pro-MPEG) FEC, Fujitsu FEC and ARQ | | DVB-ASI Signal Input | 2 x DVB-ASI | | Control | VFD Key (up, down, left, right, enter, cancel, 4 x function-key), Web-GUI, SNMP | | Power | 100 to 240 VAC | | Power Consumption | 100 to 170 VA
SDI Input Board: 2 W or less | | Temperature | 32 to 122°F (0 to 50°C) | | Humidity | 20 to 90% RH (No condensation) | | Compliance | UL, CE, FCC, RoHS, KC | | Dimensions (W x D x H) | 16.7 x 19.6 x 1.6" (425 x 500 x 43 mm)
SDI Input Board: 4 x 6.4 x 0.7" (101.8 x 162.95 x 18.5 mm) | | Weight | 15.4 lb (7 kg)
SDI Input Board: 1.1 lb (0.5 kg) |
