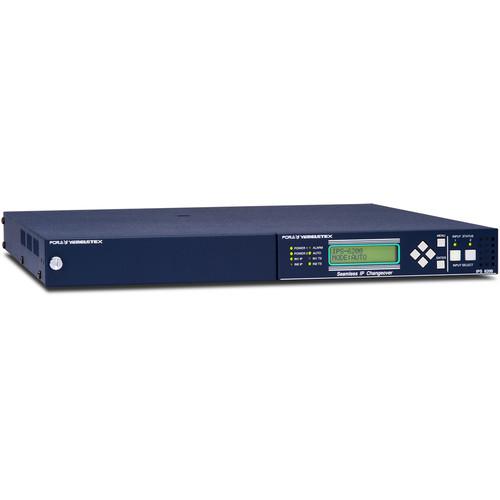

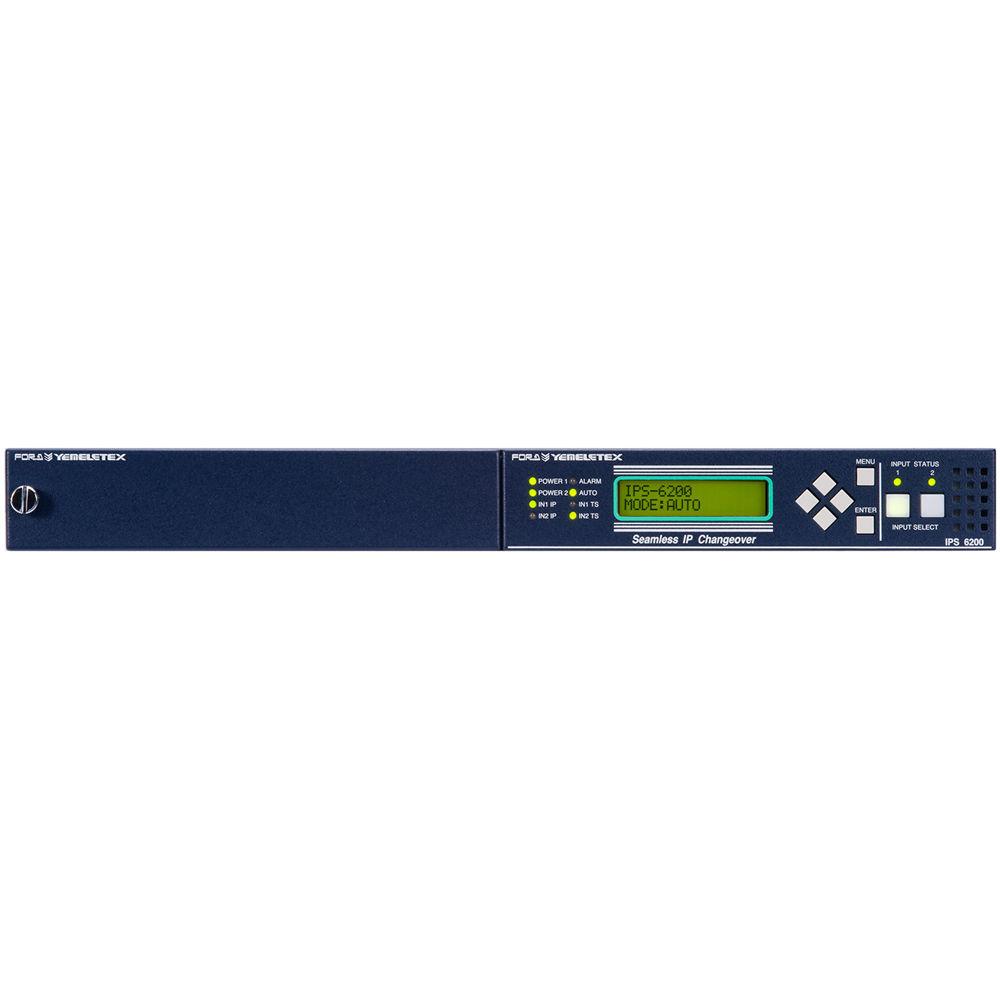

Product description The 1 RU IPS-6200 2x1 IP Changeover Switcher from For.A is a standalone two-input ASI/TS over IP changeover. The IPS-6200 monitors TS-level IP signals in redundant input and instantly switches ports if errors occur. This enables seamless output without disruptions. - Seamless Switching between Outputs of the Same Encoder
- When installed at the far end of a network link, the IPS-6200 seamlessly switches between redundant encoder TSoIP input used in multicast transmissions or the like. This supports seamless switching without video or audio disruption.
- Auto and Manual Switching
- When a signal error occurs, the IPS-6200 automatically switches to the other line. Manual switching and auto/manual assignment of each line are also possible.
- Delay Adjustment Function
- The delay difference between different lines is absorbed quickly and both phase inputs are automatically aligned, achieving seamless switching that does not disrupt the output. The delay adjustment range is up to ten seconds.
- TS-Level Monitoring
- TS-Level error monitoring is used for IP signals. Error monitoring is designed to check for packet loss, null-only, and other critical errors that may affect signal quality. Error detection can also be enabled or disabled based on the type of signal. Set the PID error detection threshold as desired, in 1 ms increments. Up to four sets of multi-program signals are supported.
- GUI-Based Remote Control and Monitoring
- Ethernet interfaces enable a wide range of remote monitoring and control. The dedicated GUI can be used to make settings and graphically display error-monitoring contents via Ethernet. An event log viewer, automatic CSV file generation, and other functions are also provided to facilitate signal management requiring historical condition data. SNMP-based control, configuration, and monitoring are also supported.
- ASI and IP Inputs Supported
- Choose ASI or IP for each signal supplied. Enables mixed input, using IN 1 (IP) and IN 2 (ASI), for example. Ideal for redundant ASI/satellite operation.
In the Box For.A IPS-6200 2x1 IP Changeover Switcher (1 RU) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A IPS-6200 2x1 IP Changeover Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

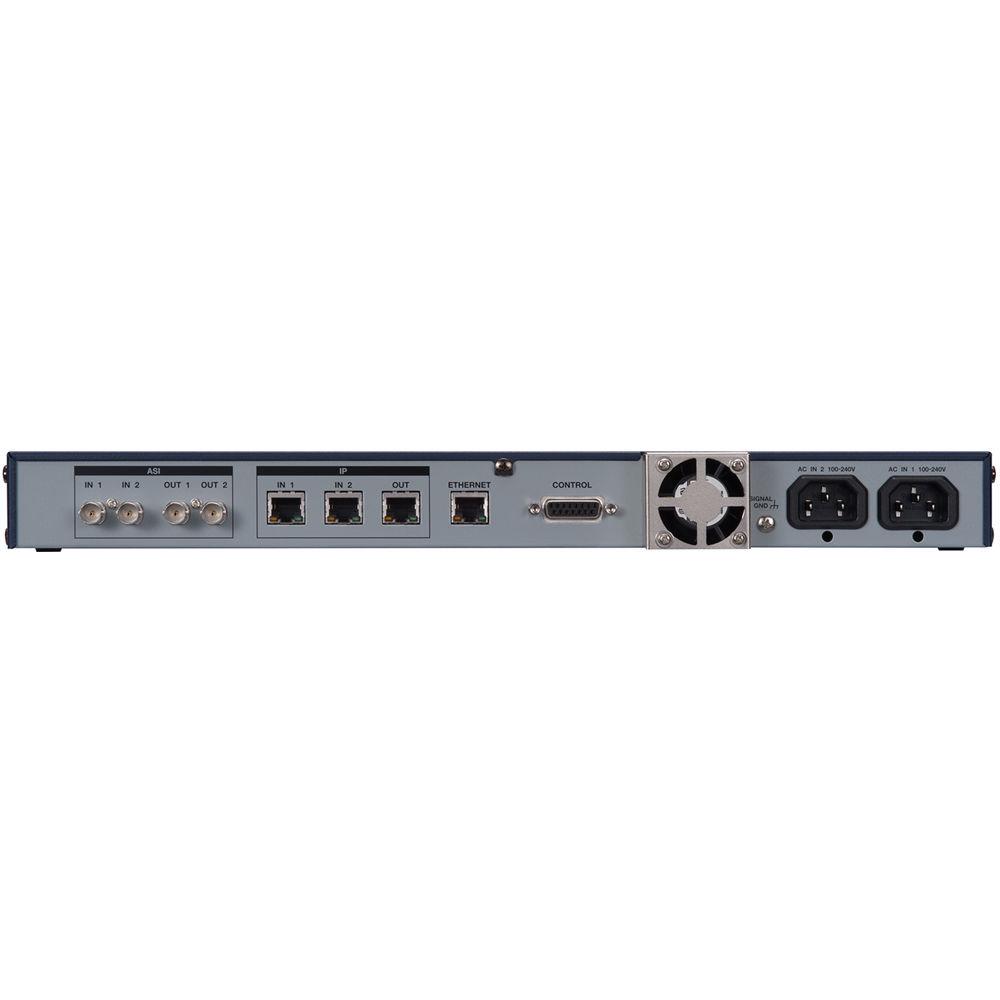

Technical parametersFor.A IPS-6200 Specs | IP | Transmission Standard: IEEE 802.3ab / IEEE 802.3u compliant
Connectors:
2 x RJ45 in
1 x RJ45 out | | ASI | Signal Standard: DVB-ASI (EN50083-9) compliant
Input: Packet / Burst, 188 / 204 bytes
Output: Packet, INPUT / 188 byte fixed / 204 byte fixed
Effective Bit Rate: 1 to 200 Mbps
Connectors:
2 x BNC in, 75 Ohms, unbalanced
2 x BNC out, 75 Ohms, unbalanced | | TS Protocols | Transmission Standard: SMPTE 2022-2
Transmission Protocol: RTP/UDP/IPv4
FEC: SMPTE 2022-1 / Pro-MPEG CoP#3
Communication Format: SMPTE 2022-1 / Pro-MPEG CoP#3
TS over IP: 1-7 | | Control System | Buffer Capacity for Delay Adjustment: Ten seconds
System Delay: Standard 50 ms / min. 5 ms (depends on the offset value)
Error Detection Item: No Signal / packet loss / TR101 290 P1 / P2 / NULL only error
CC/PID Error Details: Automatically detected PID (PAT/PMT/VIDEO/AUDIO1/AUDIO2/AAC1/AAC2/DATA1/DATA2)
USER_PID: USER1_PID / USER2_PID / USER3_PID Error detect item/CC/PID error details can be enabled or disabled for each signal. | | External Control | Ethernet:
10BASE-T / 100BASE-TX / 1000BASE-T
Signal status monitoring / main unit setting / log viewer / file save function by dedicated GUI
SNMP monitoring / control by means of dedicated MIB files (SNMP v1 / v2c)
For maintenance (For firmware updates) | | Power | 100 to 240 VAC (Hot swappable redundant power supply) | | Power Consumption | 30 W | | Temperature / Humidity | 41 to 104°F (5 to 40°C) | | Dimensions | 16.9 x 17.7 x 17.3" (43 x 45 x 44 cm) | | Weight | Approx. 15.4 lb (7 kg) |
