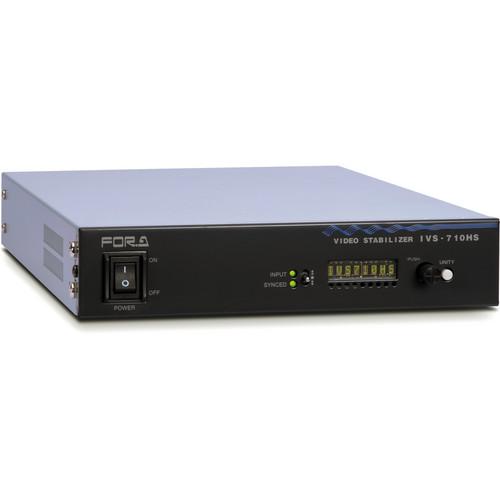

User Manual for For.A IVS-710HS HD SD Digital Video Stabilizer Click to enlarge the picture
Contents of the user manual for the For.A IVS-710HS HD SD Digital Video
- Product category: Video & Audio Processing For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Video & Audio Processing
|
User manual for the For.A IVS-710HS HD SD Digital Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|
Product description The FOR.A IVS-710HS HD/SD Digital Video Stabilizer corrects unwanted camera movement and many forms of vibration. It provides real-time correction focused on unwanted camera motion, while maintaining camera pan and tilt movement. It supports HD/SD-SDI input and output.
It offers high-performance video processing in a compact, 1/2U body. It is also suitable for eliminating unwanted motion from weather cameras, hand held news cameras, or program production motion problems. - HD-SDI and SD-SDI Formats: 1080i, 720p, 525/60, and 625/50
- Detects shakes for 1 to 59.94/2 Hz (1080/59.94i, 720/59.94p, 525/60), 1 to 60/2 Hz (1080/60i, 720/60p), or 1 to 50/2 Hz (1080/50i, 720/50p, 625/50)
- Provides real-time motion correction (2-frame delay)
- Auto Detection of Camera Pan/Tilt: Only unwanted motion corrected
- Correction for both live and recorded video
- Correction Method: 2-dimensional movement in horizontal, vertical and oblique direction
- Correction Range: Adjustable to maximum 40% of image size (correction setting sold separately)
- Straightforward Design: Simply supply video signals, no special connection required
- Correction in active area only, preserves blanking data
- Blanking data transmission timing not affected by correction delay
In the Box For.A IVS-710HS HD/SD Digital Video Stabilizer AC Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A IVS-710HS HD SD Digital Video Stabilizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A IVS-710HS Specs | Video Formats | 1080/60i, 1080/59.94i, 1080/50i, 720/60p, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL), menu options | | Video Input | HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s 75 Ω 2x BNC | | Video Output | HD-SDI: 1.5 Gb/s or SD-SDI: 270 Mb/s 75 Ω 3x BNC (processing bypass sold separately for output 1) | | Signal Processing | 4:2:2 component | | Frequency | Sampling:
HD-SDI: Y: 74.25/1.001 MHz, 74.25 MHz C: 37.125/1.001 MHz, 37.125 MHz SD-SDI: Y: 13.5 MHz C: 6.75 MHz | | Quantization | 10-bit | | Total Delay | 2 frames | | Temperature | 32 to 104°F (0 to 40°C) | | Humidity | 30 to 90% (no condensation) | | Power | 100 to 240 VAC ±10% | | Consumption | 30 VA (30 W) | | Dimensions (W x H x D) | 8.3 x 1.7 x 13.7" (212.0 × 44.0 × 350.0 mm), half 1U | | Weight | 6.6 lb (3.0 kg) | | | | Package Weight | 7.85 lb | | Box Dimensions (LxWxH) | 17.9 x 12.3 x 5.9" |
