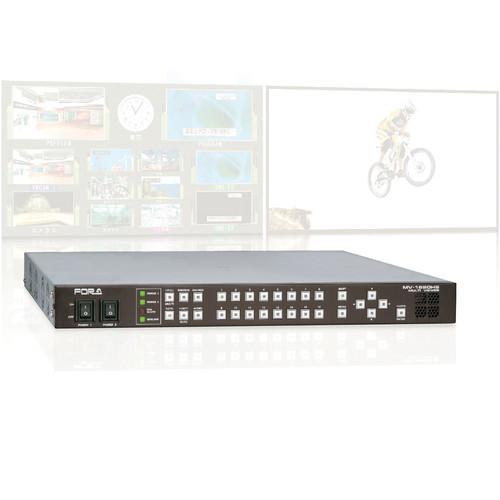

User Manual for For.A MV-1620HSA 3G HD SD Analog Mixed High-Resolution Multi-Viewer Click to enlarge the picture
Contents of the user manual for the For.A MV-1620HSA 3G HD SD Analog
- Product category: Multiviewer Processors For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Multiviewer Processors
|
User manual for the For.A MV-1620HSA 3G HD SD Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|
Product description The MV-1620HSA 3G/HD/SD/Analog Mixed High-Resolution Multi-Viewer from For.A is a multi-viewer that accepts up to 16 channels of mixed 3G/HD/SD-SDI or analog composite signals for monitoring on one or two screens. It can be cascaded with other units to display up to 64 sources at once.In addition, the MV-1620IF Interface Card and MV-1620DO Reference Input Expansion Card (available separately) can be added for GPIO, serial control, and input of analog audio, AES audio, and genlock. The MV-1620 Multiviewer offers a customizable window layout, audio level meters, and AFD-compatible cropping functionality. - Layout Manager
-
- A Windows-based application is provided for managing and creating screen layouts
- Customize the layout on a computer by registering or changing layout patterns, adjusting title displays, and configuring other settings as needed
- Store up to 16 layout patterns on the viewer
- Saved layouts can be applied directly from the front panel control
- Video Streaming
-
- In addition to computer-based layout management, you can stream video from the viewer over Ethernet
- The streaming video can be used for additional local computer displays or for remote monitoring applications
- Record Streamed Video
-
- Frames before and after errors or after specified triggers (video loss, frozen frames, incorrect luminance/black levels, CRC errors, audio loss, silence, excessive audio levels, and loss of closed captioning) are captured and can be saved to a Windows computer as a sequence of still image files
- Versatile Mixed-Source Environment
-
- Supports mixed signals as required, from 3G-SDI (Level-A/B), HD-SDI, SD-SDI, or analog composite sources
- Asynchronous input is also supported
- Accepts an array of formats and frame rates including NTSC, PAL, 1080/59.94i, and 1080/50i (no frame rate conversion)
- HD Output of Source Signals
-
- Features up to 16 output channels
- Sources can be displayed on 1 or 2 screens, each with HDMI and SDI interfaces available for HD monitoring support
- Audio Level Monitoring
-
- 16 channels of embedded audio levels in each 3G/HD/SD-SDI signal can be monitored
- Use Layout Manager to customize display positions, number of channels, and display groups
- Audio Monitoring Output
-
- Audio from any channel can be monitored via HD-SDI, HDMI, or analog audio output
- Prominent Error Display
-
- Indicates errors by full-screen display, flashing border, error icon, or error message
- Prominently identifies the relevant frame
- Information Display Function
-
- Choose from 13 types of information error logs for viewing in single or separate window
- Error logs can be downloaded using a web browser
- AFD-Compatible Cropping
-
- Active Format Description (AFD) in source signals is detected and window sizes are automatically cropped to the requested aspect ratio
- Tally/Title/Timecode
-
- Tally: Choose from frame tally or marker tally display
- Titles: Identify each source channel with a title. Supports display of alphanumeric characters, symbols, and Korean characters (up to 16), which can be displayed within or outside the picture
- Timecode: Ancillary timecode in 3G/HD/SD-SDI signals can be displayed
- Safety Area: Can be displayed for each channel
- Time and Timer Display
-
- Supports clock time synchronization with the SNTP server
- Up to 4 clocks can be displayed, along with date, in analog or digital format
- Data display is also available
- This feature can be also used as a count up/down timer, or remaining time counter
- Logo and Background
-
- Registers up to 8 logos and 4 background images
- Additional Features
-
- Can be used with MV-1620DO: Reference input, analog audio/AES input, HD-SDI, HDMI, analog audio monitoring output, and background input/output
- Can be used with MV-1620IF: Enables a variety of control interfaces using RS-232C/422/485 or GPIO
- Rotated image output (90/180/270°)
- SNMP-based monitoring: Remote monitoring of source signals or fan alarm status
- Redundant power supply
In the Box For.A MV-1620HSA 3G/HD/SD/Analog Mixed High-Resolution Multi-Viewer (16-Channel, Dual-Screen Output) Set of Rack Mount Bracket AC Cord with Cord Retaining Clip 4 x Rubber Feet CD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A MV-1620HSA 3G HD SD Analog Mixed High-Resolution Multi-Viewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A MV-1620HSA Specs | | | Video Formats | 3G: 1080/60p, 1080/59.94p, 1080/50p (Level A/B)
Level-B: At 1920 × 1080 only
HD: 1080/60i, 1080/59.94i, 1080/50i, 1035/60i, 1035/59.94i, 1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/60p, 720/59.94p, 720/50p, 720/24p, 720/23.98p, 080/30PsF, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF
SD: 525/60 (NTSC), 625/50 (PAL) | | Video Inputs | SDI/analog composite switching (mix input, asynchronous acceptable); 16 x BNC, 75 ohms | | 3G/HD/SD-SDI | 3G-SDI (Level A/B): 3 Gb/s
HD-SDI: 1.5 Gb/s
SD-SDI: 270 Mb/s | | Analog Composite | Analog composite: 1 Vpp
Quantization: Y: 8-bit, C: 8-bit | | | | HDMI | 1 x HDMI (with MV-1620DO: 2 pairs)
Quantization: R: 8-bit, G: 8-bit, B: 8-bit
Resolution: 1920 x 1080i/p, 1280 x 720p
Frequency: 59.94 Hz, 50 Hz
Interlaced output also available at 1920 × 1080i/p
No input/output frame rate conversion Unmatched frame rates may cause repeated or dropped frames | | SDI | 1 x BNC, 75 ohms
3G-SDI (Level-A): 3 Gb/s
HD-SDI: 1.5 Gb/s | | | | Embedded | Sampling frequency: 48 kHz (sync to input video signals)
Quantization: 16 to 24-bit
16 channels per 3G/HD/SD-SDI input signal (8 stereo pairs) | | | | Analog | 1 x Ports (with MV-1620DO: 2 pairs)
2 x RCA pin jacks (1 stereo pair), unbalanced
Output Impedance: ≤100 ohms
Output Level: -10 dBV
Maximum Input Level: 5 dBV
Sampling Frequency: 48 kHz Quantization: 24-bit | | Embedded | SDI:
4 groups (8 stereo pairs)
Sampling Frequency: 48 kHz
Quantization: 24-bit
HDMI:
4 stereo pairs
Sampling Frequency: 48 kHz
Quantization: 24-bit | | | | I/O Delay | 0.5 to 1 frame (asynchronous input); 0.5 frame (synchronous input, "Minimum Delay Mode" is ON) | | Windows | Video: Up to 20
Clock: Up to 4 screens (Based on internal clock (accurate to within 15 sec/month, at 77°F (25°C))
Internal clock or LTC time code selectable
Time correction via GPI or SNTP) | | Timer | Count up/down Timer, Remaining Time Counter
Can be displayed in clock window; internal clock or LTC is selectable for remaining time counter Stopwatch/timer uses an internal crystal oscillator: ±50 ppm within operating temperature 32 to 104°F (0 to 40°C) | | Display | Background
Memory: 4
Display: 1 per output
Size: 1920 × 1080 maximum
Logo
Memory: 8
Display: Maximum 2 per output
Size: 1024 x 512 maximum | | Layout | Screen:
User customized layout
Up to 16 layout patterns can be saved
Manager
Windows Software:
Window size and position settings (Layout Editor screen)
Switching output video and audio (Remote Controller screen)
Editing and registering logos and backgrounds (Logo Registry screen) | | Title Display | Character Limit: 16 characters maximum x 2 lines for each input channel
Supported Characters: Letters, numbers, symbols, Korean characters, and Japanese Kana/Kanji (JIS 1 and 2) characters | | Tally Display | Indicated as a frame (red/green/orange) or marker (red/green) on each input window
Colors are adjustable | | Audio Level Display | Up to 16 audio channels of audio level metering per input | | Time Code Display | Display for 3G/HD/SD-SDI Ancillary Timecode (ATC) | | Mode | Reader Mode
Ancillary Timecode (ATC) is not passed through
Timecode input in LTC connector is not displayed | | Monitoring | Video
Detects video loss, frozen frames (detected by calculating the active picture CRC for input signals to check whether this value remains the same for each frame), incorrect luminance/black level, and CRC error
Audio
Detects audio loss, silence, and excessive audio levels
Closed Captioning
Detects loss of closed captioning | | Marker | Safety Area Marker: Displays safety areas on each window | | Interfaces | LAN: 100BASE-TX/1000BASE-T, 1 x RJ-45 (CAT 5e-compliant) | | Viewer | Software for video streaming (for Windows only) | | Data Backup | Stores settings internally to the memory (approximately 100,000 rewrite capacity) Frequent setting changes may impair data retention | | | | Temperature | 32 to 144°F (0 to 40°C) | | Humidity | 30 to 90% (non-condensation) | | Backup Battery | Internal lithium battery (to maintain time) | | Power | 100 to 240 VAC ±10%; 50 Hz/60 Hz | | Power Consumption | 88 VA (86 W) @ 100 to 120 VAC; 107 VA (85 W) @ 200 to 240 VAC | | Dimensions (W x H x D) | 16.9 x 1.7 x 18.70" (43.0 x 4.4 x 47.5 cm); EIA 1 RU | | Weight | 15.2 lb (6.9 kg) | | | | Package Weight | 23.15 lb | | Box Dimensions (LxWxH) | 26.5 x 23.4 x 9.4" |
