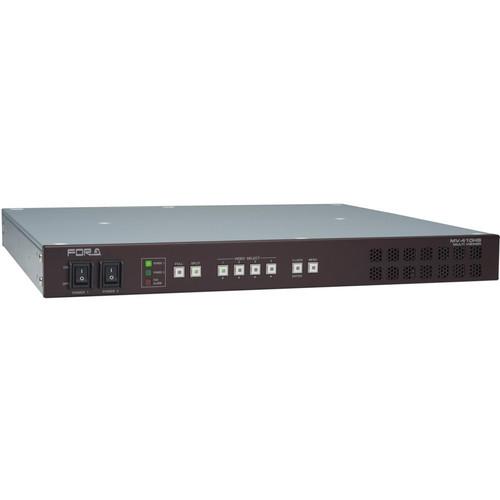

Product description The MV-410HS HD/SD High Resolution Quad Viewer from For.A is a 4-channel multi viewer that supports mixed input of HD-SDI, SD-SDI, and analog composite signals. High-resolution video output is possible using its DVI terminal. Support is also provided for user-created patterns and video transfer over a LAN connection. A separately available redundant power supply may be added to ensure uninterrupted operation. - This unit offers support for mixed input of HD-SDI, SD-SDI, and analog composite signals (asynchronous input is possible)
- Support for mixed input of different frame rate signals is also supported
- High-resolution output includes DVI and analog RGB terminals that are provided for split-screen video output, thereby enabling usage on large screens and computer monitors
- This solution includes a layout editor for enabling the user to make any changes to split-screen patterns from a computer
- A network video transfer function includes a standard LAN interface to enable transfer of output video over the network
- The audio level display includes a level display function for embedded audio signals superimposed on HD/SD-SDI
- It includes a tally display, a title display, and a time-display function
- Video loss-detection is a standard feature
- A redundant power supply is separately available
In the Box For.A MV-410HS HD/SD High Resolution Quad Viewer Operation Manual AC Cable Rackmount Brackets CD-R (Layout Editor & Live Viewer) One-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A MV-410HS HD SD High Resolution Quad Viewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A MV-410HS Specs | Standard | HD: 1080/60i, 1080/59.94i, 1080/50i, 720/60p, 720/59.94p, 720/50p
SD: 525/60 (NTSC), 625/50 (PAL) | | Inputs | Video Input:
4 inputs from any of the signals below (mixed input and asynchronous input are possible) HD-SDI: 1.485Gbps or 1.485/1.001Gbps, 75 Ohms, BNC
SD-SDI: 270 Mbps, 75 Ohms, BNC
Analog composite: 1.0 Vp-p, 75 Ohms, BNC
LTC Input:
1 input, SMPTE time code approximately 1.0Vp-p within +/-6dB | | Outputs | Video Output:
DVI output (outputs digital and analog outputs at the same time)
DVI-I connector, 1 output
Resolution: 1920 x 1200, 1600 x 1200, 1280 x 1024, 1360 x 768, 1440 x 900, 1680 x 1050, 1920 x 1080, 1280 x 720
*No input/output frame rate converter. Frame rate difference between input and output results the repeat frame or drop frame.
Active loop through output (for a monitor):
HD-SDI: 1.485Gbps or 1.485/1.001Gbps
SD-SDI: 270Mbps 75Ω, BNC
*Available only when input is either HD-SDI or SD-SDI.
*No jitter correction. The jitter in the input will be carried to the active loop through output. The total jitter may exceed the jitter limit of signal standard. | | Performance | Quantization:
8-bit
I/O Delay 1 to 2 frames
Split-Screen Patterns:
Full screen, user-selected screen
Character Display:
Display characters: Maximum of 16 characters x 1 line per input channel
Character types: Alphanumeric, symbols
Tally Display:
Displayed in each input screen frame (red or green)
Audio Level Display:
Displayed in each input screen frame, 8 channels of embedded audio signals
Time Display:
Enables display of the current time (Internal clock or LTC selectable)
*Accuracy within +/-10 seconds per month (at 25 degrees C) | | Interfaces | RS-232C/RS-422:
D-sub 9-pin (male), 1 line
Transmission rate: 9600/19200/38400 bps, data length: 8 bits, stop bit: 1 bit,
parity: ONE/ODD/EVEN
TALLY IN:
D-sub 25-pin (female) *Shared with REMOTE IN
4 inputs x 2 colors (red or green color frame display)
TTL negative logic level signal or make-contact input
REMOTE IN:
D-sub 25-pin (female) *Shared with TALLY IN
Switching between full screen and split-screen display
TTL negative logic level signal or make-contact input
LAN:
10Base-T/100Base-TX, RJ-45 (CAT5 support), 1 line
Video transfer: DVI/analog RGB output and transfer of the same screen with size reduction, JPEG compression | | Power | 100 to 240VAC +/-10%, 50Hz/60Hz / 60VA (57W) (at 100V) | | Dimensions (HxWxD) | 1.73 x 16.93 x 15.74" (44 x 430 x 400mm) | | Weight | 12.13 lbs (5.5kg)
*Weight with redundant power supply installed | | | | Package Weight | 19.95 lb | | Box Dimensions (LxWxH) | 23.5 x 23.0 x 9.0" |
