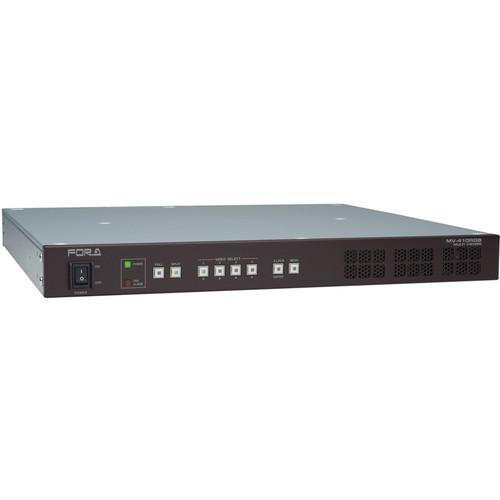

User Manual for For.A MV-410RGB PC Video High Resolution Quad Viewer Click to enlarge the picture
Contents of the user manual for the For.A MV-410RGB PC Video High Resolution
- Product category: Multiviewer Processors For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Multiviewer Processors
|
User manual for the For.A MV-410RGB PC Video High Resolution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|
Product description The MV-410RGB PC/Video High Resolution Quad Viewer from For.A is a 4 split-screen system supporting mixed input of DVI (digital and analog RGB) and analog composite signals. High-resolution video output is possible using the DVI terminal. It also supports user-created patterns. - It supports mixed input of DVI (digital and analog RGB) (used for computer monitor output) and analog composite signals (the commonly used video signal)
- Asynchronous input is possible
- This unit provides a total of eight channels of input: four digital/analog RGB signal channels with the DVI-I connector and four analog composite channels
- Four channels can be used for simultaneous display
- RGB output with DVI-I connector is provided as a standard feature to enable use of large screens and computer monitors
- Maximum output resolution is WUXGA
- A "Layout Editor" is included and c a be used to make changes to the split-screen layout pattern from a computer
- A title can be displayed for each channel: alphanumeric characters, Japanese kanji, Japanese kana, symbols
- An analog and digital clock can be displayed for the time display function
In the Box For.A MV-410RGB PC/Video High Resolution Quad Viewer Operation Manual AC Cable Rackmount Brackets CD-R (Layout Editor) One-Year Warranty Against Defects in Material & Workmanship Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A MV-410RGB PC Video High Resolution Quad Viewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A MV-410RGB Specs | Inputs | Video:
Analog composite: 1.0 Vp-p, 75Ω, 4 inputs, BNC
NTSC, PAL (mixed input and asynchronous input are possible)
PC:
DVI-I connector (analog or digital), 4 inputs
Resolution (analog): 1280 x 1024, 1360 x 768, 1024 x 768, 640 x 480 / Frequency: 60Hz Resolution (digital): 1920 x 1200, 1600 x 1200, 1280 x 1024, 1360 x 768, 1024 x 768, 640 x 480 / Frequency: 60Hz
Video Input:
-Four channels are available for simultaneously displayable input (choose from a menu for each channel).
- DVI-I connectors support both analog and digital input. Each connector can be connected for either one type of input.
- No frame rate conversion function between input videos and input/output videos.
*If video is displayed with different frame rates, dropped frames, etc. may occur periodically. | | Outputs | Video Output:
DVI-I connector (analog and digital), 1 output
Resolution: 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 1200, 1440 x 900, 1360 x 768, 1280 x 1024, 1280 x 720
Frequency: 60Hz/ 59.94Hz/ 50Hz | | Performance | Quantization:
8-bit
I/O Delay:
1 to 3 frames
Split-Screen Patterns:
Full screen, user-selected screen (4-pattern touch button recall memory)
Character Display:
Display characters: Maximum of 16 characters x 1 line per input channel
Character types: Alphanumeric, symbols (two-byte characters)
Tally Display:
Tally indication appears as border (red or green) around each channel screen
Time Display:
Analog clock display (accuracy within +/-10 sec per month.) | | Interfaces | RS-232C: 1 port, 9-pin D-sub (male) - Baud rate 9600bps, Data length 8 bit, Stopbit 1 bit, No parity - Control: Video output selection TALLY IN: 1 port, 50-pin D-sub (female) *Shared with REMOTE IN - 4 inputs x 2 colors (red or green color frame display) TTL negative logic level signal or make-contact input REMOTE IN: 1 port, 50-pin D-sub (female) *Shared with TALLY IN - Control: Switching between full screen and split-screen display TTL negative logic level signal or make-contact input LAN: 10Base-T/100Base-TX, 1 port, RJ-45 (CAT5 support) - Control: Video output selection | | Power | 100 to 240VAC +/-10%, 50Hz/60Hz / 52VA (51W) | | Dimensions (HxWxD) | 1.73 x 16.93 x 15.74" (44 x 430 x 400mm) | | Weight | 11.02 lbs (5kg) |
