User Manual for For.A MV-4200 3G HD SD Analog HDMI DVI RGBHV Mixed High Resolution Multi Viewer Click to enlarge the picture
Contents of the user manual for the For.A MV-4200 3G HD SD Analog
- Product category: Multiviewer Processors For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Multiviewer Processors
|
User manual for the For.A MV-4200 3G HD SD Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|

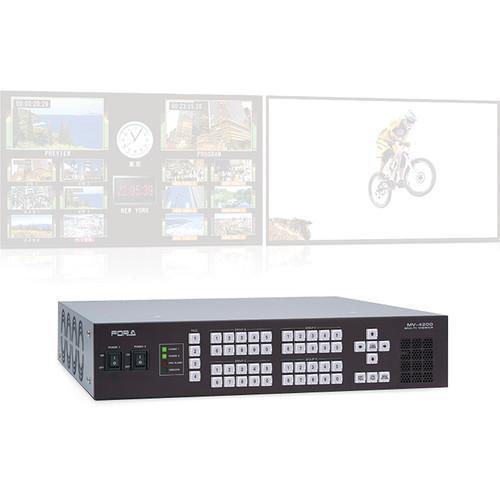

Product description The MV-4200 3G/HD/SD/Analog/HDMI/DVI/RGBHV Mixed High Resolution Multiviewer from For.A comes with eight 3G/HD/SD-SDI inputs and four 3G/HD-SDI and four HDMI outputs. The modular design of this 2RU multiviewer allows you to expand the total inputs to up to 68 analog or 8 analog and 24 DVI inputs by adding separately available input cards. The MV-4200SDI card has twenty 3G/HD/SD-SDI analog composite inputs and up to 3 of these can be added to the MV-4200. With three MV-4200HDMI cards installed (each with eight DVI inputs), you get a total of 4 3G/HD/SD-SDI and 24 DVI inputs. HDMI sources can be connected via separately sold DVI-to-HDMI adapters. In addition, the MV-4200IF Interface Card (available separately) can be added for GPIO, serial control, and input of analog audio, AES audio, and genlock. The MV-4200 Multiviewer offers a customizable window layout, audio level meters, and AFD-compatible cropping functionality. - Layout Manager
-
- A Windows based application is provided for managing and creating screen layouts
- Customize the layout on a computer by registering or changing layout patterns, adjusting title displays, and configuring other settings as needed
- Store up to 48 layout patterns on the viewer
- Saved layouts can be applied directly from the front panel control
- Video Streaming
-
- In addition to computer-based layout management, you can stream video from the viewer over Ethernet
- The streaming video can be used for additional local computer displays or for remote monitoring applications
- Record Streamed Video
-
- Frames before and after errors or after specified triggers (video loss, frozen frames, incorrect luminance/black levels, CRC errors, audio loss, silence, and excessive audio levels) are captured and can be saved to a Windows computer as a sequence of still image files
- Versatile Mixed-Source Environment
-
- Supports mixed signals as required, from 3G-SDI (Level-A/B), HD-SDI, SD-SDI, analog composite, HDMI, DVI, or RGBHV sources
- Asynchronous input is also supported
- Accepts an array of formats and frame rates including NTSC, PAL, 1080/59.94i, 1080/50i, and 23.98/24/25/29.97/30 P or PsF (no frame rate conversion)
- HD Output of Source Signals
-
- Features up to 8 output channels
- Sources can be displayed on 1 or 2 screens, each with HDMI and SDI interfaces available for HD monitoring support
- Audio Level Monitoring
-
- 16 channels of embedded audio levels in each 3G/HD/SD-SDI or HDMI signal can be monitored
- Use Layout Manager to customize display positions, number of channels, and display groups
- Audio Monitoring Output
-
- Audio from any channel can be monitored via HD-SDI, HDMI, or analog audio output
- Prominent Error Display
-
- Indicates errors by full-screen display, flashing border, error icon, or error message
- Prominently identifies the relevant frame
- Tally/Title/Timecode
-
- Tally: Choose from frame tally or marker tally display
- Titles: Identify each source channel with a title. Supports display of alphanumeric characters, symbols, and Korean characters (up to 16), which can be displayed within or outside the picture
- Timecode: Ancillary timecode in 3G/HD/SD-SDI signals can be displayed
- Safety Area: Can be displayed for each channel
- Time and Timer Display
-
- Supports clock time synchronization with the SNTP server
- Up to 4 clocks can be displayed, along with date, in analog or digital format
- Data display is also available
- This feature can be also used as a count up/down timer, or remaining time counter.
- Logo and Background
-
- Registers up to 8 logos and 4 background images
In the Box For.A MV-4200 3G/HD/SD/Analog/HDMI/DVI/RGBHV Mixed High Resolution Multi Viewer Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A MV-4200 3G HD SD Analog HDMI DVI RGBHV Mixed High Resolution Multi Viewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A MV-4200 Specs | | | Video Formats | 3G: 1080/60p, 1080/59.94p, 1080/50p (level-A/B) (level B at 1920 × 1080 only)
HD: 1080/60i, 1080/59.94i, 1080/50i, 720/60p, 720/59.94p, 720/50p, 1080/30p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/24p, 720/23.98p, 1080/30PsF, 1080/29.97PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 1035/60i, 1035/59.94i
SD: 525/60 (NTSC), 625/50 (PAL) | | Video Inputs | SDI/analog composite switching (mix input, asynchronous acceptable) 8 x BNC, 75 ohms (+20 channels per card when the optional MV-4200SDI card is used) | | 3G/HD/SD-SDI | 3G-SDI (Level A/B): 3 Gb/s
HD-SDI: 1.5 Gb/s
SD-SDI: 270 Mb/s | | Analog Composite | Analog composite: 1 Vpp
Quantization: Y: 8-bit, C: 8-bit | | | | Embedded | Sampling frequency: 48 kHz (sync to input video signals)
Quantization: 16 to 24-bit
SDI: 16 channels per 3G/HD/SD-SDI input signal (8 stereo pairs)
HDMI: 8 channels per HDMI input signal (4 stereo pairs) | | LTC Input | 1 x BNC; SMPTE-compatible timecode within 1 Vpp ±6 dBm | | | | HDMI | 4 x HDMI type A (HDCP-compliant)
Quantization: R: 8-bit, G: 8-bit, B: 8-bit
Resolution: 1080i/p, 720p
Frequency: 59.94 Hz, 50 Hz | | SDI | 4 x BNC, 75 ohms
3G-SDI (Level-A): 3 Gb/s
HD-SDI: 1.5 Gb/s | | | | Analog | 1 x Stereo mini jack (1 x stereo pair/2 x monaural), unbalanced
Output Impedance: 100 ohms or less
Output Level: -10 dBV
Maximum Output Level: 5 dBV
Sampling Frequency: 48 kHz
Quantization: 24-bit | | Embedded | SDI:
Sampling frequency: 48 kHz
Quantization: 24-bit
SDI: 16 channels for 3G/HD/SD-SDI per output (8 stereo pairs)
HDMI: 2 channels per HDMI output (4 stereo pairs) | | Clock | Windows: Up to 4 screens (Based on internal clock (accurate to within 15 sec/month, at 77°F (25°C) or LTC time code
Time correction via GPI or SNTP) | | Timer | Count up/down Timer, Remaining Time Counter:
Can be displayed in clock window; internal clock or LTC is selectable for remaining time counter Stopwatch/timer uses an internal crystal oscillator: ±50 ppm within operating temperature 32 to 104°F (0 to 40°C) | | Display | Background:
Memory: Four 4K background images
Size: 3840 × 2160 maximum
Logo:
Memory: 8
Size: 1024 x 512 maximum | | Layout | Screen:
User customized layout
Up to 48 layout patterns can be saved
Manager:
Enables layout creation and window switching (for Windows only) | | Title Display | Character Limit: 16 characters maximum x 2 lines for each input channel
Supported Characters: Letters, numbers, symbols, Korean characters, and Japanese Kana/Kanji (JIS 1 and 2) characters | | Tally Display | Indicated as a frame (red/green/orange) or marker (red/green) on each input window
Colors are adjustable | | Audio Level Display | Up to 16 audio channels of audio level metering per input | | Time Code Display | Display for 3G/HD/SD-SDI Ancillary Timecode (ATC) | | Mode | Reader:
Ancillary Timecode (ATC) is not passed through
Timecode input in LTC connector is not displayed | | Monitoring | Video:
Detects video loss, frozen frames (detected by calculating the active picture CRC for input signals to check whether this value remains the same for each frame), incorrect luminance/black level, and CRC error
Audio:
Detects audio loss, silence, and excessive audio levels | | Interfaces | LAN: 100BASE-TX/1000BASE-T, 1 x RJ-45 (CAT 5e-compliant) | | Viewer | Live: Software for video streaming (for Windows only) | | Data Backup | Stores settings internally to the memory (approximately 100,000 rewrite capacity) Frequent setting changes may impair data retention | | Temperature | 32 to 144°F (0 to 40°C) | | Humidity | 30 to 90% (non-condensation) | | Backup Battery | Internal lithium battery (to maintain time) | | Power | 100 to 240 VAC ±10%; 50 Hz/60 Hz | | Dimensions (W x H x D) | 16.9 x 3.5 x 18.50" (43.0 x 8.8 x 47.0 cm); EIA 2 RU | | Weight | 30.9 (14.0 kg) |
