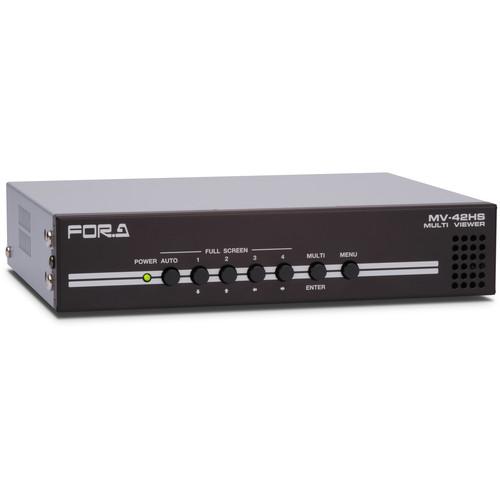

Product description The For.A MV-42HS HD/SD-SDI Quad Multi-Viewer outputs up to four HD/SD-SDI video sources to one display simultaneously in selectable split-screen layouts. An audio level metering feature will let you monitor on screen up to 8 channels of the audio embedded on each SDI input. The device supports up to 1080/60i/50i on both the input and the output. You can output to a display by SDI in up to 1920 x 1080 or by DVI in up to 1280 x 720. I/O delay is a max of 1.5 frames. -
- Mixed and asynchronous HD/SD-SDI input
- Support for mixed input of optional analog Composite
- Audio level metering for SDI embedded audio signals (displays up to 8 channels)
- HD-SDI 1920 x 1080 and DVI-D 1280 x 720 HD output
- Selectable between full screen, two-split (right/left), and quad-split output
- Video loss detection
- Display of ancillary time code (ATC) embedded on SDI input signals
- Title display of up to 16 characters for each input (alphanumeric and symbol)
- Supports optional genlock input, red/green color selectable tally display, LAN remote control, date/time display
In the Box For.A MV-42HS HD/SD-SDI Quad Multi-Viewer Operation Manual 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A MV-42HS HD SD-SDI Quad Multi-Viewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A MV-42HS Specs | Video Input | 4 inputs in the following formats (mixed input, asynchronous acceptable):
HD-SDI: 1.485 Gbps or 1.485/1.001 Gbps 75Ω BNC; Color format: YCbCr (4:2:2); Quantization: 10-bit
SD-SDI: 270 Mbps 75Ω BNC; Color format: YCbCr (4:2:2); Quantization: 10-bit | | Video Format | 1080/60i, 1080/59.94i, 1080/50i, 1080/30p, 1080/30PsF, 1080/29.97p, 1080/25p, 1080/25PsF, 1080/24p, 1080/24PsF, 1080/23.98p, 1080/23.98PsF, 720/60p, 720/59.94p, 720/50p, 720/24p, 720/23.98p, 525/60 (NTSC), 625/50 (PAL) | | Video Output | 1x HD-SDI -- 1.485 Gbps or 1.485/1.001 Gbps 75Ω BNC,; Color format: YCbCr (4:2:2); Quantization: 10-bit; Embedded audio is unsupported
1x DVI-D -- Color format: RGB; Quantization: 8-bit, HDCP is unsupported | | Output Video Format | 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
No input/output frame rate converter. Frame rate difference between input and output may result in repeat frames or dropped frames. | | I/O Delay | Max. 1.5 frames | | Screen Display | Full screen, 2-split screen, quad screen | | Audio Level Metering | Audio level metering for audio embedded on the HD/SD-SDI inputs (up to 8 channels) | | Time Code Display | Embedded time code display for HD/SD-SDI signals | | Title Display | Max. 16 characters x 1 line for each input channel
Character types: alphanumeric characters and symbols | | Data Backup | Stores the setting data to EEPROM | | Interface | RS-232C: 9-pin D-sub (male) x 1 Baud rate: 38,400 bps
Data length: 8-bit
Stop bit: 1-bit
Parity: none | | Operating Temperature | 32 to 104°F (0 to 40ºC) | | Operating Humidity | 30 to 90% (no condensation) | | Power | 12 V DC (DC jack)
(AC adapter can be separately purchased) | | Power Consumption | 22 VA/12 W at 100 V; 23 VA/11 W at 200 V | | Dimensions | 8.3 x 1.7 x 6.3" (21.2 x 4.4 x 16.1 cm) | | Weight | 2.75 lb (1.25 kg) | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 13.0 x 11.0 x 9.8" |
