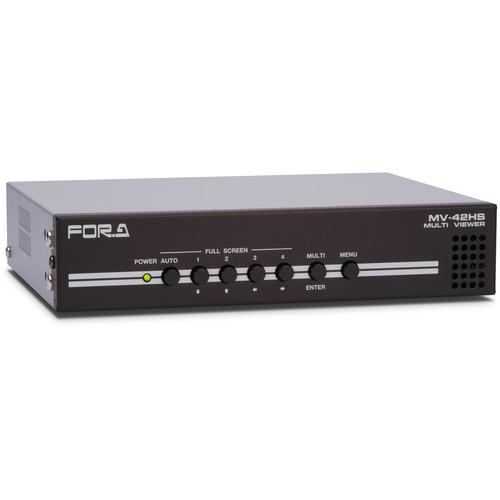

Product description The 4-channel For.A MV-42HSα HD/SD-SDI Quad Multi Viewer resizes and displays up to 4 inputs of HD-SDI and SD-SDI signals on a single screen. It also enables you to downconvert 4K (4 x 3G signals) to HD-SDI.Audio level metering of SDI embedded audio signals is provided, allowing audio signal presence to be monitored. It is half rack wide and is most suitable for monitoring systems with mixed HD-SDI and SD-SDI input signals. - Support for mixed input of HD-SDI and SD-SDI signals (mixed and asynchronous input supported)
- Support for mixed input of analog composite by using the MV-42AI option (sold separately)
- Audio level metering for HD/SD-SDI embedded audio signals (up to 8 channels display)
- HD-SDI and DVI-D (1920 x 1080 or 1280 x 720) high-definition image output
- Full screen, 2-split (right and left), and quad screen output selectable
- Display of ATC (Ancillary Time Code) embedded on HD/SD-SDI input signals
- Downconverts 4K (4 x 3G signals) to HD-SDI
- Title display of up to 16 characters for each input (alphanumeric and symbol)
- With the interface option (sold separately), genlock input, color selectable (red and green) tally indicator display, remote control via LAN, and date/time display can also be supported.
In the Box For.A MV-42HSa HD/SD-SDI Quad Multi Viewer Limited 1-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A MV-42HSa HD SD-SDI Quad Multi Viewer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A MV-42HSA Specs | Video Input | 4 inputs in the following video formats (mixed input, asynchronous acceptable)
HD-SDI: 1.485 Gb/s or 1.485/1.001 Gb/s 75 Ω BNC
Color Format: YCbCr (4:2:2)
Quantization: 10-bit
SD-SDI: 270 Mb/s 75 Ω BNC
Color Format: YCbCr (4:2:2)
Quantization: 10-bit | | Video Formats | 1080/60i, 1080/59.94i, 1080/50i, 1080/30p, 1080/30PsF, 1080/29.97p, 1080/25p, 1080/25PsF, 1080/24p, 1080/24PsF, 1080/23.98p, 1080/23.98PsF, 720/60p, 720/59.94p, 720/50p, 720/24p, 720/23.98p, 525/60 (NTSC), 625/50 (PAL) | | Video Output | HD-SDI: 1 output, 1.485 Gb/s or 1.485/1.001 Gb/s 75 Ω BNC
Color Format: YCbCr (4:2:2)
Quantization: 10-bit DVI-D: 1 output, DVI-D connector
Color Format: RGB
Quantization: 8-bit Embedded audio is unsupported for HD-SDI output
HDCP is unsupported for DVI-D output | | Output Video Format | 1080/59.94i, 1080/50i, 720/59.94p, 720/50p No input/output frame rate converter. Frame rate difference between input and output may result in the repeat frame or drop frame. | | I/O Delay | Maximum 1.5 frames | | Screen Display | Full screen, 2-split screen, Quad screen | | Audio Level Metering | Audio level metering for HD/SD-SDI input signal embedded audios (up to 8 channels) | | Time Code Display | Embedded time code display for HD/SD-SDI signals | | Title Display | Maximum 16 characters x 1 line for each input channel
Character Types: Alphanumeric characters and symbols | | Data Backup | Stores the setting data to EEPROM | | Interface | RS-232C: 1 x 9-pin D-sub (male)
Baud rate: 38,400 bps
Data Length: 8-bit
Stop Bit: 1-bit
Parity: None | | Temperature / Humidity | 32 to 104ºF (0 to 40ºC) / 30 to 90% (no condensation) | | Power | 12 VDC (DC jack) AC adaptor (sold separately) | | Power Consumption | 22 VA (12 W @ 100 V), 23 VA (11 W @ 200 V) | | Dimensions (W x H x D) | 8.35 x 1.73 x 6.34" (212.00 x 44.00 x 161.00 mm) | | Weight | 2.76 lb (1.25 kg) |
