Product description The modular For.A UFM-30FRC HD/SD Frame Rate Converter Package can be installed in the UFM frame and can perform wide-ranging format conversion. The converter is provided with a motion compensation processing mode and linear converter mode to perform optimal conversions in accordance with the target videos. It is equipped with up-, down-, and cross-converters as standard features. - Enables switching between motion compensation processing mode and linear converter mode
- Two types of conversion mode, namely a motion compensation processing mode and a linear converter mode
- Motion compensation processing mode detects the motion vector amount of a moving object and generates the object's motion in frames
- Linear converter mode performs a simple frame-rate conversion based on the previous and next frames. You can use either mode in accordance with your application
- HD/SD-SDI and analog composite input and output support
- Provides various format input and frame-rate conversion support such as 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 525/60, and 625/50
- Equipped with up-, down-, and cross-converters
- In addition to the standard frame-rate conversion, the UFM-30FRC can perform up-conversion from SD signals to HD signals, down-conversion from HD signals to SD signals, and cross-conversion between 1080i, 1080PsF and 720p

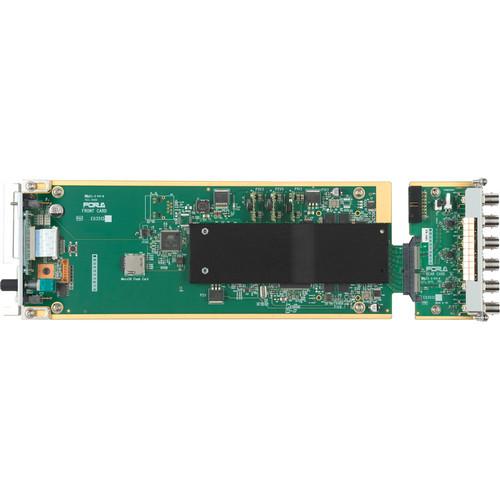

In the Box For.A UFM-30FRC HD/SD Frame Rate Converter Package Front Module Rear Module Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A UFM-30FRC HD SD Frame Rate Converter Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A UFM-30FRC PACKAGE Specs | Video Format | HD: 1080/59.94i, 1080/50i, 1080/23.98PsF, 720/59.94p 720/50p
SD: 525/60 (NTSC) 625/50 (PAL) | | Video Input | Analog Composite: 1.0 Vp-p
HD-SDI: 1.5 Gb/s
SD-SDI: 270 Mb/s
75 Ω, BNC x 1 HD/SD-SDI or analog composite can be selected from the input select menu. | | Genlock Input | NTSC: 0.429 Vp-p/
PAL: 0.45 Vp-p or Tri-level sync: ±0.3 Vp-p, 75 Ω, BNC x 1 | | Sync Mode | Reference lock mode / Input mode / Free-run mode | | Phase Control | Reference lock mode: System horizontal phase ±1/2 H | | Video Output | HD-SDI: 1.5 Gb/s
SD-SDI: 270 Mb/s
75 Ω, BNC x 2 (distributed) | | Monitor Output | Analog Composite: 1.0 Vp-p ±0.1 V, 75 Ω, BNC x 1 It can be used when SD-SDI output is selected. | | Proc Amp | Set up level: -14.0 to +14.0% (0.1% step)
Y level: 70.0 to 130.0% (1.0% step)
Chroma level: 70.0 to 130.0% (1.0% step) | | Audio Input/Output | Embedded Audio: 16 channels (Group 1to 4), 48 kHz Asynchronous audio is not supported. | | Temperature / Humidity | 32 to 104ºF (0 to 40ºC )
30 to 90% (no condensation) | | Power | Supply from UF Frame, +24 VDC | | Power Draw | Approximately 0.5 A | | Dimensions (W x H x D) | W x D: 4.1 x 12.2" (106.0 x 310.6 mm) (Front board)
W x D x H: 4.2 x 2.7 x 0.7" (108.5 x 71.0 x 20.0 mm) (Rear board) | | Weight | Approximately 1.1 lb (0.5 kg) |
