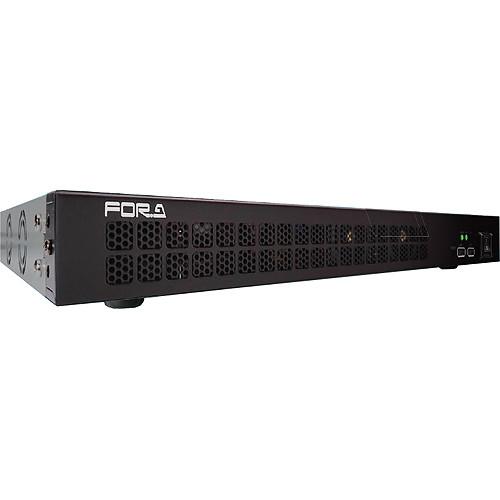

User Manual for For.A VTW-350HS HD SD Character Generator Click to enlarge the picture
Contents of the user manual for the For.A VTW-350HS HD SD Character Generator
- Product category: Character Generators & Graphic Solutions For.A
- Brand: For.A
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for For.A Character Generators & Graphic Solutions
|
User manual for the For.A VTW-350HS HD SD Character Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any For.A product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official For.A user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a For.A product will considerably shorten its lifespan!
|
Product description The VTW-350HS HD/SD Character Generator from For.A features a lightweight, compact design and a vibration-resistant case that makes it suitable for mobile and flight pack applications. The software provides a rich array of text/graphic functions, more than 260 transitions, template control, general-purpose file interface and more. - 1RU size compact design suitable for live applications
- Vibration-resistant case makes it suitable for mobile and flight pack applications
- More than 260 transition functions come standard, including roll, crawl, fade in, fade out, slide and wipe
- Video input has both key and fill for capture of video with or without a key signal
- Video output provides both program and preview output, each with its own key and fill
- Multi-language support with advanced spell check capability through Windows language options
- Still frame capture capability
- Simple, intuitive user interface integrating the input screen with the output screen
- Graphic templates allow for direct text input. Templates can be created on board or imported from a variety of 3rd party software including Adobe Photoshop. Direct Text import is also supported.
- A variety of effects are available including roll for credits and crawl ticker boxes
- Multi-layered mode allows for multiple layers of graphics with adjustable priority. The levels can be transitioned as a group or layer by layer using the variety of transition effects. Multiple effects and transitions can be used on the same graphic page
- Still images can be captured and used as CG pages or as a background for text based functions
- Preview function allows control of take function from the CG to either preview or program outputs. This allows the CG operator to control live on air functions
- The scheduler function is perfect for creating timed playback of pre-created text and graphics. This is a great feature for uses such as a video bulletin board. Play back can be created on a weekly, daily or hourly basis
In the Box For.A VTW-350HS HD/SD Character Generator AC Cord Rack Mount Bracket Pre-Installed GenCG Software Table of Contents
|
Upload User Manual
Have you got an user manual for the For.A VTW-350HS HD SD Character Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFor.A VTW-350HS Specs | Standard | 1080/59.94i, 1080/50i, 720/59.94p, 720/50p, 525/60, 625/50 | | Video Inputs | HD-SDI: 1.485/1.001 Gb/s, SD-SDI: 270 Mb/s, 75Ω, 2 inputs (V1/K1), BNC | | Reference Input | BB: NTSC: 0.429 Vp-p/PAL: 0.45 Vp-p or Tri-level sync: 0.6 Vp-p, 75 Ω or loopthrough, 1 input, BNC | | Video Outputs | HD-SDI: 1.485/1.001 Gb/s, SD-SDI: 270 Mb/s, 75 Ω, 6 outputs (PGM V1/PGM K1/PGM V2/PGM K2/PREV V1/PREV K1), BNC4 | | Storage (SSD) | 80 GB (The space available for using excludes 4 GB reserved for the system) | | Interfaces | 1 x DVI (for Display)
2 x Ethernet: 100Base-TX/1000Base-T (RJ-45)
2 x USB 2.0, Series A connector, (Front)
2 x USB 3.0, Series A connector,(Rear)
1 x REMOTE 9-pin D-sub (female) for RS-422 control
1 x RS-232C, 9-pin D-sub (male)
1 x GPI/ALARM, 15-pin D-sub (female)
1 x ALARM Power, Fan alarm (contact output)
3 x GPI inputs, (contact input)
3 x GPI outputs (open collector) | | Temperature / Humidity | 32 to 104°F (0 to 40°C) / 20 to 80% (no condensation) | | Power / Consumption | 100 to 240 VAC, 50/60 Hz, Approximately 150 VA (150 W at 100 VAC) | | Dimensions (W x H x D) | 16.92 x 1.73 x 19.68" (430 × 44 × 500 mm) | | Weight | Approximately 19.84 lb (9 kg) | | | | Package Weight | 24.5 lb | | Box Dimensions (LxWxH) | 26.0 x 23.25 x 8.9" |
