Product description Formatt-Hitech Improves the Filter Holder with Firecrest Kit Read More - Quick Look: Formatt Hitech Firecrest Filter Holder Kit
- FHT Fast Edit V9
- Firecrest 100mm Filter Holder
The Formatt Hitech 100mm Firecrest Filter Holder Kit is designed to allow for the convenient use of up to two, separately-available 100mm-wide, 2mm-thick filters along with an included circular polarizer. This kit comes fully assembled and features a holder which has its sides encased within a cover that helps to eliminate stray light, which could have unwanted effects on exposure, from coming in between any installed filters, as well as the filter holder and the lens behind it.

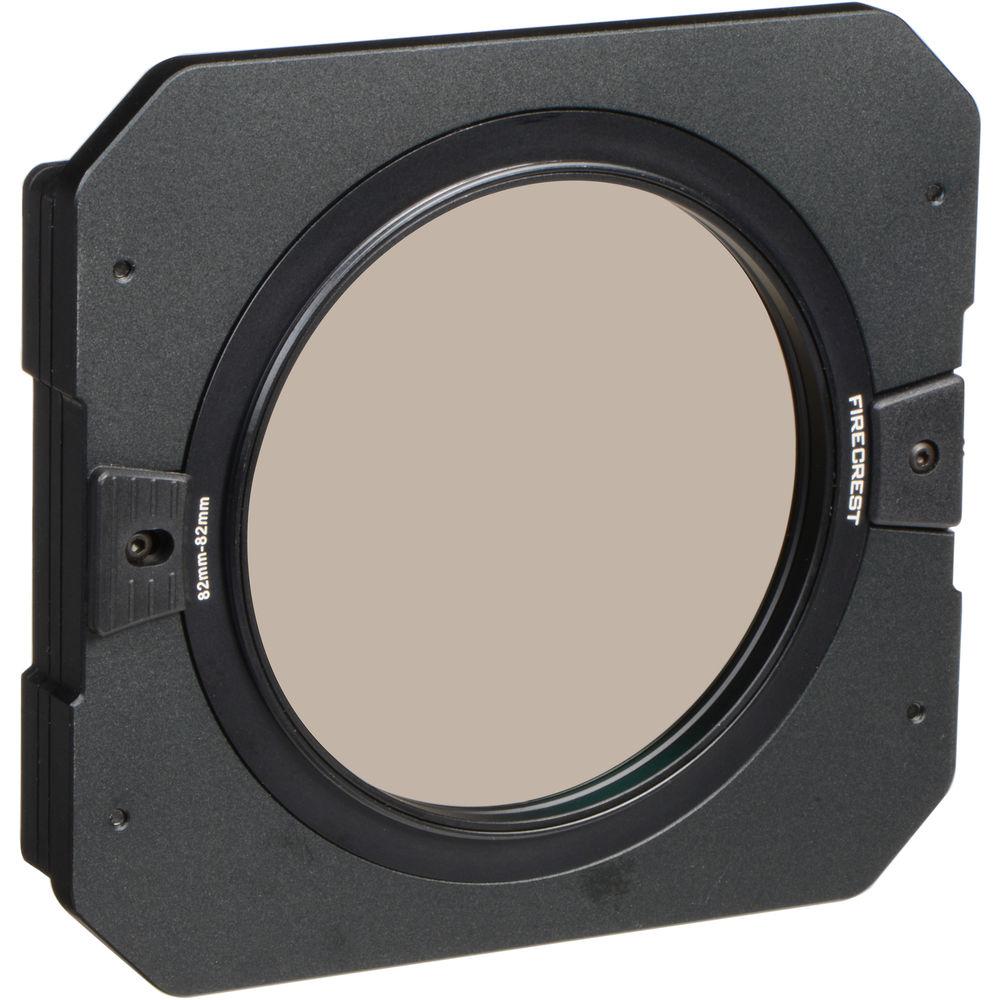

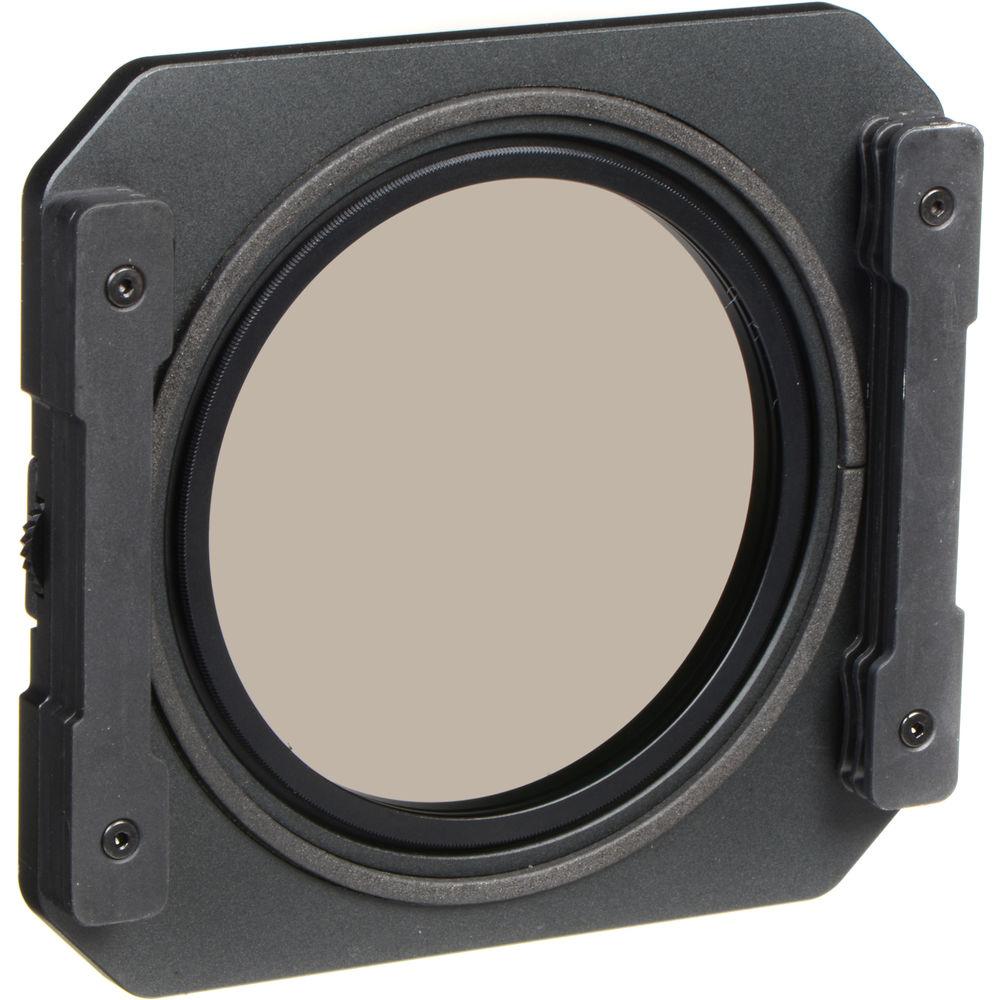

The included aluminum-alloy filter holder is pre-installed with two pairs of plastic filter slots, a configuration that accommodates two rectangular filters. These slots are attached to the filter holder by a total of four screws, which also serve to apply pressure on any filters placed between the slots. Those screws can be loosened or tightened using the included Allen wrench to vary the level of grip upon the inserted filters, which can complement the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot.

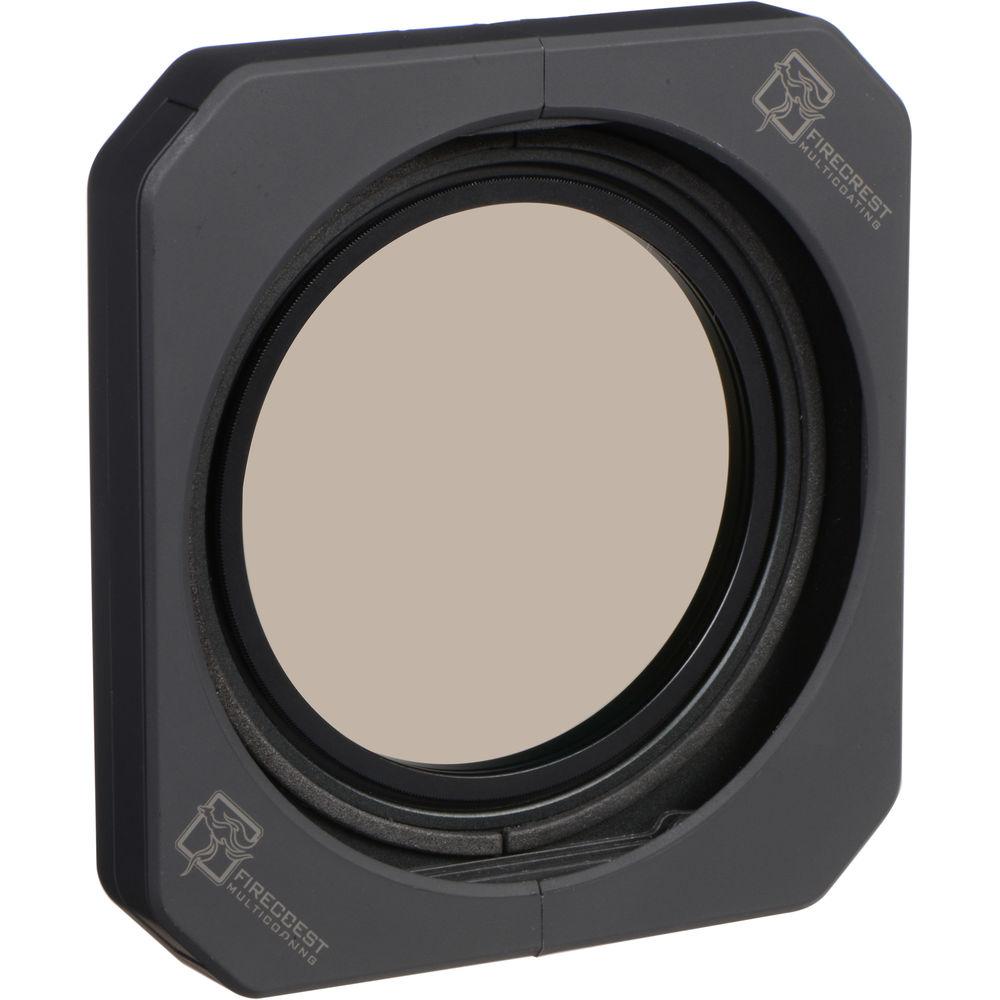

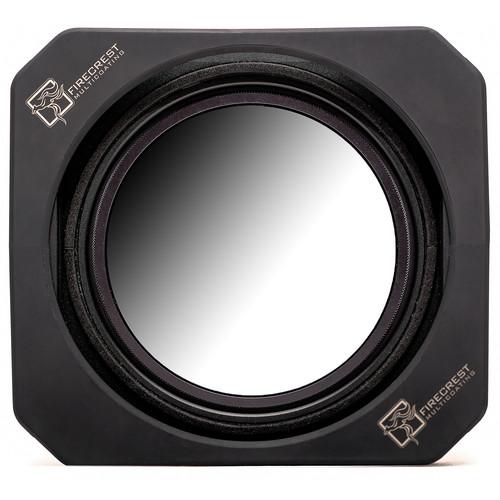

The filter holder cover is constructed from a matte black, scratch-resistant plastic that can be pulled in half to allow access to the filter holder. Compatible 100 x 100mm filters can fit entirely within the cover when they are installed on the holder. To permit the use of rectangular graduated filters that are 100mm-wide, but may be longer than 100mm, the ends of each half of the filter holder cover features two caps that can be substituted for two included slotted caps. Those slotted caps allow rectangular graduated filters to be used with minimal stray light even as they extend beyond the dimensions of the cover while it is assembled.

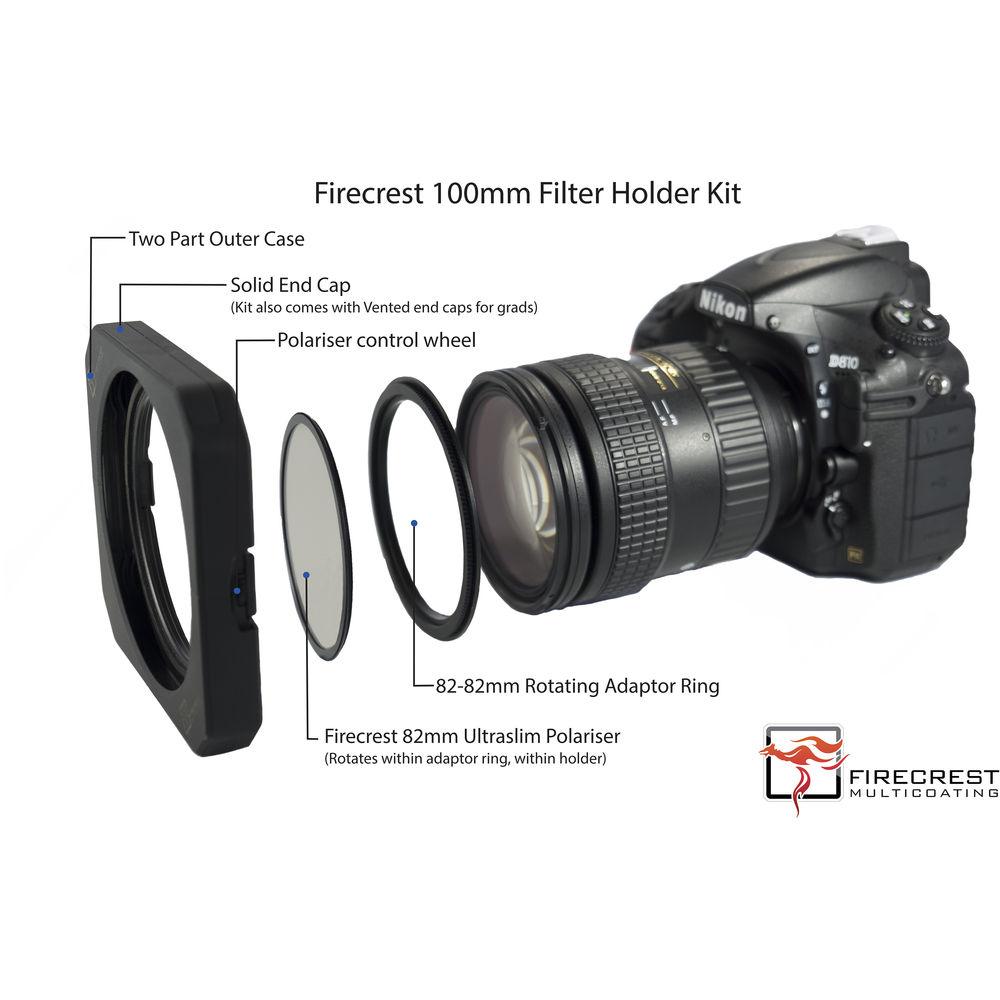

A built-in gasket placed along the front of the filter holder further ensures that stray light does not come between an installed rectangular filter and a connected lens, regardless of which filter holder cover end caps are in place. Use of the filter holder can be easily accomplished by first screwing the included 82mm filter holder adapter ring onto a lens with 82mm front filter threads. Step-up rings are included to allow the adapter ring to be used with lenses that have 67mm, 72mm, or 77mm front filter threads; while additional step-up rings are separately available for lenses with 46mm, 52mm, 58mm, or 62mm front filter threads. After being fitted onto the adapter ring, the filter holder's pull-and-release locking lever helps to provide a reliable, yet adjustable connection that allows the holder to be rotated 360°, further benefiting the use of graduated neutral density and other filters that are enhanced by varied positioning.
The 82mm adapter ring also accommodates the included Formatt Hitech 82mm Firecrest UltraSlim Circular Polarizer Filter for 100mm Firecrest Filter Holder Kit. When combined with the adapter ring and installed onto a lens with 82mm front filter threads, or adapted to lenses with other front filter thread diameters, the polarizer filter can be rotated to adjust its effect. The combination of the circular polarizer and the adapter ring, plus an optional step-up ring, can also be used with the filter holder with or without its cover installed. In such instances, an external dial on the filter holder allows for the independent rotation of the circular polarizer.
Alternatively, separately-available filter holder adapter rings accommodate the circular polarizer as well. They provide the ability to mount the filter holder onto a lens with 72mm or 77mm front filter threads without the need for the 82mm adapter ring and an additional step-up ring. When the filter holder is used on a wide-angle lens with 72mm or 77mm front filter threads, those adapter rings can help prevent vignetting. -
- Durable aluminum-alloy filter holder with matte black, scratch-resistant plastic cover that can be pulled in half to allow access to the filter holder
- Cover helps to eliminate stray light from coming in between any installed filters, as well as the filter holder and the lens behind it
- Filter holder provides two pairs of filter slots, a configuration that accommodates up to two 2mm-thick rectangular filters
- Compatible 100 x 100mm filters can fit entirely within the cover when they are installed on the holder
- Ends of each half of the filter holder cover features two caps that can be substituted for two included slotted caps to permit the use of rectangular graduated filters that are 100mm-wide, but may be longer than 100mm
- Use of the filter holder can be easily accomplished by first screwing included 82mm filter holder adapter ring onto a lens with 82mm front filter threads

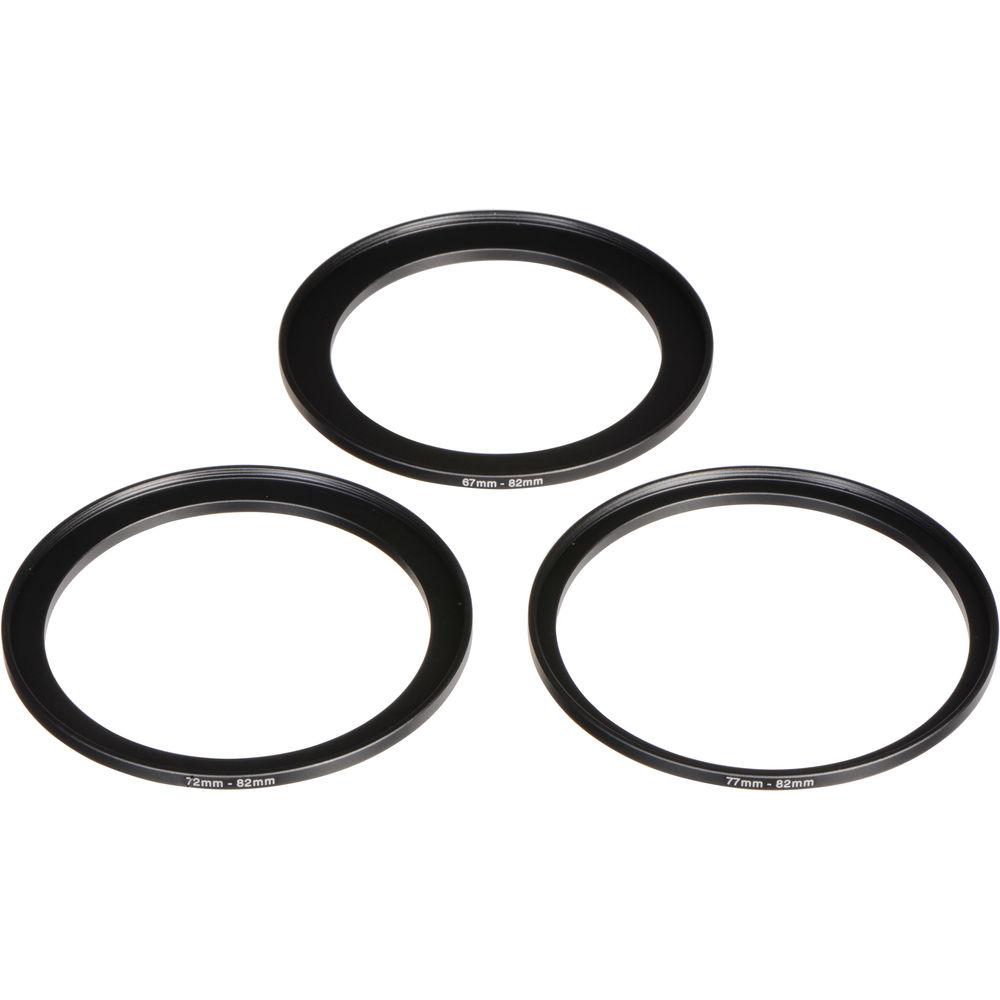

- Included step-up rings allow adapter ring to be used with lenses that have 67mm, 72mm, or 77mm front filter threads
- Additional step-up rings are separately available for lenses with 46mm, 52mm, 58mm, or 62mm front filter threads
- Pull-and-release locking lever on filter holder allows for adjustment of filter holder's grip for 360° rotation on adapter ring
- Ability to vary grip on installed rectangular filters to complement the use of graduated filters whose effect can be adjusted to better suit changing lighting conditions or creative demands by sliding them up or down within a filter slot
- Adapter ring accommodates included Formatt Hitech 82mm Firecrest UltraSlim Circular Polarizer Filter for 100mm Firecrest Filter Holder Kit and allows it to rotate for adjustment of its effect
- Polarizer filter and adapter ring can be used on a lens with 82mm front filter threads, or adapted to lenses with other front filter thread diameters using included or separately-available step-up rings
- Circular polarizer and the adapter ring, plus an included or separately-available step-up ring, can also be used with the filter holder with or without its cover installed
- External dial on filter holder allows for the rotation of the polarizer filter when it is used with the adapter and filter holder
- Alternatively, separately-available filter holder adapter rings also accommodate the circular polarizer and provide the ability to mount the filter holder onto a lens with 72mm or 77mm front filter threads without the need for the 82mm adapter ring and an additional step-up ring; helping to prevent vignetting when the filter holder is used on wide-angle lenses with 72mm or 77mm front filter threads
- Nylon pouch with touch-tab closure features six compartments for organization, storage, and transport

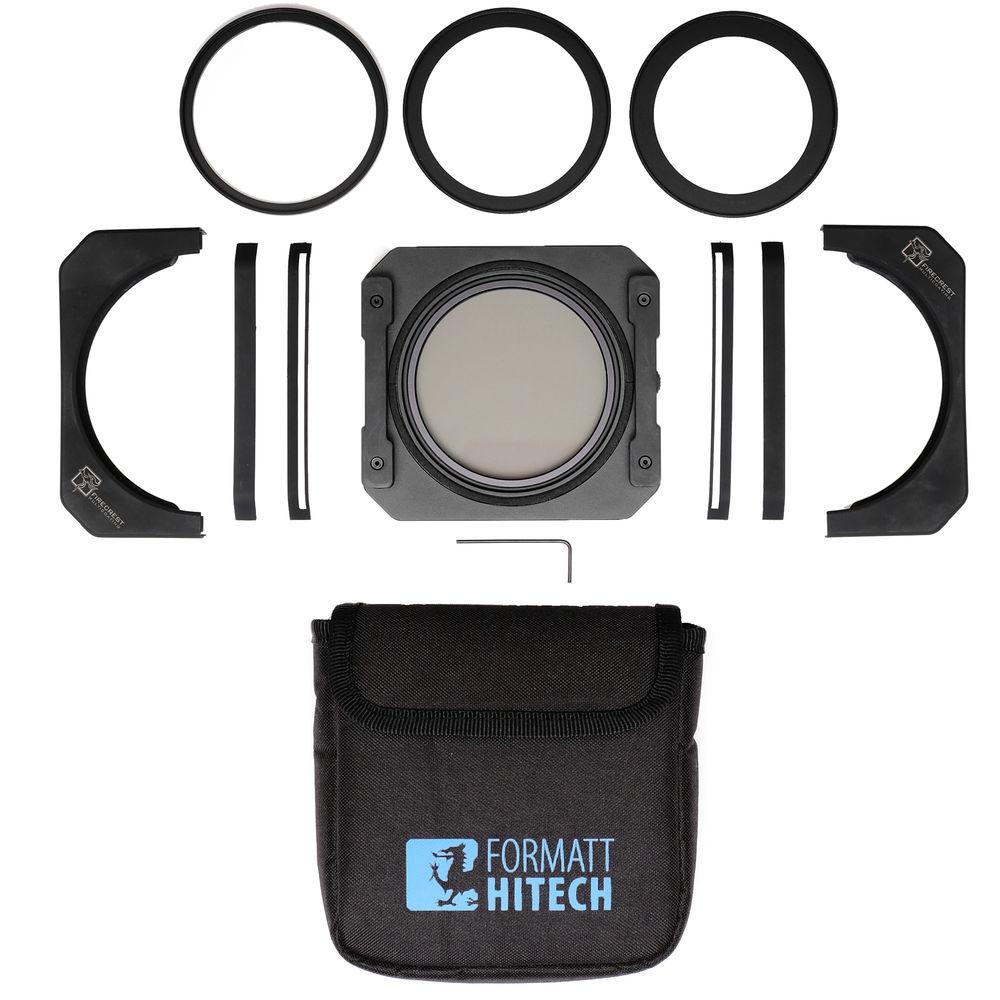

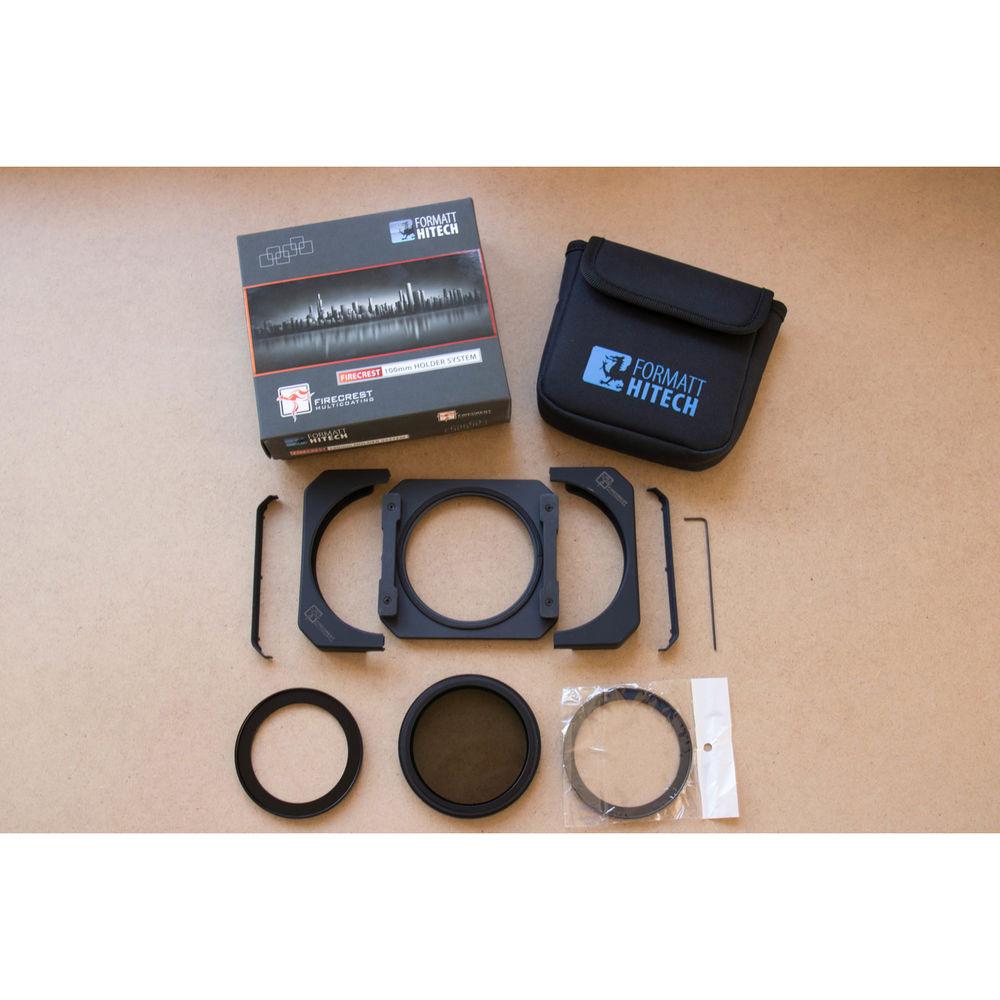

UPC: 886235211707 In the Box Formatt Hitech 100mm Firecrest Filter Holder Kit Filter Holder 4 x Filter Slot 4 x Screw 2 x Filter Holder Half-Section Cover 2 x Solid Filter Holder Cover End Cap 2 x Slotted Filter Holder Cover End Cap Allen Wrench 82mm Filter Holder Adapter Ring for 100mm Firecrest Filter Holder Kit ubevudzesayscuxqfqtrcr 67-82mm Step-Up Ring for 100mm Firecrest Filter Holder Kit ubevudzesayscuxqfqtrcr 72-82mm Step-Up Ring for 100mm Firecrest Filter Holder Kit 77-82mm Step-Up Ring for 100mm Firecrest Filter Holder Kit 82mm Firecrest UltraSlim Circular Polarizer Filter for Formatt Hitech 100mm Firecrest Filter Holder Kit ubevudzesayscuxqfqtrcr Storage Pouch Table of Contents
|
Upload User Manual
Have you got an user manual for the Formatt Hitech 100mm Firecrest Filter Holder Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFormatt Hitech FC100HOLK Specs | Material | Filter Holder: Aluminum-alloy
Filter Holder Slots: Plastic
Filter Holder Cover: Plastic
Filter Holder Cover End Caps: Plastic
Filter Holder Adapter Ring: Aluminum-alloy
Step-Up Rings: Aluminum-alloy
Circular Polarizer Filter: Schott Superwhite glass with aluminum-alloy filter ring
Padded Pouch: Nylon | | Compatibility | Filter Holder: Accepts up to two 100mm-wide rectangular filters up to 2mm-thick
Filter Holder and Filter Holder Adapter Ring: Accepts up to two 100mm-wide rectangular filters up to 2mm-thick and included Formatt Hitech 82mm Firecrest UltraSlim Circular Polarizer Filter for 100mm Firecrest Filter Holder Kit
Filter Holder Adapter Ring: Connects filter holder to lenses with 82mm front filter threads
Step-Up Rings: Connects filter holder adapter ring to lenses with 67, 72, or 77mm front filter threads | | Rotating | Yes, 360° | | Dimensions | 4.9 x 4.5 x 0.7" (12.5 x 11.5 x 1.8 cm) | | Weight | 6.4 oz (0.2 kg) | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.6 x 6.1 x 2.2" |
