User Manual for Formatt Hitech 4 x 5.65" Firecrest Graduated ND 0.9 Filter Click to enlarge the picture
Contents of the user manual for the Formatt Hitech 4 x 5.65" Firecrest
- Product category: Graduated Neutral Density Formatt Hitech
- Brand: Formatt Hitech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Formatt Hitech Graduated Neutral Density
|
User manual for the Formatt Hitech 4 x 5.65" Firecrest contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Formatt Hitech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Formatt Hitech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Formatt Hitech product will considerably shorten its lifespan!
|

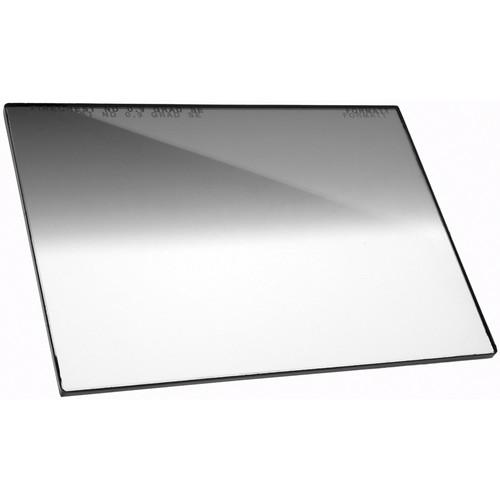

Product description How to Use ND Filters: Tips, Tricks, and Special Effects Read More xdywqqs The Formatt-Hitech 4 x 5.65" Firecrest Graduated ND 0.9 Filter helps to darken specific areas of an image, such as bright skies, while allowing for a normal, unaffected exposure in the other regions of the image. The filter is densest at the edge and tapers to clear by the middle, with a soft-edged line of transition between the density and clear areas. Neutral density filters do not affect the coloration of the image and the 0.9 density provides a 3 stop reduction in light from entering the lens.
The design of this filter has been optimized for use with digital sensors and promote nearly flat attenuation of visible, UV, and infrared light. Due to imaging sensors' greater susceptibility to infrared light, compared to traditional film, color casts can occur when photographing darker subjects that require increased exposure times. This filter provides a high level of neutrality across all three spectrums in order to eliminate color casts and ensure cleaner, truer blacks.
Sandwiched between layers of Schott Superwite glass is a 15-layer Firecrest multi-coating, which helps to minimize reflections and flare in order maintain truer colors and contrast. Since the coating is located within the middle of the filter, it is less prone to scratching or damage and results in a more durable and hydrophobic design. This filter measures 4 x 5.65" / 101.6 x 143.5mm and is 0.16" / 4mm-thick. Its horizontal orientation indicates that the density's line of transition runs parallel to the long side of the filter. - Graduated ND 0.9 filter for darkening skies and other bright areas of the image.
- Provides a 3 stop reduction in light in selective areas.
- Soft-edge transition is ideal for circumstances there is not a distinct line of separation between the bright and dark zones of the image.
- A horizontal orientation filter's line of transition runs parallel to the long side of the filter.
- Attenuates infrared light, as well as visible and UV wavelengths, to maintain color neutrality and suppress color casts due to increased exposure lengths.
- The 15-layer Firecrest coating has been applied directly to the filter glass by way of a vacuum-formed, hard-coated, electrolytic process. The multi-coating is sandwiched between layers of glass for added water- and scratch-resistance.
- Schott Superwite glass promotes maintained image clarity and its 4mm-thick design is well-suited to use in matte boxes.
UPC: 886235189341 In the Box Formatt Hitech 4 x 5.65" Firecrest Graduated ND 0.9 Filter (Horizontal Orientation) Filter Pouch Introduction to ND Filters: The Basics BH Online Videos 05/29/2015 How to Use ND Filters: Beyond the Basics BH Online Videos 05/29/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Formatt Hitech 4 x 5.65" Firecrest Graduated ND 0.9 Filter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFormatt Hitech FC4X5NDHG0.9 Specs | Filter Type | Graduated ND Combination | | Combination Type | IR Attenuation | | Graduation Type | Soft Edge | | Graduation Direction | Horizontal | | Density | 0.9 (3 Stops) | | Shape | Rectangle | | Rectangular Size | 4 x 5.65" / 101.6 x 143.5 mm | | Filter Thickness | 0.16" / 4 mm | | Filter Material | Glass | | Coatings | Multi-Coating | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 2.0 x 2.0 x 2.0" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
