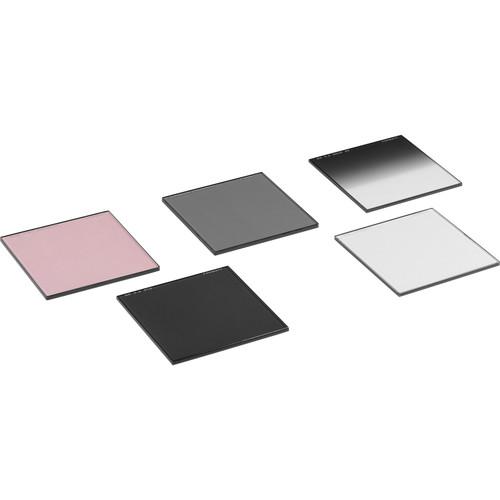

Product description The Formatt 4x4" Filter Starter Kit #1 contains 5 separate filters that are highly useful for most picture-taking situations. Included are a HD 0.6 solid ND, a HD 0.6 graduated soft-edged ND, a circular polarizer, a skin tone enhancer, and a full frame contrast 1 filter.

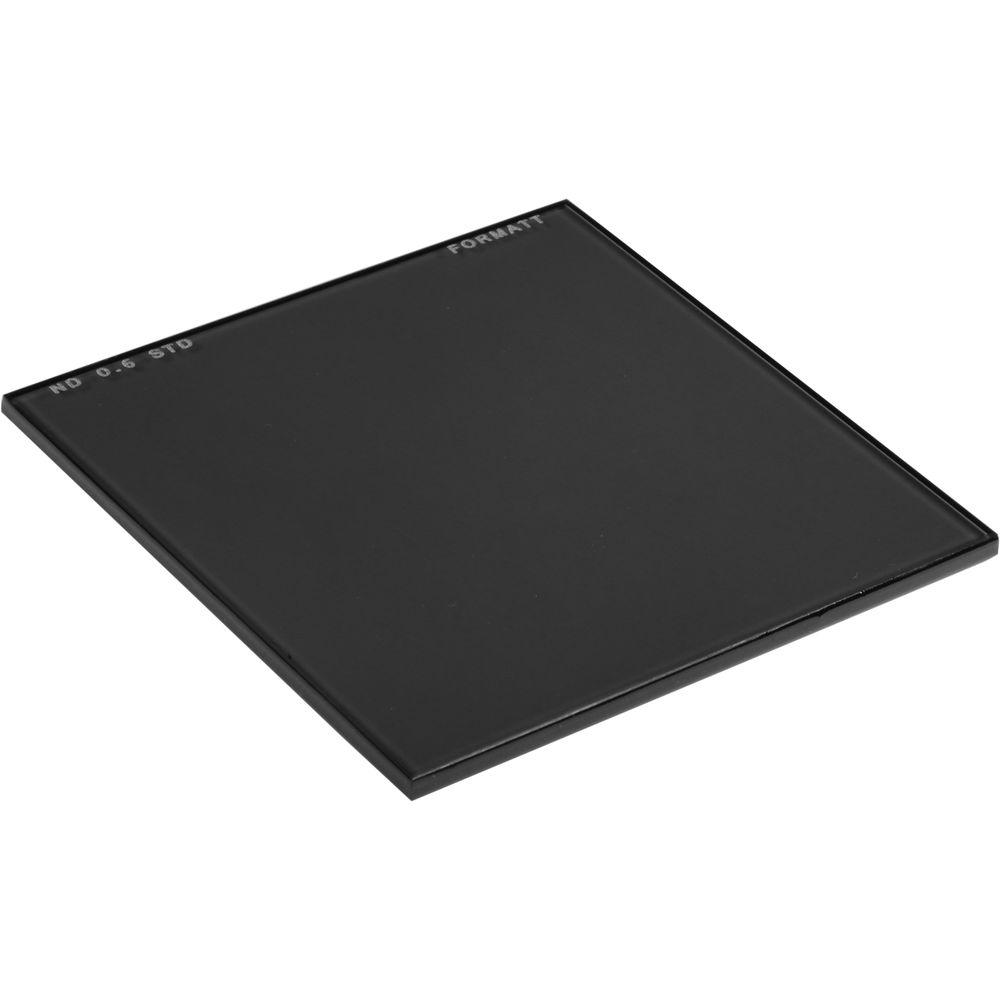

The HD 0.6 solid neutral density filter provides a reduction of about 2 stops. This 0.6 density creates a darkening of the entire image, allowing you to photograph with a wider aperture or slower shutter speed than normally required. By slowing your exposure time or increasing your aperture, you are able to control depth of field and convey movement more easily. Neutral density filters do not affect the coloration of the image and are ideal for pairing with other filters.

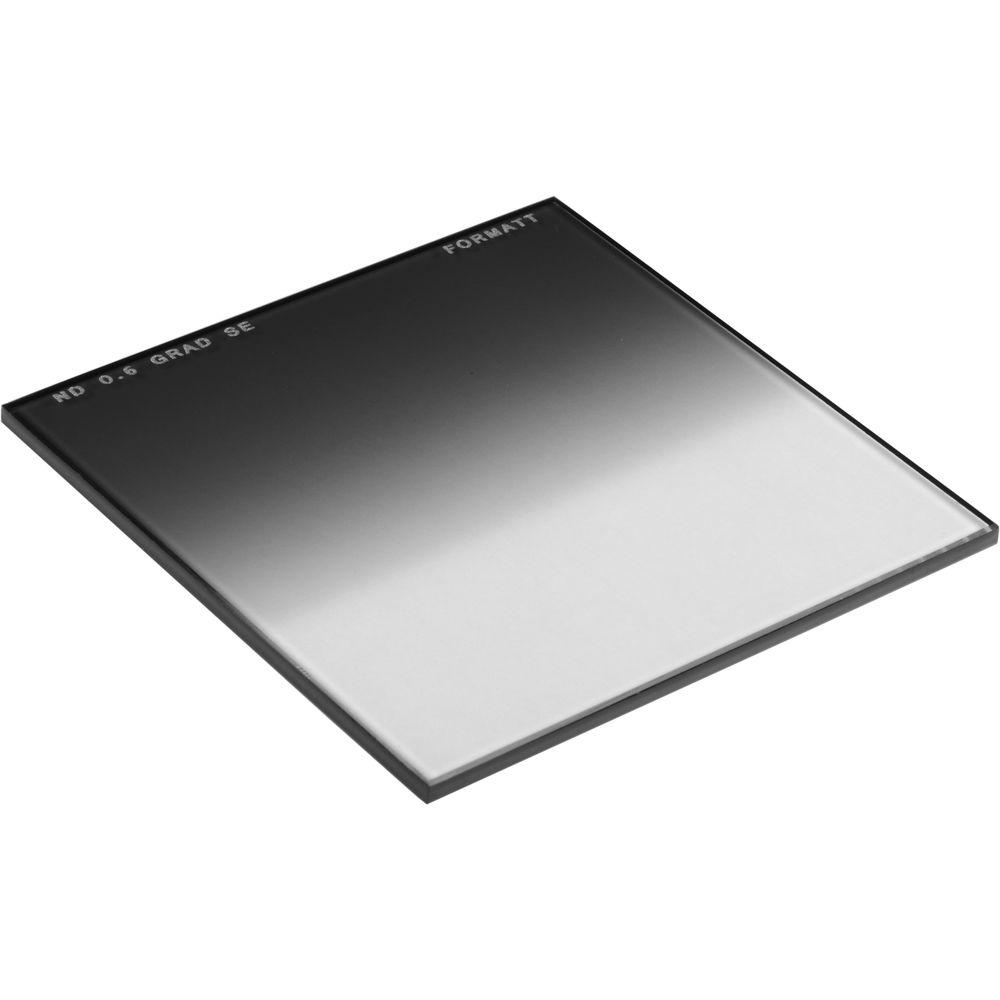

The HD 0.6 graduated soft-edged neutral density filter is similar to the solid ND filter, but the density only covers a portion of the filter. The gradation runs from the top of the filter to the middle, ending with a gentle tapering without a definite, fine line. This filter is especially useful for darkening and controlling skies and other bright areas of the image.

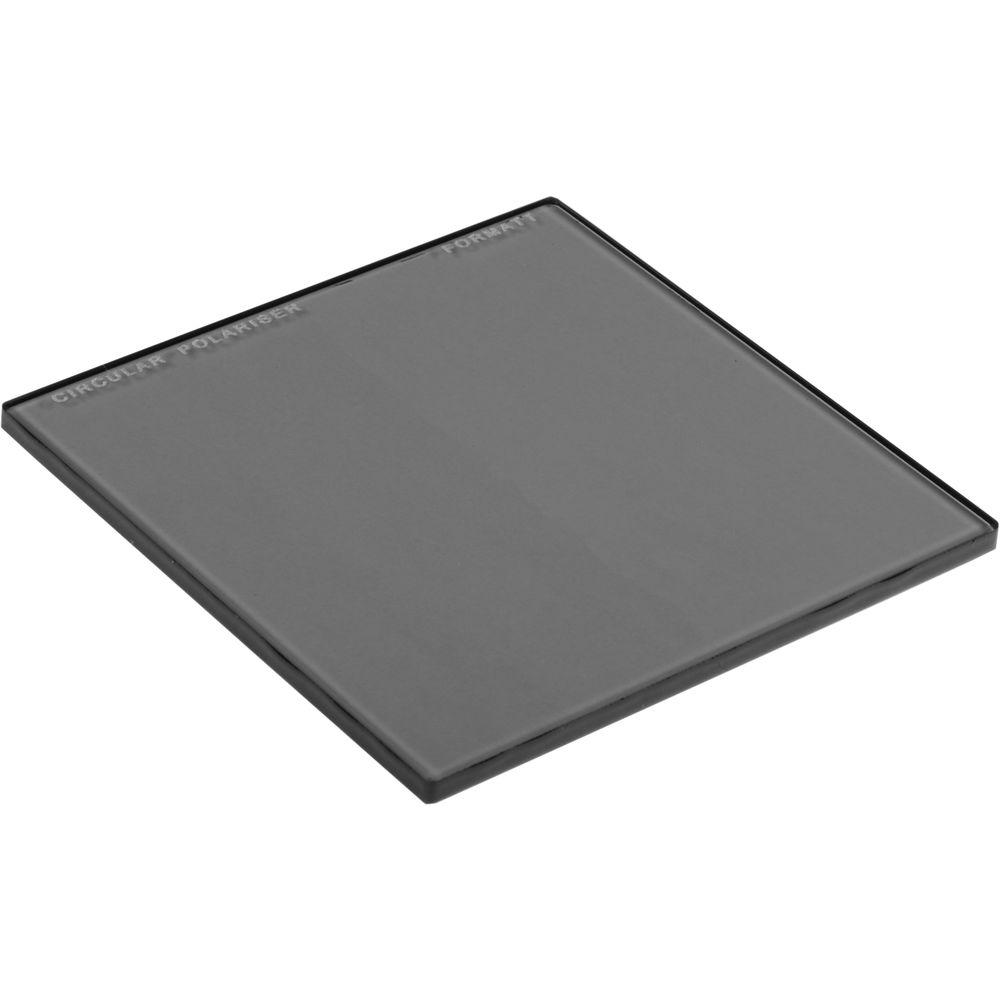

The HD circular polarizer helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.
A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

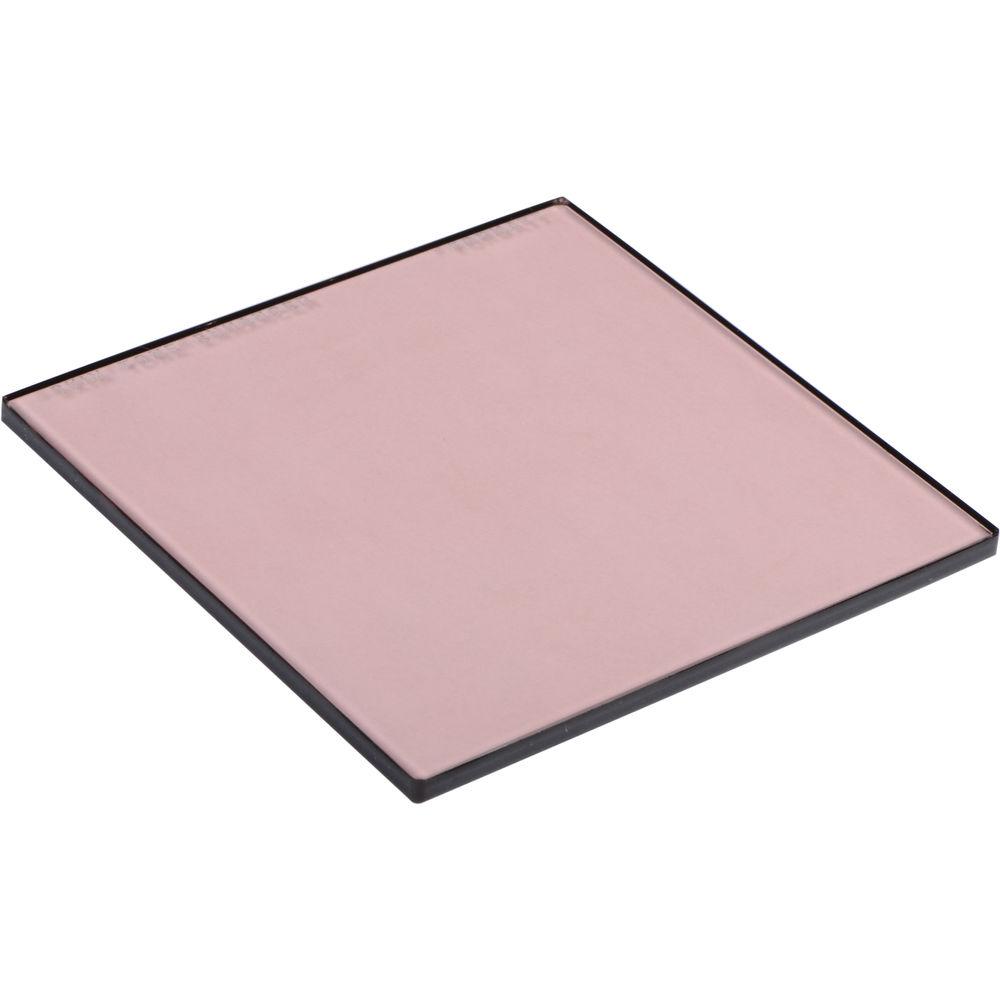

The HD skin tone enhancer filter provides warmth to skin tones and is designed specifically for portraiture. By absorbing the blue cast from some light sources, this filter helps to neutralize cooler color casts and add a glow to subject matter. It can also be used as a warmer alternative to a UV filter.

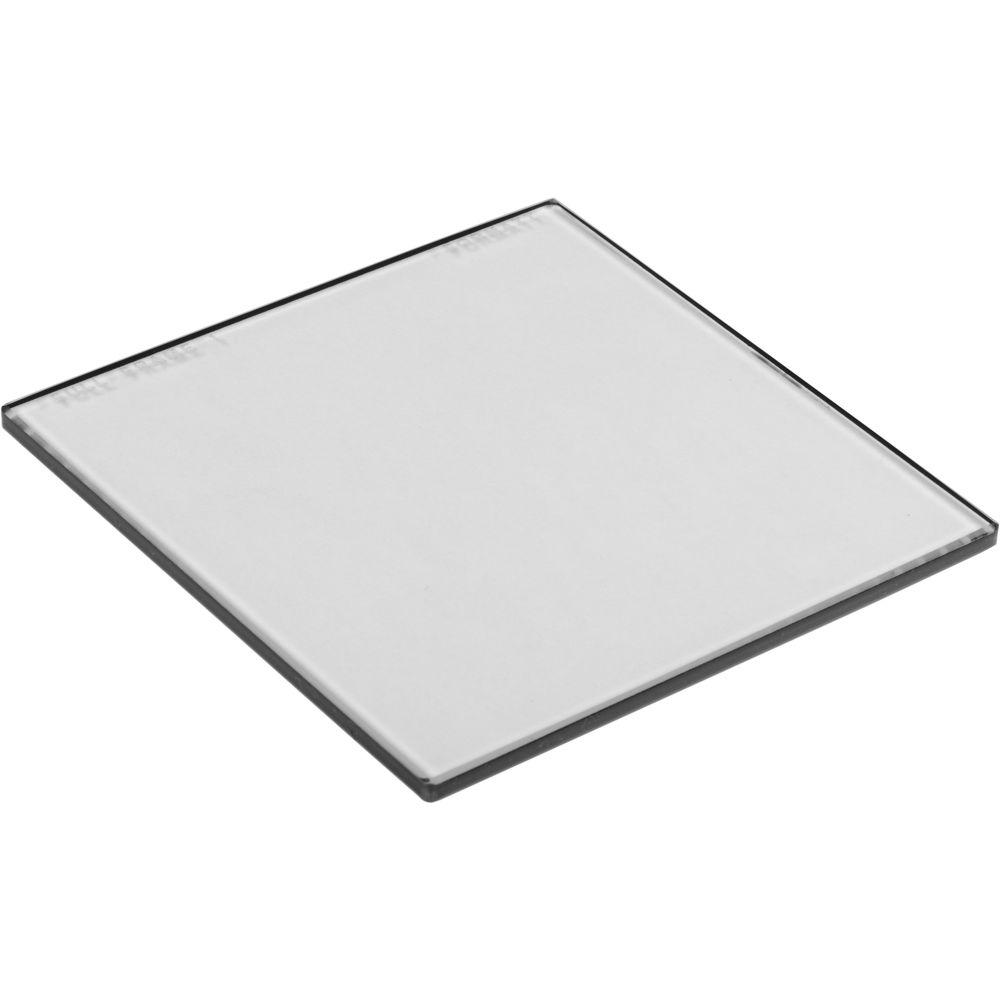

The HD full frame contrast 1 filter helps to reduce the value of the highlights while slightly lowering the overall contrast. This filter is especially useful for smoothing out and softening facial wrinkles and other fine details. Unlike diffusion or soft focus filters, contrast filters provide little loss of detail across the image. The 1 density provides a subtle effect, allowing for light softening and reduction in high-key situations.
Formatt filters combine high-quality Schott glass with specially formulated CR-39 resin in order to contain synthetic dyes while still garnering the benefits of optical glass. These filters measure 4 x 4" / 101.6 x 101.6mm and are compatible with the Cokin Z-Pro filter holder. - 0.6 ND filter darkens the image, allowing you to photograph with a longer shutter speed or wider aperture than normally required.
- Soft-edged 0.6 ND graduated filter for darkening skies and other bright areas of the image.
- Polarizer filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection off of a non-metallic surface.
- Skin tone enhancer filter adds warmth to skin tones and helps to absorb blue light casts.
- Full frame contrast 1 filter reduces value of the highlights while slightly lowering the overall contrast.
- 4 x 4" / 101.6 x 101.6mm filters are compatible with the Cokin Z-Pro filter holder.
In the Box Formatt Hitech 4x4" Filter Starter Kit #1 4x4" HD ND 0.6 Glass Filter (2-Stop) 4 x 4" Soft-Edge 0.6 Graduated Neutral Density Glass Filter 4 x 4" Hi Def Circular Polarizer Filter Skin Tone Enhancing Filter (4 x 4") bsvqbveuzsywestwwaeatdfrduzcruybfyses 4 x 4" HD Full Frame Contrast 1 Filter 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Formatt Hitech 4x4" Filter Starter Kit #1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFormatt Hitech BF 4X4-KIT1 Specs | | | Type | HD solid neutral density | | Size | 4 x 4" / 101.6 x 101.6 mm | | Filter Factor | 0.6 (2 stops) | | Construction | Schott glass with CR-39 dyed resin | | | | Type | HD soft edge graduated neutral density | | Size | 4 x 4" / 101.6 x 101.6 mm | | Filter Factor | 0.6 (2 stops) | | Construction | Schott glass with CR-39 dyed resin | | | | Type | HD circular polarizer | | Size | 4 x 4" / 101.6 x 101.6 mm | | Filter Factor | 0.9 (2.3 stops) | | Construction | Schott glass with CR-39 dyed resin | | | | Type | HD skin tone enhancer | | Size | 4 x 4" / 101.6 x 101.6 mm | | Filter Factor | Not applicable | | Construction | Schott glass with CR-39 dyed resin | | | | Type | HD full frame contrast | | Size | 4 x 4" / 101.6 x 101.6 mm | | Filter Factor | Not applicable | | Construction | Schott glass with CR-39 dyed resin | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 6.1 x 5.9 x 5.0" |
