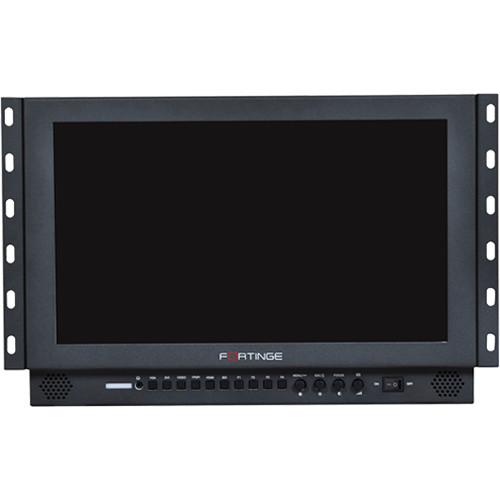

User Manual for Fortinge PRO173 17" Studio LCD Monitor Click to enlarge the picture
Contents of the user manual for the Fortinge PRO173 17" Studio LCD Monitor
- Product category: Production Monitors Fortinge
- Brand: Fortinge
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fortinge Production Monitors
 |
User manual for the Fortinge PRO173 17" Studio LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fortinge product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fortinge user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fortinge product will considerably shorten its lifespan!
|

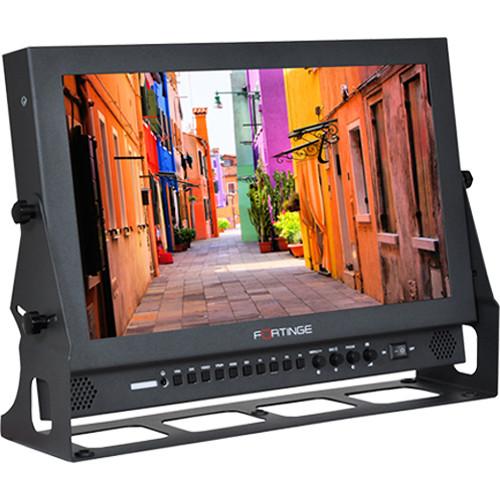

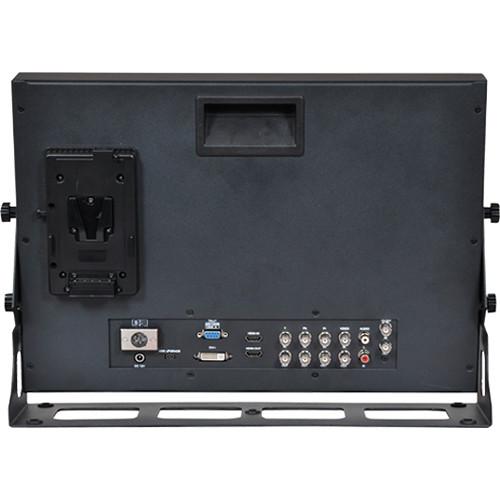

Product description The Fortinge PRO173 17" Studio LCD Monitor features a 1920 x 1080 display for monitoring HD and SD video feeds from a variety of inputs that support modern and legacy video sources. SDI, HDMI, and DVI digital video inputs accept video from broadcast, consumer, and computer equipment. Component and composite video inputs work with analog sources. In broadcast situations, the DB-9 tally communication port can be connected to display tally information using LED indicators. For power, the monitor can either use a separately available 4-pin XLR DC power supply or V-mount battery. Monitoring Tools - Screen markers (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Image flip (horizontal and vertical)
In the Box Fortinge PRO173 17" Studio LCD Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fortinge PRO173 17" Studio LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFortinge PRO173 Specs | | | Panel Type | TFT LCD | | Display Size | 17.3" / 44.0 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 140° (60/80) | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 600:1 | | Dot Pitch | 0.1989 x 0.1989 mm | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Image Controls | Blue Only, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x 3BNC (Component) Output
1 x BNC (Composite) Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input
1 x DVI-I Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input | | Audio | 1 x RCA Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | 1 | | Card Slot | None | | | | Video Format | SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 29.97/30/50/59.94/60
PAL
NTSC
HDMI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 29.97/30/50/59.94/60
576p
PAL
480p
NTSC | | | | DC Input Power | 9 to 24 VDC | | Battery Type | None | | Power Consumption | 26 W (Maximum) | | | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Dimensions (W x H x D) | 16.8 x 11.2 x 1.4" / 42.6 x 28.5 x 3.5 cm | | Weight | 6.1 lb / 2.75 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
