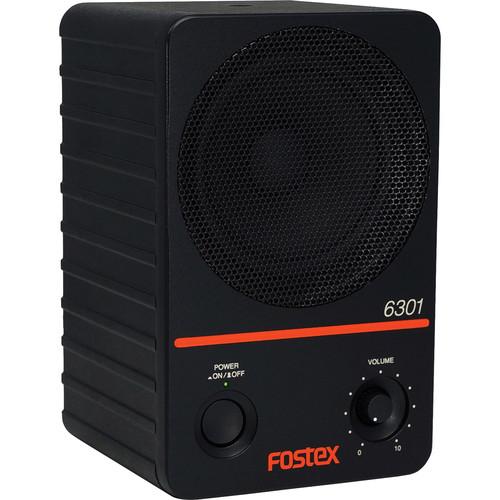

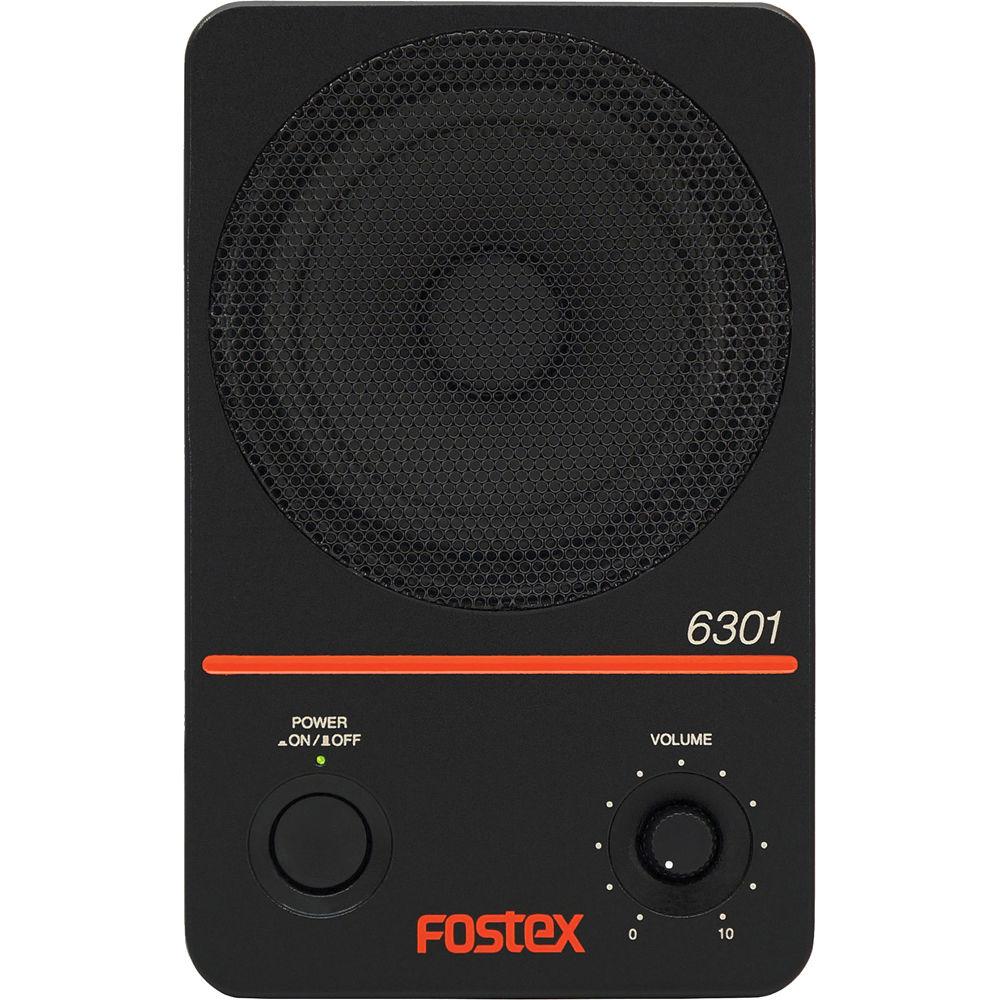

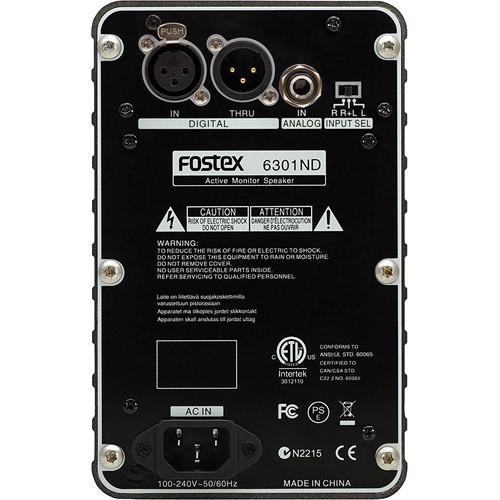

Product description The 6301ND from Fostex is a compact monitor speaker for use in professional mobile, project, or home studios and features a 4" full-range driver powered by an integrated 20W D-class amplifier. Inputs include a 1/4" unbalanced connector and a digital AES/EBU XLR connector. Additionally, a digital AES/EBU XLR thru connector is provided for digitally chaining multiple 6301NDs, while an input selector is offered for selecting left, right and left+right on each speaker. The front panel features a power switch and a rotary level control for easy volume adjustments. An automated protection circuitry prevents overloads and short circuits, while the die-cast aluminum enclosure is made to withstand the rigors of professional use. The 6301ND ships with a standard IEC power cord. -
- Compact aluminum design
- 4" full-range driver
- 20W Class-D amplifier for powerful performance
- 1/4" input connector
- Front-panel rotary volume control
- Selector switch for left, right, or left/right
- Protection circuitry keeps the speaker operating smoothly
- Magnetically shielded for safe use near video monitors
- Multi-voltage power supply
- Auto Standby Mode engages after 25 minutes, power consumption reduced to 0.5W

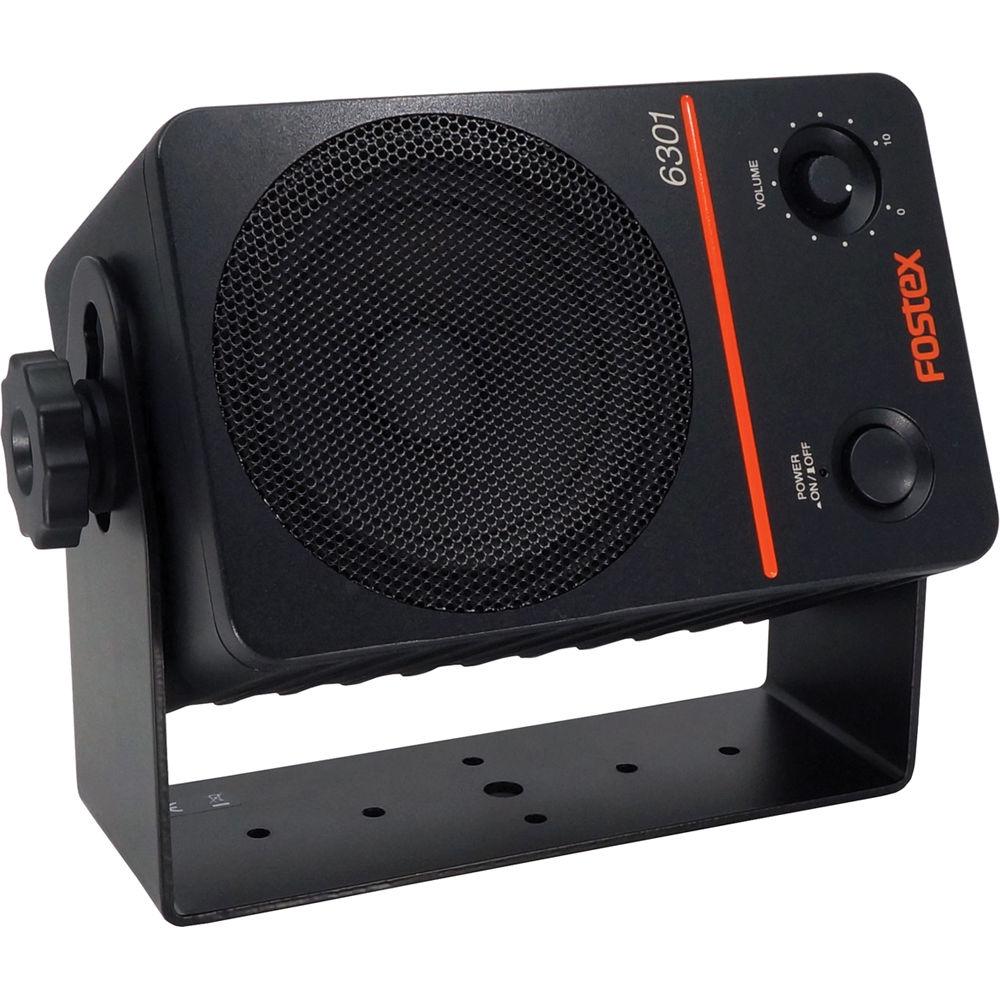

- Optional bracket available separately for mounting
UPC: 636827304696 In the Box Fostex 6301ND - 4" Active Monitor Speaker 20W D-Class (Single) Standard IEC Power Cord Limited 1-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Fostex 6301ND - 4" Active Monitor Speaker 20W D-Class in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFostex 6301N Specs | Type | Sealed powered speaker system | | Speaker | Cone Type Driver: 4" / 102 mm | | Amplifier | 20 W Class-D | | Frequency Range | 70 Hz to 15 kHz | | Output Sound Pressure Level | 85 dB/W @ 1 m | | Maximum Output | Maximum SPL: 98 dB | | Rated Output | 20 W | | THD | 0.05% (at 1 kHz 1 W output) | | Input Terminal | Input: 1/4" TS, unbalanced
Input: Digital XLR-3-31 type IEC60958 (AES/EBU), sampling frequency 44.1 to 96 kHz | | Output Terminal | Output: Digital XLR-3-32 type | | Input Impedance | Analog Input: 10 kOhms or More | | Input Sensitivity | Analog (Unbalanced): -14 dBV (0.2 VRMS)
Digital: -12 dBFS | | Residual Noise | −65 dBV | | Controls | 1 x Power switch
1 x Volume control
1 x Left/right selector switch | | Indicator LEDs | Unlit: Power off
Lit In Green: Device connected to [digital in] terminal and digital signal is locked
Lit In Orange: Plug inserted in the analog input terminal (phone)
Lit In Red: In standby | | Enclosure Material | Aluminum die-casting | | Shielded | Yes | | Power Consumption | Power Consumption: 10 W
Auto Standby: 0.5 W | | Dimensions (HxWxD) | 7.4 x 4.7 x 4.7" / 189.0 x 120.0 x 120.0 mm | | Weight | 4.9 lb / 2.2 kg | | | | Package Weight | 6.25 lb | | Box Dimensions (LxWxH) | 9.8 x 9.4 x 7.2" |
