User Manual for Fostex 6301NE - 4" Active Monitor Speaker 20W D-Class Click to enlarge the picture
Contents of the user manual for the Fostex 6301NE - 4" Active Monitor
- Product category: Studio Monitors Fostex
- Brand: Fostex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fostex Studio Monitors
 |
User manual for the Fostex 6301NE - 4" Active Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fostex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fostex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fostex product will considerably shorten its lifespan!
|

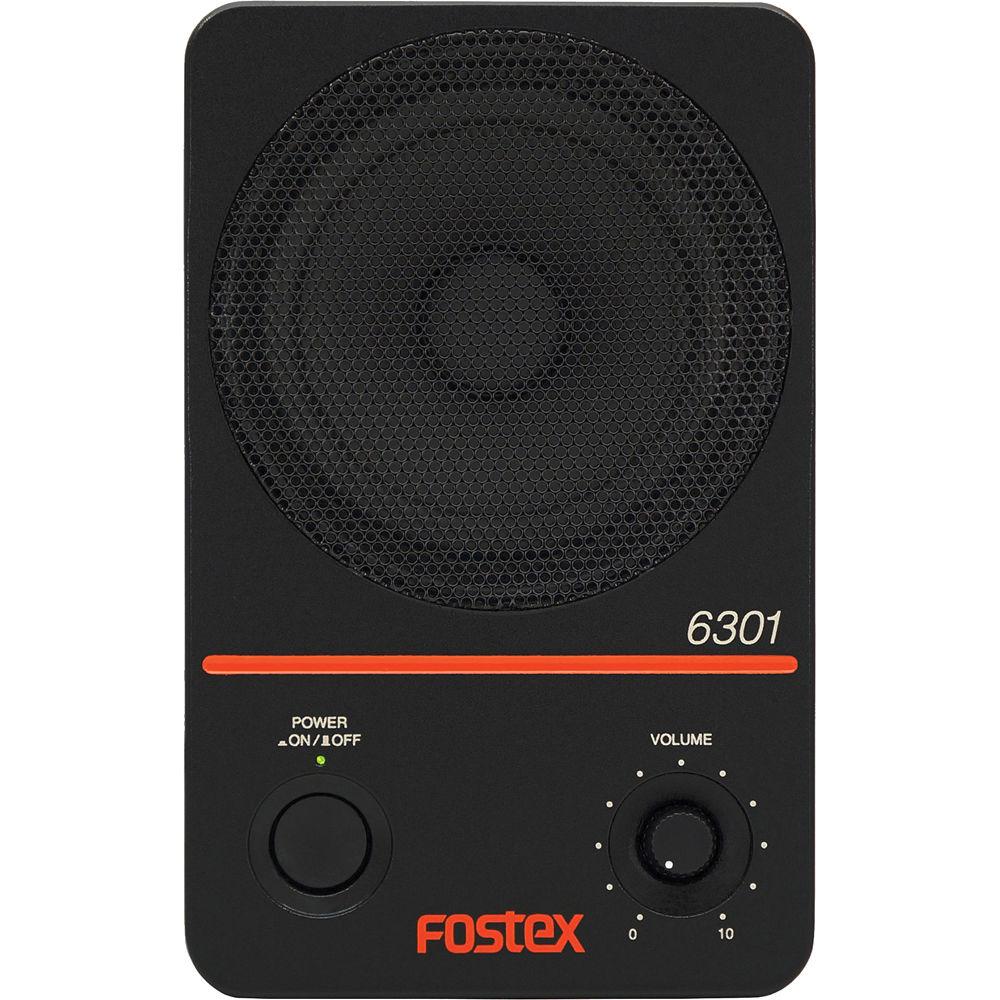

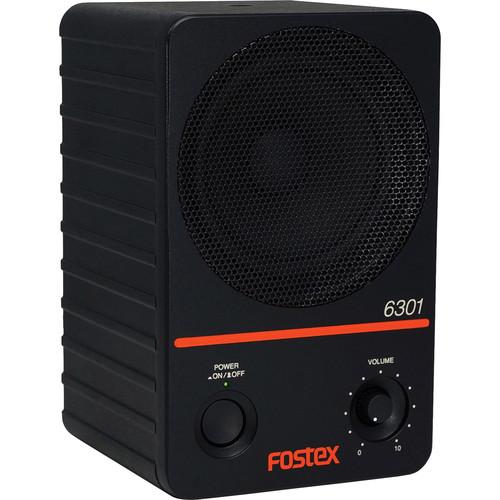

Product description The 6301NE from Fostex is a compact monitor speaker for use in professional mobile, project, or home studios and features a 4" full-range driver powered by an integrated 20W D-class amplifier. Inputs include an electronically balanced XLR connector and a 1/4" unbalanced connector. The front panel provides a power switch and a rotary level control for easy volume adjustments. An automated protection circuitry prevents overloads and short circuits, while the die-cast aluminum enclosure is made to withstand the rigors of professional use. The 6301NE ships with a standard IEC power cord. -
- Compact aluminum design
- 4" full-range driver
- 20W Class-D amplifier for powerful performance

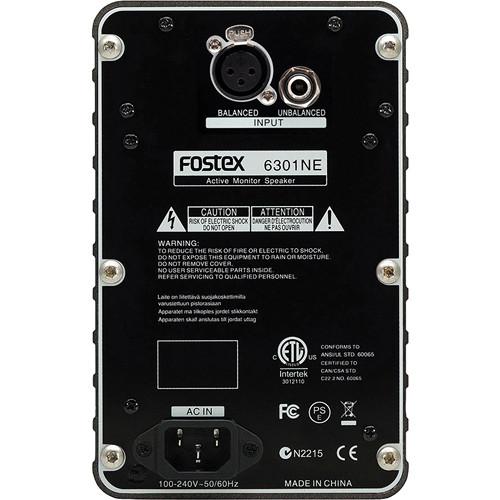

- Electronically balanced XLR input
- 1/4" unbalanced input
- Front-panel rotary volume control
- Protection circuitry keeps the speaker operating smoothly
- Magnetically shielded for safe use near video monitors
- Multi-voltage power supply
- Auto Standby Mode engages after 25 minutes, power consumption reduced to 0.5W

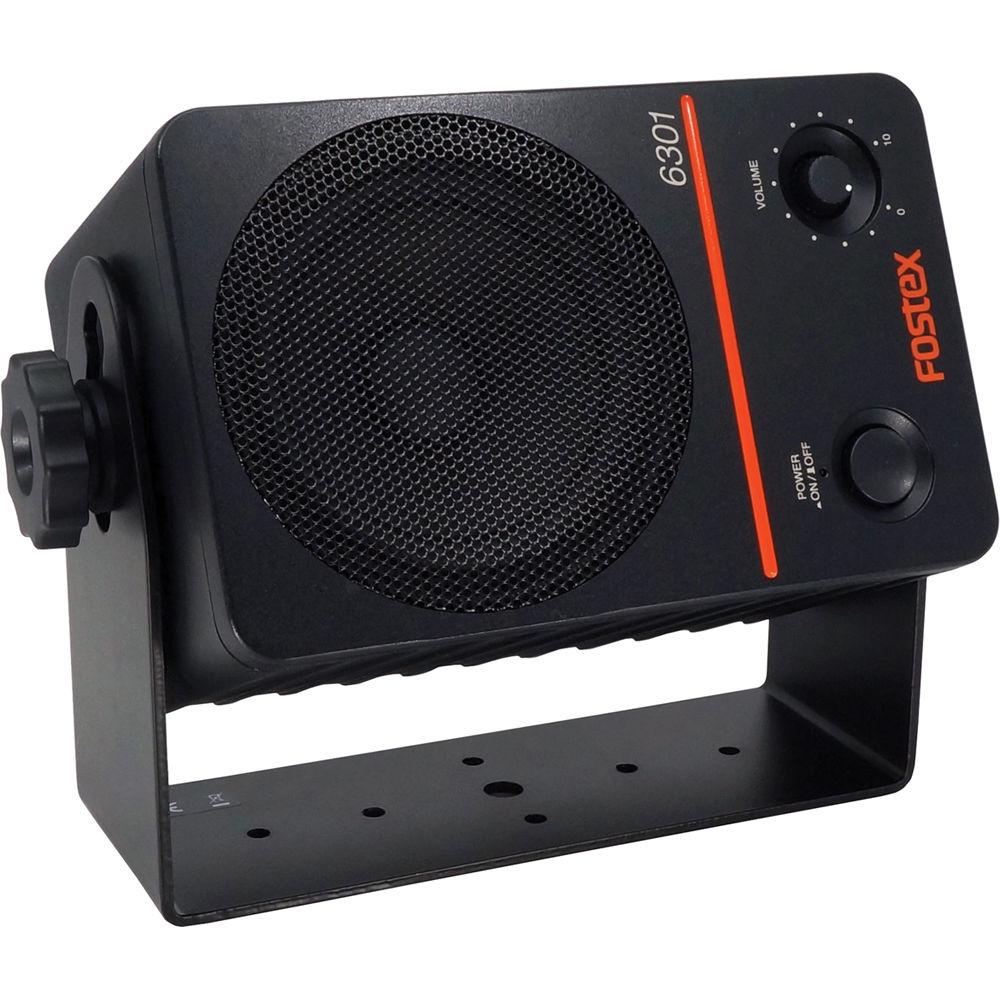

- Optional bracket available separately for mounting
UPC: 636827304641 In the Box Fostex 6301NE - 4" Active Monitor Speaker 20W D-Class (Single) Standard IEC Power Cord Limited 1-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Fostex 6301NE - 4" Active Monitor Speaker 20W D-Class in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFostex 6301N Specs | Type | Sealed powered speaker system | | Speaker | Cone Type Driver: 4" / 102 mm | | Amplifier | 20 W Class-D | | Frequency Range | 70 Hz to 15 kHz | | Output Sound Pressure Level | 85 dB/W @ 1 m | | Maximum Output | Maximum SPL: 98 dB | | Rated Output | 20 W | | THD | 0.05% (at 1 kHz 1 W output) | | Input Terminal | Input: 1/4" TS, unbalanced
Input: Analog balanced XLR, 3-31 type HOT No. 2 / electronic type | | Input Impedance | Analog Input: 10 kOhms or More | | Input Sensitivity | Analog (Unbalanced): -14 dBV (0.2 VRMS)
Analog (Balanced): +4 dBu (1.2 VRMS) | | Residual Noise | −70 dBV | | Controls | 1 x Power switch
1 x Volume control | | Indicator LEDs | Unlit: Power off
Lit In Green: Power on
Lit In Red: In standby | | Enclosure Material | Aluminum die-casting | | Shielded | Yes | | Power Consumption | Power Consumption: 10 W
Auto Standby: 0.5W | | Dimensions (HxWxD) | 7.4 x 4.7 x 4.7" / 189.0 x 120.0 x 120.0 mm | | Weight | 4.9 lb / 2.2 kg | | | | Package Weight | 6.05 lb | | Box Dimensions (LxWxH) | 9.7 x 9.4 x 7.4" |
