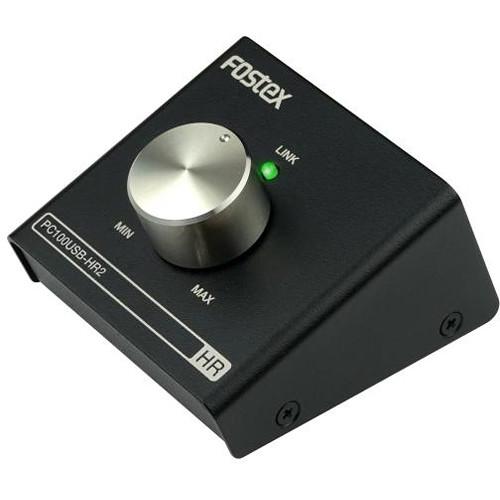

User Manual for Fostex Desktop Volume Controller Click to enlarge the picture
Contents of the user manual for the Fostex Desktop Volume Controller
- Product category: DACs Fostex
- Brand: Fostex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fostex DACs
|
User manual for the Fostex Desktop Volume Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fostex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fostex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fostex product will considerably shorten its lifespan!
|
Product description The Desktop Volume Controller from Fostex controls the audio level of your computer when using a powered speaker system. The controller features a built-in DAC that supports 24-bit / 96 kHz high-resolution audio. One USB and two RCA cables are included for connection to your computer and speakers. - Quick and easy volume control of the powered speakers connected to your computer
- Built-in high-resolution DAC
- Up to 24-bit / 96-kHz audio playback
- Also works as a quality headphone amp
- USB bus-powered, no external power required
- No need to install extra driver software either on Windows or Mac
- Weighted volume knob with silver finish
- Works right out of box with the supplied USB and RCA pin cables
UPC: 636827306478 In the Box Fostex Desktop Volume Controller USB 2.0 Type-A to Type-B Cable (3.3') 2 x RCA Pin Cables (3.3') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fostex Desktop Volume Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFostex PC-100USB-HR-2 Specs | | | Connectors | 2 x RCA, female | | Load Impedance | 10 kOhms or more | | Standard Output Level | +6 dBV (0 dBFS) | | | | Connector | 3.5 mm stereo mini-jack | | Load Impedance | 32 Ohms or more | | Rated Output | 30 mW + 30 mW
(32-Ohm load, THD 0.5% or less) | | | | Connector | USB Type-B | | Sampling Frequencies | 32, 44.1, 48, 88.2, 96 kHz | | | | Operating System | Windows 7 or later, Mac OS X 10.6 or later | | USB | USB 2.0 | | | | Quantization | 16- / 24-bit | | Power Consumption | Max. 2.5 W | | Power | USB bus power (5 V, 500 mA) | | Dimensions | 2.6 x 1.7 x 2.8" / 6.6 x 4.4 x 7.0 cm | | Weight | Approx. 7.4 oz / 210 g, not including cables | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 5.4 x 4.3 x 3.2" |
