User Manual for Fostex HP-A3 32-Bit D A Converter with Headphone Amp Click to enlarge the picture
Contents of the user manual for the Fostex HP-A3 32-Bit D A Converter
- Product category: AD/DA Converters Fostex
- Brand: Fostex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fostex AD/DA Converters
 |
User manual for the Fostex HP-A3 32-Bit D A Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fostex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fostex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fostex product will considerably shorten its lifespan!
|

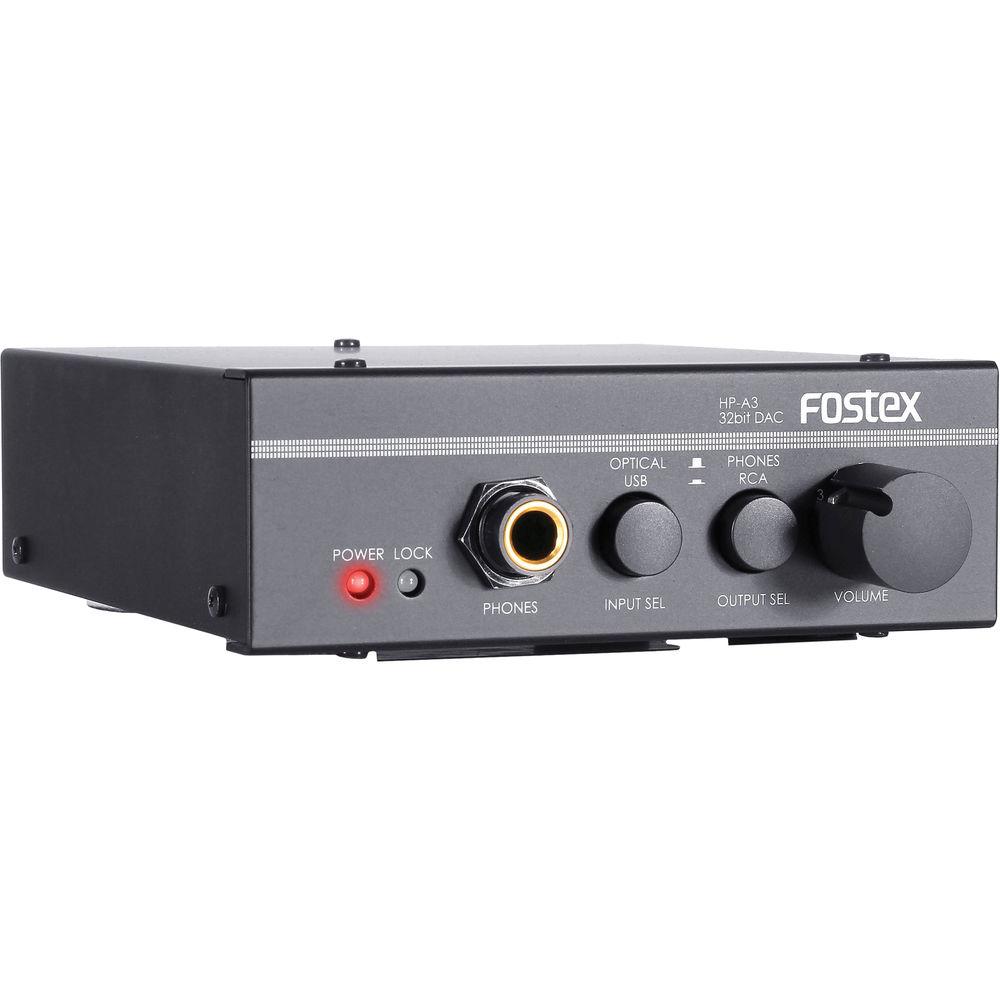

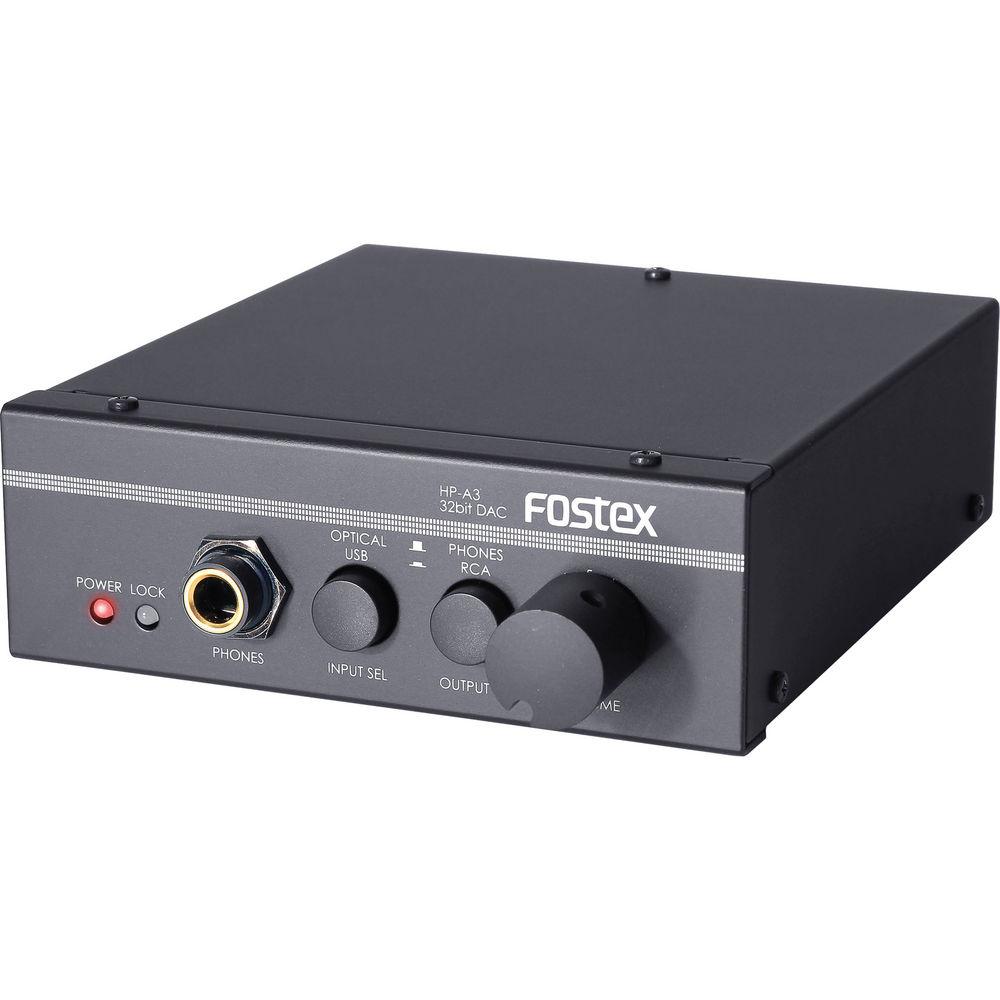

Product description The HP-A3 32-Bit D/A Converter with Headphone Amp from Fostex is a digital to analog audio converter designed for computer audio output. It is capable of handling up to a 24-bit, 96kHz digital audio source.

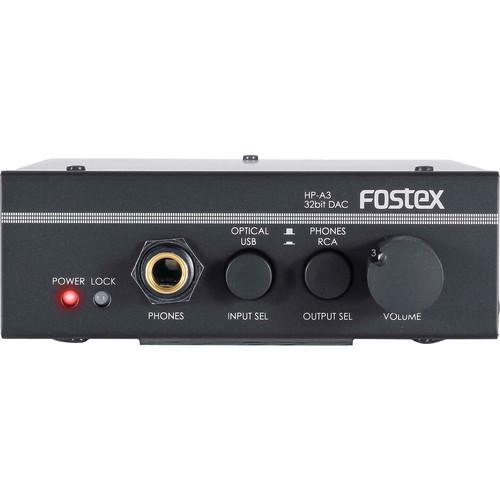

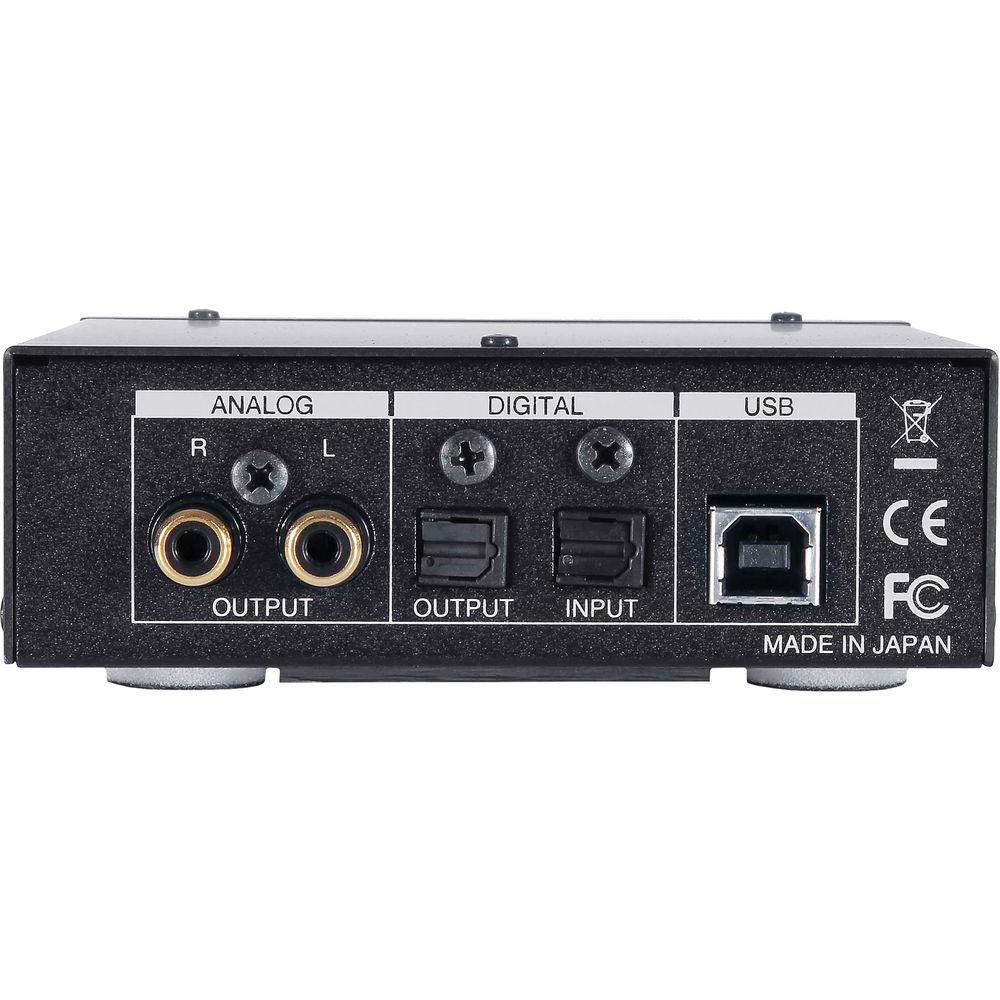

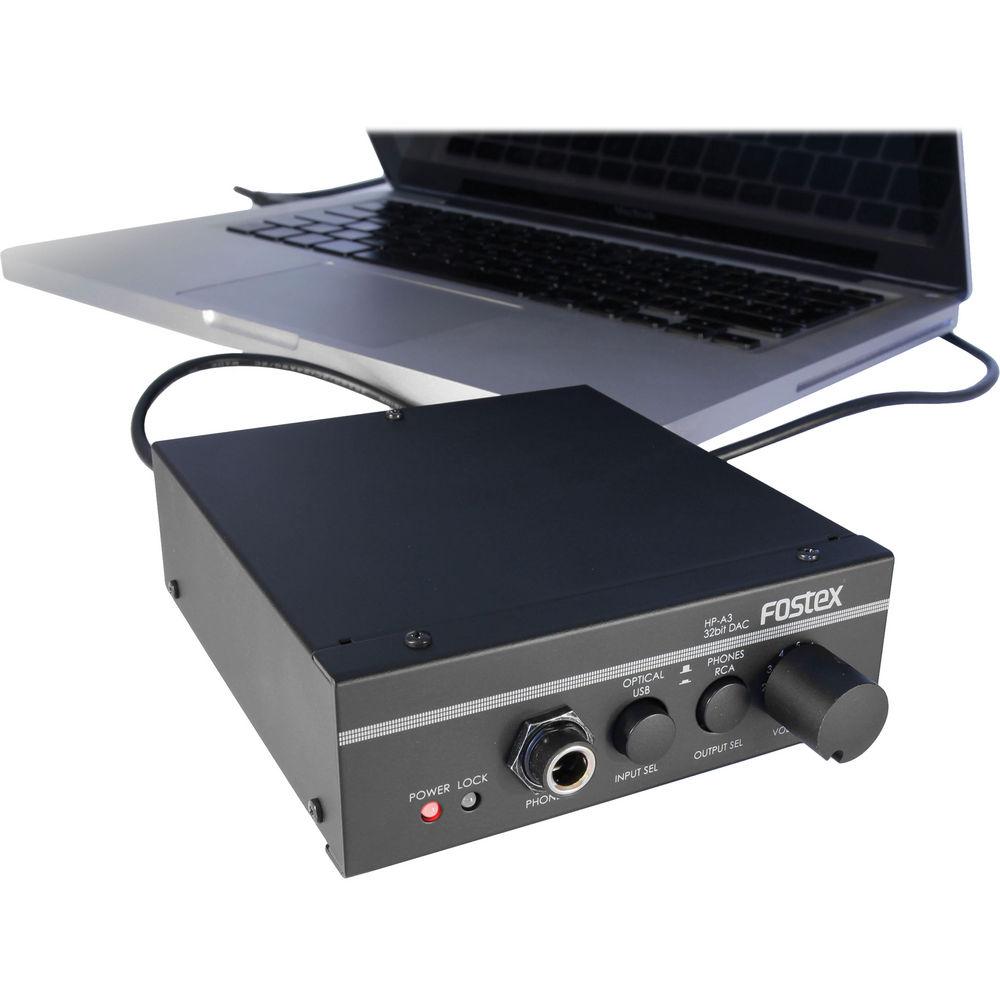

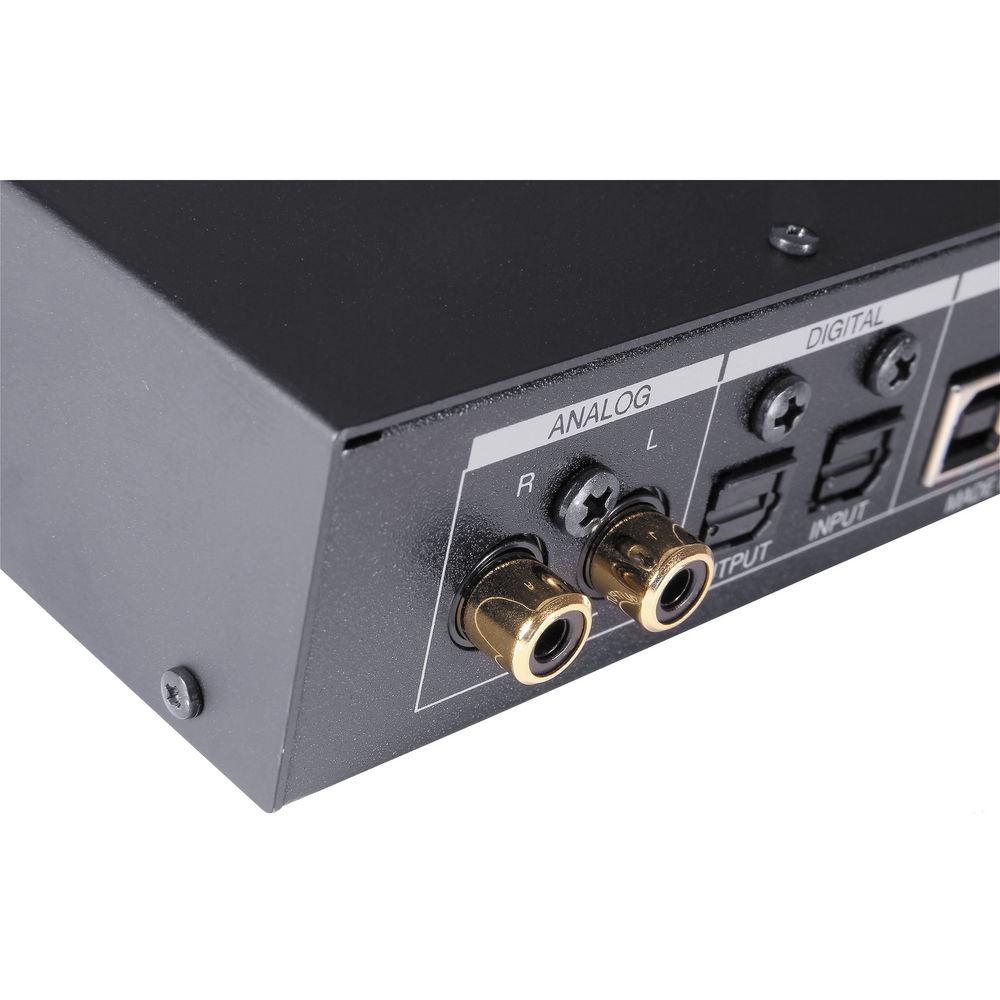

It features two analog outputs choices: two RCA line outs or a ¼" headphone out, powered by its built-in headphone amplifier. The HP-A3 has two digital input options; either USB or optical S/PDIF. It also features an S/PDIF digital output, which allows the unit to act as a digital to digital converter from USB to optical. The unit is USB bus powered regardless of input routing choice and does not have a separate AC input. The input and output routing is selectable by front panel selector buttons. - USB Bus power without using bulky AC adapter for ease of use with a laptop
- Equipped with high-grade AKM 32bit DAC AK4390
- Power supply is built-in to reproduce the stable electrical supply
- Condensers and OP amp are designed exclusively for audio applications
- USB or digital (optical) input selector button
- Headphones or RCA (analog) output selector button
- Doubles as digital to digital converter from USB digital audio to optical output
- Fixed sampling rate of 96 kHz with USB input
- Compatible with Mac OSX and Windows XP or later
UPC: 636827300223 In the Box Fostex HP-A3 32-Bit D/A Converter with Headphone Amp 3' USB Cable 4 x Rubber Feet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fostex HP-A3 32-Bit D A Converter with Headphone Amp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFostex HP-A3 Specs | Inputs | 1x USB 2.0 full speed
1x S/PIDF digital connector: optical, square (32 kHz to 96 kHz) | | Outputs | 1x 1/4" headphone output
2x RCA line outputs | | Maximum Output | Headphone output: 100 mW (32 Ω loaded) | | Reference Output | Line output: -10 dBV | | Total Harmonic Distortion | Headphone output: < 0.01% at 1 kHz, 32 Ω loaded, 100 mW
Line outputs: < 0.01% at 1 kHz | | Frequency Response | Headphone output: 20 Hz to 20 kHz +/- 0.3 dB (32 Ω loaded, 100 mW)
Line outputs: 20Hz to 20kHz +- 0.3 dB | | Compatibility | Mac: OSX
Windows: XP or later
USB port or S/PDIF optical output | | Power | DC5V | | Power Consumption | 2.5 W | | Dimensions (W x H x D) | 4 x 1 x 6" (108 x 36 x 140 mm) | | Weight | 1 lb (450 g) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.0 x 5.7 x 2.9" |
