User Manual for Fostex HP-A8C 32-Bit Digital Audio Converter and Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Fostex HP-A8C 32-Bit Digital Audio Converter
- Product category: Headphone Amplifiers Fostex
- Brand: Fostex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fostex Headphone Amplifiers
 |
User manual for the Fostex HP-A8C 32-Bit Digital Audio Converter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fostex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fostex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fostex product will considerably shorten its lifespan!
|

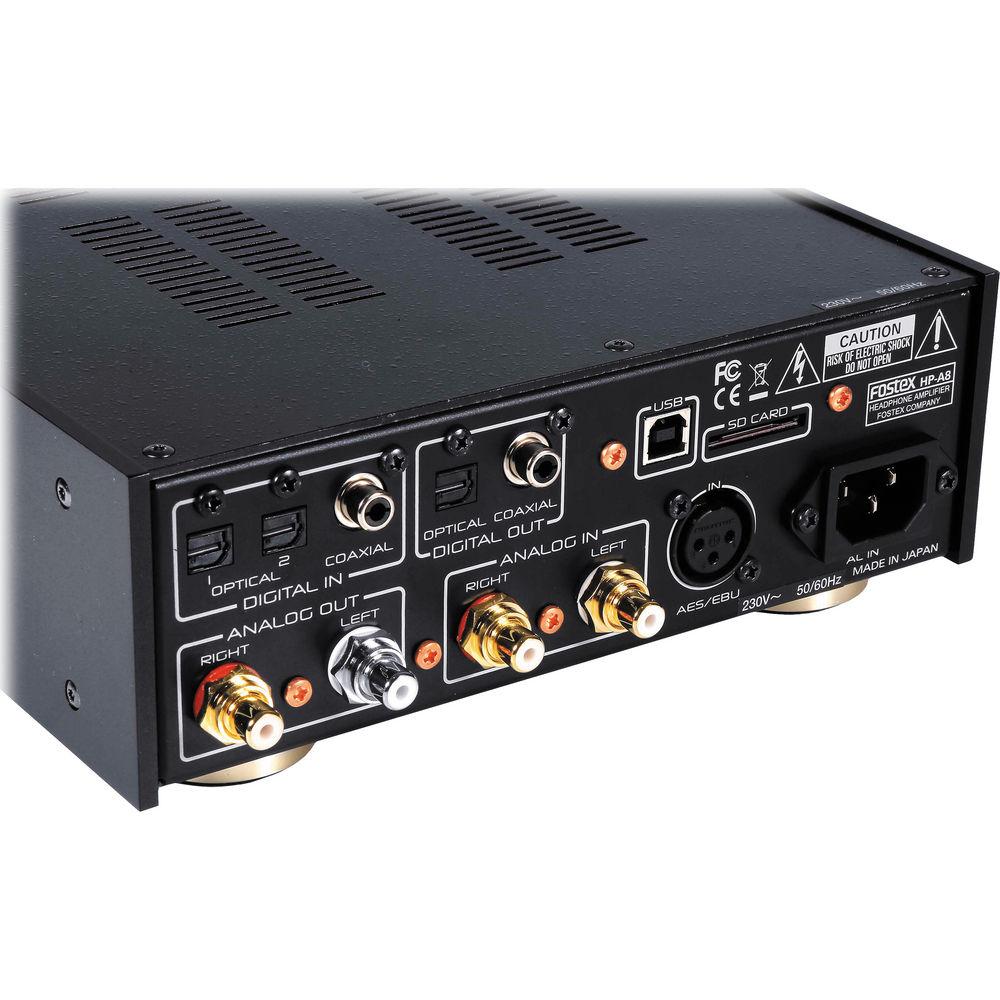

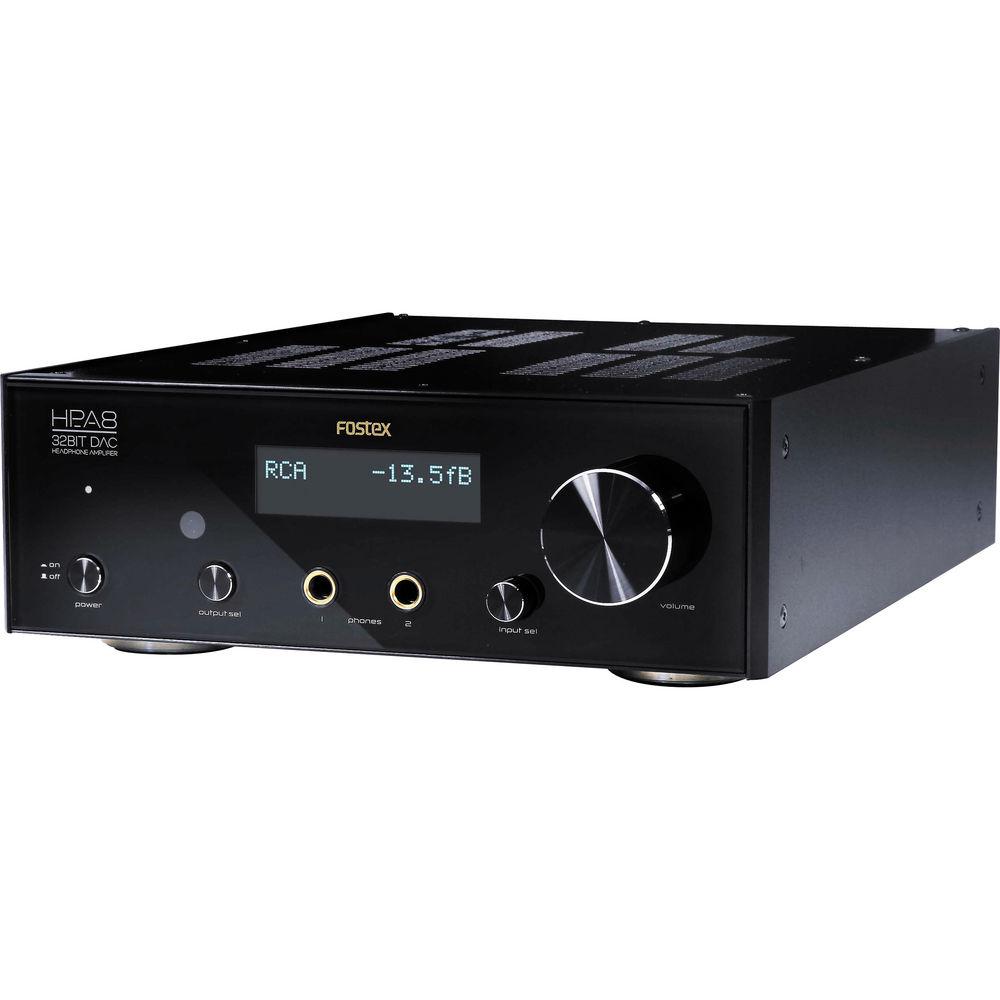

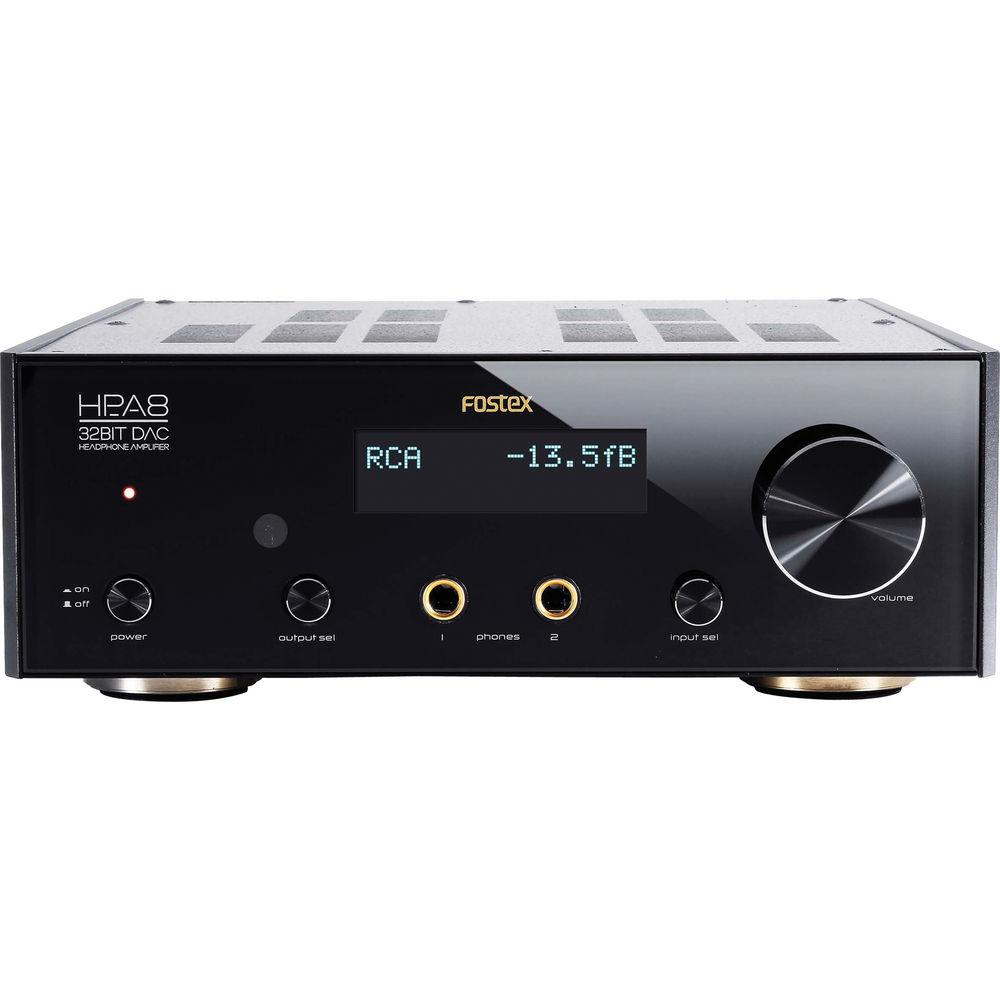

Product description The Fostex HP-A8C 32-Bit DAC Headphone Amplifier is a high-fidelity digital-to-analog converter with a discrete analog headphone amplifier. With this DAC, you can listen to music on headphones or speakers from a computer over USB or from another audio source device. For inputs, the DAC accepts digital AES/EBU, digital optical, digital coaxial, SD cards via an SDHC card slot, or analog RCA. For audio streamed via USB, coaxial and optical inputs, the DAC can up sample the incoming signal by x2 or x4 at up to a 192 kHz sample rate with 32-bit resolution for Mac OS X and 24-bit resolution for Windows. - Outputs
- For outputs, the DAC features RCA line and two 1/4" headphone jacks
- Control

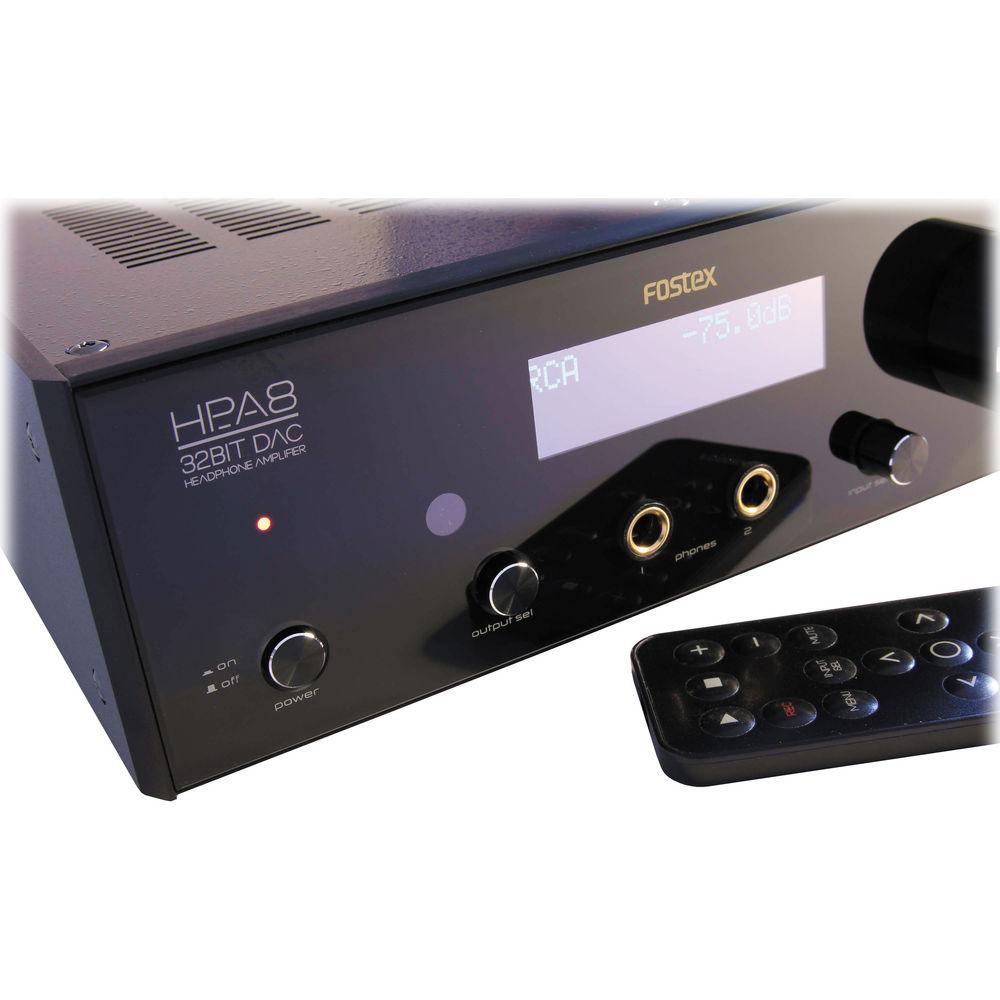

- A button on the front of the unit allows you to turn the power off/on, and two knobs allow you to select the input and output sources. An electronic volume knob allows you to adjust the headphone gain from 0 to -12 dB in 0.5 dB step increments. A direct-out mode can be engaged to bypass the volume control knob altogether. For added convenience, the DAC comes with a dedicated remote controller
- Built-in SDHC Card Slot for DSD Playback
- The SD card slot can playback content in Direct Stream Digital File format (DSF)
- Asynchronous Mode with TCXO Clock
- To keep precise low-jitter time, the DAC utilizes an internal asynchronous temperature-compensated crystal oscillator clock
- Power
- The DAC utilizes a large-capacity toroidal transformer power supply
- Selectable Internal or External Clock
- The DAC can utilize either its internal asynchronous crystal oscillator clock or be switched to sync via digital I/O to an external clock source such as from a separate analog to digital converter, a master clock, or a reference clock for syncing audio to video
- Digital Filter Selection
- To remove pre-echo from playback, the DAC allows you to select between a traditional sharp roll off and a minimum delay filter
UPC: 636827302456 In the Box Fostex HP-A8C 32-Bit Digital Audio Converter and Headphone Amplifier Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fostex HP-A8C 32-Bit Digital Audio Converter and Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFostex HP-A8C Specs | | | Sampling Resolution | USB Port: up to 32 bit/192 kHz (24 bit on Windows) 192 kHz sample rate
32-bit for Mac
24-bit for Windows | | Interface | 1 x High Speed USB 2.0 | | Digital | 2 x optical connector, square
2 x coaxial connector, RCA pin | | Format | Optical and Coaxial: S/PDIF | | Resolution |
USB: 44.1 to 192 kHz
Optical: 44.1 to 192 kHz
Coaxial: 44.1 to 192 kHz
AES/EBU: 44.1 to 192 kHz
SDHC: DSF | | Analog Audio Connector | RCA pin left and right | | | | Headphone Outputs | Connector: Stereo Phone | | Max Output | 700 mW (32 Ω loaded) | | Recommended Load Impedance | 16 to 600 Ω | | THD | Less than 0.002% at 1 kHz, 32 Ω loaded, 100 mW | | Frequency Response | 10 to 80,000 Hz ±0.3 dB | | Digital Audio Connectors | Optical, square
Format: S/PDIF | | | | Power Consumption | 24 W | | Dimensions (WxHxD) | 8.39 x 3.07 x 12.36" (21.3 x 7.8 x 31.4 cm) | | Weight | 8.26 lb (3.75 kg) | | | | Package Weight | 12.2 lb | | Box Dimensions (LxWxH) | 19.3 x 13.6 x 8.5" |
