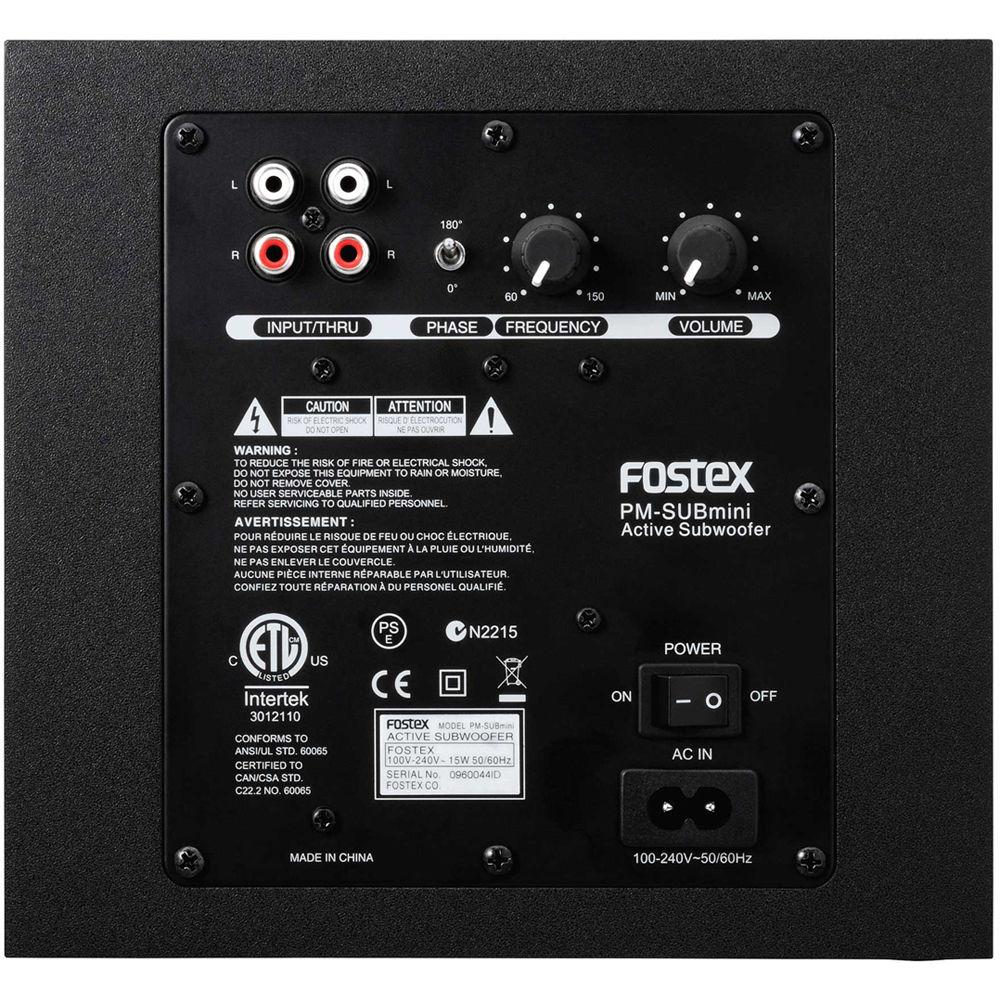

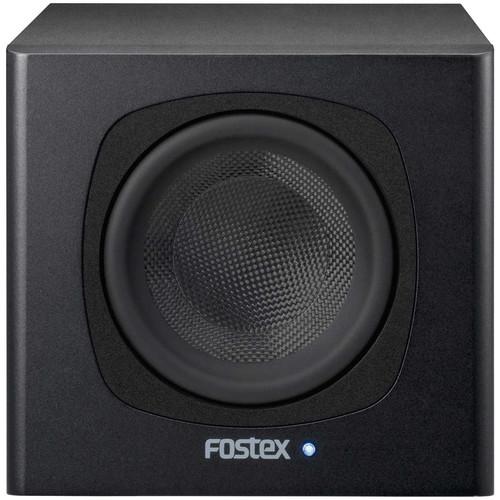

Product description The PM-SUBmini from Fostex is an active mini-subwoofer that features a 5" woofer, and is designed to provide powerful bass response in a compact enclosure. It can be used with the built-in, pass-through RCA terminals, easily integrating with your existing compact speakers for better low-frequency enhancement.The subwoofer features a 50W digital amplifier and a variable crossover-frequency control that can be set between 60 and 150 Hz. There is also a phase-reverse switch for easy adjustment to match main speakers, such as the optional Fostex PM0.1, PM0.3/0.3d, as well as any other compact speakers. - 5-inch (13cm) woofer dedicatedly designed to reproduce powerful lows in a compact enclosure box
- The driver features a high rigid fiberglass material for the diaphragm and the center cap. The voice coil is 4-layer wound to control the mid/highs for better lows

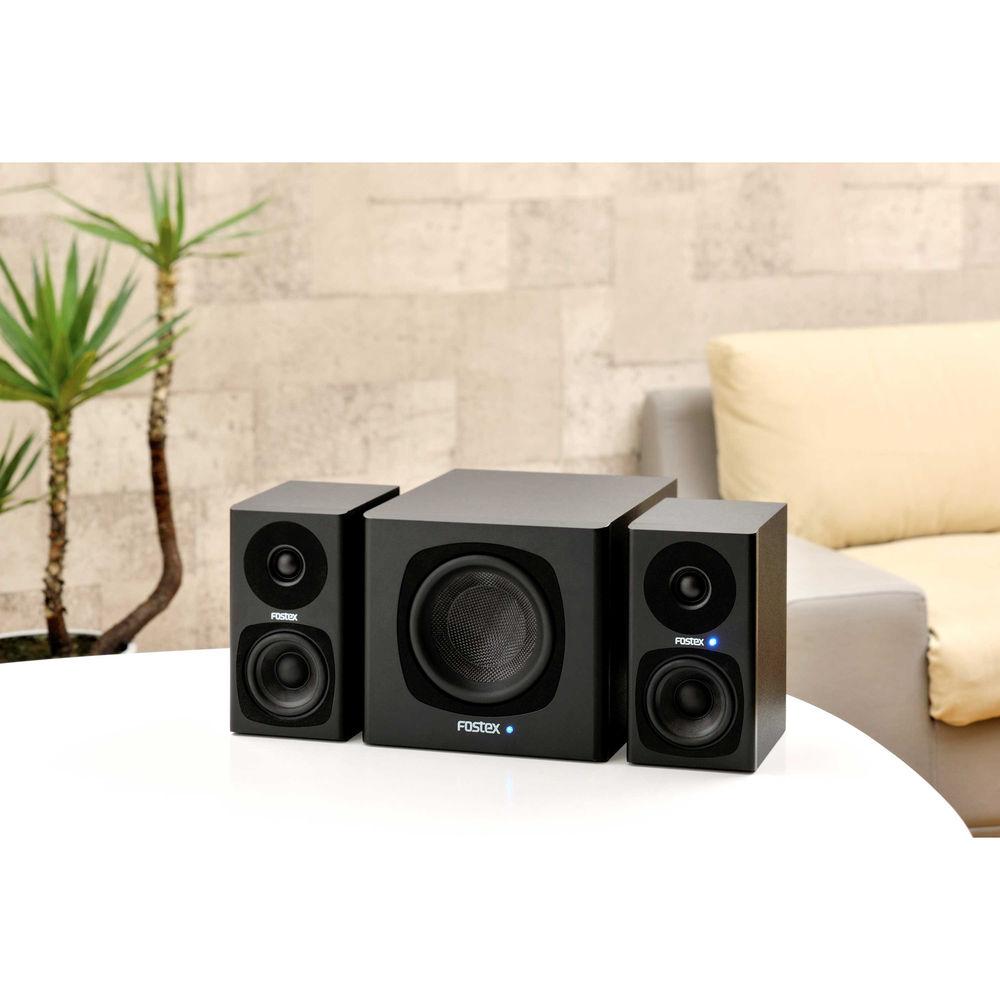

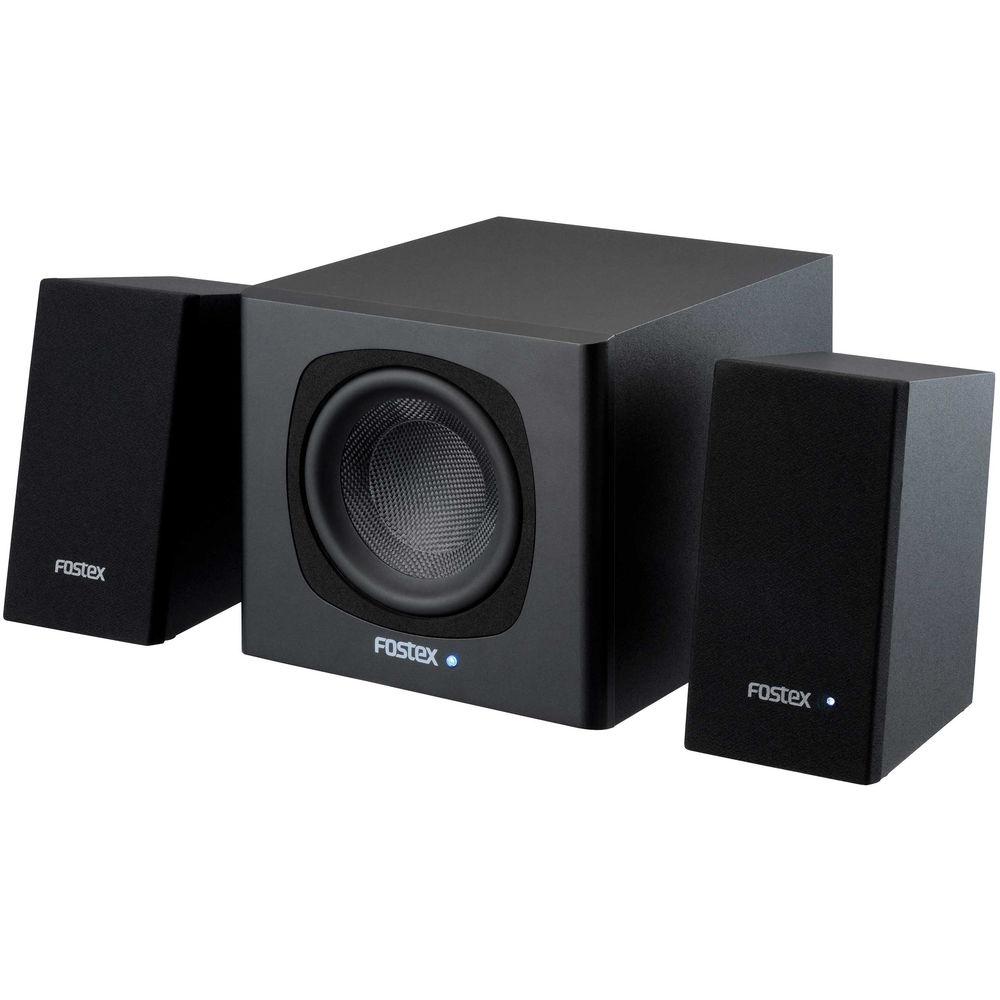

- The physical measurements are the same as 2 x PM0.3/0.3d (except for the depth), making the PM-SUBmini an ideal match for the popular desktop speaker system
- Closed type enclosure box with raftered front baffle
- Highly efficient 50W digital amplifier with built-in PSU
- Variable crossover frequency control between 60 / 150 Hz and phase reverse switch for easy adjustment to match such main speakers as PM0.1, PM0.3/0.3d, as well as any other compact speakers
- Signal is fed to main speakers even while the power is turned off
- Automatic energy-saving function puts the PM-SUBmini into sleep mode consuming only 0.5W or less after approx. 15 minutes of no signal input
UPC: 636827306232 In the Box Fostex PM-SUBmini 50W 5" Active Subwoofer 6.7' (2.0 m) Power Cord 4.9' (1.5 m) RCA Cable Limited 1-Year Warranty User Manual PDF 11.4mbucfusuzwrrdtsc Table of Contents
|
Upload User Manual
Have you got an user manual for the Fostex PM-SUBmini 50W 5" Active Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFostex PM-SUBmini Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Sealed, Shielded | | Power Rating | 50 W | | Drivers | LF Driver: 1 x 5" / 13 cm Woofer | | | | Frequency Range | 40 Hz to 150 Hz | | Signal-to-Noise Ratio | 80 dBA | | | | Crossover Frequency | 150 Hz Crossover Frequency is Adjustable from 60 to 150 Hz | | | | I/O | 1 x Stereo RCA Unbalanced Analog Input (10 kOhms)
1 x Stereo RCA Unbalanced Analog Output | | | | Power Consumption | 0.5 W (Standby)
15 W (Maximum) | | | | Dimensions (W x H x D) | 7.9 x 7.3 x 9.2" / 200.0 x 185.0 x 233.0 mm | | Weight | 16.3 lb / 7.4 kg | | | | Package Weight | 10.7 lb | | Box Dimensions (LxWxH) | 12.9 x 11.7 x 10.5" |
