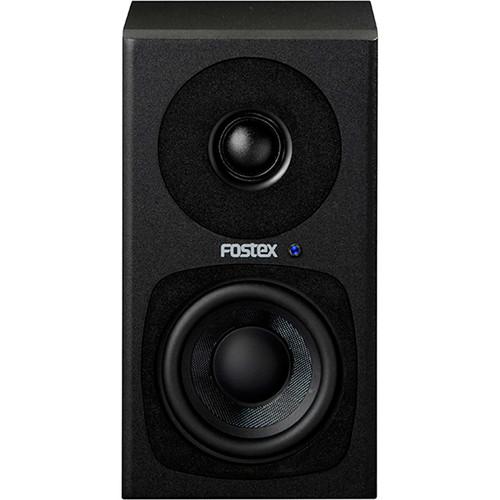

User Manual for Fostex PM0.3H-B 3" 2-Way 30W Personal Active Speaker System Click to enlarge the picture
Contents of the user manual for the Fostex PM0.3H-B 3" 2-Way 30W Personal
- Product category: Studio Monitors Fostex
- Brand: Fostex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Fostex Studio Monitors
|
User manual for the Fostex PM0.3H-B 3" 2-Way 30W Personal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Fostex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Fostex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Fostex product will considerably shorten its lifespan!
|
Product description The black Fostex PM0.3H-B is a personal active speaker system designed to provide compact audio amplification with extended high-frequency reproduction for musicians, producers, and audio engineers in home studios, computer workstations, and editing suites. It features 30W of Class-D amplification driving two speakers—one active and one passive. Each speaker has a 3" fiberglass cone woofer and a 3/4" silk dome tweeter housed in a wooden enclosure with a rear bass reflex port.The 110 Hz to 40 kHz frequency response makes it ideal for production environments where monitoring emphasis is on high-end detail rather than sub-bass frequencies. Stereo RCA and 3.5mm inputs enable easy connectivity with mixers, audio interfaces, and mobile devices. A volume knob on the rear of the active speaker offers quick level adjustment for both speakers. A 5' speaker cable, 5' stereo aux cable, and power adapter are included with the PM0.3H-B. - 2-way system with 3" fiberglass cone woofer and 3/4" silk dome tweeter drivers
- One active speaker and one passive speaker
- Sturdy wooden enclosure with rear bass reflex port
- Matte-finished front baffle
- Class-D amplification provides 15W RMS per channel
- Stereo RCA and 3.5mm mini-jack inputs
- Includes speaker cable to interconnect speakers
- Includes power adapter and 3.5mm stereo aux cable
UPC: 636827307901 In the Box Fostex PM0.3H-B 3" 2-Way 30W Personal Active Speaker System (Black) AC Adapter 5' Speaker Cable 5' Stereo Aux Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Fostex PM0.3H-B 3" 2-Way 30W Personal Active Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersFostex PM0.3H Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 15 W RMS per Channel | | Drivers | HF Driver: 1 x 0.75" / 19 mm Silk Dome Tweeter
LF Driver: 1 x 3" / 75 mm Fiberglass Cone | | Amplification | 2 x Full-Range Amplifier: Class-D Rated at 15 W RMS | | | | Frequency Response | 110 Hz to 40 kHz ± 3 dB | | Signal-to-Noise Ratio | 90 dBA | | Total Harmonic Distortion (THD) | 0.1% | | Analog Input Sensitivity/Gain | -6.6 / -1.5 dBu RCA and Stereo 1/8" / 3.5 mm Respectively | | | | Crossover Frequency | 2.6 kHz | | | | I/O | 1 x Stereo RCA Unbalanced Analog Input
1 x 1/8" (3.5 mm) TRS Analog Input
1 x 1/8" (3.5 mm) TS Analog Output | | | | DC Input Power | 15 VDC at 3.2 A | | | | Enclosure Material | Wood | | Dimensions (W x H x D) | 3.9 x 7.3 x 5.1" / 100.0 x 185.0 x 130.0 mm | | Weight | 3.3 lb / 1.5 kg (Active Speaker)
3.1 lb / 1.4 kg (Passive Speaker) | | | | Package Weight | 8.85 lb | | Box Dimensions (LxWxH) | 14.5 x 10.5 x 7.1" |
